View Issue Details

IDProjectCategoryView StatusLast Update
0012153ScribusGraphics / Image Framespublic2014-03-20 15:32
Reporterutnik Assigned Tojghali
PrioritynormalSeverityminorReproducibilityalways
Status closedResolutionduplicate
OSmacOS (maybe all)OS Version10.6.8
Product Version1.4.3
Summary0012153: scribus defines incorrect bounding boxes for vector objects.
Descriptionthe bounding box for path objects includes the position of the control points of the nodes. this can produce huge boxes, which make all the snapping functions and the whole 'align and distribute' window useless.

the problem appears with paths created in scribus and with imported .svg vectors from inkscape. in inkscape the bounding box is smaller. (contains only the path object itself – see files)
Steps To Reproducecreate a path with the bézier tool (make sure, some of the control points stand out of the path…)
duplicate the element and play with aligning and snapping functions.
TagsNo tags attached.
Patch

Relationships

duplicate of 0007661 closedfschmid Bezier bounding box miscalculation

Activities

utnik

2014-03-20 13:23

updater

shape.svg (1,889 bytes)
shape.svg (1,889 bytes)

utnik

2014-03-20 13:23

updater


utnik

2014-03-20 13:23

updater


jghali

2014-03-20 15:32

administrator   ~0031528

Duplicate of issue 0007661. We won't fix this issue in 1.4.x.

Issue History

Date Modified Username Field Change
2014-03-20 13:23 utnik New Issue
2014-03-20 13:23 utnik File Added: shape.svg

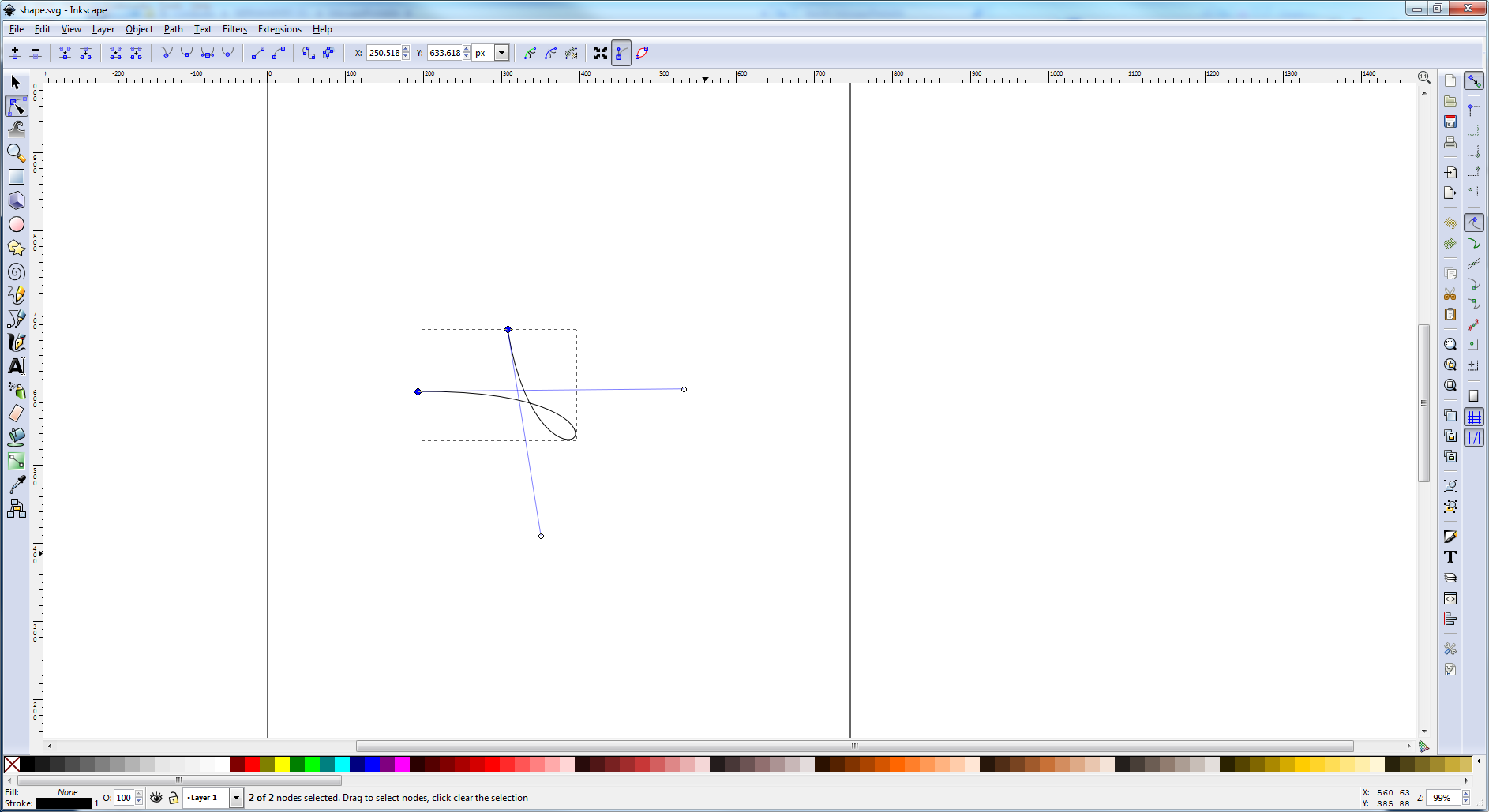

2014-03-20 13:23 utnik File Added: box_in_inkscape.png

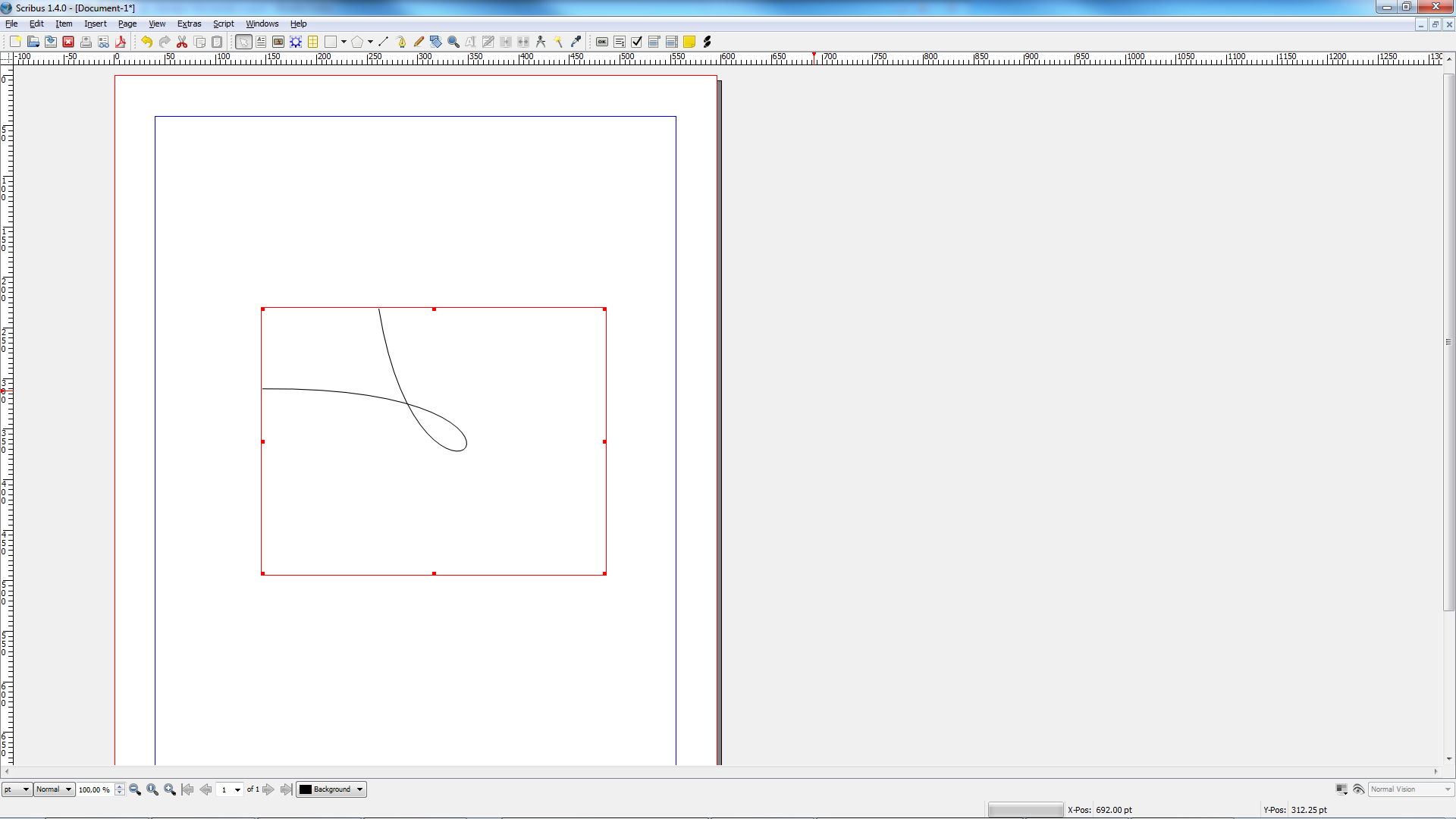

2014-03-20 13:23 utnik File Added: box_in_scribus.png
2014-03-20 15:32 jghali Note Added: 0031528
2014-03-20 15:32 jghali Relationship added duplicate of 0007661
2014-03-20 15:32 jghali Status new => resolved
2014-03-20 15:32 jghali Resolution open => duplicate
2014-03-20 15:32 jghali Assigned To => jghali
2014-03-20 15:32 jghali Status resolved => closed
2015-09-17 20:10 Kunda Category Graphics / Image Frames => Graphics/Img Frames
2015-09-17 20:11 Kunda Category Graphics/Img Frames => Graphics / Image Frames
