Summary0005416: PDF Export output not as expected
DescriptionRGB to CMYK conversion seems to have some issues with 1.3.3.9cvs as well as 1.3.4cvs. Reporting to 1.3.3.9cvs as that's most likely the one that should be fixed first.

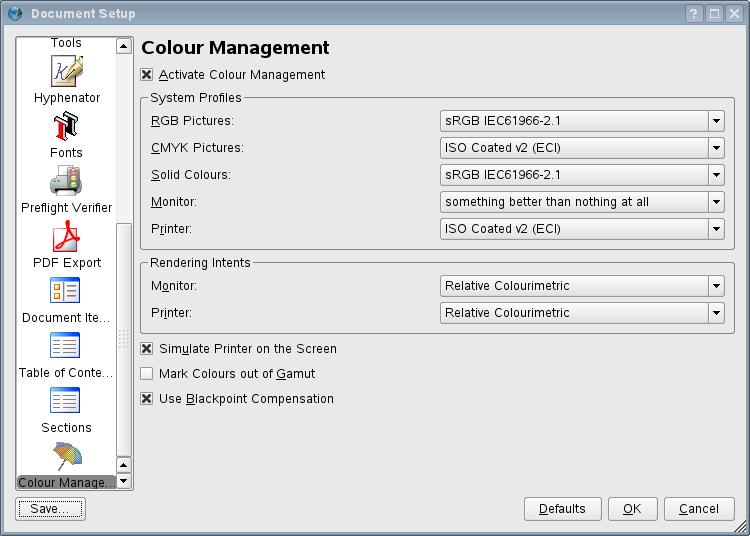

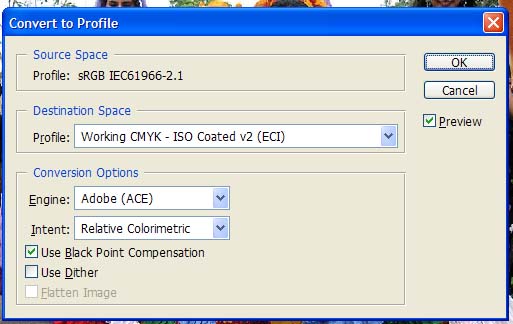

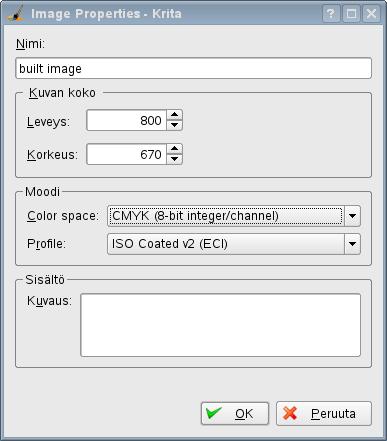

In the pdf file available at http://www.saunalahti.fi/rikle/cmyk-test.pdf I have inserted two cmyk images (above two) which has both been converted using ECI ISO Coated V2 profile. The first one in Photoshop and the second one in Krita. The third image on the page is the original rgb image from where the conversion was done. I have also set target profile in Scribus to ECI ISO Coated V2 and tried to match other settings too (settings for the three can be seen attached). In the result PDF I would expect at least the Krita and Scribus images to match (or be even close to each other) but that is not the case. Scribus made conversion seems to be way off.

The original Scribus doc with the images can be found at http://www.saunalahti.fi/rikle/cmyk-test.tar.bz2
TagsNo tags attached.
Patch

Relationships

parent of 0005425 closedjghali PDF Export output not as expected

Activities

2007-03-03 22:00




2007-03-03 22:01




2007-03-03 22:01




2007-03-03 22:01




Tsoots

2007-03-03 22:02

reporter   ~0015444

Added also a screenshot (scribus-soft-proof.jpg) from scribus where I've set it to "simulate printer on screen". Colors then seems to be ok on screen and the rgb image looks like it should look.

jghali

2007-03-04 14:35

administrator   ~0015446

This issue is caused by a mess in channel order

jghali

2007-03-04 19:36

administrator   ~0015452

Should be fixed now in 1339cvs

Tsoots

2007-03-04 20:14

reporter   ~0015453

Can confirm that it's fixed for 1339cvs. See the pdf at http://www.saunalahti.fi/rikle/cmyk-test-fixed.pdf
