View Issue Details

IDProjectCategoryView StatusLast Update
0009902ScribusGraphics / Image Framespublic2011-10-05 20:04
Reporterjirib Assigned Tocbradney
PrioritynormalSeverityminorReproducibilityalways
Status closedResolutionfixed
Platformi386OSLinuxOS VersionUbuntu 10.10
Product Version1.4.0svn
Target Version1.4.0Fixed in Version1.4.0svn
Summary0009902: Font letters spoiled when using text flow around frame
DescriptionSome fonts letters are spoiled (not OK) when using text flow around clipping path or frame shape obtained from clipping path.

It is visible that little part of font letters are "inside" "border" of text flow.

See example scribus document and pdf.

1. first image is a tiff using clipping path
- (upper right part of the cross) m v p q are spoiled, compare with same letters in different position inside text

2. second image is a tiff with frame shape obtains from clipping path
- (upper right part of the cross) last f e m are very visible spoiled

The tiff image is prepared in Gimp.
* selection, grow selection -> path

Using text flow with clipping path or frame shape from clipping path impact quality of text, then it is unusable, low-quality. This is annoying because text flow is very needed around complicated shapes and doing this manually in Scribus is very slow :(
Steps To ReproduceOpen provided attachment and see rendered text as described above.
TagsNo tags attached.
Patch

Relationships

related to 0009436 closedjghali wrong text formating - text extend margins or columns
has duplicate 0009996 closedjghali Minimum char length for wrapped text. Now words are hacked in single chars when picture with text wrap placed above.
has duplicate 0010176 closedjghali Wrong word wrapping when "flow around contour line" is choosed

Activities

jirib

2011-04-02 20:36

reporter

test_all.tar.gz (169,262 bytes)

jirib

2011-04-02 20:37

reporter   ~0025996

I'm uploading resulted pdf separatelly as well so people can see directly the issue.

jirib

2011-04-02 20:38

reporter

test.pdf (90,460 bytes)

jirib

2011-04-02 22:22

reporter   ~0025997

Well, this is even more serious, letters are ALWAYS spoiled, you can use modified frame space, conture line, clipping path -- always spoiled. Hmmm, looks like it is imposible to make high-quality text flowing in scribus around shapes :/

ale

2011-04-04 16:07

manager   ~0026000

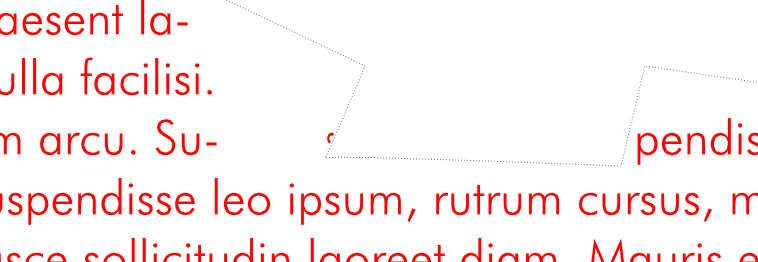

i've added a documnet_1.sla / document_1.png to show another "aberration" (check the "s" before the "p" in "Suspendisse"

ale

2011-04-04 16:07

manager


ale

2011-04-04 16:08

manager

Document-1.sla (14,182 bytes)

cezaryece

2011-06-21 16:39

updater   ~0026448

My patch from 0009436 should solve partially this issue.
Only partially.
In ma patch I provide checking if any part of glyph bounding box is in overflow area.
But because region computation is in 1 pt precision there still can be similar issues. To completely resolving that we need to increase precision.

cezaryece

2011-09-08 10:31

updater   ~0026840

Look here http://bugs.scribus.net/view.php?id=10251

cedricsagne

2011-09-10 14:37

reporter   ~0026846

I noticed a similar thing when using dropcaps on a line which is stopped not by the natural frame limit but by an image frame or shape.
The first letter of the second line (on the left - whereas the shape is on the right) is placed where the dropcap is.

I noticed the problem disappears depending on the order in which the text frame / shape / styles are created or applied

cezaryece

2011-10-02 12:51

updater   ~0026946

it resolved by 0010251
