View Issue Details

IDProjectCategoryView StatusLast Update
0010304ScribusStory Editor / Text Framespublic2017-10-09 18:42
Reporterale Assigned Tojghali
PrioritynormalSeverityfeatureReproducibilityN/A
Status closedResolutionno change required
Product Version1.5.0
Summary0010304: paragraphs aligned to the baseline grid should only overflow if the baseline grid does not fit

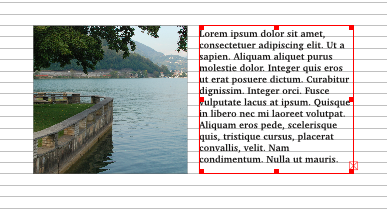

Descriptionif a text frame is aligned to the baseline, the last line of the frame should only overflow if the baseline does not fit in the frame and ignore the descending part of the glyphs.

 otherwise you have to make each text frame a few pixel "longer" in order to fit the last line (and get it aligned to the picture nearby...)
TagsNo tags attached.
Patch

Activities

ale

2011-10-04 08:29

manager


ale

2011-10-04 08:40

manager   ~0026961

the descending part should be drawn outside of the frame

just like it's done for the first line when line spacing is choosen for the first line offset.
maybe we need an option just like the first line offset: last line offset...

ale

2011-10-04 11:21

manager   ~0026962

personally, i'm comfortable with scribus checking the descents for automatic lineheights.
i don't know what the correct behavior is for fixed lineheights...
... but i'm pretty sure that when using baselines there should at least be an option to ignore the descents when calculating the overflow.

jghali

2011-10-04 11:37

administrator   ~0026963

>> the descending part should be drawn outside of the frame

Sorry, but this is totally unacceptable. If line has a descent, is there is no place for it in frame, frame must overflow. Period. Scribus currently does not take into account the real line descent, but we have already bug for that.

ale

2011-10-04 11:59

manager   ~0026964

Last edited: 2011-10-04 12:00

in theory it may be totally unacceptable... (even if i still wonder why?)

and why is it acceptable for the first line in the frame but not for the last one?

and in my real world, it's a needed feature!
please try to work with the current behavior, and you will notice that it's a pain!

and it's a pain to see a request simply closed with such wording.

jghali

2011-10-04 12:27

administrator   ~0026966

Last edited: 2011-10-04 12:32

>> please try to work with the current behavior, and you will notice that it's a pain!

This is not Scribus responsibility if you choose a font which does not meet your requirement ie with a 0 descent. And there is not a single reason that suddenly layout rules would change because of a change in line spacing mode.

And as mentioned already that issue is at best a duplicate.

ale

2017-10-09 18:42

manager   ~0044522

five years later...
still an issue...

and it seems that indesign does it right:

"In any case, InDesign let the descenders go under the bottom margin."

but i cannot check.

why? because somebody is again asking for being able to snap frames to the baseline... and without this feature, half of the snapping becomes an anti-feature : - (

Issue History

Date Modified Username Field Change
2011-10-04 08:29 ale New Issue
2011-10-04 08:29 ale File Added: baseline.png
2011-10-04 08:40 ale Note Added: 0026961
2011-10-04 11:21 ale Note Added: 0026962
2011-10-04 11:37 jghali Note Added: 0026963
2011-10-04 11:37 jghali Status new => resolved
2011-10-04 11:37 jghali Resolution open => no change required
2011-10-04 11:37 jghali Assigned To => jghali
2011-10-04 11:37 jghali Status resolved => closed
2011-10-04 11:59 ale Note Added: 0026964
2011-10-04 11:59 ale Assigned To jghali =>
2011-10-04 11:59 ale Status closed => new
2011-10-04 12:00 ale Note Edited: 0026964
2011-10-04 12:27 jghali Note Added: 0026966
2011-10-04 12:27 jghali Status new => resolved
2011-10-04 12:27 jghali Assigned To => jghali
2011-10-04 12:27 jghali Status resolved => closed
2011-10-04 12:32 jghali Note Edited: 0026966
2015-09-17 20:08 Kunda Category Story Editor / Text Frames => Story Ed/Txt Frames
2015-09-17 20:12 Kunda Category Story Ed/Txt Frames => Story Editor / Text Frames
2017-10-09 18:42 ale Note Added: 0044522
