typographicSpaces.patch (35,218 bytes)
diff --git a/Scribus/scribus/pageitem.cpp b/Scribus/scribus/pageitem.cpp
index 17ce6a4..4edad69 100644
--- a/Scribus/scribus/pageitem.cpp
+++ b/Scribus/scribus/pageitem.cpp
@@ -2342,7 +2342,7 @@ void PageItem::SetQColor(QColor *tmp, QString farbe, double shad)
sets xadvance to the advance width without kerning. If more than one glyph
is generated, kerning is included in all but the last xadvance.
*/
-double PageItem::layoutGlyphs(const CharStyle& style, const QString& chars, GlyphLayout& layout)
+double PageItem::layoutGlyphs(const CharStyle& style, const QString& chars, GlyphLayout& layout, int addBefore, int addAfter)
{
double retval = 0.0;
const ScFace font = style.font();
@@ -2366,8 +2366,15 @@ double PageItem::layoutGlyphs(const CharStyle& style, const QString& chars, Glyp
layout.glyph = font.char2CMap(chars[0].unicode());
}
double tracking = 0.0;
+ double before = 0.0;
+ double after = 0.0;
+ if (addBefore != 0)
+ before = font.glyphWidth(font.char2CMap(' '), style.fontSize() / 10) * addBefore/100.0;
+ if (addAfter != 0)
+ after = font.glyphWidth(font.char2CMap(' '), style.fontSize() / 10) * addAfter/100.0;
+
if ( (style.effects() & ScStyle_StartOfLine) == 0)
- tracking = style.fontSize() * style.tracking() / 10000.0;
+ tracking = style.fontSize() * style.tracking() / 10000.0 + before;
layout.xoffset = tracking;
layout.yoffset = 0;
@@ -2431,7 +2438,7 @@ double PageItem::layoutGlyphs(const CharStyle& style, const QString& chars, Glyp
layout.yadvance = font.glyphBBox(layout.glyph, style.fontSize() / 10).ascent * layout.scaleV;
}
if (layout.xadvance > 0)
- layout.xadvance += tracking;
+ layout.xadvance += tracking + after;
if (chars.length() > 1) {
layout.grow();
diff --git a/Scribus/scribus/pageitem.h b/Scribus/scribus/pageitem.h
index 75a4fc5..1be4ac5 100644
--- a/Scribus/scribus/pageitem.h
+++ b/Scribus/scribus/pageitem.h
@@ -387,7 +387,7 @@ public: // Start public functions
/// Return current text properties (current char + paragraph properties)
void currentTextProps(ParagraphStyle& parStyle) const;
// deprecated:
- double layoutGlyphs(const CharStyle& style, const QString& chars, GlyphLayout& layout);
+ double layoutGlyphs(const CharStyle& style, const QString& chars, GlyphLayout& layout, int addBefore =0, int addAfter = 0);
void SetQColor(QColor *tmp, QString farbe, double shad);
void drawGlyphs(ScPainter *p, const CharStyle& style, GlyphLayout& glyphs );
void DrawPolyL(QPainter *p, QPolygon pts);
diff --git a/Scribus/scribus/pageitem_pathtext.cpp b/Scribus/scribus/pageitem_pathtext.cpp
index 47ceef9..1b3bac9 100644
--- a/Scribus/scribus/pageitem_pathtext.cpp
+++ b/Scribus/scribus/pageitem_pathtext.cpp
@@ -214,7 +214,23 @@ void PageItem_PathText::DrawObj_Item(ScPainter *p, QRectF cullingArea)
if (a < itemRenderText.length()-1)
chstr += itemRenderText.text(a+1, 1);
hl->glyph.yadvance = 0;
- layoutGlyphs(itemRenderText.charStyle(a), chstr, hl->glyph);
+ int before =0, after =0;
+ if (m_Doc->checkAddSpace(chstr[0], before, after))
+ {
+ if ((before != 0) && (a > firstInFrame()))
+ {
+ QChar ch = itemText.text(a-1);
+ if ((ch == chstr[0]) || ch.isSpace())
+ before = 0;
+ }
+ if ((after != 0) && (a < itemText.length()-1))
+ {
+ QChar ch = itemText.text(a+1);
+ if ((ch == chstr[0]) || ch.isSpace())
+ after = 0;
+ }
+ }
+ layoutGlyphs(itemRenderText.charStyle(a), chstr, hl->glyph), before, after;
hl->glyph.shrink();
if (hl->hasObject(m_Doc))
totalTextLen += (hl->getItem(m_Doc)->width() + hl->getItem(m_Doc)->lineWidth()) * hl->glyph.scaleH;
@@ -266,7 +282,23 @@ void PageItem_PathText::DrawObj_Item(ScPainter *p, QRectF cullingArea)
if (a < itemRenderText.length()-1)
chstr += itemRenderText.text(a+1, 1);
hl->glyph.yadvance = 0;
- layoutGlyphs(itemRenderText.charStyle(a), chstr, hl->glyph);
+ int before =0, after =0;
+ if (m_Doc->checkAddSpace(chstr[0], before, after))
+ {
+ if ((before != 0) && (a > firstInFrame()))
+ {
+ QChar ch = itemText.text(a-1);
+ if ((ch == chstr[0]) || ch.isSpace())
+ before = 0;
+ }
+ if ((after != 0) && (a < itemText.length()-1))
+ {
+ QChar ch = itemText.text(a+1);
+ if ((ch == chstr[0]) || ch.isSpace())
+ after = 0;
+ }
+ }
+ layoutGlyphs(itemRenderText.charStyle(a), chstr, hl->glyph, before, after);
hl->glyph.shrink(); // HACK
if (hl->hasObject(m_Doc))
dx = (hl->getItem(m_Doc)->width() + hl->getItem(m_Doc)->lineWidth()) * hl->glyph.scaleH / 2.0;
diff --git a/Scribus/scribus/pageitem_textframe.cpp b/Scribus/scribus/pageitem_textframe.cpp
index 7440a94..508aa67 100644
--- a/Scribus/scribus/pageitem_textframe.cpp
+++ b/Scribus/scribus/pageitem_textframe.cpp
@@ -1783,10 +1783,26 @@ void PageItem_TextFrame::layout()
else
{
kernVal = 0; // chs * charStyle.tracking() / 10000.0;
- itemText.item(a)->setEffects(itemText.item(a)->effects() & ~ScStyle_StartOfLine);
+ hl->setEffects(hl->effects() & ~ScStyle_StartOfLine);
}
hl->glyph.yadvance = 0;
- layoutGlyphs(*hl, chstr, hl->glyph);
+ int before =0, after =0;
+ if (m_Doc->checkAddSpace(chstr[0], before, after))
+ {
+ if ((before != 0) && (a > firstInFrame()))
+ {
+ QChar ch = itemText.text(a-1);
+ if ((ch == chstr[0]) || ch.isSpace())
+ before = 0;
+ }
+ if ((after != 0) && (a < itemText.length()-1))
+ {
+ QChar ch = itemText.text(a+1);
+ if ((ch == chstr[0]) || ch.isSpace())
+ after = 0;
+ }
+ }
+ layoutGlyphs(*hl, chstr, hl->glyph, before, after);
// find out width, ascent and descent of char
if (HasObject)
diff --git a/Scribus/scribus/plugins/fileloader/scribus150format/scribus150format.cpp b/Scribus/scribus/plugins/fileloader/scribus150format/scribus150format.cpp
index 960b9f3..73c0db3 100644
--- a/Scribus/scribus/plugins/fileloader/scribus150format/scribus150format.cpp
+++ b/Scribus/scribus/plugins/fileloader/scribus150format/scribus150format.cpp
@@ -1325,6 +1325,13 @@ bool Scribus150Format::loadFile(const QString & fileName, const FileFormat & /*
m_Doc->setCurCheckProfile(attrs.valueAsString("currentProfile"));
}
}
+ if (tagName == "AddSpace4Chars")
+ {
+ QString chars = attrs.valueAsString("Chars");
+ int before = attrs.valueAsInt("Before");
+ int after = attrs.valueAsInt("After");
+ m_Doc->typographicPrefs().addSpaceMap.insert(chars, qMakePair(before, after));
+ }
if (tagName == "CheckProfile")
{
success = readCheckProfile(m_Doc, attrs);
diff --git a/Scribus/scribus/plugins/fileloader/scribus150format/scribus150format_save.cpp b/Scribus/scribus/plugins/fileloader/scribus150format/scribus150format_save.cpp
index 22ceea9..77e4edb 100644
--- a/Scribus/scribus/plugins/fileloader/scribus150format/scribus150format_save.cpp
+++ b/Scribus/scribus/plugins/fileloader/scribus150format/scribus150format_save.cpp
@@ -374,6 +374,13 @@ bool Scribus150Format::saveFile(const QString & fileName, const FileFormat & /*
docu.writeAttribute("calligrapicPenAngle", m_Doc->itemToolPrefs().calligrapicPenAngle);
docu.writeAttribute("calligrapicPenWidth", m_Doc->itemToolPrefs().calligrapicPenWidth);
docu.writeAttribute("calligrapicPenStyle", m_Doc->itemToolPrefs().calligrapicPenStyle);
+ foreach(QString chars, m_Doc->typographicPrefs().addSpaceMap.keys())
+ {
+ docu.writeEmptyElement("AddSpace4Chars");
+ docu.writeAttribute("Chars",chars);
+ docu.writeAttribute("Before",m_Doc->typographicPrefs().addSpaceMap.value(chars).first);
+ docu.writeAttribute("After",m_Doc->typographicPrefs().addSpaceMap.value(chars).second);
+ }
writeCheckerProfiles(docu);
writeJavascripts(docu);
diff --git a/Scribus/scribus/prefsmanager.cpp b/Scribus/scribus/prefsmanager.cpp
index f5e8855..0c4b6df 100644
--- a/Scribus/scribus/prefsmanager.cpp
+++ b/Scribus/scribus/prefsmanager.cpp
@@ -200,6 +200,7 @@ void PrefsManager::initDefaults()
appPrefs.typoPrefs.valueUnderlineWidth = -1;
appPrefs.typoPrefs.valueStrikeThruPos = -1;
appPrefs.typoPrefs.valueStrikeThruWidth = -1;
+// appPrefs.typoPrefs.addSpaceMap.insert("?!)",qMakePair(80,0));
appPrefs.guidesPrefs.valueBaselineGrid = 14.4;
appPrefs.guidesPrefs.offsetBaselineGrid = 0.0;
appPrefs.uiPrefs.style = "";
@@ -1468,6 +1469,17 @@ bool PrefsManager::WritePref(QString ho)
dcTypography.setAttribute("StrikeThruWidth", appPrefs.typoPrefs.valueStrikeThruWidth);
else
dcTypography.setAttribute("StrikeThruWidth", appPrefs.typoPrefs.valueStrikeThruWidth / 10.0);
+ if (!appPrefs.typoPrefs.addSpaceMap.isEmpty())
+ {
+ for (QMap<QString, QPair<int, int> >::Iterator asIt = appPrefs.typoPrefs.addSpaceMap.begin(); asIt != appPrefs.typoPrefs.addSpaceMap.end(); ++asIt)
+ {
+ QDomElement aselm = docu.createElement("AddSpace4Chars");
+ aselm.setAttribute("Chars", asIt.key());
+ aselm.setAttribute("Before", asIt.value().first);
+ aselm.setAttribute("After", asIt.value().second);
+ dcTypography.appendChild(aselm);
+ }
+ }
elem.appendChild(dcTypography);
QDomElement dcItemTools=docu.createElement("ItemTools");
@@ -2069,6 +2081,20 @@ bool PrefsManager::ReadPref(QString ho)
appPrefs.typoPrefs.valueStrikeThruWidth = qRound(stw * 10);
else
appPrefs.typoPrefs.valueStrikeThruWidth = -1;
+ appPrefs.typoPrefs.addSpaceMap.clear();
+ QDomNode aselm = dc.firstChild();
+ while(!aselm.isNull())
+ {
+ QDomElement asElem = aselm.toElement();
+ if (asElem.tagName()=="AddSpace4Chars")
+ {
+ QString chars = asElem.attribute("Chars");
+ int before = asElem.attribute("Before").toInt();
+ int after = asElem.attribute("After").toInt();
+ appPrefs.typoPrefs.addSpaceMap.insert(chars, qMakePair(before, after));
+ }
+ aselm = aselm.nextSibling();
+ }
}
diff --git a/Scribus/scribus/prefsstructs.h b/Scribus/scribus/prefsstructs.h
index cc58c93..77687b2 100644
--- a/Scribus/scribus/prefsstructs.h
+++ b/Scribus/scribus/prefsstructs.h
@@ -72,6 +72,7 @@ struct TypoPrefs
int valueUnderlineWidth; //! Underline width
int valueStrikeThruPos; //! Strike-through displacement
int valueStrikeThruWidth; //! Strike-through line width
+ QMap<QString, QPair<int, int> > addSpaceMap; //! Additional space before chars
inline bool operator==(const TypoPrefs &other)
{
diff --git a/Scribus/scribus/scribusdoc.cpp b/Scribus/scribus/scribusdoc.cpp
index 641e1d0..7350b92 100644
--- a/Scribus/scribus/scribusdoc.cpp
+++ b/Scribus/scribus/scribusdoc.cpp
@@ -18634,3 +18634,19 @@ void ScribusDoc::ResetFormFields()
changed();
regionsChanged()->update(QRect());
}
+
+bool ScribusDoc::checkAddSpace(QChar ch, int &before, int &after)
+{
+ bool addSpace = false;
+ foreach (QString str, typographicPrefs().addSpaceMap.keys())
+ {
+ if (str.contains(ch))
+ {
+ before = typographicPrefs().addSpaceMap.value(str).first;
+ after = typographicPrefs().addSpaceMap.value(str).second;
+ addSpace = true;
+ break;
+ }
+ }
+ return addSpace;
+}
diff --git a/Scribus/scribus/scribusdoc.h b/Scribus/scribus/scribusdoc.h
index 7bf4b8c..14e6425 100644
--- a/Scribus/scribus/scribusdoc.h
+++ b/Scribus/scribus/scribusdoc.h
@@ -1790,6 +1790,9 @@ public:
void SubmitForm();
void ImportData();
void ResetFormFields();
+
+ //check if char should have additional space before or after
+ bool checkAddSpace(QChar ch, int &before, int &after);
};
Q_DECLARE_METATYPE(ScribusDoc*);
diff --git a/Scribus/scribus/ui/prefs_typography.cpp b/Scribus/scribus/ui/prefs_typography.cpp
index e442b55..f670e2b 100644
--- a/Scribus/scribus/ui/prefs_typography.cpp
+++ b/Scribus/scribus/ui/prefs_typography.cpp

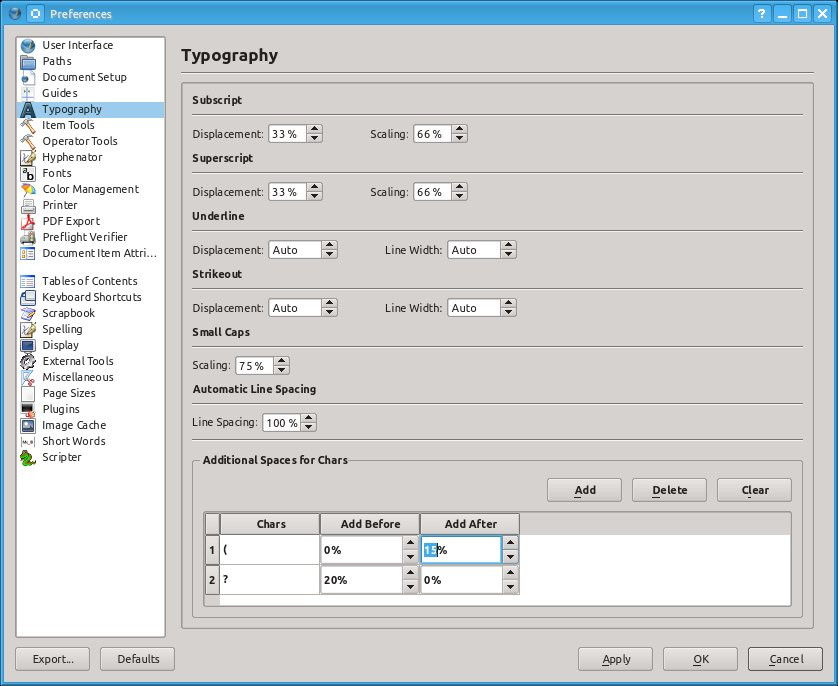

@@ -14,6 +14,11 @@ Prefs_Typography::Prefs_Typography(QWidget* parent, ScribusDoc* doc)
{
setupUi(this);
languageChange();
+
+ connect(spacesTable, SIGNAL(cellChanged(int,int)), this, SLOT(tableItemChanged()));
+ connect(addButton, SIGNAL(clicked()), this, SLOT(addEntry()));
+ connect(deleteButton, SIGNAL(clicked()), this, SLOT(deleteEntry()));
+ connect(clearButton, SIGNAL(clicked()), this, SLOT(clearEntries()));
}
Prefs_Typography::~Prefs_Typography()
@@ -38,6 +43,93 @@ void Prefs_Typography::languageChange()
strikeoutLineWidthSpinBox->setToolTip( tr( "Line width expressed as a percentage of the font size" ) );
smallcapsScalingSpinBox->setToolTip( tr( "Relative size of the small caps font compared to the normal font" ) );
automaticLineSpacingSpinBox->setToolTip( tr( "Percentage increase over the font size for the line spacing" ) );
+ spacesTable->setToolTip("Add empty space before/after glyph as % of normal space width in current font");
+}
+
+void Prefs_Typography::updateTable()
+{
+ disconnect(spacesTable, SIGNAL(cellChanged(int,int)), this, SLOT(tableItemChanged()));
+ spacesTable->setRowCount(spacesMap.count());
+ int row=0;
+ foreach (QString chars, spacesMap.keys())
+ {
+ uint i=0;
+ //Chars
+ QTableWidgetItem *item1 = new QTableWidgetItem(chars);
+ item1->setText(chars);
+ spacesTable->setItem(row, i++, item1);
+ //Add before
+ QSpinBox *item2 = new QSpinBox();
+ item2->setMinimum(0);
+ item2->setMaximum(999);
+ item2->setValue(spacesMap.value(chars).first);
+ item2->setSuffix("%");
+ connect(item2, SIGNAL(valueChanged(int)), this, SLOT(tableItemChanged()));
+ spacesTable->setCellWidget(row, i++, item2);
+ //Add after
+ QSpinBox *item3 = new QSpinBox();
+ item3->setMinimum(0);
+ item3->setMaximum(999);
+ item3->setValue(spacesMap.value(chars).second);
+ item3->setSuffix("%");
+ connect(item3, SIGNAL(valueChanged(int)), this, SLOT(tableItemChanged()));
+ spacesTable->setCellWidget(row, i++, item3);
+
+ QTableWidgetItem *t=spacesTable->verticalHeaderItem(row);
+ if (t!=NULL)
+ t->setText(QString("%1").arg(row));
+ row++;
+ }
+ deleteButton->setEnabled(spacesMap.count()!=0);
+ clearButton->setEnabled(spacesMap.count()!=0);
+ connect(spacesTable, SIGNAL(cellChanged(int,int)), this, SLOT(tableItemChanged()));
+}
+
+void Prefs_Typography::tableItemChanged()
+{
+ spacesMap.clear();
+ for (int row=0; row < spacesTable->rowCount(); ++row)
+ {
+ QString chars = spacesTable->item(row, 0)->text();
+ QSpinBox* qspB=dynamic_cast<QSpinBox*>(spacesTable->cellWidget(row,1));
+ QSpinBox* qspA=dynamic_cast<QSpinBox*>(spacesTable->cellWidget(row,2));
+ if (qspB!=NULL && qspA!=NULL)
+ spacesMap.insert(chars, qMakePair(qspB->value(), qspA->value()));
+ }
+}
+
+void Prefs_Typography::addEntry()
+{
+ spacesMap.insert("<chars>", qMakePair(0,0));
+ updateTable();
+}
+
+void Prefs_Typography::deleteEntry()
+{
+ int currRow=spacesTable->currentRow();
+ bool found=false;
+ int count=0;
+ QMap<QString, QPair<int,int> >::Iterator it;
+ for(it = spacesMap.begin(); it!= spacesMap.end(); ++it)
+ {
+ if(count==currRow)
+ {
+ found=true;
+ break;
+ }
+ ++count;
+ }
+ if (found)
+ {
+ spacesMap.erase(it);
+ updateTable();
+ }
+}
+
+void Prefs_Typography::clearEntries()
+{
+ spacesMap.clear();
+ updateTable();
}
void Prefs_Typography::restoreDefaults(struct ApplicationPrefs *prefsData)
@@ -52,6 +144,9 @@ void Prefs_Typography::restoreDefaults(struct ApplicationPrefs *prefsData)
strikeoutLineWidthSpinBox->setValue(prefsData->typoPrefs.valueStrikeThruWidth / 10.0);
smallcapsScalingSpinBox->setValue(prefsData->typoPrefs.valueSmallCaps);
automaticLineSpacingSpinBox->setValue(prefsData->typoPrefs.autoLineSpacing);
+ foreach(QString chars, prefsData->typoPrefs.addSpaceMap.keys())
+ spacesMap.insert(chars, prefsData->typoPrefs.addSpaceMap.value(chars));
+ updateTable();
}
void Prefs_Typography::saveGuiToPrefs(struct ApplicationPrefs *prefsData) const
@@ -66,5 +161,9 @@ void Prefs_Typography::saveGuiToPrefs(struct ApplicationPrefs *prefsData) const
prefsData->typoPrefs.valueStrikeThruWidth=strikeoutLineWidthSpinBox->value() * 10.0;
prefsData->typoPrefs.valueSmallCaps=smallcapsScalingSpinBox->value();
prefsData->typoPrefs.autoLineSpacing=automaticLineSpacingSpinBox->value();
+
+ prefsData->typoPrefs.addSpaceMap.clear();
+ foreach (QString chars, spacesMap.keys())
+ prefsData->typoPrefs.addSpaceMap.insert(chars, spacesMap.value(chars));
}
diff --git a/Scribus/scribus/ui/prefs_typography.h b/Scribus/scribus/ui/prefs_typography.h
index 629c4af..ae5ea5f 100644
--- a/Scribus/scribus/ui/prefs_typography.h
+++ b/Scribus/scribus/ui/prefs_typography.h
@@ -26,6 +26,15 @@ class SCRIBUS_API Prefs_Typography : public Prefs_Pane, Ui::Prefs_Typography
public slots:
void languageChange();
+protected:
+ virtual void updateTable();
+protected slots:
+ virtual void tableItemChanged();
+ virtual void addEntry();
+ virtual void deleteEntry();
+ virtual void clearEntries();
+private:
+ QMap<QString, QPair<int,int> > spacesMap;
};
#endif // PREFS_TYPOGRAPHY_H
diff --git a/Scribus/scribus/ui/prefs_typographybase.ui b/Scribus/scribus/ui/prefs_typographybase.ui
index 8f59e4c..0fa1c67 100644
--- a/Scribus/scribus/ui/prefs_typographybase.ui
+++ b/Scribus/scribus/ui/prefs_typographybase.ui
@@ -6,8 +6,8 @@
<rect>
<x>0</x>
<y>0</y>
- <width>682</width>
- <height>449</height>
+ <width>453</width>
+ <height>730</height>
</rect>
</property>
<property name="windowTitle">
@@ -45,8 +45,8 @@
<rect>
<x>0</x>
<y>0</y>
- <width>639</width>
- <height>782</height>
+ <width>431</width>
+ <height>673</height>
</rect>
</property>
<layout class="QVBoxLayout" name="verticalLayout">
@@ -71,13 +71,7 @@
</widget>
</item>
<item>
- <layout class="QFormLayout" name="formLayout_3">
- <property name="fieldGrowthPolicy">
- <enum>QFormLayout::FieldsStayAtSizeHint</enum>
- </property>
- <property name="formAlignment">
- <set>Qt::AlignLeading|Qt::AlignLeft|Qt::AlignTop</set>
- </property>
+ <layout class="QGridLayout" name="gridLayout">
<item row="0" column="0">
<widget class="QLabel" name="label_5">
<property name="text">
@@ -85,17 +79,7 @@
</property>
</widget>
</item>
- <item row="0" column="1">
- <widget class="QSpinBox" name="subscriptDisplacementSpinBox">
- <property name="suffix">
- <string> %</string>
- </property>
- <property name="maximum">
- <number>100</number>
- </property>
- </widget>
- </item>
- <item row="1" column="1">
+ <item row="0" column="4">
<widget class="QSpinBox" name="subscriptScalingSpinBox">
<property name="suffix">
<string> %</string>
@@ -108,13 +92,52 @@
</property>
</widget>
</item>
- <item row="1" column="0">
+ <item row="0" column="3">
<widget class="QLabel" name="label_6">
<property name="text">
<string>Scaling:</string>
</property>
</widget>
</item>
+ <item row="0" column="2">
+ <spacer name="horizontalSpacer">
+ <property name="orientation">
+ <enum>Qt::Horizontal</enum>
+ </property>
+ <property name="sizeType">
+ <enum>QSizePolicy::Minimum</enum>
+ </property>
+ <property name="sizeHint" stdset="0">
+ <size>
+ <width>40</width>
+ <height>20</height>
+ </size>
+ </property>
+ </spacer>
+ </item>
+ <item row="0" column="1">
+ <widget class="QSpinBox" name="subscriptDisplacementSpinBox">
+ <property name="suffix">
+ <string> %</string>
+ </property>
+ <property name="maximum">
+ <number>100</number>
+ </property>
+ </widget>
+ </item>
+ <item row="0" column="5">
+ <spacer name="horizontalSpacer_2">
+ <property name="orientation">
+ <enum>Qt::Horizontal</enum>
+ </property>
+ <property name="sizeHint" stdset="0">
+ <size>
+ <width>40</width>
+ <height>20</height>
+ </size>
+ </property>
+ </spacer>
+ </item>
</layout>
</item>
<item>
@@ -123,7 +146,7 @@
<enum>Qt::Vertical</enum>
</property>
<property name="sizeType">
- <enum>QSizePolicy::Fixed</enum>
+ <enum>QSizePolicy::Expanding</enum>
</property>
<property name="sizeHint" stdset="0">
<size>
@@ -154,50 +177,73 @@
</widget>
</item>
<item>
- <layout class="QFormLayout" name="formLayout_2">
- <property name="fieldGrowthPolicy">
- <enum>QFormLayout::FieldsStayAtSizeHint</enum>
- </property>
- <property name="formAlignment">
- <set>Qt::AlignLeading|Qt::AlignLeft|Qt::AlignTop</set>
- </property>
- <item row="0" column="0">
- <widget class="QLabel" name="label_7">
- <property name="text">
- <string>Displacement:</string>
- </property>
- </widget>
- </item>
- <item row="0" column="1">
- <widget class="QSpinBox" name="superscriptDisplacementSpinBox">
+ <layout class="QGridLayout" name="gridLayout_2">
+ <item row="0" column="4">
+ <widget class="QSpinBox" name="superscriptScalingSpinBox">
<property name="suffix">
<string> %</string>
</property>
+ <property name="minimum">
+ <number>1</number>
+ </property>
<property name="maximum">
<number>100</number>
</property>
</widget>
</item>
- <item row="1" column="0">
+ <item row="0" column="2">
+ <spacer name="horizontalSpacer_3">
+ <property name="orientation">
+ <enum>Qt::Horizontal</enum>
+ </property>
+ <property name="sizeType">
+ <enum>QSizePolicy::Maximum</enum>
+ </property>
+ <property name="sizeHint" stdset="0">
+ <size>
+ <width>40</width>
+ <height>20</height>
+ </size>
+ </property>
+ </spacer>
+ </item>
+ <item row="0" column="0">
+ <widget class="QLabel" name="label_7">
+ <property name="text">
+ <string>Displacement:</string>
+ </property>
+ </widget>
+ </item>
+ <item row="0" column="3">
<widget class="QLabel" name="label_8">
<property name="text">
<string>Scaling:</string>
</property>
</widget>
</item>
- <item row="1" column="1">
- <widget class="QSpinBox" name="superscriptScalingSpinBox">
+ <item row="0" column="1">
+ <widget class="QSpinBox" name="superscriptDisplacementSpinBox">
<property name="suffix">
<string> %</string>
</property>
- <property name="minimum">
- <number>1</number>
- </property>
<property name="maximum">
<number>100</number>
</property>
</widget>
</item>
+ <item row="0" column="5">
+ <spacer name="horizontalSpacer_4">
+ <property name="orientation">
+ <enum>Qt::Horizontal</enum>
+ </property>
+ <property name="sizeHint" stdset="0">
+ <size>
+ <width>40</width>
+ <height>20</height>
+ </size>
+ </property>
+ </spacer>
+ </item>
</layout>
</item>
<item>
@@ -206,7 +252,7 @@
<enum>Qt::Vertical</enum>
</property>
<property name="sizeType">
- <enum>QSizePolicy::Fixed</enum>
+ <enum>QSizePolicy::Expanding</enum>
</property>
<property name="sizeHint" stdset="0">
<size>
@@ -237,29 +283,9 @@
</widget>
</item>
<item>
- <layout class="QFormLayout" name="formLayout">
- <property name="fieldGrowthPolicy">
- <enum>QFormLayout::FieldsStayAtSizeHint</enum>
- </property>
- <property name="formAlignment">
- <set>Qt::AlignLeading|Qt::AlignLeft|Qt::AlignTop</set>
- </property>
- <item row="0" column="0">
- <widget class="QLabel" name="label_9">
- <property name="text">
- <string>Displacement:</string>
- </property>
- </widget>
- </item>
- <item row="1" column="0">
- <widget class="QLabel" name="label_10">
- <property name="text">
- <string>Line Width:</string>
- </property>
- </widget>
- </item>
- <item row="1" column="1">
- <widget class="QDoubleSpinBox" name="underlineLineWidthSpinBox">
+ <layout class="QGridLayout" name="gridLayout_3">
+ <item row="0" column="1">
+ <widget class="QDoubleSpinBox" name="underlineDisplacementSpinBox">
<property name="wrapping">
<bool>true</bool>
</property>
@@ -277,8 +303,15 @@
</property>
</widget>
</item>
- <item row="0" column="1">
- <widget class="QDoubleSpinBox" name="underlineDisplacementSpinBox">
+ <item row="0" column="3">
+ <widget class="QLabel" name="label_10">
+ <property name="text">
+ <string>Line Width:</string>
+ </property>
+ </widget>
+ </item>
+ <item row="0" column="4">
+ <widget class="QDoubleSpinBox" name="underlineLineWidthSpinBox">
<property name="wrapping">
<bool>true</bool>
</property>
@@ -296,6 +329,42 @@
</property>
</widget>
</item>
+ <item row="0" column="2">
+ <spacer name="horizontalSpacer_5">
+ <property name="orientation">
+ <enum>Qt::Horizontal</enum>
+ </property>
+ <property name="sizeType">
+ <enum>QSizePolicy::Maximum</enum>
+ </property>
+ <property name="sizeHint" stdset="0">
+ <size>
+ <width>40</width>
+ <height>20</height>
+ </size>
+ </property>
+ </spacer>
+ </item>
+ <item row="0" column="0">
+ <widget class="QLabel" name="label_9">
+ <property name="text">
+ <string>Displacement:</string>
+ </property>
+ </widget>
+ </item>
+ <item row="0" column="5">
+ <spacer name="horizontalSpacer_6">
+ <property name="orientation">
+ <enum>Qt::Horizontal</enum>
+ </property>
+ <property name="sizeHint" stdset="0">
+ <size>
+ <width>40</width>
+ <height>20</height>
+ </size>
+ </property>
+ </spacer>
+ </item>
</layout>
</item>
<item>
@@ -304,7 +373,7 @@
<enum>Qt::Vertical</enum>
</property>
<property name="sizeType">
- <enum>QSizePolicy::Fixed</enum>
+ <enum>QSizePolicy::Expanding</enum>
</property>
<property name="sizeHint" stdset="0">
<size>
@@ -335,22 +404,25 @@
</widget>
</item>
<item>
- <layout class="QFormLayout" name="formLayout_4">
- <property name="fieldGrowthPolicy">
- <enum>QFormLayout::FieldsStayAtSizeHint</enum>
- </property>
- <property name="formAlignment">
- <set>Qt::AlignLeading|Qt::AlignLeft|Qt::AlignTop</set>
- </property>
- <item row="0" column="0">
- <widget class="QLabel" name="label_12">
- <property name="text">
- <string>Displacement:</string>
- </property>
- </widget>
+ <layout class="QGridLayout" name="gridLayout_4">
+ <item row="0" column="2">
+ <spacer name="horizontalSpacer_7">
+ <property name="orientation">
+ <enum>Qt::Horizontal</enum>
+ </property>
+ <property name="sizeType">
+ <enum>QSizePolicy::Maximum</enum>
+ </property>
+ <property name="sizeHint" stdset="0">
+ <size>
+ <width>40</width>
+ <height>20</height>
+ </size>
+ </property>
+ </spacer>
</item>
- <item row="0" column="1">
- <widget class="QDoubleSpinBox" name="strikeoutDisplacementSpinBox">
+ <item row="0" column="4">
+ <widget class="QDoubleSpinBox" name="strikeoutLineWidthSpinBox">
<property name="wrapping">
<bool>true</bool>
</property>
@@ -368,15 +440,22 @@
</property>
</widget>
</item>
- <item row="1" column="0">
+ <item row="0" column="3">
<widget class="QLabel" name="label_13">
<property name="text">
<string>Line Width:</string>
</property>
</widget>
</item>
- <item row="1" column="1">
- <widget class="QDoubleSpinBox" name="strikeoutLineWidthSpinBox">
+ <item row="0" column="0">
+ <widget class="QLabel" name="label_12">
+ <property name="text">
+ <string>Displacement:</string>
+ </property>
+ </widget>
+ </item>
+ <item row="0" column="1">
+ <widget class="QDoubleSpinBox" name="strikeoutDisplacementSpinBox">
<property name="wrapping">
<bool>true</bool>
</property>
@@ -394,6 +473,19 @@
</property>
</widget>
</item>
+ <item row="0" column="5">
+ <spacer name="horizontalSpacer_8">
+ <property name="orientation">
+ <enum>Qt::Horizontal</enum>
+ </property>
+ <property name="sizeHint" stdset="0">
+ <size>
+ <width>40</width>
+ <height>20</height>
+ </size>
+ </property>
+ </spacer>
+ </item>
</layout>
</item>
<item>
@@ -402,7 +494,7 @@
<enum>Qt::Vertical</enum>
</property>
<property name="sizeType">
- <enum>QSizePolicy::Fixed</enum>
+ <enum>QSizePolicy::Expanding</enum>
</property>
<property name="sizeHint" stdset="0">
<size>
@@ -465,7 +557,7 @@
<enum>Qt::Vertical</enum>
</property>
<property name="sizeType">
- <enum>QSizePolicy::Fixed</enum>
+ <enum>QSizePolicy::Expanding</enum>
</property>
<property name="sizeHint" stdset="0">
<size>
@@ -533,7 +625,120 @@
<property name="sizeHint" stdset="0">
<size>
<width>20</width>
- <height>34</height>
+ <height>40</height>
+ </size>
+ </property>
+ </spacer>
+ </item>
+ <item>
+ <widget class="Line" name="line_8">
+ <property name="orientation">
+ <enum>Qt::Horizontal</enum>
+ </property>
+ </widget>
+ </item>
+ <item>
+ <widget class="QGroupBox" name="groupBox">
+ <property name="font">
+ <font>
+ <weight>75</weight>
+ <bold>true</bold>
+ </font>
+ </property>
+ <property name="title">
+ <string>Additional Spaces for Chars</string>
+ </property>
+ <layout class="QVBoxLayout" name="verticalLayout_3">
+ <item>
+ <layout class="QHBoxLayout" name="horizontalLayout">
+ <item>
+ <spacer name="spacer">
+ <property name="orientation">
+ <enum>Qt::Horizontal</enum>
+ </property>
+ <property name="sizeType">
+ <enum>QSizePolicy::Expanding</enum>
+ </property>
+ <property name="sizeHint" stdset="0">
+ <size>
+ <width>192</width>
+ <height>21</height>
+ </size>
+ </property>
+ </spacer>
+ </item>
+ <item>
+ <widget class="QPushButton" name="addButton">
+ <property name="text">
+ <string>&Add</string>
+ </property>
+ <property name="shortcut">
+ <string>Alt+A</string>
+ </property>
+ </widget>
+ </item>
+ <item>
+ <widget class="QPushButton" name="deleteButton">
+ <property name="text">
+ <string>&Delete</string>
+ </property>
+ <property name="shortcut">
+ <string>Alt+D</string>
+ </property>
+ </widget>
+ </item>
+ <item>
+ <widget class="QPushButton" name="clearButton">
+ <property name="text">
+ <string>C&lear</string>
+ </property>
+ <property name="shortcut">
+ <string>Alt+L</string>
+ </property>
+ </widget>
+ </item>
+ </layout>
+ </item>
+ <item>
+ <widget class="ScTableWidget" name="spacesTable">
+ <property name="alternatingRowColors">
+ <bool>false</bool>
+ </property>
+ <property name="rowCount">
+ <number>0</number>
+ </property>
+ <property name="columnCount">
+ <number>3</number>
+ </property>
+ <column>
+ <property name="text">
+ <string>Chars</string>
+ </property>
+ </column>
+ <column>
+ <property name="text">
+ <string>Add Before</string>
+ </property>
+ </column>
+ <column>
+ <property name="text">
+ <string>Add After</string>
+ </property>
+ </column>
+ </widget>
+ </item>
+ </layout>
+ </widget>
+ </item>
+ <item>
+ <spacer name="verticalSpacer_7">
+ <property name="orientation">
+ <enum>Qt::Vertical</enum>
+ </property>
+ <property name="sizeHint" stdset="0">
+ <size>
+ <width>20</width>
+ <height>40</height>
</size>
</property>
</spacer>
@@ -544,6 +749,13 @@
</item>
</layout>
</widget>
+ <customwidgets>
+ <customwidget>
+ <class>ScTableWidget</class>
+ <extends>QTableWidget</extends>
+ <header>ui/sctablewidget.h</header>
+ </customwidget>
+ </customwidgets>
<resources/>
<connections/>
</ui>
