Summary0012250: SVG arrows not imported
DescriptionSVG imports ignores the svg arrows at the end of the lines.
The line is imported, not the arrows.

See sample SVG.
TagsNo tags attached.
PatchNo

Relationships

related to 0012771 closedfschmid Some patterns imported to incorrect level and therefore aren't visible
child of 0002931 acknowledged Metabug: SVG

Activities

JLuc

2014-04-21 16:57

developer

svg arrow.svg (2,694 bytes)

FirasH

2014-04-21 19:16

developer   ~0031748

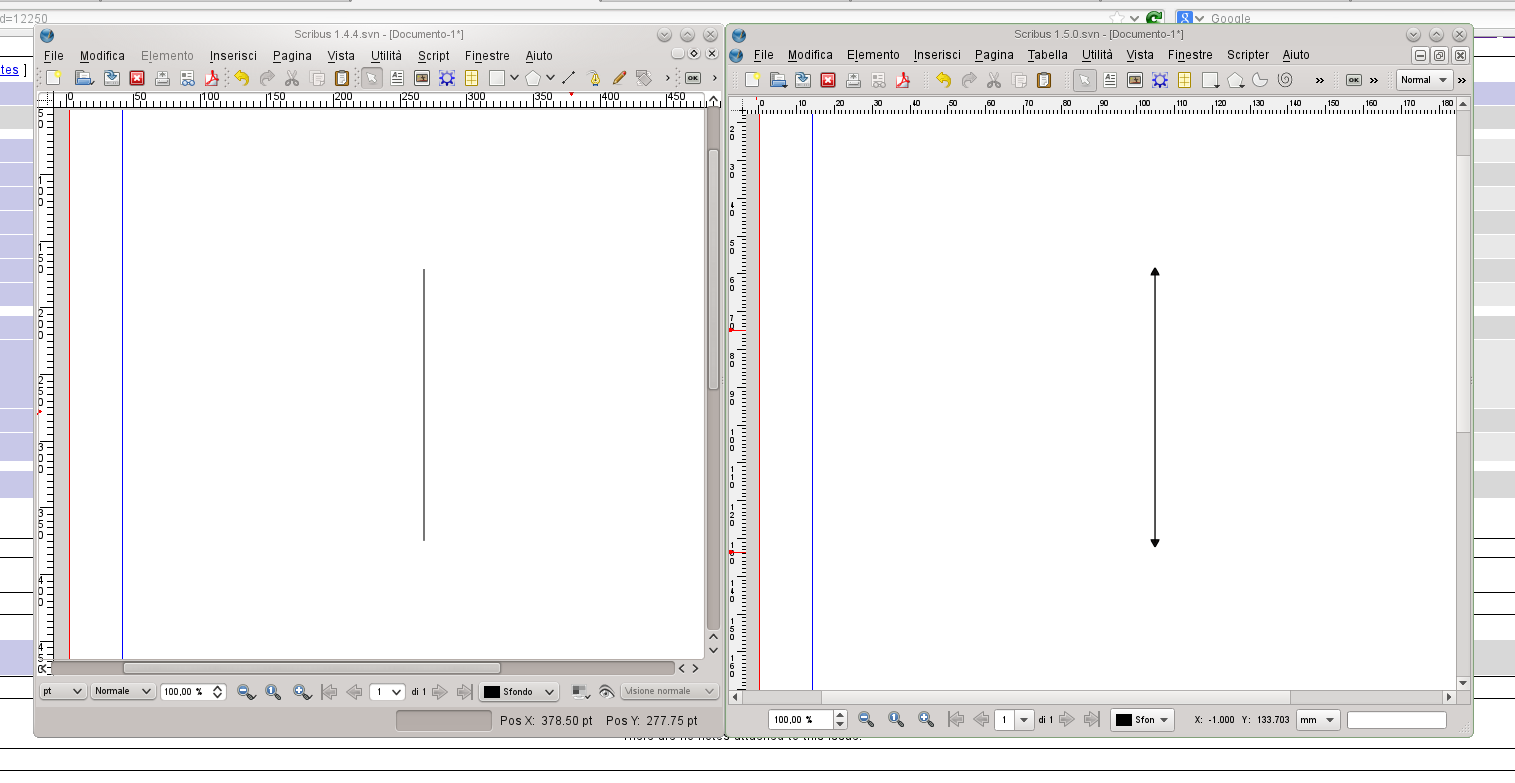

With Scribus 1.5.0 SVN (19075) the arrow is imported as expected.

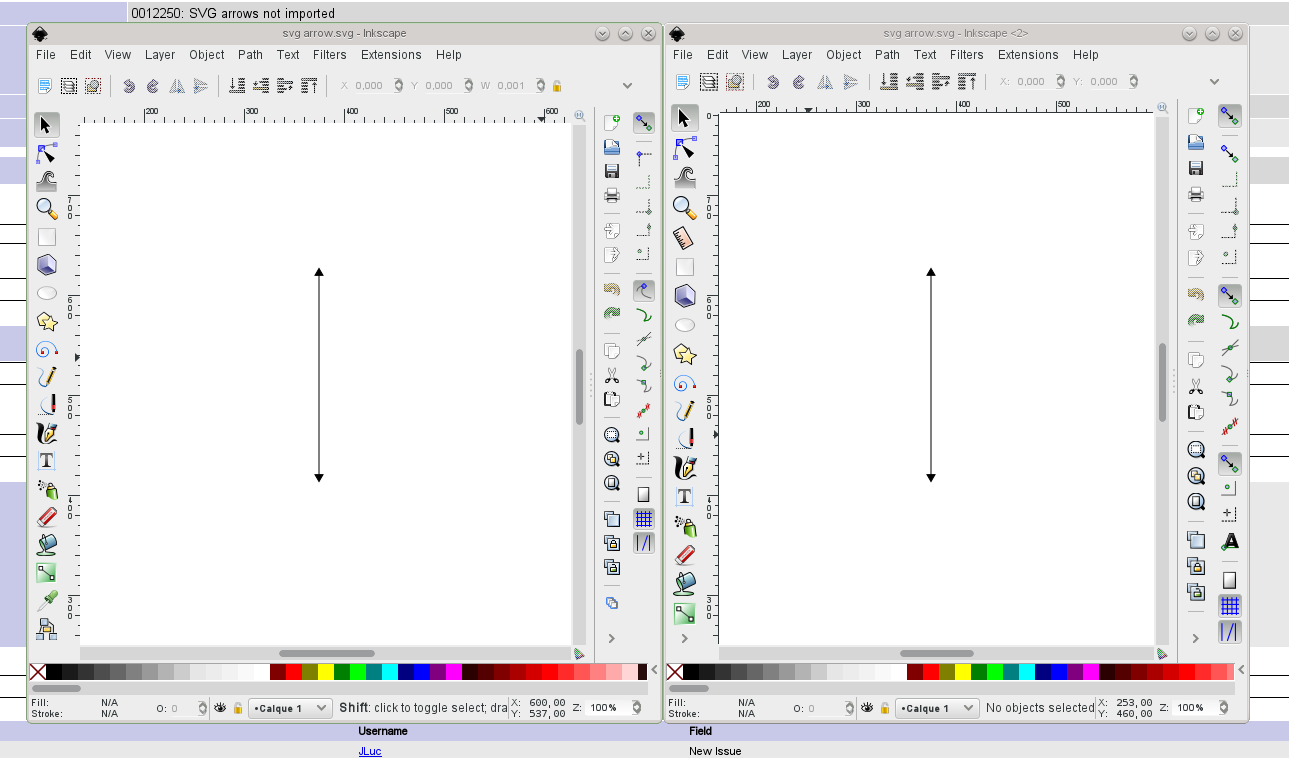

I'll upload a screenshot that compares Scribus 1.4.x to 1.5.x import + how Inkscape 0.48.x and 0.48+devel sees the SVG.

FirasH

2014-04-21 19:16

developer


FirasH

2014-04-21 19:16

developer


christoph_s

2014-04-22 07:15

administrator   ~0031754

Franz, if this can't be backported to 1.4.4, please close this bug.

JLuc

2014-04-23 16:14

developer   ~0031775

Last edited: 2014-04-30 17:01

View 5 revisions

Hmmm sometime, some arraws aren't imported, sometime i dont reproduce.
The same SVG loads ok when its the first object in a new doc. It loads without arrows when its in a long heavy doc.

(Maybe related, maybe not : when sent to the printer, a 13 pages document with various SVG included had some issues as for the RIP : not errors, but some rendering issues. 1) some polygons and lines rendered as dashed when they should have rendered as solid lines (note : there are 2 really dashed lines very close to these polygons and lines, and the wrong rendering used this dash style as if contaminated) 2) some little text frames did not render at all
As a fix, I sent the PDF for these 2 pages only, and most of these issues were fixed, except one line that kept being rendered as dashed. )

JLuc

2014-04-23 16:24

developer

test arrows.svg (1,380,073 bytes)

JLuc

2014-04-23 16:44

developer   ~0031777

Last edited: 2014-04-30 16:42

View 4 revisions

Allways reproduced :

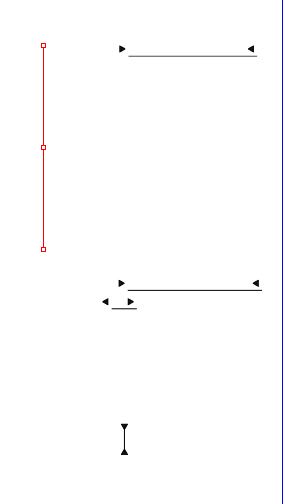

Other issue with SVG arrows : open "test arrows.svg" (second uploaded SVG), ungroup SVG, see : most of the arrow heads have rotated or un-rotated and are not in their right place and orientation anymore.

After this, try in same document, load "svg arrow.svg" (first uploaded SVG): it has no visible arrows.

JLuc

2014-04-30 16:38

developer   ~0031832

Last edited: 2014-04-30 16:43

View 2 revisions

This is confirmed on an other machine, with the scribus friend's PPA :

On a new document, right click + "paste file" "test arrows.svg" (second SVG uploaded document), ungroup SVG, see : most of the arrow heads have rotated or un-rotated and are not in their right place and orientation anymore.

After this, try in same document, load "svg arrow.svg" (first SVG uploaded document): it has no visible arrows.

JLuc

2014-04-30 16:40

developer

Kunda

2014-08-12 20:41

manager   ~0033238

1st) Cannot recreate original problem on OSX 10.8.5 1.5svn r19415. Console shows: "unsupported SVG feature: overflow"
2nd) Can confirm that ungrouping the image causes the same issue. This SVG also throws an "unsupported SVG feature: overflow"

ale

2015-11-29 10:27

manager

werehere.svg (27,013 bytes)

ale

2015-11-29 10:29

manager

no-arrow.sla (446,912 bytes)

ale

2015-11-29 10:30

manager   ~0037728

if i load werehere.svg into no-arrow.sla i get the red path without arrow head.

if i load werehere.svg into a new file i get the arrow head and i can copy paste the full grahpic into the no-arrow.sla file.

ale

2016-01-17 18:09

manager   ~0038218

importing werehere in a new page in no-arrow.sla still does not work...

still as described above.

JLuc

2016-01-17 19:21

developer   ~0038219

I confirm its not fixed.

with my files : when "svh arrows.svg" is imported into "test arrows.svg", its arrows do not show.

Same with ale's files : when "werehere.svg" is imported into "no-arrow.svg", its arrows do not show.

fschmid

2016-01-17 22:20

administrator   ~0038222

Please try again, just committed another fix for the arrows

Kunda

2016-01-18 13:45

manager   ~0038240

This looks fixed on OSX 10.10.5 1.5.1svn r20696

ale

2016-01-18 19:22

manager   ~0038256

yep, seems to be working now!
thanks franz!

Kunda

2016-01-18 19:28

manager   ~0038257

Closing
