View Issue Details

Jump to NotesJump to History
IDProjectCategoryView StatusDate SubmittedLast Update
0012305ScribusImport / Exportpublic2014-05-12 15:152017-02-05 07:09
ReporterFirasH Assigned To
PrioritynormalSeverityminorReproducibilityalways
Status confirmedResolutionopen
Platformx86_64OSopenSUSEOS Version13.1
Product Version1.5.0svn
Target Version1.5.4
Summary0012305: Some SVG files not properly imported by Scribus
DescriptionAttached an archive SVGImportIssues(X) which contains wrongly imported SVG files + simplified versions/general information.
If I find more files I'll attach them to this report.
Steps To ReproduceTry to import the SVG files.
Additional InformationScribus 1.4.4 SVN (19106)
Scribus 1.5.0 SVN (19116)

Fixed:
* 5.svg (r20708)
* 7.svg (r20999)

No change:
* 6.svg (won't work as the smooth drop shadows made with unsupported filters)
* 9.svg (won't work as the smooth drop shadows made with unsupported filters)
TagsSVG
PatchNo

Relationships

child of 0004732 new SVG test cases
child of 0002931 acknowledged Metabug: SVG

Activities

FirasH

2014-05-12 15:15

reporter

SVGImportIssues(1).zip (137,077 bytes)

FirasH

2014-05-13 14:23

reporter

SVGImportIssues(2).zip (717,319 bytes)

Kunda

2015-09-20 00:10

updater


Kunda

2015-09-20 00:10

updater   ~0036293

Last edited: 2016-02-13 13:56

 Firash,
Checked these in OSX 10.10.5 1.5.1 r20401
1.svg looks fine. There is a slight gray tinge to the smartphone screen background in the original pic.

2.svg I don't see the crop in the right lense

3.svg Yes. I see the gradient issue. Added a screenshot.

4.svg I don't see the issue

5.svg I see an issue in the 3d-glasses handles. Added Screenshot. fixed in r20708

Kunda

2015-09-20 00:17

updater


Kunda

2015-09-20 00:19

updater   ~0036294

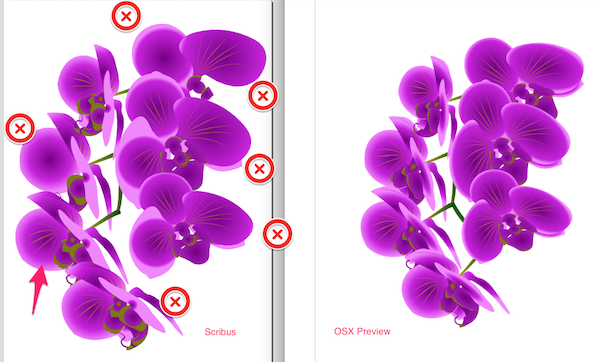

6.svg I see the issue. Added Screenshot

Kunda

2015-09-20 00:25

updater


Kunda

2015-09-20 00:28

updater


Kunda

2015-09-20 00:29

updater   ~0036295

Last edited: 2016-02-13 13:56

 7.svg Does not import correctly fixed in r20999

8.svg Didn't check

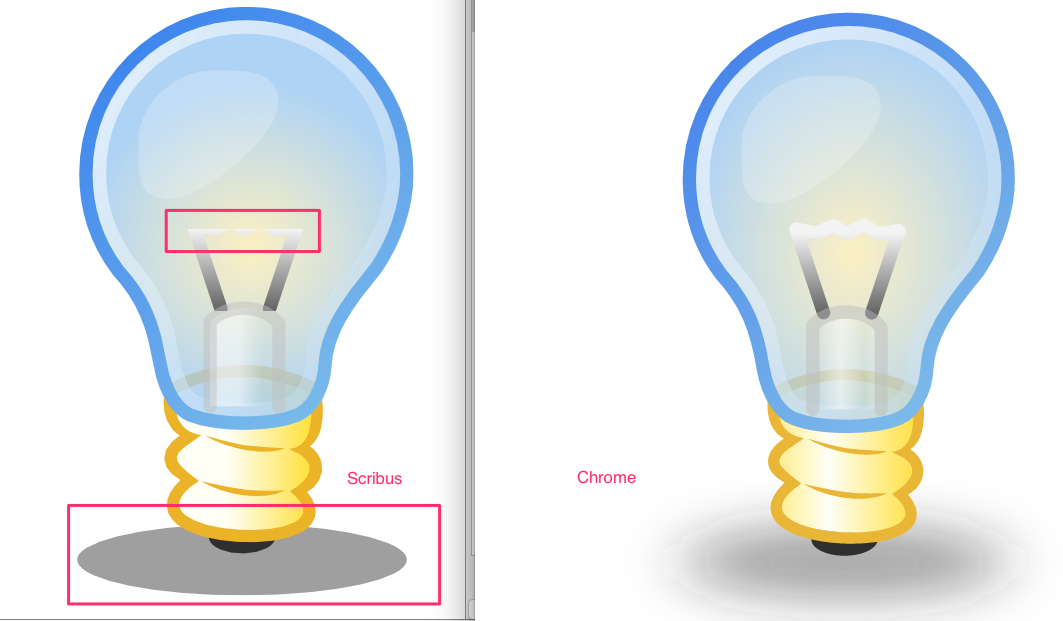

9.svg shading + gradients

10.svg Does not import correctly at all.

fschmid

2016-01-24 11:10

developer   ~0038399

5.svg seems to be correct now.

Kunda

2016-01-24 13:00

updater   ~0038403

5.svg works after r20708 Thanks Franz!

Kunda

2016-01-24 14:06

updater


fschmid

2016-02-13 09:36

developer   ~0038693

7.svg should work with r20999

fschmid

2016-02-13 09:39

developer   ~0038694

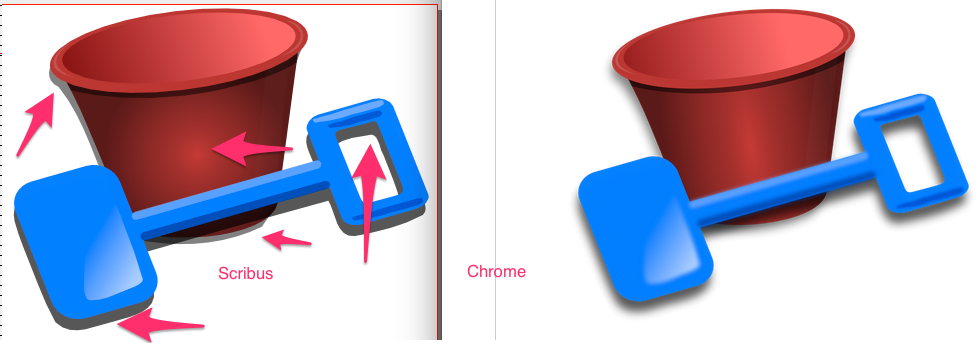

6.svg and 9.svg won't work as the smooth drop shadows are made with filters

Kunda

2016-02-13 14:00

updater   ~0038698

Updated summary to reflect changes so far

KoenDC

2017-02-05 07:09

reporter   ~0043446

When this SVG is imported in version 1.5.2 the bitmap internal is placed on a total wrong place.
With other programs the SVG seems normal
GRILLHUISJE 2016 V003.svg (894,304 bytes)
GRILLHUISJE 2016 V003.svg (894,304 bytes)
