View Issue Details

Jump to NotesJump to History
IDProjectCategoryView StatusDate SubmittedLast Update
0012643ScribusUser Interfacepublic2014-09-01 00:392016-07-01 07:41
Reporterchristoph_s Assigned Tojghali
PrioritynormalSeverityminorReproducibilityalways
Status feedbackResolutionreopened
Platformx86_64OSOpenSUSE 64 BitOS Version13.1
Product Version1.5.0svn
Summary0012643: Picture Browser reports all files as RGB, even if they aren't
DescriptionIn the PB, the "Information" tab always indicates a file's colour space as RGB, even if it's CMYK.
Steps To ReproduceOpen The PB, and click on a CMYK file.

--> PB indicates the colour space as "RGB".
TagsNo tags attached.
Patch

Activities

jghali

2014-09-01 20:31

administrator   ~0033442

Cannot reproduce that.

PeterBenedek

2016-06-25 17:09

developer   ~0041718

Last edited: 2016-06-25 17:15

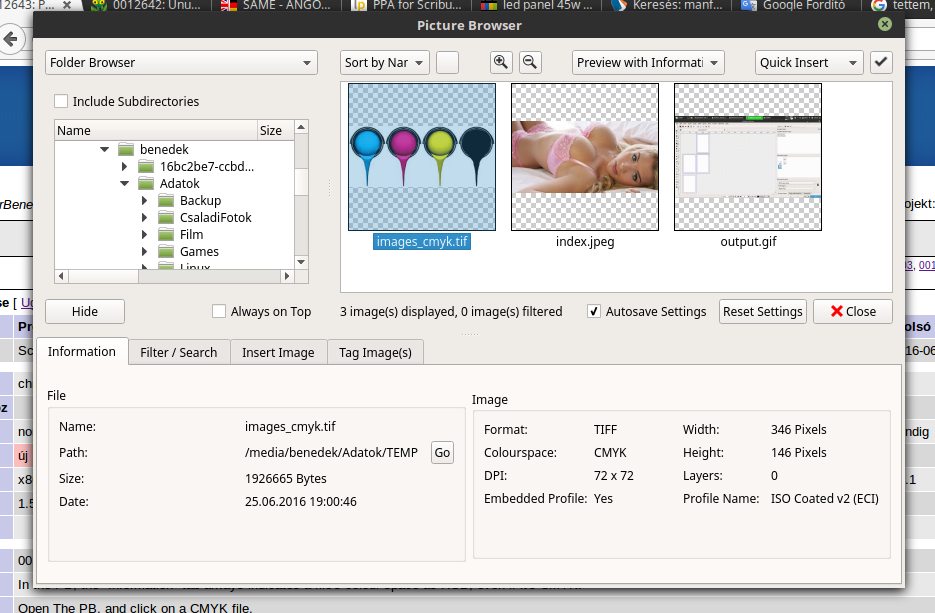

 Tested Linux Mint 18; r21388

Cannot reproduce that.

Works fine.

PeterBenedek

2016-06-25 17:16

developer


christoph_s

2016-06-27 07:35

developer

DCMYK-test.pdf (1,681 bytes)

christoph_s

2016-06-27 07:36

developer


christoph_s

2016-06-27 07:38

developer   ~0041730

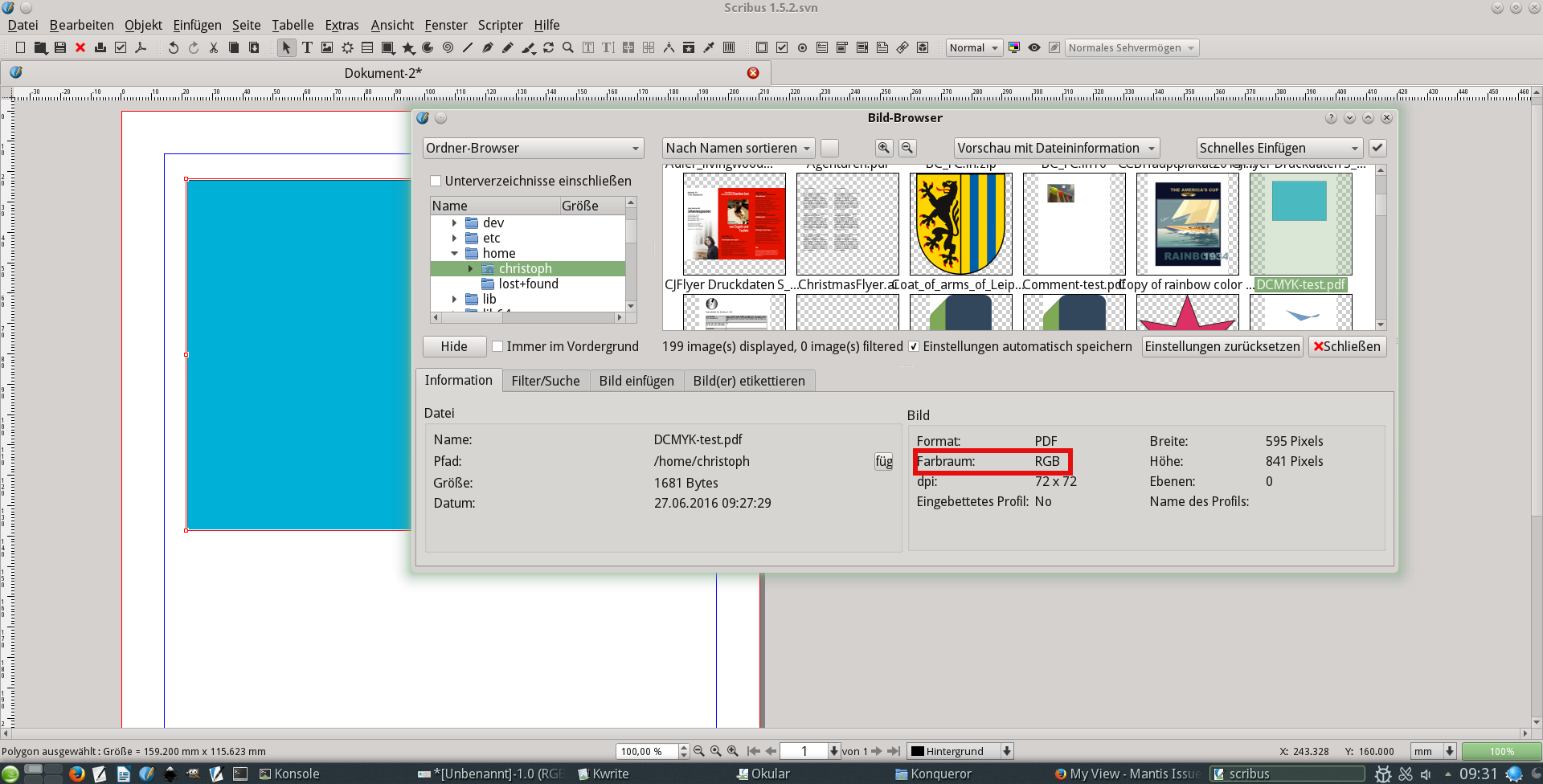

I uploaded a CMYK PDF and a related screenshot.

Laser

2016-06-27 09:12

reporter   ~0041731

Last edited: 2016-06-27 09:25

 Tested with different pdf and tiff - self created and downloaded.

Pdf is not recognized as CMYK. Also when imported to Krita, only Image(Graphic)Magick (identify) can do that here.
Tiff works well.

It's not the Picture Browser.
When you import CMYK pdf or get it as image, pdf is RGB. (Tested with color picker)

jghali

2016-06-30 21:37

administrator   ~0041753

No change required/won't fix. For PDF, saying if it is RGB or CMYK requires to parse all PDF content... which is very complex and would take lots of time. But this would not even make sense to do that as each elements in a PDF can use its own colorspace. And in the end, PDF imported in images frames are handled as RGB.

christoph_s

2016-07-01 07:41

developer   ~0041754

In that case, the solution would be not to display any colour space at all and show "N/A" instead.

Related file types: PDF, PostScript, EPS (?), SVG, IDML, IDMS, AI, PUB, FreeHand, CorelDraw, XPS, OXPS, PageMaker, Xara, and VIVA Designer

Issue History

Date Modified Username Field Change
2014-09-01 00:39 christoph_s New Issue
2014-09-01 20:31 jghali Note Added: 0033442
2016-06-25 17:09 PeterBenedek Note Added: 0041718
2016-06-25 17:11 PeterBenedek File Added: 0012643.png
2016-06-25 17:15 PeterBenedek Note Edited: 0041718
2016-06-25 17:15 PeterBenedek File Deleted: 0012643.png
2016-06-25 17:16 PeterBenedek File Added: 0012643.png
2016-06-27 07:35 christoph_s File Added: DCMYK-test.pdf
2016-06-27 07:36 christoph_s File Added: PB-CMYK-issue.png
2016-06-27 07:38 christoph_s Note Added: 0041730
2016-06-27 09:12 Laser Note Added: 0041731
2016-06-27 09:25 Laser Note Edited: 0041731
2016-06-27 09:25 Laser Note Edited: 0041731
2016-06-30 21:37 jghali Note Added: 0041753
2016-06-30 21:37 jghali Status new => resolved
2016-06-30 21:37 jghali Resolution open => no change required
2016-06-30 21:37 jghali Assigned To => jghali
2016-06-30 21:37 jghali Status resolved => closed
2016-07-01 07:41 christoph_s Note Added: 0041754
2016-07-01 07:41 christoph_s Status closed => feedback
2016-07-01 07:41 christoph_s Resolution no change required => reopened
