View Issue Details

IDProjectCategoryView StatusLast Update
0013468ScribusCanvaspublic2018-04-30 12:37
ReporterPeterBenedek Assigned Tocbradney
PrioritynormalSeverityminorReproducibilityalways
Status assignedResolutionopen
Platformx86 and x64OSLinux Mint OS Version17.2 (32bit)
Product Version1.5.1svn
Target Version1.5.5Fixed in Version
Summary0013468: If chained frames touching each other, in case marker arrow shown in wrong place.
Description- Create two text frame.
- Chain text frames.
- Use it: align (frames touch each other)
- View the marker arrow

Link video: https://www.dropbox.com/s/adf5asus46rrp6k/example.avi?dl=0
Tags#easyhack
PatchNo

Relationships

related to 0012204 closedjghali Opening/Closing Properties palette tabs moves the view to the first document (2+ document Tabs)
related to 0013470 closedjghali Missing Layout Update/Display Refresh for Text boxes using certain 'align and distribute' buttons
related to 0013581 closedjghali Linked Text Frame Arrow Artifact after deleting target text frame
related to 0013666 new Chained frame arrow artifacts (redraw issues) after using direction keys
child of 0013075 acknowledged Metabug: missing display refresh

Activities

PeterBenedek

2015-10-25 08:29

developer


PeterBenedek

2015-10-25 08:32

developer

Dokumentum-1.sla (14,840 bytes)

Kunda

2015-10-25 16:25

manager   ~0036915

Peter:
1) I can't reproduce the bug directly in Scribus
2) I can't reproduce the bug in Dokumentum-1.sla

OSX 10.10.5 1.5.1svn r20495 Qt5.5.1

PeterBenedek

2015-10-25 16:47

developer   ~0036916

Last edited: 2015-10-25 16:48

View 2 revisions

It seems I must wait Qt 5.6 (Final Release: 8th December 2015)... :-(

Qt 5.5: canvas moving slow (Linux Mint and Scribus Hand tool) :-(

Kunda

2015-10-25 16:53

manager   ~0036917

Peter,
is there an open Qt issue that you are following related to this bug?
Perhaps you can test the Qt5.6Alpha or HEAD versions ?

Kunda

2015-10-25 21:12

manager   ~0036920

Assigned to new Category: OS-Linux

Kunda

2015-10-28 19:08

manager   ~0037058

Peter, would you please make a note to yourself that when Qt5.6 is available for Linux you test this and report back results? Thanks !

PeterBenedek

2015-10-28 19:59

developer   ~0037059

OK!

Kunda

2015-10-28 23:46

manager   ~0037067

This is a Qt5 issue.. so changing the Category to reflect that.

ale

2015-10-29 07:51

manager


ale

2015-10-29 07:55

manager   ~0037085

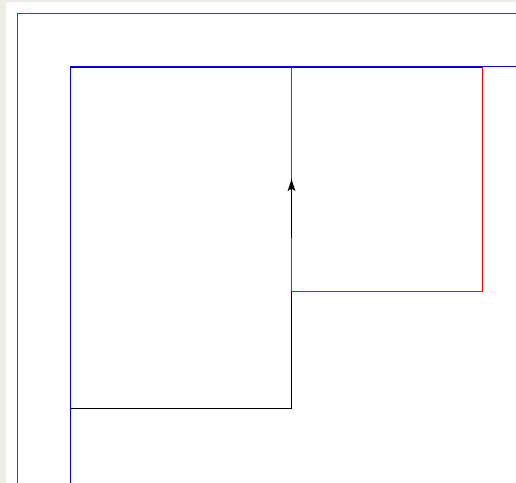

i've attached what i see with qt 5.4 (but i doubt that the qt version is important here...) and the current 1.5svn

it's not really nice but it's somehow correct...

but since i would not reccomend somebody to glue two frames to each other, i don't really see a strong need for a change (ideally, in such a case scribus should probably show a arrow head pointing in the right direction...)

Kunda

2015-11-10 21:55

manager   ~0037405

According to MrB "should be easy... to make the arrow point right"
I'll label this an #easyhack for the Oman folks.

PeterBenedek

2015-11-12 09:20

developer


PeterBenedek

2015-11-12 09:21

developer   ~0037447

Tested: r20547 Qt 5.6.0 (beta)
Does not work!

PeterBenedek

2016-01-18 21:57

developer   ~0038260

Last edited: 2016-01-18 22:15

View 2 revisions

Tested: r20547 Qt 5.5.1
It works well!

Only...
0013581 Linked Text Frame Arrow Artifact after deleting target text frame

Kunda

2016-01-18 22:14

manager   ~0038261

Remaining issue:
Make the arrow point in the direction of the next textframe (in this case right)

Kunda

2016-01-18 22:26

manager   ~0038262

Assigned to Craig since no one has submitted patch for this (0013468:0037405)

PeterBenedek

2016-03-24 18:54

reporter   ~0039394

Last edited: 2016-03-24 19:20

View 2 revisions

Retest: r21106 and qt5.6 (beta; 15-Mar-2016.: http://download.qt.io/official_releases/qt/5.6/5.6.0/)

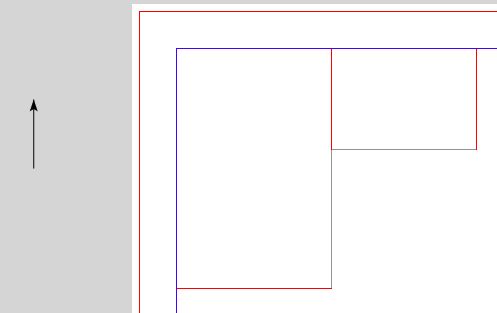

Not believe it! Again bad (example: 02.png)!

This is a Qt5 issue. :-(

Kunda

2016-03-24 20:46

manager   ~0039397

Last edited: 2016-03-24 20:46

View 2 revisions

Yea, it's back again :(

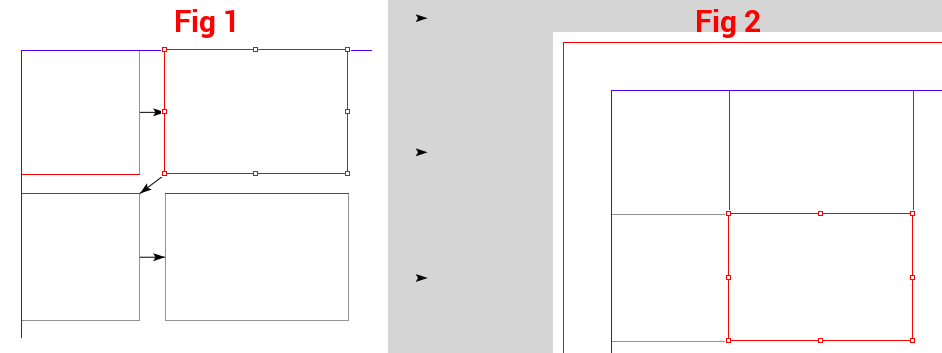

See screencast 13468-returns.gif
1.5.2svn r21112 Qt5.6

Kunda

2016-03-24 20:46

manager
