View Issue Details

IDProjectCategoryView StatusLast Update
0013842ScribusGeneralpublic2018-04-30 12:27
ReporterStevenD Assigned To
PrioritynormalSeverityminorReproducibilityalways
Status confirmedResolutionopen
PlatformWindowsOSWindowsOS Version7
Product Version1.5.1
Target Version1.5.5Fixed in Version
Summary0013842: Unable to change space between pages in the layout

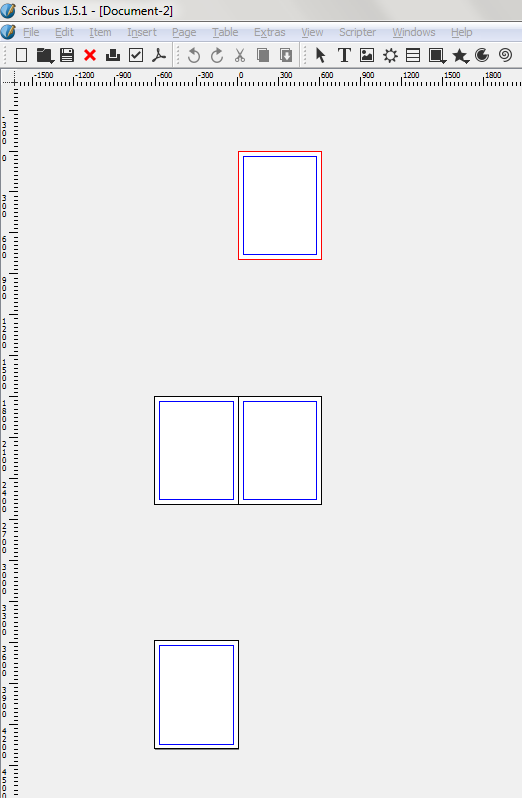

DescriptionThere is about a page height of space between pages on the paste board in a multi page document. When I scroll down from the first page to the next page it appears like there are no other pages however when I scroll down enough the next pages appear.
Steps To Reproduce1. Create a new 4 page document set to double sided, Letter size, 36 point margins.
2. Set the view to View > Zoom > Fit to Height. Or set the zoom to something small so all the pages fit into view.
3. Scroll down from page 1 to the next pages.
Additional InformationI don't know if this is a bug or this behavior is intended to be so but I thought I would report just the same. The pages in the layout need to be closer together.
TagsNo tags attached.
PatchNo

Relationships

related to 0013432 closedjghali Preferences > Fonts menu unresponsive i.e values can not be changed

Activities

StevenD

2016-03-24 03:32

reporter

cbradney

2016-03-24 19:31

administrator   ~0039395

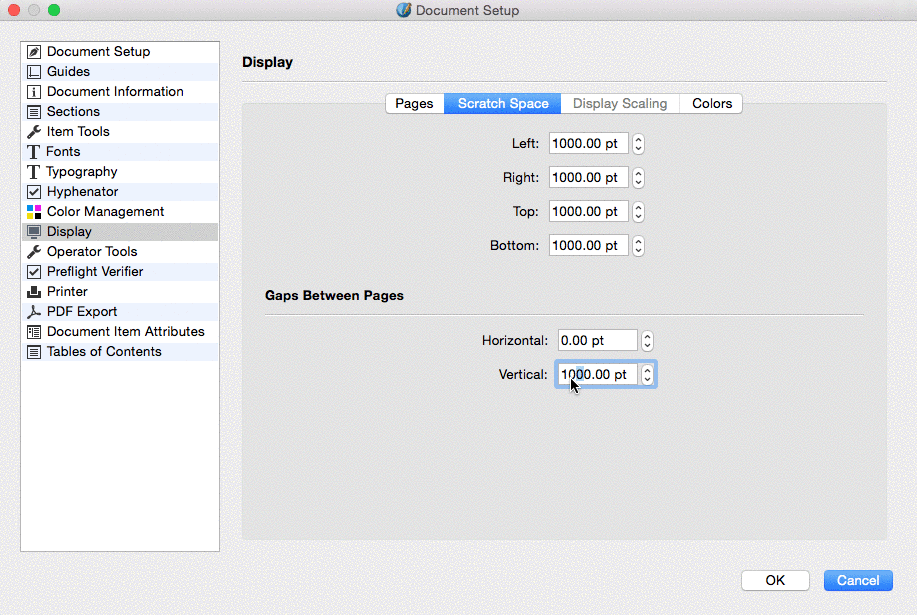

No issue here. Go to File, Document Setup, Display, Scratch Space, Gaps between pages and check what it is.

Kunda

2016-03-24 22:32

manager   ~0039399

Last edited: 2016-03-24 22:33

View 2 revisions

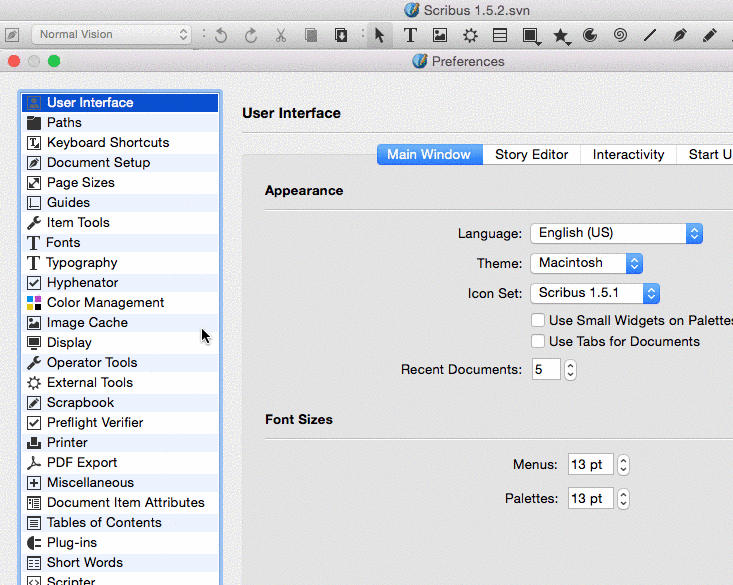

Interesting, I try to set the gaps between pages and it doesn't remember. See 13842.gif

StevenD

2016-03-24 22:57

reporter   ~0039400

Now I know. Thanks for pointing that out.

No other page layout program I've used in the past have I had to worry about resetting the page gap. It has always been set to a small size so I just never worried about changing it because it was always set by default at a comfortable size.

I would suggest changing the current default from 1000 pts to something smaller like 50 pts. I checked Scribus version 1.4.4 and the gap space is set to 40 pt by default.

The gap setting is remembered when it is changed in the Preferences and not just the document.

Kunda

2016-04-01 19:03

manager   ~0039682

jghali,
Check out the gif I uploaded (13842.gif)
It shows that Scribus doesn't "remember" to save this pref setting.

Kunda

2016-04-01 19:14

manager   ~0039685

You can also see this issue expressed in the images of the attached pics in ticket: 0013023

Kunda

2016-04-07 13:48

manager   ~0039880

revised summary

Kunda

2016-04-07 13:54

manager   ~0039881

Showing same behavior in the prefs like 0013432

Kunda

2016-04-11 23:10

manager


Kunda

2016-04-18 13:50

manager


Kunda

2016-04-18 13:51

manager   ~0040255

updated screencast so it could be visible

Kunda

2016-04-18 21:09

manager   ~0040292

jghali can't reproduce this on windows.
Peter, can you reproduce ?

Kunda

2016-04-18 21:55

manager   ~0040295

somewhere both OP and myself found that the Gap size became 1000 instead of 40. How did this happen ?

PeterBenedek

2016-04-19 08:16

developer   ~0040301

Last edited: 2016-04-19 08:43

View 3 revisions

very cloudy operation...

Units: point (pt)
Scratch Space: 1000pt
Replace units: pt to mm
Result (Scratch Space): 352,778 mm
OK (close Document Setup)
Open Document Setup
Scratch Space: 124,452 mm
Replace units: mm to pt
Result (Scratch Space): 352,78 pt
OK (close Document Setup)
Open Document Setup
Scratch Space: 1000 pt
Replace units: pt to mm
Result (Scratch Space): 124,425 mm

etc. etc.

Video: https://www.dropbox.com/s/60m514nv2ooikst/example.avi?dl=0
(clearly visible: download)

jghali

2016-04-19 09:56

administrator   ~0040303

There was indeed a unit conversion issue here. I fixed it.

Kunda

2016-04-27 00:08

manager   ~0040530

utnik, can you recreate this issue? It's definitely a problem for me and OP but not for Craig. (FYI, you can find a nightly OSX dmg from https://sourceforge.net/projects/scribus/files/scribus-svn/1.5.2.svn/)

Kunda

2016-05-09 15:10

manager   ~0040907

utnik, ping

utnik

2016-05-09 20:03

updater   ~0040921

i'm not able to reproduce – just tested with scribus 1.5.1 (svn 21004) and 1.5.2 (nightlyBuild from may 6) under macOS 10.11.4
everything works fine.
