View Issue Details

Jump to NotesJump to History
IDProjectCategoryView StatusDate SubmittedLast Update
0014021ScribusCanvaspublic2016-05-03 23:382016-05-09 03:28
ReporterKunda Assigned Tojghali
PrioritynormalSeverityminorReproducibilityalways
Status closedResolutionfixed
PlatformMacOSXOSYosemiteOS Version10.10.5
Product Version1.5.2.svn
Fixed in Version1.5.2.svn
Summary0014021: Widened & Rotated line that is grouped with another object shows abnormal outline when grouped

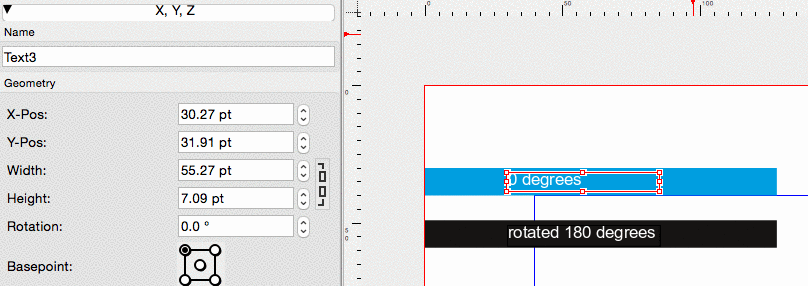

DescriptionSee gif

pay attention to the black rotated line:
shows the same line when rotated 180 degrees and then grouped with a text frame results in an abnormal outline of both objects
Steps To Reproduce1) draw a horizontal line
2) thicken the line to 10pt
3) rotate it 180 degrees
4) Add a text frame no large than height of the line
5) move text frame on to line
6) Group the line and textframe together
Result: see the outline of both grouped objects incongruent with their own size

7) move it to the margin or guide
Result: see issue 0014020
Additional InformationSplit from 0013919
OSX 10.10.5 r21279
Tagsrotate
PatchNo

Relationships

related to 0013919 closedfschmid Rotated line shows duplicated stacked line when previewed (while moving)
related to 0014020 closed Lines that are widened don't snap to margins correctly
related to 0013706 confirmed Changing Line width renders line incorrectly when selected
related to 0014035 closedjghali Rotated object popup help show too large value
related to 0011647 confirmed Alignment functions don't work uniformally with lines of width greater than hairline

Activities

2016-05-03 13:12




Kunda

2016-05-05 15:24

updater   ~0040790

Franz, not fixed on OSX 10.10.5 1.5.2svn r21282

Kunda

2016-05-05 15:53

updater   ~0040794

Hey Franz, thanks for the speedy commit. Thing is I can still reproduce this on 10.10.5 1.5.2svn r21282

fschmid

2016-05-05 16:34

developer   ~0040797

Its fixed on my Linux System, as i don't have an OSX machine, someone with OSX should have a look at it.

jghali

2016-05-05 22:32

administrator   ~0040805

Last edited: 2016-05-05 22:51

 Committed something which should work better for multiple selections in r21286

Kunda

2016-05-06 01:23

updater   ~0040808

jghali, r21286 doesn't fix the issue on OSX
I get the same behavior.

Also I've encountered bug 0013706 several times reproducing this ticket.

jghali

2016-05-06 09:15

administrator   ~0040818

Yeah, that was expected. My previous patch was modifying the outline drawing while dragging multiple ungrouped objects. However r21888 should fix your issue.

fschmid

2016-05-06 09:36

developer   ~0040820

Last committ (r21888) breaks the HUD for the position of rotated objects.

Kunda

2016-05-06 16:37

updater   ~0040840

Last edited: 2016-05-07 12:26

 Yea. popup Xpos and Ypos are fubar'd after r21888
see (0014035)

jghali

2016-05-06 17:50

administrator   ~0040845

Last edited: 2016-05-09 03:28

 Fixed in r21293

Kunda

2016-05-07 13:50

updater   ~0040870

Confirmed fix on 10.10.5 1.5.2svn r21296

Kunda

2016-05-07 13:55

updater   ~0040872

Thanks Franz and Jean!
Closing
