IDProjectCategoryView StatusDate SubmittedLast Update
0014191ScribusPDFpublic2016-06-28 16:282016-08-29 17:53
ReporterPeterBenedek Assigned To
PrioritynormalSeverityfeatureReproducibilityalways
Status newResolutionopen
Platformx64OSLinux MintOS Version18 (64bit)
Product Version1.5.3.svn
Summary0014191: PDF/x-3, PDF/x-4 can not be converted to output color RGB->CMYK
DescriptionScribus help say:

https://www.scribus.net/svn/Scribus/trunk/Scribus/doc/en/pdfx3.html

PDF/X-3 is based on PDF 1.3 and requires ICC color profiles to be resident in the PDF. This allows for RGB colors to be used in the PDF, as these will be converted to CMYK using ICC profiles as late as possible in the printing process.

PDF/X-4 is based on PDF 1.4 and allows for using a major PDF 1.4 feature – transparency – in a PDF/X file. PDF/X versions prior to X-4 do not support transparency. Support for PDF/X-4 will be added in future Scribus versions and is already in testing.

PDF/x-3, PDF/x-4 can not be converted to output color RGB to CMYK. If the input image RGB color, image output RGB color!

This problem!
There should be a possibility purely CMYK output production! Othervise is made from mixed PDF (RGB and CMYK). If the printing-house did not pay attention, the end result will be ugly (unfortunately, I know from experience)!

CMYK PDF is always a good result.

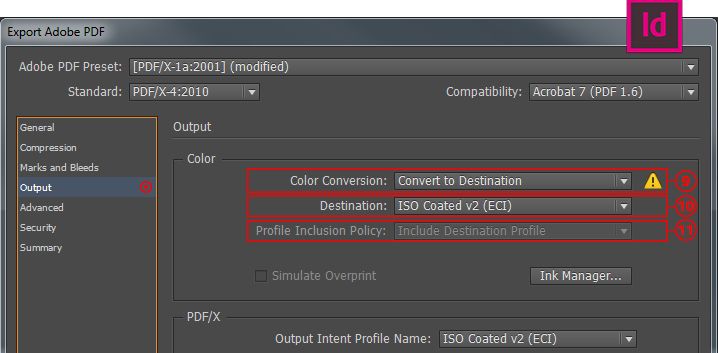

Adobe InDesign solution: PDF-4-Output1.jpg

PDF/X-1a often is not a solution e.g Managing gradients.
TagsNo tags attached.
PatchNo

Activities

PeterBenedek

2016-06-28 16:28

developer


nylnook

2016-08-29 17:50

reporter


nylnook

2016-08-29 17:50

reporter


nylnook

2016-08-29 17:53

reporter   ~0041941

Confirmed. It's fixed by converting the files with Ghoscript with the -sColorConversionStrategyForImages=CMYK parameter

This bug offered me the baddest burst-up I had with a printer ever.

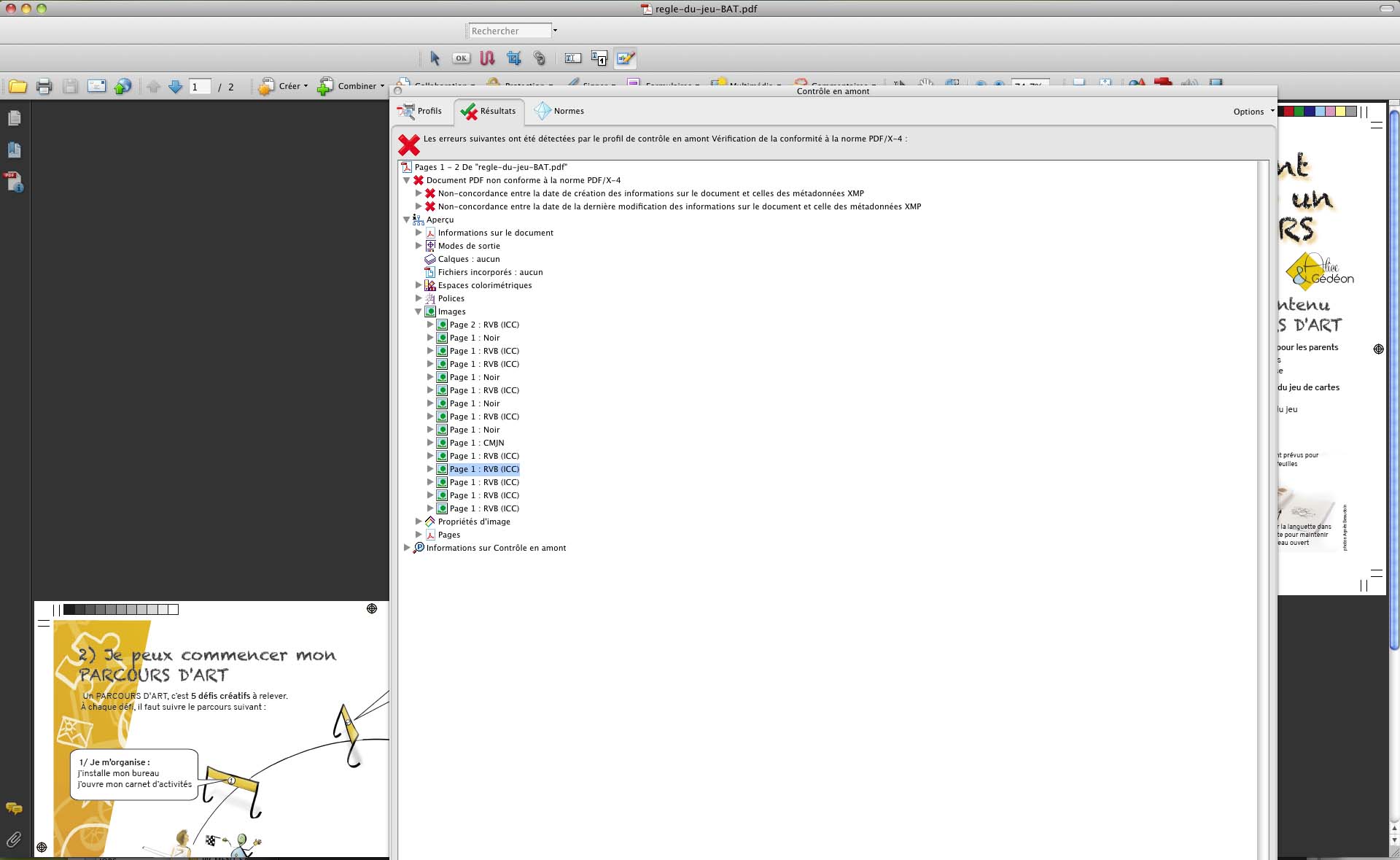

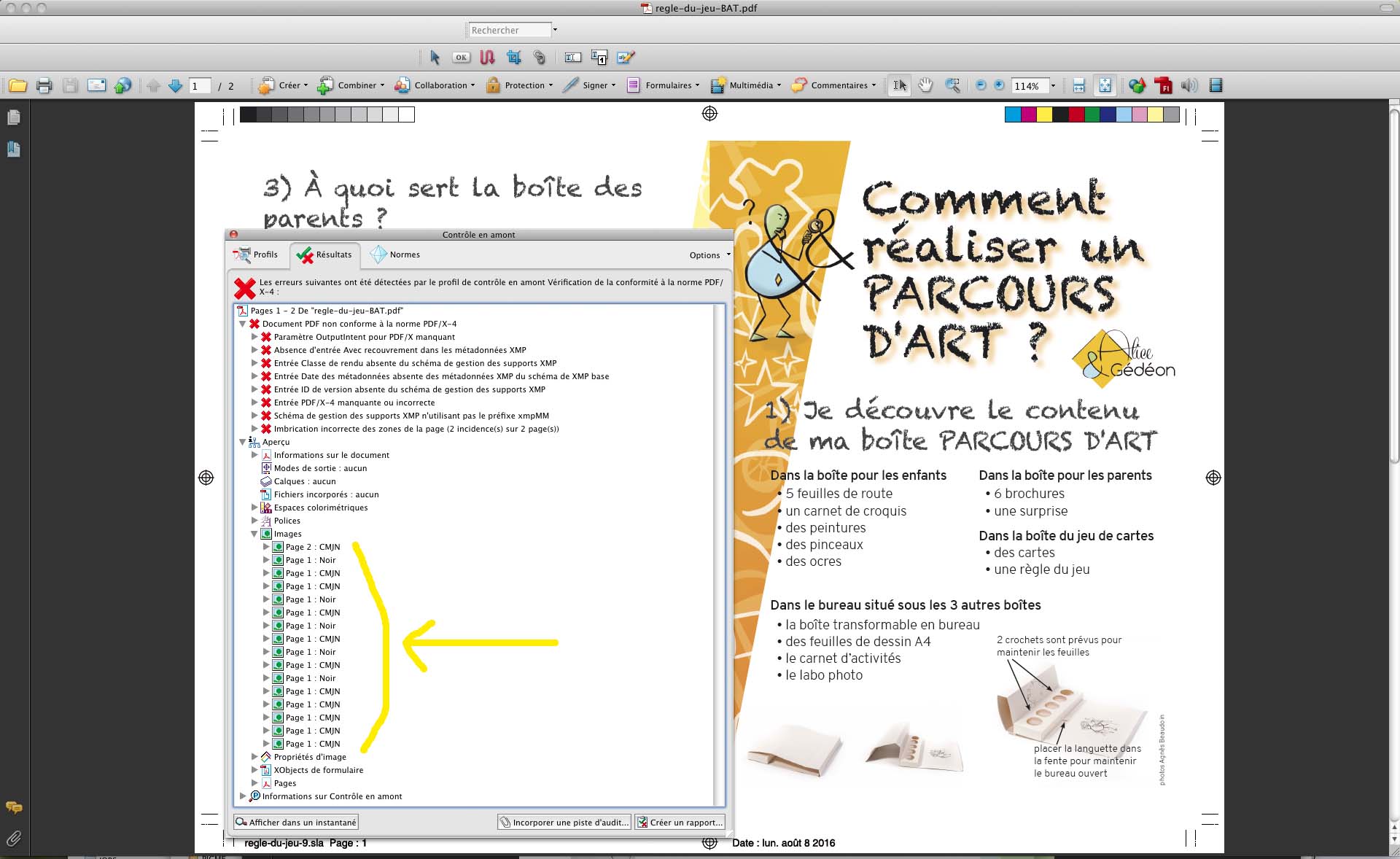

the two attached files show the printer report before and after converting with Ghostscipt.

Issue History

Date Modified Username Field Change
2016-06-28 16:28 PeterBenedek New Issue
2016-06-28 16:28 PeterBenedek File Added: PDF-4-Output1.jpg
2016-06-29 17:25 PeterBenedek Summary PDF/x-3, PDF/x-4 can not be converted to output color RGB->CMYK (no error, function) => PDF/x-3, PDF/x-4 can not be converted to output color RGB->CMYK
2016-08-29 17:50 nylnook File Added: Rapport-PDF.jpg
2016-08-29 17:50 nylnook File Added: Rapport2-PDF.jpg
2016-08-29 17:53 nylnook Note Added: 0041941
