View Issue Details
|ID||Project||Category||View Status||Date Submitted||Last Update|
|0015376||Scribus||Typography||public||2018-07-10 12:59||2018-07-13 12:28|
|Platform||x64||OS||Linux Mint||OS Version||18 (64bit)|
|Summary||0015376: Text overflow change between two Scribus version|
|Description||I uploaded a sample file.|

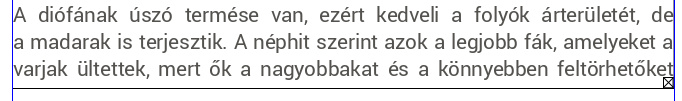

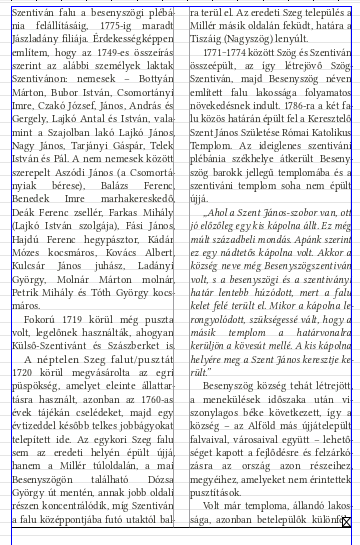

If I open the file in r22496 and r22589 (or later) , the text overflow is change.
I can't decide is this correct or incorrect behavior? I can't decide is this a fault?
The document is same, the font family is same... ...everything is the same, only operation system is different (r22496 -- Ubuntu 16.04; r22589 -- Ubuntu 18.04).
The document include a setting: PP -- Text Properties -- Advanced Settings -- Glyph Extension.
Seems, r22496 and r22589 (or later) treats this differently.
I didn't find any related changes to this change log: https://www.scribus.net/websvn/log.php?repname=Scribus&path=%2Ftrunk%2FScribus%2F&isdir=1&language=en
And I did not get answer in the mailing list neither. :-(
|Tags||No tags attached.|
scribus_overflow.zip (289,950 bytes)
||On Windows, with both 1.5.4 (r22484) and current trunk version (r22597), I get the overflow behavior. Given I have upgraded harfbuzz in the meantime, which is one of the component susceptible to cause a change of layout, my guess is that your system upgrade caused a change in font versions. Fonts are like softwares, they are versioned and the fact that two fonts have the same name is consequently not a guarantee they will behave the same.|
Thank you Jean.
How can I check it, which version is used by the Scribus?
I don't find it in Scribus wiki, and the Scribus -- Help doesn't write.
Does setup of Scribus not install automatically the harfbuzz?
||On Windows, Scribus 1.5.4 uses harfbuzz 1.7.5. But I believe you misunderstood me, I believe harfbuzz is *not* the culprit. I believe the different of layout comes from a difference of font version.|
"I believe you misunderstood me"
No, I understand.
"I believe the different of layout comes from a difference of font version. "
The font version is same (Roboto-Regular) and the document is same.
I found it:
Harfbuzz version in Ubuntu 16.04 == 1.0.1 (can't be updated!)
Harfbuzz version in Ubuntu 18.04 == 1.8.2 (latest)
"I believe harfbuzz is *not* the culprit"
Perhaps the culprit.
||Fyi I also tested harfbuzz 1.4.6. Harfbuzz 1.4.6 also produces the overflow.|
I am in Linux Mint 18.3 (Ubuntu 16.04), it uses harfbuzz 1.0.1.
-- Open text_overflow.sla
-- Click second paragraph.
-- PP -- Advanced Settings -- Glyph Extension: you reduce the value with 1% (96% --> 95%)
Now the paragraph looks the same as in Ubuntu 16.04 (scribus r22496.jpg). The difference only 1%!
I tested the Roboto fonts distributed here:
And these versions of Roboto do not produce the overflow!!!!!

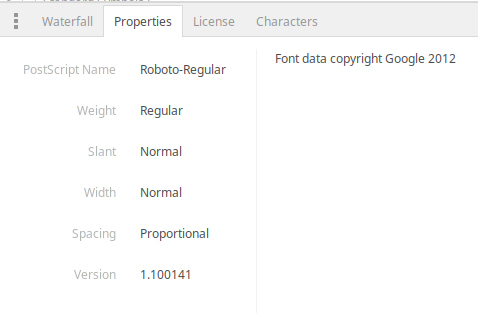

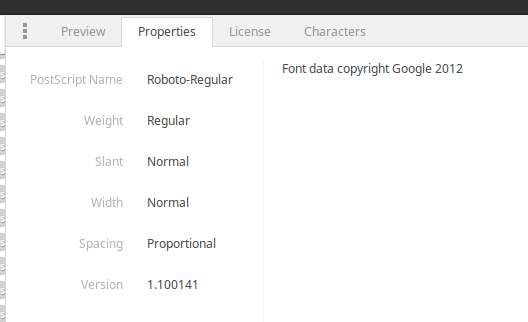

So you are indeed likely using different versions of Roboto fonts on your different systems. The version of Roboto-Regular in the archive you have uploaded is 1.10014. The version I have downloaded and which do not produce the overflow is 2.137. As I mentioned it, you should stop believing that two fonts are identical just because they have same name. As I proved it, using two different versions of the same font can produce vastly different result.
"So you are indeed likely using different versions of Roboto fonts on your different systems."
I use the same on both systems.
||With Roboto 2.137 I get exactly what shows your scribus_22496.jpg screenshots... except that i'm using latest trunk. So I maintain you are likely not using the font you believe you are using.|
||I did another test in Ubuntu 17.04 which uses harfbuzz 1.4.2. The behavior is the same than the one I described on Windows: overflow with Roboto 1.100141, no overflow with Roboto 2.137.|
Me too did another test with Linux Libertine Regular font uses Ubuntu 18.04 harfbuzz 1.8.2 (latest) and Ubuntu 16.04 harfbuzz 1.0.1 (can't be updated!).
Linux Libertie O font family not been updated since 2012 (https://sourceforge.net/projects/linuxlibertine/files/linuxlibertine/). The same problem: Text overflow change between two Scribus version.
LinuxLibertineO.zip (785,667 bytes)
