View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0015706 | Scribus | Text Frames / Story Editor | public | 2019-06-05 02:28 | 2019-06-05 06:48 |
| Reporter | LastStarDust | Assigned To | |||
| Priority | normal | Severity | minor | Reproducibility | always |
| Status | new | Resolution | open | ||
| Platform | Linux | OS | Ubuntu | OS Version | 18.04 |
| Product Version | 1.4.7 | ||||
| Summary | 0015706: Graphical artifact on polygon contour | ||||
| Description | I noticed a graphical artifact in some polygons perimeter. By artifact, I mean that, even if the path is continuous, the graphical line is broken (non-continuous). The strange thing is that this artifact depends on the zoom level and is even present in the exported PDF. | ||||
| Steps To Reproduce | Create a bezier curve, convert the curve into a polygon, convert the polygon into a text frame, increase the size of the contour line. Maybe the artifact occurs only when the contour is very close to the page border. | ||||
| Additional Information | I have attached a minimal .sla file and the relative .pdf file where the issue appears. | ||||
| Tags | bezier, lines, linux, ubuntu | ||||
| Attached Files | |||||
| Patch | No | ||||
|
		 |

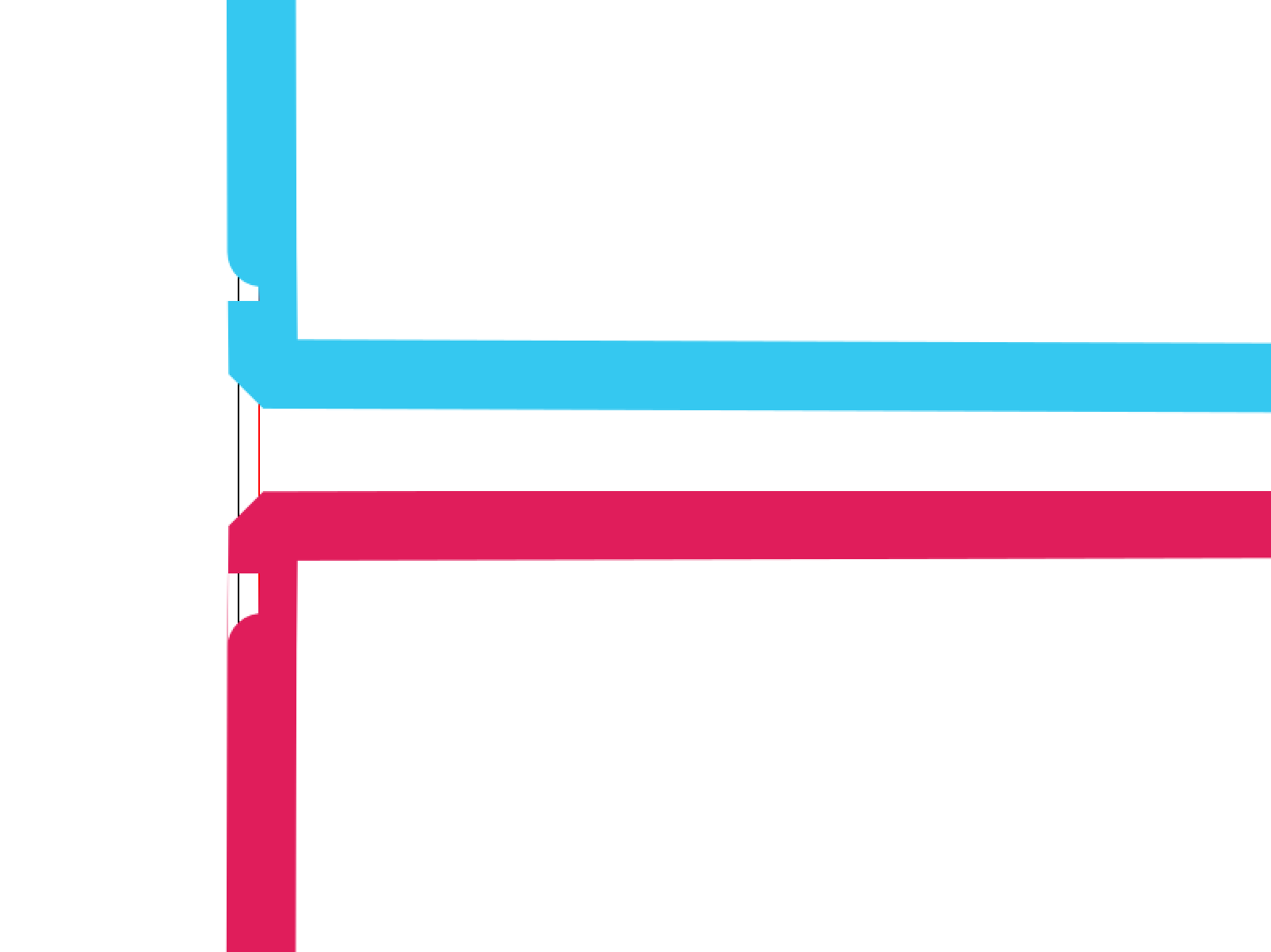

	i see some strange rendering on screen in the .sla file. (see attachment) the .pdf looks ok.  |
|
		 |
	Sometimes the strange rendering can be seen in the PDF file too. You can take a look at this forum discussion for further detail: http://forums.scribus.net/index.php/topic,3322.0.html |
|
		 |

	i saw the artifacts in the pdf, too... it would be interesting to know if it also shows up in print too...  |
|
		 |

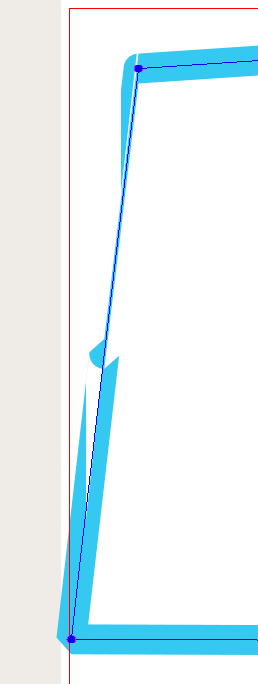

	This SLA file behaves wildly in scribus : the vertical lines at the right and at the left. No crash but depending on zoom, visible line length changes + line get cut with moving chisel or rounded ends. This is all the more visible since the lines have a 1cm width. With 1mm width some strange phenomenon still happen but much less visible.  |
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2019-06-05 02:28 | LastStarDust | New Issue | |
| 2019-06-05 02:28 | LastStarDust | File Added: test.pdf | |
| 2019-06-05 02:28 | LastStarDust | File Added: test.sla | |
| 2019-06-05 02:28 | LastStarDust | Tag Attached: bezier | |
| 2019-06-05 02:28 | LastStarDust | Tag Attached: lines | |
| 2019-06-05 02:28 | LastStarDust | Tag Attached: linux | |
| 2019-06-05 02:28 | LastStarDust | Tag Attached: ubuntu | |
| 2019-06-05 03:43 | utnik | File Added: scribus_render.png | |
| 2019-06-05 03:43 | utnik | Note Added: 0046274 | |
| 2019-06-05 03:46 | LastStarDust | Note Added: 0046275 | |
| 2019-06-05 06:40 | ale | Note Added: 0046276 | |
| 2019-06-05 06:47 | JLuc | Note Added: 0046277 | |
| 2019-06-05 06:48 | JLuc | File Added: Capture d’écran de 2019-06-05 08-44-54.png | |
| 2025-04-27 19:16 | cbradney | Category | Story Editor / Text Frames => Text Frames / Story Editor |
