View Issue Details

IDProjectCategoryView StatusLast Update
0016352ScribusUser Interfacepublic2020-11-26 13:21
Reporterbubu Assigned Tojghali
PrioritynormalSeverityminorReproducibilityalways
Status resolvedResolutionfixed
Product Version1.5.7.svn
Target VersionFixed in Version1.5.7.svn
Summary0016352: Non-transparent scrollreas in preferences dialog
DescriptionI found two other interfaces witch are similar to 0012964.

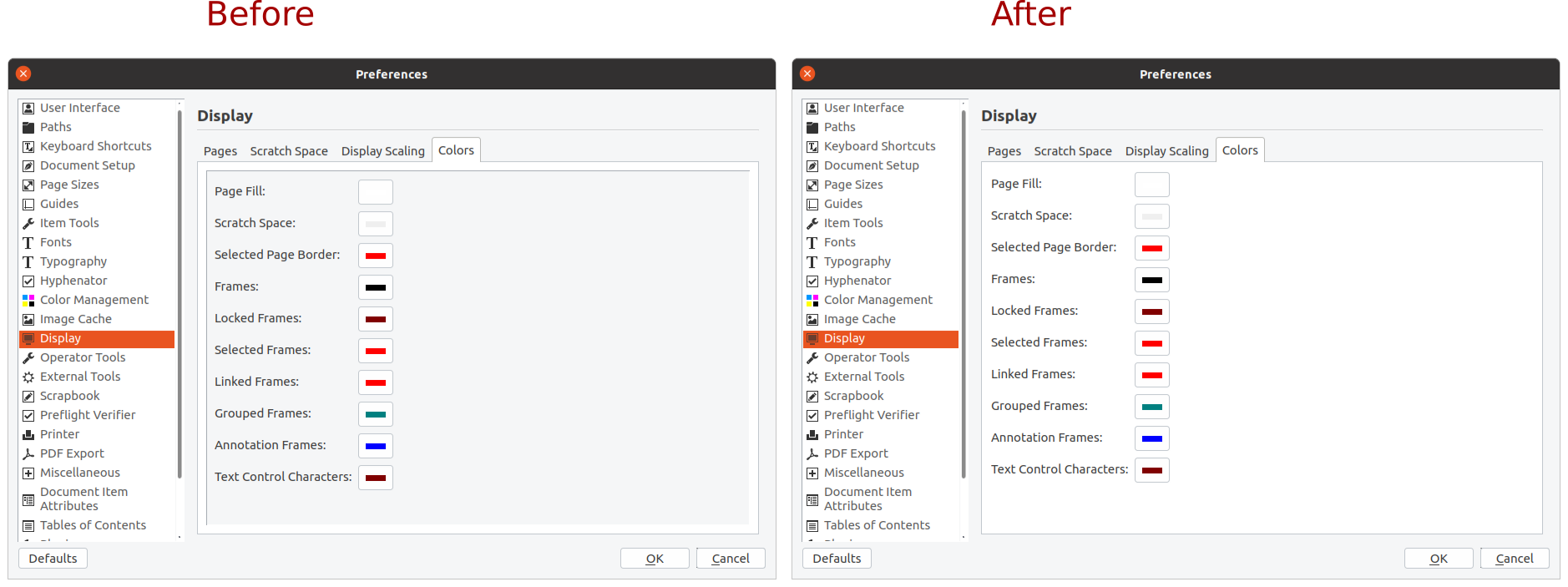

1) Preferences > Display > Colors = Document Setup > Display > Colors
This is a hidden scrollable interface. I made two patches: make it transparent or completely remove the scrollarea. I think there is no need for scrolling.

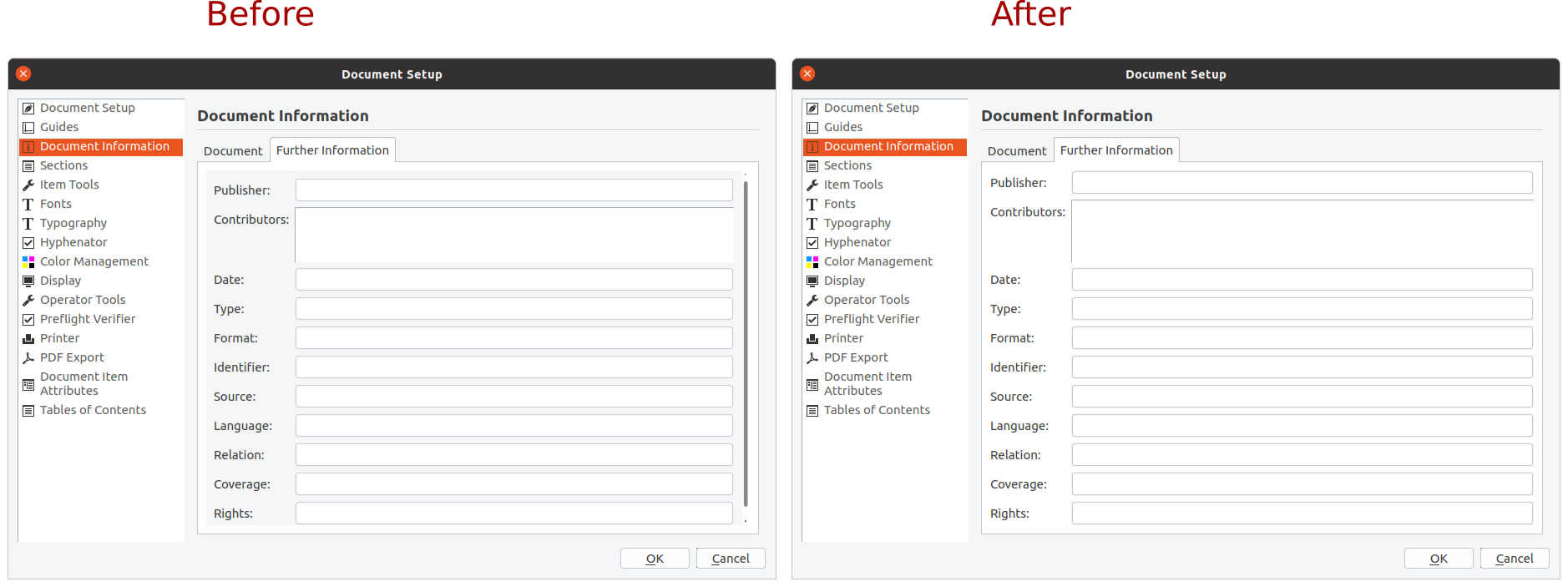

2) Document Setup > Document Information > Further information
This is exactly the same case as was in 0012964, I just didn't find it before.

Please, review the patches. Thanks.

I checked, there is no more affected scrollareas in Preferences / Document Setup.
TagsNo tags attached.
PatchYes

Activities

bubu

2020-11-25 10:55

reporter

colors_panel_scrollarea_transparent.diff (1,856 bytes)
diff --git a/scribus/ui/prefs_display.cpp b/scribus/ui/prefs_display.cpp
index 2961ec1289b8d4eb6c92cd4af65848645da90c80..295196c9ee0a6c9d8af32f2871ddaf781e32217a 100644
--- a/scribus/ui/prefs_display.cpp
+++ b/scribus/ui/prefs_display.cpp
@@ -21,6 +21,9 @@ for which a new license (GPL+exception) is in place.
 Prefs_Display::Prefs_Display(QWidget* parent, ScribusDoc* doc) : Prefs_Pane(parent), m_doc(doc)
 {
 	setupUi(this);
+	scrollArea->viewport()->setAutoFillBackground(false);
+	scrollArea->widget()->setAutoFillBackground(false);
+
 	languageChange();

 	m_caption = tr("Display");
diff --git a/scribus/ui/prefs_displaybase.ui b/scribus/ui/prefs_displaybase.ui
index 806353475c197ff8058d7b621af94e63b79e6369..222d0904ec54550b53ffd872dcbb1d8e2ad53ce1 100644
--- a/scribus/ui/prefs_displaybase.ui
+++ b/scribus/ui/prefs_displaybase.ui
@@ -360,6 +360,9 @@
       <layout class="QVBoxLayout" name="verticalLayout">
        <item>
         <widget class="QScrollArea" name="scrollArea">
+         <property name="frameShadow">
+          <enum>QFrame::Plain</enum>
+         </property>
          <property name="widgetResizable">
           <bool>true</bool>
          </property>
@@ -376,6 +379,18 @@
            <property name="fieldGrowthPolicy">
             <enum>QFormLayout::FieldsStayAtSizeHint</enum>
            </property>
+           <property name="leftMargin">
+            <number>0</number>
+           </property>
+           <property name="topMargin">
+            <number>0</number>
+           </property>
+           <property name="rightMargin">
+            <number>0</number>
+           </property>
+           <property name="bottomMargin">
+            <number>0</number>
+           </property>
            <item row="0" column="0">
             <widget class="QLabel" name="label_15">
              <property name="text">
colors_panel_scrollarea_deleted.diff (10,724 bytes)
diff --git a/scribus/ui/prefs_displaybase.ui b/scribus/ui/prefs_displaybase.ui
index 806353475c197ff8058d7b621af94e63b79e6369..4157b6160c48b9d5b42d2f171f803056fa0487ae 100644
--- a/scribus/ui/prefs_displaybase.ui
+++ b/scribus/ui/prefs_displaybase.ui
@@ -359,166 +359,151 @@
       </attribute>
       <layout class="QVBoxLayout" name="verticalLayout">
        <item>
-        <widget class="QScrollArea" name="scrollArea">
-         <property name="widgetResizable">
-          <bool>true</bool>
+        <layout class="QFormLayout" name="formLayout_2">
+         <property name="fieldGrowthPolicy">
+          <enum>QFormLayout::FieldsStayAtSizeHint</enum>
          </property>
-         <widget class="QWidget" name="scrollAreaWidgetContents">
-          <property name="geometry">
-           <rect>
-            <x>0</x>
-            <y>0</y>
-            <width>212</width>
-            <height>292</height>
-           </rect>
-          </property>
-          <layout class="QFormLayout" name="formLayout_2">
-           <property name="fieldGrowthPolicy">
-            <enum>QFormLayout::FieldsStayAtSizeHint</enum>
-           </property>
-           <item row="0" column="0">
-            <widget class="QLabel" name="label_15">
-             <property name="text">
-              <string>Page Fill:</string>
-             </property>
-            </widget>
-           </item>
-           <item row="0" column="1">
-            <widget class="QPushButton" name="pageFillColorButton">
-             <property name="text">
-              <string/>
-             </property>
-            </widget>
-           </item>
-           <item row="1" column="0">
-            <widget class="QLabel" name="label_2">
-             <property name="text">
-              <string>Scratch Space:</string>
-             </property>
-            </widget>
-           </item>
-           <item row="1" column="1">
-            <widget class="QPushButton" name="scratchSpaceColorButton">
-             <property name="text">
-              <string/>
-             </property>
-            </widget>
-           </item>
-           <item row="2" column="0">
-            <widget class="QLabel" name="label_13">
-             <property name="text">
-              <string>Selected Page Border:</string>
-             </property>
-            </widget>
-           </item>
-           <item row="2" column="1">
-            <widget class="QPushButton" name="selectedPageBorderButton">
-             <property name="text">
-              <string/>
-             </property>
-            </widget>
-           </item>
-           <item row="3" column="0">
-            <widget class="QLabel" name="label_14">
-             <property name="text">
-              <string>Frames:</string>
-             </property>
-            </widget>
-           </item>
-           <item row="3" column="1">
-            <widget class="QPushButton" name="frameColorButton">
-             <property name="text">
-              <string/>
-             </property>
-            </widget>
-           </item>
-           <item row="4" column="0">
-            <widget class="QLabel" name="label_16">
-             <property name="text">
-              <string>Locked Frames:</string>
-             </property>
-            </widget>
-           </item>
-           <item row="4" column="1">
-            <widget class="QPushButton" name="frameLockedColorButton">
-             <property name="text">
-              <string/>
-             </property>
-            </widget>
-           </item>
-           <item row="5" column="0">
-            <widget class="QLabel" name="label_17">
-             <property name="text">
-              <string>Selected Frames:</string>
-             </property>
-            </widget>
-           </item>
-           <item row="5" column="1">
-            <widget class="QPushButton" name="frameSelectedColorButton">
-             <property name="text">
-              <string/>
-             </property>
-            </widget>
-           </item>
-           <item row="6" column="0">
-            <widget class="QLabel" name="label_31">
-             <property name="text">
-              <string>Linked Frames:</string>
-             </property>
-            </widget>
-           </item>
-           <item row="6" column="1">
-            <widget class="QPushButton" name="frameLinkedColorButton">
-             <property name="text">
-              <string/>
-             </property>
-            </widget>
-           </item>
-           <item row="7" column="0">
-            <widget class="QLabel" name="label_30">
-             <property name="text">
-              <string>Grouped Frames:</string>
-             </property>
-            </widget>
-           </item>
-           <item row="7" column="1">
-            <widget class="QPushButton" name="frameGroupedColorButton">
-             <property name="text">
-              <string/>
-             </property>
-            </widget>
-           </item>
-           <item row="8" column="0">
-            <widget class="QLabel" name="label_29">
-             <property name="text">
-              <string>Annotation Frames:</string>
-             </property>
-            </widget>
-           </item>
-           <item row="8" column="1">
-            <widget class="QPushButton" name="frameAnnotationColorButton">
-             <property name="text">
-              <string/>
-             </property>
-            </widget>
-           </item>
-           <item row="9" column="0">
-            <widget class="QLabel" name="label_32">
-             <property name="text">
-              <string>Text Control Characters:</string>
-             </property>
-            </widget>
-           </item>
-           <item row="9" column="1">
-            <widget class="QPushButton" name="textControlCharsButton">
-             <property name="text">
-              <string/>
-             </property>
-            </widget>
-           </item>
-          </layout>
-         </widget>
-        </widget>
+         <item row="0" column="0">
+          <widget class="QLabel" name="label_15">
+           <property name="text">
+            <string>Page Fill:</string>
+           </property>
+          </widget>
+         </item>
+         <item row="0" column="1">
+          <widget class="QPushButton" name="pageFillColorButton">
+           <property name="text">
+            <string/>
+           </property>
+          </widget>
+         </item>
+         <item row="1" column="0">
+          <widget class="QLabel" name="label_2">
+           <property name="text">
+            <string>Scratch Space:</string>
+           </property>
+          </widget>
+         </item>
+         <item row="1" column="1">
+          <widget class="QPushButton" name="scratchSpaceColorButton">
+           <property name="text">
+            <string/>
+           </property>
+          </widget>
+         </item>
+         <item row="2" column="0">
+          <widget class="QLabel" name="label_13">
+           <property name="text">
+            <string>Selected Page Border:</string>
+           </property>
+          </widget>
+         </item>
+         <item row="2" column="1">
+          <widget class="QPushButton" name="selectedPageBorderButton">
+           <property name="text">
+            <string/>
+           </property>
+          </widget>
+         </item>
+         <item row="3" column="0">
+          <widget class="QLabel" name="label_14">
+           <property name="text">
+            <string>Frames:</string>
+           </property>
+          </widget>
+         </item>
+         <item row="3" column="1">
+          <widget class="QPushButton" name="frameColorButton">
+           <property name="text">
+            <string/>
+           </property>
+          </widget>
+         </item>
+         <item row="4" column="0">
+          <widget class="QLabel" name="label_16">
+           <property name="text">
+            <string>Locked Frames:</string>
+           </property>
+          </widget>
+         </item>
+         <item row="4" column="1">
+          <widget class="QPushButton" name="frameLockedColorButton">
+           <property name="text">
+            <string/>
+           </property>
+          </widget>
+         </item>
+         <item row="5" column="0">
+          <widget class="QLabel" name="label_17">
+           <property name="text">
+            <string>Selected Frames:</string>
+           </property>
+          </widget>
+         </item>
+         <item row="5" column="1">
+          <widget class="QPushButton" name="frameSelectedColorButton">
+           <property name="text">
+            <string/>
+           </property>
+          </widget>
+         </item>
+         <item row="6" column="0">
+          <widget class="QLabel" name="label_31">
+           <property name="text">
+            <string>Linked Frames:</string>
+           </property>
+          </widget>
+         </item>
+         <item row="6" column="1">
+          <widget class="QPushButton" name="frameLinkedColorButton">
+           <property name="text">
+            <string/>
+           </property>
+          </widget>
+         </item>
+         <item row="7" column="0">
+          <widget class="QLabel" name="label_30">
+           <property name="text">
+            <string>Grouped Frames:</string>
+           </property>
+          </widget>
+         </item>
+         <item row="7" column="1">
+          <widget class="QPushButton" name="frameGroupedColorButton">
+           <property name="text">
+            <string/>
+           </property>
+          </widget>
+         </item>
+         <item row="8" column="0">
+          <widget class="QLabel" name="label_29">
+           <property name="text">
+            <string>Annotation Frames:</string>
+           </property>
+          </widget>
+         </item>
+         <item row="8" column="1">
+          <widget class="QPushButton" name="frameAnnotationColorButton">
+           <property name="text">
+            <string/>
+           </property>
+          </widget>
+         </item>
+         <item row="9" column="0">
+          <widget class="QLabel" name="label_32">
+           <property name="text">
+            <string>Text Control Characters:</string>
+           </property>
+          </widget>
+         </item>
+         <item row="9" column="1">
+          <widget class="QPushButton" name="textControlCharsButton">
+           <property name="text">
+            <string/>
+           </property>
+          </widget>
+         </item>
+        </layout>
        </item>
       </layout>
      </widget>
further_information_scrollarea_transparent.diff (1,543 bytes)
diff --git a/scribus/ui/prefs_documentinformation.cpp b/scribus/ui/prefs_documentinformation.cpp
index 3ad889b7c52fe9feb11beddbadcdcff5c57f14bf..029e8128f4fcb4aa0bdd23ceb997477544167a50 100644
--- a/scribus/ui/prefs_documentinformation.cpp
+++ b/scribus/ui/prefs_documentinformation.cpp
@@ -13,6 +13,9 @@ Prefs_DocumentInformation::Prefs_DocumentInformation(QWidget* parent, ScribusDoc
 	: Prefs_Pane(parent)
 {
 	setupUi(this);
+	scrollArea->viewport()->setAutoFillBackground(false);
+	scrollArea->widget()->setAutoFillBackground(false);
+
 	languageChange();

 	m_caption = tr("Document Information");
diff --git a/scribus/ui/prefs_documentinformationbase.ui b/scribus/ui/prefs_documentinformationbase.ui
index f649193268ba73da34ad58a1ca9b4648dd515950..4bb66b78f396120d9c5e2a88152dd9dee4f44ed3 100644
--- a/scribus/ui/prefs_documentinformationbase.ui
+++ b/scribus/ui/prefs_documentinformationbase.ui
@@ -130,6 +130,18 @@
            </rect>
           </property>
           <layout class="QVBoxLayout" name="verticalLayout_2">
+           <property name="leftMargin">
+            <number>0</number>
+           </property>
+           <property name="topMargin">
+            <number>0</number>
+           </property>
+           <property name="rightMargin">
+            <number>0</number>
+           </property>
+           <property name="bottomMargin">
+            <number>0</number>
+           </property>
            <item>
             <layout class="QFormLayout" name="formLayout_2">
              <item row="0" column="0">

jghali

2020-11-26 13:21

administrator   ~0048495

Applied, thanks!

Issue History

Date Modified Username Field Change
2020-11-25 10:55 bubu New Issue
2020-11-25 10:55 bubu File Added: colors_before-after.png
2020-11-25 10:55 bubu File Added: further_information_before-after.png
2020-11-25 10:55 bubu File Added: colors_panel_scrollarea_transparent.diff
2020-11-25 10:55 bubu File Added: colors_panel_scrollarea_deleted.diff
2020-11-25 10:55 bubu File Added: further_information_scrollarea_transparent.diff
2020-11-26 13:21 jghali Summary Transparent ScrollAreas, 2nd set => Non-transparent scrollreas in preferences dialog
2020-11-26 13:21 jghali Assigned To => jghali
2020-11-26 13:21 jghali Status new => resolved
2020-11-26 13:21 jghali Resolution open => fixed
2020-11-26 13:21 jghali Fixed in Version => 1.5.7.svn
2020-11-26 13:21 jghali Note Added: 0048495
