View Issue Details

IDProjectCategoryView StatusLast Update
0016401ScribusUser Interfacepublic2021-01-02 23:08
Reporterbubu Assigned Tojghali
PrioritynormalSeverityminorReproducibilityalways
Status resolvedResolutionfixed
Product Version1.5.7.svn
Target VersionFixed in Version1.5.7.svn
Summary0016401: Update margins for Picture Browser

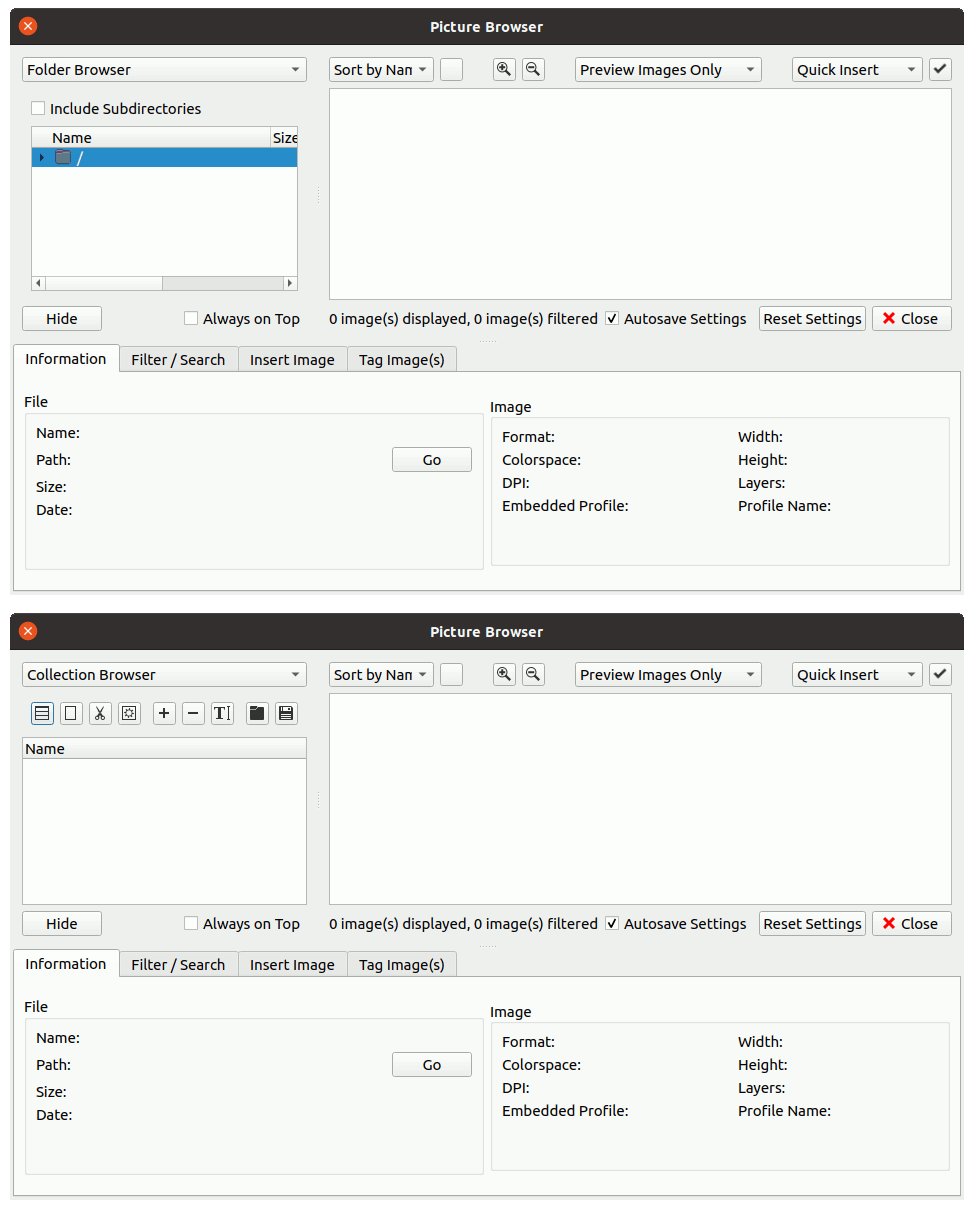

DescriptionIn this patch I propose to use the standard 9px margin and 6px spacing consistently in Picture Browser dialog. It will be a little smaller. I use 9px vertical splitter between folder and file panel (as in Preferences dialog). Please see the before-after screenshot.

Please review the patch. Thanks.

2/5 part of 0016383. This patch overwrites that proposal.
TagsNo tags attached.
PatchNo

Relationships

related to 0016383 closedjghali [Patch] Unify margins for dockable interfaces and some modal windows
child of 0013906 acknowledged Metabug: UI enhancement proposals (1.5.x.svn)

Activities

bubu

2021-01-02 10:57

reporter

picture_browser.diff (4,820 bytes)
diff --git a/scribus/plugins/picbrowser/imagedialog.ui b/scribus/plugins/picbrowser/imagedialog.ui
index 0929d1a05c26982e5e8107151c3f37a146bd0465..2d6c686c83bd9dcf90bbad6355056fbe0ef94ae6 100644
--- a/scribus/plugins/picbrowser/imagedialog.ui
+++ b/scribus/plugins/picbrowser/imagedialog.ui
@@ -16,9 +16,6 @@
   <layout class="QGridLayout" name="gridLayout">
    <item row="0" column="0" colspan="2">
     <layout class="QHBoxLayout">
-     <property name="spacing">
-      <number>8</number>
-     </property>
      <item>
       <widget class="QRadioButton" name="fitToWindowRadiobutton">
        <property name="text">
diff --git a/scribus/plugins/picbrowser/picturebrowser.ui b/scribus/plugins/picbrowser/picturebrowser.ui
index 45e37a84f82c851c15002e58982a9494ec2c9c2e..ffe4b5934549e1500717727618776c78c40db0d5 100644
--- a/scribus/plugins/picbrowser/picturebrowser.ui
+++ b/scribus/plugins/picbrowser/picturebrowser.ui
@@ -14,21 +14,6 @@
    <string>Picture Browser</string>
   </property>
   <layout class="QGridLayout">
-   <property name="leftMargin">
-    <number>3</number>
-   </property>
-   <property name="topMargin">
-    <number>3</number>
-   </property>
-   <property name="rightMargin">
-    <number>3</number>
-   </property>
-   <property name="bottomMargin">
-    <number>3</number>
-   </property>
-   <property name="spacing">
-    <number>2</number>
-   </property>
    <item row="0" column="0">
     <widget class="QSplitter" name="splitter_2">
      <property name="orientation">
@@ -53,6 +38,9 @@
          <property name="orientation">
           <enum>Qt::Horizontal</enum>
          </property>
+         <property name="handleWidth">
+          <number>9</number>
+         </property>
          <widget class="QWidget" name="widget" native="true">
           <property name="sizePolicy">
            <sizepolicy hsizetype="Preferred" vsizetype="Preferred">
@@ -61,6 +49,18 @@
            </sizepolicy>
           </property>
           <layout class="QVBoxLayout" name="verticalLayout_3">
+           <property name="leftMargin">
+            <number>0</number>
+           </property>
+           <property name="topMargin">
+            <number>0</number>
+           </property>
+           <property name="rightMargin">
+            <number>0</number>
+           </property>
+           <property name="bottomMargin">
+            <number>0</number>
+           </property>
            <item>
             <widget class="QComboBox" name="navigationBox">
              <item>
@@ -87,6 +87,21 @@
              </property>
              <widget class="QWidget" name="folderpage">
               <layout class="QVBoxLayout" name="verticalLayout_2">
+               <property name="spacing">
+                <number>3</number>
+               </property>
+               <property name="leftMargin">
+                <number>0</number>
+               </property>
+               <property name="topMargin">
+                <number>0</number>
+               </property>
+               <property name="rightMargin">
+                <number>0</number>
+               </property>
+               <property name="bottomMargin">
+                <number>0</number>
+               </property>
                <item>
                 <widget class="QCheckBox" name="subdirsCheckbox">
                  <property name="text">
@@ -135,6 +150,18 @@
                  </property>
                  <widget class="QWidget" name="page_5">
                   <layout class="QHBoxLayout" name="horizontalLayout_2">
+                   <property name="leftMargin">
+                    <number>0</number>
+                   </property>
+                   <property name="topMargin">
+                    <number>0</number>
+                   </property>
+                   <property name="rightMargin">
+                    <number>0</number>
+                   </property>
+                   <property name="bottomMargin">
+                    <number>0</number>
+                   </property>
                    <item>
                     <widget class="QPushButton" name="collectionsNewCategoryButton">
                      <property name="minimumSize">
@@ -565,6 +592,18 @@
            </sizepolicy>
           </property>
           <layout class="QVBoxLayout" name="verticalLayout">
+           <property name="leftMargin">
+            <number>0</number>
+           </property>
+           <property name="topMargin">
+            <number>0</number>
+           </property>
+           <property name="rightMargin">
+            <number>0</number>
+           </property>
+           <property name="bottomMargin">
+            <number>0</number>
+           </property>
            <item>
             <layout class="QHBoxLayout" name="horizontalLayout">
              <item>
picture_browser.diff (4,820 bytes)

jghali

2021-01-02 23:08

administrator   ~0048611

Applied, thanks!

Issue History

Date Modified Username Field Change
2021-01-02 10:57 bubu New Issue
2021-01-02 10:57 bubu File Added: picture_browser.diff
2021-01-02 10:57 bubu File Added: picture_browser.gif
2021-01-02 11:54 PeterBenedek Relationship added related to 0016383
2021-01-02 11:54 PeterBenedek Relationship added child of 0013906
2021-01-02 23:08 jghali Assigned To => jghali
2021-01-02 23:08 jghali Status new => resolved
2021-01-02 23:08 jghali Resolution open => fixed
2021-01-02 23:08 jghali Fixed in Version => 1.5.7.svn
2021-01-02 23:08 jghali Note Added: 0048611
