0016507: Update layout for Style Manager: widow and orphans, character layout

ID	Project	Category	View Status	Date Submitted	Last Update

0016507	Scribus	User Interface	public	2021-03-03 21:45	2021-03-21 14:58

Reporter	bubu	Assigned To	cbradney
Priority	normal	Severity	minor	Reproducibility	always
Status	closed	Resolution	fixed
Product Version	1.5.7.svn
Fixed in Version	1.5.7.svn

Summary	0016507: Update layout for Style Manager: widow and orphans, character layout
Description	I propose a new patch for Style Manager following the patch proposed in 0001650. The goal of this patch is to shrink the height of the dialog. 1) Character style tab: - Move colors and hyphenation group box to a grid next to each other. - Unifying: move "character" text to the input field as suffix like "pt, %, lines". 2) Paragraph style tab: - Make Orphans and Widows more compact: Convert "Don't separate first/last" label to icon label and move fields next to each other. - Attention: I changed the tooltip a little bit: "Ensure that last lines of a paragraph won't end up separated from the rest (known as widow control)" / "Ensure that first lines of a paragraph won't end up separated from the rest (known as orphan control)" - I changed the order of the widow and orphan input field as asked in 0016478. I hope you agree. This time I attach new icons separately from the patch. Please review. Thank you.
Tags	No tags attached.

Patch	No

bubu 2021-03-03 21:45 reporter	0001-Update-layout-for-Style-Manager-widow-and-orphans-ch.patch (32,786 bytes) From f27591e7a1b733dd0e480b212fc1536943159a9b Mon Sep 17 00:00:00 2001 Message-Id: <f27591e7a1b733dd0e480b212fc1536943159a9b.1614798210.git.bubu@ujevangelizacio.hu> From: =?UTF-8?q?Gyuris=20Gell=C3=A9rt?= <bubu@ujevangelizacio.hu> Date: Wed, 3 Mar 2021 19:52:26 +0100 Subject: [PATCH] Update layout for Style Manager: widow and orphans, character layout --- scribus/ui/smcstylewidget.ui \| 659 +++++++++++++++++----------------- scribus/ui/smpstylewidget.cpp \| 2 + scribus/ui/smpstylewidget.ui \| 104 ++++-- 3 files changed, 404 insertions(+), 361 deletions(-) diff --git a/scribus/ui/smcstylewidget.ui b/scribus/ui/smcstylewidget.ui index 8a81560a1..715ae14a1 100644 --- a/scribus/ui/smcstylewidget.ui +++ b/scribus/ui/smcstylewidget.ui @@ -6,8 +6,8 @@ <rect> <x>0</x> <y>0</y> - <width>430</width> - <height>601</height> + <width>581</width> + <height>492</height> </rect> </property> <property name="sizePolicy"> @@ -423,347 +423,360 @@ </widget> </item> <item> - <widget class="QGroupBox" name="hyphenGroup"> - <property name="title"> - <string>Hyphenation</string> - </property> - <layout class="QVBoxLayout" name="verticalLayout_4"> - <item> - <layout class="QHBoxLayout" name="horizontalLayout_3"> - <item> - <widget class="QLabel" name="label_4"> - <property name="text"> - <string>Hyphenation Character:</string> - </property> - </widget> - </item> - <item> - <widget class="SMLineEdit" name="hyphenCharLineEdit"> - <property name="maximumSize"> - <size> - <width>60</width> - <height>16777215</height> - </size> - </property> - </widget> - </item> - <item> - <spacer name="horizontalSpacer_2"> - <property name="orientation"> - <enum>Qt::Horizontal</enum> - </property> - <property name="sizeHint" stdset="0"> - <size> - <width>40</width> - <height>20</height> - </size> - </property> - </spacer> - </item> - </layout> - </item> - <item> - <layout class="QHBoxLayout" name="horizontalLayout"> - <item> - <widget class="QLabel" name="smallestWordLabel"> - <property name="text"> - <string>Smallest Word:</string> - </property> - </widget> - </item> - <item> - <widget class="SMSpinBox" name="smallestWordSpinBox"> - <property name="minimum"> - <number>3</number> - </property> - </widget> - </item> - <item> - <widget class="QLabel" name="smallestWordLabel2"> - <property name="text"> - <string>Characters</string> - </property> - </widget> - </item> - <item> - <spacer name="horizontalSpacer"> - <property name="orientation"> - <enum>Qt::Horizontal</enum> - </property> - <property name="sizeHint" stdset="0"> - <size> - <width>40</width> - <height>20</height> - </size> - </property> - </spacer> + <layout class="QGridLayout" name="gridLayout"> + <item row="0" column="0"> + <widget class="QGroupBox" name="smColorGroup"> + <property name="title"> + <string>Colors</string> + </property> + <layout class="QVBoxLayout" name="verticalLayout"> + <item> + <layout class="QHBoxLayout" name="_2"> + <item> + <widget class="QLabel" name="FillIcon"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>fillColor_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMColorCombo" name="fillColor_"> + <property name="toolTip"> + <string>Fill Color</string> + </property> + </widget> + </item> + <item> + <widget class="QLabel" name="fillShadeLabel"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>fillShade_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMShadeButton" name="fillShade_"> + <property name="toolTip"> + <string>Fill Shade</string> + </property> + <property name="text"> + <string/> + </property> + </widget> + </item> + <item> + <spacer> + <property name="orientation"> + <enum>Qt::Horizontal</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>40</width> + <height>20</height> + </size> + </property> + </spacer> + </item> + </layout> + </item> + <item> + <layout class="QHBoxLayout" name="_10"> + <item> + <widget class="QLabel" name="StrokeIcon"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>strokeColor_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMColorCombo" name="strokeColor_"> + <property name="toolTip"> + <string>Stroke Color</string> + </property> + </widget> + </item> + <item> + <widget class="QLabel" name="strokeShadeLabel"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>strokeShade_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMShadeButton" name="strokeShade_"> + <property name="toolTip"> + <string>Stroke Shade</string> + </property> + <property name="text"> + <string/> + </property> + </widget> + </item> + <item> + <spacer> + <property name="orientation"> + <enum>Qt::Horizontal</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>40</width> + <height>20</height> + </size> + </property> + </spacer> + </item> + </layout> + </item> + <item> + <layout class="QHBoxLayout" name="_11"> + <item> + <widget class="QLabel" name="backIcon"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>fillColor_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMColorCombo" name="backColor_"> + <property name="toolTip"> + <string>Background Color</string> + </property> + </widget> + </item> + <item> + <widget class="QLabel" name="backShadeLabel"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>fillShade_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMShadeButton" name="backShade_"> + <property name="toolTip"> + <string>Background Shade</string> + </property> + <property name="text"> + <string/> + </property> + </widget> + </item> + <item> + <spacer> + <property name="orientation"> + <enum>Qt::Horizontal</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>40</width> + <height>20</height> + </size> + </property> + </spacer> + </item> + </layout> </item> </layout> - </item> - </layout> - </widget> - </item> - <item> - <widget class="QGroupBox" name="smColorGroup"> - <property name="title"> - <string>Colors</string> - </property> - <layout class="QVBoxLayout" name="verticalLayout"> - <item> - <layout class="QHBoxLayout" name="_2"> - <item> - <widget class="QLabel" name="FillIcon"> - <property name="minimumSize"> - <size> - <width>20</width> - <height>0</height> - </size> - </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>fillColor_</cstring> - </property> - </widget> - </item> - <item> - <widget class="SMColorCombo" name="fillColor_"> - <property name="toolTip"> - <string>Fill Color</string> - </property> - </widget> - </item> - <item> - <widget class="QLabel" name="fillShadeLabel"> - <property name="minimumSize"> - <size> - <width>20</width> - <height>0</height> - </size> - </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>fillShade_</cstring> - </property> - </widget> - </item> - <item> - <widget class="SMShadeButton" name="fillShade_"> - <property name="toolTip"> - <string>Fill Shade</string> - </property> - <property name="text"> - <string/> - </property> - </widget> + </widget> + </item> + <item row="0" column="1"> + <widget class="QGroupBox" name="hyphenGroup"> + <property name="title"> + <string>Hyphenation</string> + </property> + <layout class="QVBoxLayout" name="verticalLayout_4"> + <item> + <layout class="QHBoxLayout" name="horizontalLayout_3"> + <item> + <widget class="QLabel" name="label_4"> + <property name="text"> + <string>Hyphenation Character:</string> + </property> + </widget> + </item> + <item> + <widget class="SMLineEdit" name="hyphenCharLineEdit"> + <property name="maximumSize"> + <size> + <width>60</width> + <height>16777215</height> + </size> + </property> + </widget> + </item> + <item> + <spacer name="horizontalSpacer_2"> + <property name="orientation"> + <enum>Qt::Horizontal</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>0</width> + <height>20</height> + </size> + </property> + </spacer> + </item> + </layout> + </item> + <item> + <layout class="QHBoxLayout" name="horizontalLayout"> + <item> + <widget class="QLabel" name="smallestWordLabel"> + <property name="text"> + <string>Smallest Word:</string> + </property> + </widget> + </item> + <item> + <widget class="SMSpinBox" name="smallestWordSpinBox"> + <property name="suffix"> + <string> characters</string> + </property> + <property name="minimum"> + <number>3</number> + </property> + </widget> + </item> + <item> + <spacer name="horizontalSpacer"> + <property name="orientation"> + <enum>Qt::Horizontal</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>0</width> + <height>20</height> + </size> + </property> + </spacer> + </item> + </layout> </item> <item> <spacer> <property name="orientation"> - <enum>Qt::Horizontal</enum> - </property> - <property name="sizeHint" stdset="0"> - <size> - <width>40</width> - <height>20</height> - </size> - </property> - </spacer> - </item> - </layout> - </item> - <item> - <layout class="QHBoxLayout" name="_10"> - <item> - <widget class="QLabel" name="StrokeIcon"> - <property name="minimumSize"> - <size> - <width>20</width> - <height>0</height> - </size> - </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>strokeColor_</cstring> - </property> - </widget> - </item> - <item> - <widget class="SMColorCombo" name="strokeColor_"> - <property name="toolTip"> - <string>Stroke Color</string> + <enum>Qt::Vertical</enum> </property> - </widget> - </item> - <item> - <widget class="QLabel" name="strokeShadeLabel"> - <property name="minimumSize"> - <size> - <width>20</width> - <height>0</height> - </size> - </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>strokeShade_</cstring> - </property> - </widget> - </item> - <item> - <widget class="SMShadeButton" name="strokeShade_"> - <property name="toolTip"> - <string>Stroke Shade</string> - </property> - <property name="text"> - <string/> - </property> - </widget> - </item> - <item> - <spacer> - <property name="orientation"> - <enum>Qt::Horizontal</enum> + <property name="sizeType"> + <enum>QSizePolicy::MinimumExpanding</enum> </property> <property name="sizeHint" stdset="0"> - <size> - <width>40</width> - <height>20</height> - </size> - </property> - </spacer> - </item> - </layout> - </item> - <item> - <layout class="QHBoxLayout" name="_11"> - <item> - <widget class="QLabel" name="backIcon"> - <property name="minimumSize"> <size> <width>20</width> <height>0</height> </size> </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>fillColor_</cstring> - </property> - </widget> - </item> - <item> - <widget class="SMColorCombo" name="backColor_"> - <property name="toolTip"> - <string>Background Color</string> - </property> - </widget> - </item> - <item> - <widget class="QLabel" name="backShadeLabel"> - <property name="minimumSize"> - <size> - <width>20</width> - <height>0</height> - </size> - </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>fillShade_</cstring> - </property> - </widget> - </item> - <item> - <widget class="SMShadeButton" name="backShade_"> - <property name="toolTip"> - <string>Background Shade</string> - </property> - <property name="text"> - <string/> - </property> - </widget> - </item> - <item> - <spacer> - <property name="orientation"> - <enum>Qt::Horizontal</enum> - </property> - <property name="sizeHint" stdset="0"> - <size> - <width>40</width> - <height>20</height> - </size> - </property> </spacer> </item> </layout> - </item> - <item> - <spacer> - <property name="orientation"> - <enum>Qt::Vertical</enum> - </property> - <property name="sizeType"> - <enum>QSizePolicy::MinimumExpanding</enum> - </property> - <property name="sizeHint" stdset="0"> - <size> - <width>300</width> - <height>0</height> - </size> - </property> - </spacer> - </item> - </layout> - </widget> + </widget> + </item> + </layout> </item> </layout> </item> + <item> + <spacer name="verticalSpacer"> + <property name="orientation"> + <enum>Qt::Vertical</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + </spacer> + </item> </layout> </widget> <widget class="QWidget" name="tabFontFeatures"> diff --git a/scribus/ui/smpstylewidget.cpp b/scribus/ui/smpstylewidget.cpp index 03d158f92..5922dc961 100644 --- a/scribus/ui/smpstylewidget.cpp +++ b/scribus/ui/smpstylewidget.cpp @@ -103,6 +103,8 @@ void SMPStyleWidget::iconSetChange() lineSpacingLabel->setPixmap(iconManager.loadPixmap("linespacing2.png")); spaceAboveLabel->setPixmap(iconManager.loadPixmap("above.png") ); spaceBelowLabel->setPixmap(iconManager.loadPixmap("below.png") ); + keepLabelStart->setPixmap(iconManager.loadPixmap("16/orphan.png") ); + keepLabelEnd->setPixmap(iconManager.loadPixmap("16/widow.png") ); backIcon->setPixmap(iconManager.loadPixmap("16/color-fill.png")); backShadeLabel->setPixmap(iconManager.loadPixmap("shade.png")); diff --git a/scribus/ui/smpstylewidget.ui b/scribus/ui/smpstylewidget.ui index 89047a832..87149de38 100644 --- a/scribus/ui/smpstylewidget.ui +++ b/scribus/ui/smpstylewidget.ui @@ -6,8 +6,8 @@ <rect> <x>0</x> <y>0</y> - <width>695</width> - <height>596</height> + <width>665</width> + <height>572</height> </rect> </property> <layout class="QVBoxLayout"> @@ -280,21 +280,42 @@ </property> <layout class="QVBoxLayout" name="verticalLayout_3"> <item> - <layout class="QHBoxLayout" name="horizontalLayout_11"> + <layout class="QHBoxLayout" name="horizontalLayout_4"> <item> - <widget class="QLabel" name="keepLabelStart"> + <widget class="QLabel" name="keepLabelEnd"> + <property name="sizePolicy"> + <sizepolicy hsizetype="Fixed" vsizetype="Fixed"> + <horstretch>0</horstretch> + <verstretch>0</verstretch> + </sizepolicy> + </property> + <property name="minimumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> <property name="toolTip"> - <string>Ensure that first lines of a paragraph won't end up separated from the rest (known as widow/orphan control)</string> + <string>Ensure that last lines of a paragraph won't end up separated from the rest (known as widow control)</string> </property> <property name="text"> - <string>Don't separate first</string> + <string/> + </property> + <property name="buddy"> + <cstring>keepLinesEnd</cstring> </property> </widget> </item> <item> - <widget class="SMSpinBox" name="keepLinesStart"> + <widget class="SMSpinBox" name="keepLinesEnd"> <property name="toolTip"> - <string>Ensure that first lines of a paragraph won't end up separated from the rest (known as widow/orphan control)</string> + <string>Ensure that last lines of a paragraph won't end up separated from the rest (known as widow control)</string> </property> <property name="suffix"> <string> lines</string> @@ -305,33 +326,40 @@ </widget> </item> <item> - <spacer name="horizontalSpacer_5"> - <property name="orientation"> - <enum>Qt::Horizontal</enum> + <widget class="QLabel" name="keepLabelStart"> + <property name="sizePolicy"> + <sizepolicy hsizetype="Fixed" vsizetype="Fixed"> + <horstretch>0</horstretch> + <verstretch>0</verstretch> + </sizepolicy> </property> - <property name="sizeHint" stdset="0"> + <property name="minimumSize"> <size> - <width>0</width> - <height>20</height> + <width>22</width> + <height>22</height> </size> </property> - </spacer> - </item> - </layout> - </item> - <item> - <layout class="QHBoxLayout" name="horizontalLayout_14"> - <item> - <widget class="QLabel" name="keepLabelEnd"> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="toolTip"> + <string>Ensure that first lines of a paragraph won't end up separated from the rest (known as orphan control)</string> + </property> <property name="text"> - <string>Don't separate last</string> + <string/> + </property> + <property name="buddy"> + <cstring>keepLinesStart</cstring> </property> </widget> </item> <item> - <widget class="SMSpinBox" name="keepLinesEnd"> + <widget class="SMSpinBox" name="keepLinesStart"> <property name="toolTip"> - <string>Ensure that last lines of a paragraph won't end up separated from the rest (known as widow/orphan control)</string> + <string>Ensure that first lines of a paragraph won't end up separated from the rest (known as orphan control)</string> </property> <property name="suffix"> <string> lines</string> @@ -341,19 +369,6 @@ </property> </widget> </item> - <item> - <spacer name="horizontalSpacer_6"> - <property name="orientation"> - <enum>Qt::Horizontal</enum> - </property> - <property name="sizeHint" stdset="0"> - <size> - <width>0</width> - <height>20</height> - </size> - </property> - </spacer> - </item> </layout> </item> <item> @@ -376,6 +391,19 @@ </property> </widget> </item> + <item> + <spacer name="verticalSpacer_4"> + <property name="orientation"> + <enum>Qt::Vertical</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + </spacer> + </item> </layout> </widget> </item> -- 2.27.0 0001-Update-layout-for-Style-Manager-widow-and-orphans-ch.patch (32,786 bytes) icons.png.zip (2,230 bytes) icons.svg.zip (5,465 bytes) character_layout.gif (101,170 bytes) character_layout.gif (101,170 bytes) widows_orphans.gif (123,084 bytes) widows_orphans.gif (123,084 bytes)

bubu 2021-03-04 07:22 reporter ~0048910	I'm sorry. I made a mistake in the patch: icons are 22×22 large, not 16×16. Here are the corrected patch. 0001-Update-layout-for-Style-Manager-widow-and-orphans-ch-2.patch (32,975 bytes) From f27591e7a1b733dd0e480b212fc1536943159a9b Mon Sep 17 00:00:00 2001 Message-Id: <f27591e7a1b733dd0e480b212fc1536943159a9b.1614798210.git.bubu@ujevangelizacio.hu> From: =?UTF-8?q?Gyuris=20Gell=C3=A9rt?= <bubu@ujevangelizacio.hu> Date: Wed, 3 Mar 2021 19:52:26 +0100 Subject: [PATCH] Update layout for Style Manager: widow and orphans, character layout --- scribus/ui/smcstylewidget.ui \| 659 +++++++++++++++++----------------- scribus/ui/smpstylewidget.cpp \| 2 + scribus/ui/smpstylewidget.ui \| 104 ++++-- 3 files changed, 404 insertions(+), 361 deletions(-) diff --git a/scribus/ui/smcstylewidget.ui b/scribus/ui/smcstylewidget.ui index 8a81560a1..715ae14a1 100644 --- a/scribus/ui/smcstylewidget.ui +++ b/scribus/ui/smcstylewidget.ui @@ -6,8 +6,8 @@ <rect> <x>0</x> <y>0</y> - <width>430</width> - <height>601</height> + <width>581</width> + <height>492</height> </rect> </property> <property name="sizePolicy"> @@ -423,347 +423,360 @@ </widget> </item> <item> - <widget class="QGroupBox" name="hyphenGroup"> - <property name="title"> - <string>Hyphenation</string> - </property> - <layout class="QVBoxLayout" name="verticalLayout_4"> - <item> - <layout class="QHBoxLayout" name="horizontalLayout_3"> - <item> - <widget class="QLabel" name="label_4"> - <property name="text"> - <string>Hyphenation Character:</string> - </property> - </widget> - </item> - <item> - <widget class="SMLineEdit" name="hyphenCharLineEdit"> - <property name="maximumSize"> - <size> - <width>60</width> - <height>16777215</height> - </size> - </property> - </widget> - </item> - <item> - <spacer name="horizontalSpacer_2"> - <property name="orientation"> - <enum>Qt::Horizontal</enum> - </property> - <property name="sizeHint" stdset="0"> - <size> - <width>40</width> - <height>20</height> - </size> - </property> - </spacer> - </item> - </layout> - </item> - <item> - <layout class="QHBoxLayout" name="horizontalLayout"> - <item> - <widget class="QLabel" name="smallestWordLabel"> - <property name="text"> - <string>Smallest Word:</string> - </property> - </widget> - </item> - <item> - <widget class="SMSpinBox" name="smallestWordSpinBox"> - <property name="minimum"> - <number>3</number> - </property> - </widget> - </item> - <item> - <widget class="QLabel" name="smallestWordLabel2"> - <property name="text"> - <string>Characters</string> - </property> - </widget> - </item> - <item> - <spacer name="horizontalSpacer"> - <property name="orientation"> - <enum>Qt::Horizontal</enum> - </property> - <property name="sizeHint" stdset="0"> - <size> - <width>40</width> - <height>20</height> - </size> - </property> - </spacer> + <layout class="QGridLayout" name="gridLayout"> + <item row="0" column="0"> + <widget class="QGroupBox" name="smColorGroup"> + <property name="title"> + <string>Colors</string> + </property> + <layout class="QVBoxLayout" name="verticalLayout"> + <item> + <layout class="QHBoxLayout" name="_2"> + <item> + <widget class="QLabel" name="FillIcon"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>fillColor_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMColorCombo" name="fillColor_"> + <property name="toolTip"> + <string>Fill Color</string> + </property> + </widget> + </item> + <item> + <widget class="QLabel" name="fillShadeLabel"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>fillShade_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMShadeButton" name="fillShade_"> + <property name="toolTip"> + <string>Fill Shade</string> + </property> + <property name="text"> + <string/> + </property> + </widget> + </item> + <item> + <spacer> + <property name="orientation"> + <enum>Qt::Horizontal</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>40</width> + <height>20</height> + </size> + </property> + </spacer> + </item> + </layout> + </item> + <item> + <layout class="QHBoxLayout" name="_10"> + <item> + <widget class="QLabel" name="StrokeIcon"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>strokeColor_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMColorCombo" name="strokeColor_"> + <property name="toolTip"> + <string>Stroke Color</string> + </property> + </widget> + </item> + <item> + <widget class="QLabel" name="strokeShadeLabel"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>strokeShade_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMShadeButton" name="strokeShade_"> + <property name="toolTip"> + <string>Stroke Shade</string> + </property> + <property name="text"> + <string/> + </property> + </widget> + </item> + <item> + <spacer> + <property name="orientation"> + <enum>Qt::Horizontal</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>40</width> + <height>20</height> + </size> + </property> + </spacer> + </item> + </layout> + </item> + <item> + <layout class="QHBoxLayout" name="_11"> + <item> + <widget class="QLabel" name="backIcon"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>fillColor_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMColorCombo" name="backColor_"> + <property name="toolTip"> + <string>Background Color</string> + </property> + </widget> + </item> + <item> + <widget class="QLabel" name="backShadeLabel"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>fillShade_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMShadeButton" name="backShade_"> + <property name="toolTip"> + <string>Background Shade</string> + </property> + <property name="text"> + <string/> + </property> + </widget> + </item> + <item> + <spacer> + <property name="orientation"> + <enum>Qt::Horizontal</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>40</width> + <height>20</height> + </size> + </property> + </spacer> + </item> + </layout> </item> </layout> - </item> - </layout> - </widget> - </item> - <item> - <widget class="QGroupBox" name="smColorGroup"> - <property name="title"> - <string>Colors</string> - </property> - <layout class="QVBoxLayout" name="verticalLayout"> - <item> - <layout class="QHBoxLayout" name="_2"> - <item> - <widget class="QLabel" name="FillIcon"> - <property name="minimumSize"> - <size> - <width>20</width> - <height>0</height> - </size> - </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>fillColor_</cstring> - </property> - </widget> - </item> - <item> - <widget class="SMColorCombo" name="fillColor_"> - <property name="toolTip"> - <string>Fill Color</string> - </property> - </widget> - </item> - <item> - <widget class="QLabel" name="fillShadeLabel"> - <property name="minimumSize"> - <size> - <width>20</width> - <height>0</height> - </size> - </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>fillShade_</cstring> - </property> - </widget> - </item> - <item> - <widget class="SMShadeButton" name="fillShade_"> - <property name="toolTip"> - <string>Fill Shade</string> - </property> - <property name="text"> - <string/> - </property> - </widget> + </widget> + </item> + <item row="0" column="1"> + <widget class="QGroupBox" name="hyphenGroup"> + <property name="title"> + <string>Hyphenation</string> + </property> + <layout class="QVBoxLayout" name="verticalLayout_4"> + <item> + <layout class="QHBoxLayout" name="horizontalLayout_3"> + <item> + <widget class="QLabel" name="label_4"> + <property name="text"> + <string>Hyphenation Character:</string> + </property> + </widget> + </item> + <item> + <widget class="SMLineEdit" name="hyphenCharLineEdit"> + <property name="maximumSize"> + <size> + <width>60</width> + <height>16777215</height> + </size> + </property> + </widget> + </item> + <item> + <spacer name="horizontalSpacer_2"> + <property name="orientation"> + <enum>Qt::Horizontal</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>0</width> + <height>20</height> + </size> + </property> + </spacer> + </item> + </layout> + </item> + <item> + <layout class="QHBoxLayout" name="horizontalLayout"> + <item> + <widget class="QLabel" name="smallestWordLabel"> + <property name="text"> + <string>Smallest Word:</string> + </property> + </widget> + </item> + <item> + <widget class="SMSpinBox" name="smallestWordSpinBox"> + <property name="suffix"> + <string> characters</string> + </property> + <property name="minimum"> + <number>3</number> + </property> + </widget> + </item> + <item> + <spacer name="horizontalSpacer"> + <property name="orientation"> + <enum>Qt::Horizontal</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>0</width> + <height>20</height> + </size> + </property> + </spacer> + </item> + </layout> </item> <item> <spacer> <property name="orientation"> - <enum>Qt::Horizontal</enum> - </property> - <property name="sizeHint" stdset="0"> - <size> - <width>40</width> - <height>20</height> - </size> - </property> - </spacer> - </item> - </layout> - </item> - <item> - <layout class="QHBoxLayout" name="_10"> - <item> - <widget class="QLabel" name="StrokeIcon"> - <property name="minimumSize"> - <size> - <width>20</width> - <height>0</height> - </size> - </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>strokeColor_</cstring> - </property> - </widget> - </item> - <item> - <widget class="SMColorCombo" name="strokeColor_"> - <property name="toolTip"> - <string>Stroke Color</string> + <enum>Qt::Vertical</enum> </property> - </widget> - </item> - <item> - <widget class="QLabel" name="strokeShadeLabel"> - <property name="minimumSize"> - <size> - <width>20</width> - <height>0</height> - </size> - </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>strokeShade_</cstring> - </property> - </widget> - </item> - <item> - <widget class="SMShadeButton" name="strokeShade_"> - <property name="toolTip"> - <string>Stroke Shade</string> - </property> - <property name="text"> - <string/> - </property> - </widget> - </item> - <item> - <spacer> - <property name="orientation"> - <enum>Qt::Horizontal</enum> + <property name="sizeType"> + <enum>QSizePolicy::MinimumExpanding</enum> </property> <property name="sizeHint" stdset="0"> - <size> - <width>40</width> - <height>20</height> - </size> - </property> - </spacer> - </item> - </layout> - </item> - <item> - <layout class="QHBoxLayout" name="_11"> - <item> - <widget class="QLabel" name="backIcon"> - <property name="minimumSize"> <size> <width>20</width> <height>0</height> </size> </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>fillColor_</cstring> - </property> - </widget> - </item> - <item> - <widget class="SMColorCombo" name="backColor_"> - <property name="toolTip"> - <string>Background Color</string> - </property> - </widget> - </item> - <item> - <widget class="QLabel" name="backShadeLabel"> - <property name="minimumSize"> - <size> - <width>20</width> - <height>0</height> - </size> - </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>fillShade_</cstring> - </property> - </widget> - </item> - <item> - <widget class="SMShadeButton" name="backShade_"> - <property name="toolTip"> - <string>Background Shade</string> - </property> - <property name="text"> - <string/> - </property> - </widget> - </item> - <item> - <spacer> - <property name="orientation"> - <enum>Qt::Horizontal</enum> - </property> - <property name="sizeHint" stdset="0"> - <size> - <width>40</width> - <height>20</height> - </size> - </property> </spacer> </item> </layout> - </item> - <item> - <spacer> - <property name="orientation"> - <enum>Qt::Vertical</enum> - </property> - <property name="sizeType"> - <enum>QSizePolicy::MinimumExpanding</enum> - </property> - <property name="sizeHint" stdset="0"> - <size> - <width>300</width> - <height>0</height> - </size> - </property> - </spacer> - </item> - </layout> - </widget> + </widget> + </item> + </layout> </item> </layout> </item> + <item> + <spacer name="verticalSpacer"> + <property name="orientation"> + <enum>Qt::Vertical</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + </spacer> + </item> </layout> </widget> <widget class="QWidget" name="tabFontFeatures"> diff --git a/scribus/ui/smpstylewidget.cpp b/scribus/ui/smpstylewidget.cpp index 03d158f92..5922dc961 100644 --- a/scribus/ui/smpstylewidget.cpp +++ b/scribus/ui/smpstylewidget.cpp @@ -103,6 +103,8 @@ void SMPStyleWidget::iconSetChange() lineSpacingLabel->setPixmap(iconManager.loadPixmap("linespacing2.png")); spaceAboveLabel->setPixmap(iconManager.loadPixmap("above.png") ); spaceBelowLabel->setPixmap(iconManager.loadPixmap("below.png") ); + keepLabelStart->setPixmap(iconManager.loadPixmap("22/orphan.png") ); + keepLabelEnd->setPixmap(iconManager.loadPixmap("22/widow.png") ); backIcon->setPixmap(iconManager.loadPixmap("16/color-fill.png")); backShadeLabel->setPixmap(iconManager.loadPixmap("shade.png")); diff --git a/scribus/ui/smpstylewidget.ui b/scribus/ui/smpstylewidget.ui index 89047a832..87149de38 100644 --- a/scribus/ui/smpstylewidget.ui +++ b/scribus/ui/smpstylewidget.ui @@ -6,8 +6,8 @@ <rect> <x>0</x> <y>0</y> - <width>695</width> - <height>596</height> + <width>665</width> + <height>572</height> </rect> </property> <layout class="QVBoxLayout"> @@ -280,21 +280,42 @@ </property> <layout class="QVBoxLayout" name="verticalLayout_3"> <item> - <layout class="QHBoxLayout" name="horizontalLayout_11"> + <layout class="QHBoxLayout" name="horizontalLayout_4"> <item> - <widget class="QLabel" name="keepLabelStart"> + <widget class="QLabel" name="keepLabelEnd"> + <property name="sizePolicy"> + <sizepolicy hsizetype="Fixed" vsizetype="Fixed"> + <horstretch>0</horstretch> + <verstretch>0</verstretch> + </sizepolicy> + </property> + <property name="minimumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> <property name="toolTip"> - <string>Ensure that first lines of a paragraph won't end up separated from the rest (known as widow/orphan control)</string> + <string>Ensure that last lines of a paragraph won't end up separated from the rest (known as widow control)</string> </property> <property name="text"> - <string>Don't separate first</string> + <string/> + </property> + <property name="buddy"> + <cstring>keepLinesEnd</cstring> </property> </widget> </item> <item> - <widget class="SMSpinBox" name="keepLinesStart"> + <widget class="SMSpinBox" name="keepLinesEnd"> <property name="toolTip"> - <string>Ensure that first lines of a paragraph won't end up separated from the rest (known as widow/orphan control)</string> + <string>Ensure that last lines of a paragraph won't end up separated from the rest (known as widow control)</string> </property> <property name="suffix"> <string> lines</string> @@ -305,33 +326,40 @@ </widget> </item> <item> - <spacer name="horizontalSpacer_5"> - <property name="orientation"> - <enum>Qt::Horizontal</enum> + <widget class="QLabel" name="keepLabelStart"> + <property name="sizePolicy"> + <sizepolicy hsizetype="Fixed" vsizetype="Fixed"> + <horstretch>0</horstretch> + <verstretch>0</verstretch> + </sizepolicy> </property> - <property name="sizeHint" stdset="0"> + <property name="minimumSize"> <size> - <width>0</width> - <height>20</height> + <width>22</width> + <height>22</height> </size> </property> - </spacer> - </item> - </layout> - </item> - <item> - <layout class="QHBoxLayout" name="horizontalLayout_14"> - <item> - <widget class="QLabel" name="keepLabelEnd"> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="toolTip"> + <string>Ensure that first lines of a paragraph won't end up separated from the rest (known as orphan control)</string> + </property> <property name="text"> - <string>Don't separate last</string> + <string/> + </property> + <property name="buddy"> + <cstring>keepLinesStart</cstring> </property> </widget> </item> <item> - <widget class="SMSpinBox" name="keepLinesEnd"> + <widget class="SMSpinBox" name="keepLinesStart"> <property name="toolTip"> - <string>Ensure that last lines of a paragraph won't end up separated from the rest (known as widow/orphan control)</string> + <string>Ensure that first lines of a paragraph won't end up separated from the rest (known as orphan control)</string> </property> <property name="suffix"> <string> lines</string> @@ -341,19 +369,6 @@ </property> </widget> </item> - <item> - <spacer name="horizontalSpacer_6"> - <property name="orientation"> - <enum>Qt::Horizontal</enum> - </property> - <property name="sizeHint" stdset="0"> - <size> - <width>0</width> - <height>20</height> - </size> - </property> - </spacer> - </item> </layout> </item> <item> @@ -376,6 +391,19 @@ </property> </widget> </item> + <item> + <spacer name="verticalSpacer_4"> + <property name="orientation"> + <enum>Qt::Vertical</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + </spacer> + </item> </layout> </widget> </item> -- 2.27.0 0001-Update-layout-for-Style-Manager-widow-and-orphans-ch-2.patch (32,975 bytes) icons.png-2.zip (2,230 bytes)

bubu 2021-03-05 12:18 reporter ~0048913	Broken patch too. Here is the new one. Please apply after 0016501. Icon pack above (icons.png-2.zip) is OK. 0001-Update-layout-for-Style-Manager-widow-and-orphans-ch-3.patch (32,039 bytes) From bdbf256f4a4bdb18a8c0ea752efc0381dee02fa3 Mon Sep 17 00:00:00 2001 Message-Id: <bdbf256f4a4bdb18a8c0ea752efc0381dee02fa3.1614946489.git.bubu@ujevangelizacio.hu> From: =?UTF-8?q?Gyuris=20Gell=C3=A9rt?= <bubu@ujevangelizacio.hu> Date: Fri, 5 Mar 2021 13:14:41 +0100 Subject: [PATCH] Update layout for Style Manager: widow and orphans, character layout --- scribus/ui/smcstylewidget.ui \| 637 +++++++++++++++++----------------- scribus/ui/smpstylewidget.cpp \| 2 + scribus/ui/smpstylewidget.ui \| 98 ++++-- 3 files changed, 387 insertions(+), 350 deletions(-) diff --git a/scribus/ui/smcstylewidget.ui b/scribus/ui/smcstylewidget.ui index 3e723c3a1..715ae14a1 100644 --- a/scribus/ui/smcstylewidget.ui +++ b/scribus/ui/smcstylewidget.ui @@ -6,8 +6,8 @@ <rect> <x>0</x> <y>0</y> - <width>430</width> - <height>601</height> + <width>581</width> + <height>492</height> </rect> </property> <property name="sizePolicy"> @@ -423,342 +423,355 @@ </widget> </item> <item> - <widget class="QGroupBox" name="hyphenGroup"> - <property name="title"> - <string>Hyphenation</string> - </property> - <layout class="QVBoxLayout" name="verticalLayout_4"> - <item> - <layout class="QHBoxLayout" name="horizontalLayout_3"> - <item> - <widget class="QLabel" name="label_4"> - <property name="text"> - <string>Hyphenation Character:</string> - </property> - </widget> - </item> - <item> - <widget class="SMLineEdit" name="hyphenCharLineEdit"> - <property name="maximumSize"> - <size> - <width>60</width> - <height>16777215</height> - </size> - </property> - </widget> - </item> - <item> - <spacer name="horizontalSpacer_2"> - <property name="orientation"> - <enum>Qt::Horizontal</enum> - </property> - <property name="sizeHint" stdset="0"> - <size> - <width>40</width> - <height>20</height> - </size> - </property> - </spacer> - </item> - </layout> - </item> - <item> - <layout class="QHBoxLayout" name="horizontalLayout"> - <item> - <widget class="QLabel" name="smallestWordLabel"> - <property name="text"> - <string>Smallest Word:</string> - </property> - </widget> - </item> - <item> - <widget class="SMSpinBox" name="smallestWordSpinBox"> - <property name="minimum"> - <number>3</number> - </property> - </widget> - </item> - <item> - <widget class="QLabel" name="smallestWordLabel2"> - <property name="text"> - <string>Characters</string> - </property> - </widget> - </item> - <item> - <spacer name="horizontalSpacer"> - <property name="orientation"> - <enum>Qt::Horizontal</enum> - </property> - <property name="sizeHint" stdset="0"> - <size> - <width>40</width> - <height>20</height> - </size> - </property> - </spacer> + <layout class="QGridLayout" name="gridLayout"> + <item row="0" column="0"> + <widget class="QGroupBox" name="smColorGroup"> + <property name="title"> + <string>Colors</string> + </property> + <layout class="QVBoxLayout" name="verticalLayout"> + <item> + <layout class="QHBoxLayout" name="_2"> + <item> + <widget class="QLabel" name="FillIcon"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>fillColor_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMColorCombo" name="fillColor_"> + <property name="toolTip"> + <string>Fill Color</string> + </property> + </widget> + </item> + <item> + <widget class="QLabel" name="fillShadeLabel"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>fillShade_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMShadeButton" name="fillShade_"> + <property name="toolTip"> + <string>Fill Shade</string> + </property> + <property name="text"> + <string/> + </property> + </widget> + </item> + <item> + <spacer> + <property name="orientation"> + <enum>Qt::Horizontal</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>40</width> + <height>20</height> + </size> + </property> + </spacer> + </item> + </layout> + </item> + <item> + <layout class="QHBoxLayout" name="_10"> + <item> + <widget class="QLabel" name="StrokeIcon"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>strokeColor_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMColorCombo" name="strokeColor_"> + <property name="toolTip"> + <string>Stroke Color</string> + </property> + </widget> + </item> + <item> + <widget class="QLabel" name="strokeShadeLabel"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>strokeShade_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMShadeButton" name="strokeShade_"> + <property name="toolTip"> + <string>Stroke Shade</string> + </property> + <property name="text"> + <string/> + </property> + </widget> + </item> + <item> + <spacer> + <property name="orientation"> + <enum>Qt::Horizontal</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>40</width> + <height>20</height> + </size> + </property> + </spacer> + </item> + </layout> + </item> + <item> + <layout class="QHBoxLayout" name="_11"> + <item> + <widget class="QLabel" name="backIcon"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>fillColor_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMColorCombo" name="backColor_"> + <property name="toolTip"> + <string>Background Color</string> + </property> + </widget> + </item> + <item> + <widget class="QLabel" name="backShadeLabel"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>fillShade_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMShadeButton" name="backShade_"> + <property name="toolTip"> + <string>Background Shade</string> + </property> + <property name="text"> + <string/> + </property> + </widget> + </item> + <item> + <spacer> + <property name="orientation"> + <enum>Qt::Horizontal</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>40</width> + <height>20</height> + </size> + </property> + </spacer> + </item> + </layout> </item> </layout> - </item> - </layout> - </widget> - </item> - <item> - <widget class="QGroupBox" name="smColorGroup"> - <property name="title"> - <string>Colors</string> - </property> - <layout class="QVBoxLayout" name="verticalLayout"> - <item> - <layout class="QHBoxLayout" name="_2"> - <item> - <widget class="QLabel" name="FillIcon"> - <property name="minimumSize"> - <size> - <width>20</width> - <height>0</height> - </size> - </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>fillColor_</cstring> - </property> - </widget> - </item> - <item> - <widget class="SMColorCombo" name="fillColor_"> - <property name="toolTip"> - <string>Fill Color</string> - </property> - </widget> - </item> - <item> - <widget class="QLabel" name="fillShadeLabel"> - <property name="minimumSize"> - <size> - <width>20</width> - <height>0</height> - </size> - </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>fillShade_</cstring> - </property> - </widget> - </item> - <item> - <widget class="SMShadeButton" name="fillShade_"> - <property name="toolTip"> - <string>Fill Shade</string> - </property> - <property name="text"> - <string/> - </property> - </widget> + </widget> + </item> + <item row="0" column="1"> + <widget class="QGroupBox" name="hyphenGroup"> + <property name="title"> + <string>Hyphenation</string> + </property> + <layout class="QVBoxLayout" name="verticalLayout_4"> + <item> + <layout class="QHBoxLayout" name="horizontalLayout_3"> + <item> + <widget class="QLabel" name="label_4"> + <property name="text"> + <string>Hyphenation Character:</string> + </property> + </widget> + </item> + <item> + <widget class="SMLineEdit" name="hyphenCharLineEdit"> + <property name="maximumSize"> + <size> + <width>60</width> + <height>16777215</height> + </size> + </property> + </widget> + </item> + <item> + <spacer name="horizontalSpacer_2"> + <property name="orientation"> + <enum>Qt::Horizontal</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>0</width> + <height>20</height> + </size> + </property> + </spacer> + </item> + </layout> + </item> + <item> + <layout class="QHBoxLayout" name="horizontalLayout"> + <item> + <widget class="QLabel" name="smallestWordLabel"> + <property name="text"> + <string>Smallest Word:</string> + </property> + </widget> + </item> + <item> + <widget class="SMSpinBox" name="smallestWordSpinBox"> + <property name="suffix"> + <string> characters</string> + </property> + <property name="minimum"> + <number>3</number> + </property> + </widget> + </item> + <item> + <spacer name="horizontalSpacer"> + <property name="orientation"> + <enum>Qt::Horizontal</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>0</width> + <height>20</height> + </size> + </property> + </spacer> + </item> + </layout> </item> <item> <spacer> <property name="orientation"> - <enum>Qt::Horizontal</enum> - </property> - <property name="sizeHint" stdset="0"> - <size> - <width>40</width> - <height>20</height> - </size> - </property> - </spacer> - </item> - </layout> - </item> - <item> - <layout class="QHBoxLayout" name="_10"> - <item> - <widget class="QLabel" name="StrokeIcon"> - <property name="minimumSize"> - <size> - <width>20</width> - <height>0</height> - </size> - </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>strokeColor_</cstring> + <enum>Qt::Vertical</enum> </property> - </widget> - </item> - <item> - <widget class="SMColorCombo" name="strokeColor_"> - <property name="toolTip"> - <string>Stroke Color</string> - </property> - </widget> - </item> - <item> - <widget class="QLabel" name="strokeShadeLabel"> - <property name="minimumSize"> - <size> - <width>20</width> - <height>0</height> - </size> - </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>strokeShade_</cstring> - </property> - </widget> - </item> - <item> - <widget class="SMShadeButton" name="strokeShade_"> - <property name="toolTip"> - <string>Stroke Shade</string> - </property> - <property name="text"> - <string/> - </property> - </widget> - </item> - <item> - <spacer> - <property name="orientation"> - <enum>Qt::Horizontal</enum> + <property name="sizeType"> + <enum>QSizePolicy::MinimumExpanding</enum> </property> <property name="sizeHint" stdset="0"> - <size> - <width>40</width> - <height>20</height> - </size> - </property> - </spacer> - </item> - </layout> - </item> - <item> - <layout class="QHBoxLayout" name="_11"> - <item> - <widget class="QLabel" name="backIcon"> - <property name="minimumSize"> <size> <width>20</width> <height>0</height> </size> </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>fillColor_</cstring> - </property> - </widget> - </item> - <item> - <widget class="SMColorCombo" name="backColor_"> - <property name="toolTip"> - <string>Background Color</string> - </property> - </widget> - </item> - <item> - <widget class="QLabel" name="backShadeLabel"> - <property name="minimumSize"> - <size> - <width>20</width> - <height>0</height> - </size> - </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>fillShade_</cstring> - </property> - </widget> - </item> - <item> - <widget class="SMShadeButton" name="backShade_"> - <property name="toolTip"> - <string>Background Shade</string> - </property> - <property name="text"> - <string/> - </property> - </widget> - </item> - <item> - <spacer> - <property name="orientation"> - <enum>Qt::Horizontal</enum> - </property> - <property name="sizeHint" stdset="0"> - <size> - <width>40</width> - <height>20</height> - </size> - </property> </spacer> </item> </layout> - </item> - </layout> - </widget> + </widget> + </item> + </layout> </item> </layout> </item> <item> - <spacer> + <spacer name="verticalSpacer"> <property name="orientation"> <enum>Qt::Vertical</enum> </property> - <property name="sizeType"> - <enum>QSizePolicy::MinimumExpanding</enum> - </property> <property name="sizeHint" stdset="0"> <size> - <width>300</width> + <width>20</width> <height>0</height> </size> </property> diff --git a/scribus/ui/smpstylewidget.cpp b/scribus/ui/smpstylewidget.cpp index 03d158f92..7d81f051d 100644 --- a/scribus/ui/smpstylewidget.cpp +++ b/scribus/ui/smpstylewidget.cpp @@ -103,6 +103,8 @@ void SMPStyleWidget::iconSetChange() lineSpacingLabel->setPixmap(iconManager.loadPixmap("linespacing2.png")); spaceAboveLabel->setPixmap(iconManager.loadPixmap("above.png") ); spaceBelowLabel->setPixmap(iconManager.loadPixmap("below.png") ); + keepLabelStart->setPixmap(iconManager.loadPixmap("22/orphan.png") ); + keepLabelEnd->setPixmap(iconManager.loadPixmap("22/widow.png") ); backIcon->setPixmap(iconManager.loadPixmap("16/color-fill.png")); backShadeLabel->setPixmap(iconManager.loadPixmap("shade.png")); diff --git a/scribus/ui/smpstylewidget.ui b/scribus/ui/smpstylewidget.ui index a15b41224..a004232c6 100644 --- a/scribus/ui/smpstylewidget.ui +++ b/scribus/ui/smpstylewidget.ui @@ -6,8 +6,8 @@ <rect> <x>0</x> <y>0</y> - <width>695</width> - <height>596</height> + <width>665</width> + <height>572</height> </rect> </property> <layout class="QVBoxLayout"> @@ -280,21 +280,39 @@ </property> <layout class="QVBoxLayout" name="verticalLayout_3"> <item> - <layout class="QHBoxLayout" name="horizontalLayout_11"> + <layout class="QHBoxLayout" name="horizontalLayout_4"> <item> - <widget class="QLabel" name="keepLabelStart"> + <widget class="QLabel" name="keepLabelEnd"> + <property name="sizePolicy"> + <sizepolicy hsizetype="Fixed" vsizetype="Fixed"> + <horstretch>0</horstretch> + <verstretch>0</verstretch> + </sizepolicy> + </property> + <property name="minimumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> <property name="toolTip"> - <string>Ensure that first lines of a paragraph won't end up separated from the rest (known as widow/orphan control)</string> + <string>Ensure that last lines of a paragraph won't end up separated from the rest (known as widow control)</string> </property> <property name="text"> - <string>Don't separate first</string> + <string/> </property> </widget> </item> <item> - <widget class="SMSpinBox" name="keepLinesStart"> + <widget class="SMSpinBox" name="keepLinesEnd"> <property name="toolTip"> - <string>Ensure that first lines of a paragraph won't end up separated from the rest (known as widow/orphan control)</string> + <string>Ensure that last lines of a paragraph won't end up separated from the rest (known as widow control)</string> </property> <property name="suffix"> <string> lines</string> @@ -305,33 +323,37 @@ </widget> </item> <item> - <spacer name="horizontalSpacer_5"> - <property name="orientation"> - <enum>Qt::Horizontal</enum> + <widget class="QLabel" name="keepLabelStart"> + <property name="sizePolicy"> + <sizepolicy hsizetype="Fixed" vsizetype="Fixed"> + <horstretch>0</horstretch> + <verstretch>0</verstretch> + </sizepolicy> </property> - <property name="sizeHint" stdset="0"> + <property name="minimumSize"> <size> - <width>0</width> - <height>20</height> + <width>22</width> + <height>22</height> </size> </property> - </spacer> - </item> - </layout> - </item> - <item> - <layout class="QHBoxLayout" name="horizontalLayout_14"> - <item> - <widget class="QLabel" name="keepLabelEnd"> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="toolTip"> + <string>Ensure that first lines of a paragraph won't end up separated from the rest (known as orphan control)</string> + </property> <property name="text"> - <string>Don't separate last</string> + <string/> </property> </widget> </item> <item> - <widget class="SMSpinBox" name="keepLinesEnd"> + <widget class="SMSpinBox" name="keepLinesStart"> <property name="toolTip"> - <string>Ensure that last lines of a paragraph won't end up separated from the rest (known as widow/orphan control)</string> + <string>Ensure that first lines of a paragraph won't end up separated from the rest (known as orphan control)</string> </property> <property name="suffix"> <string> lines</string> @@ -341,19 +363,6 @@ </property> </widget> </item> - <item> - <spacer name="horizontalSpacer_6"> - <property name="orientation"> - <enum>Qt::Horizontal</enum> - </property> - <property name="sizeHint" stdset="0"> - <size> - <width>0</width> - <height>20</height> - </size> - </property> - </spacer> - </item> </layout> </item> <item> @@ -376,6 +385,19 @@ </property> </widget> </item> + <item> + <spacer name="verticalSpacer_4"> + <property name="orientation"> + <enum>Qt::Vertical</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + </spacer> + </item> </layout> </widget> </item> -- 2.27.0 0001-Update-layout-for-Style-Manager-widow-and-orphans-ch-3.patch (32,039 bytes)

bubu 2021-03-14 16:11 reporter ~0048929	I reworked my previous patch. This patch fits to current head. The goal is to shrink the height of Style Manager dialog. Comments: - There are no fixed toolbuttons. - I checked the size of icon labels: I found that the current solution is: sizepolicy: preferred×preferred, minimum: 20×0, maximum: 22×22. I unified that in all cases. - On character tab I moved colors and hyphenation group box to a grid next to each other. - On character tab I added "character" text to the input field as a suffix like "pt, %, lines". - On paragraph tab I converted "Don't separate first/last" label to icon label and move fields next to each other. (I revert the tooltip text to the original because of string freeze.) I changed the order of the widow and orphan input field as asked in 0016478. - The icons are in previous comment (icons.png-2.zip). Please review the patch. Thank you. 0001-Update-layout-for-Style-Manager-widow-and-orphans-ch-4.patch (37,558 bytes) From 6a89c9e8b0204e99a17ceadf4c359608796899ce Mon Sep 17 00:00:00 2001 Message-Id: <6a89c9e8b0204e99a17ceadf4c359608796899ce.1615736333.git.bubu@ujevangelizacio.hu> From: =?UTF-8?q?Gyuris=20Gell=C3=A9rt?= <bubu@ujevangelizacio.hu> Date: Sun, 14 Mar 2021 16:32:48 +0100 Subject: [PATCH] Update layout for Style Manager: widow and orphans, character layout --- scribus/ui/smcstylewidget.ui \| 657 ++++++++++++++++++---------------- scribus/ui/smpstylewidget.cpp \| 2 + scribus/ui/smpstylewidget.ui \| 186 ++++++---- 3 files changed, 454 insertions(+), 391 deletions(-) diff --git a/scribus/ui/smcstylewidget.ui b/scribus/ui/smcstylewidget.ui index 3e723c3a1..62edb2595 100644 --- a/scribus/ui/smcstylewidget.ui +++ b/scribus/ui/smcstylewidget.ui @@ -6,8 +6,8 @@ <rect> <x>0</x> <y>0</y> - <width>430</width> - <height>601</height> + <width>531</width> + <height>492</height> </rect> </property> <property name="sizePolicy"> @@ -98,6 +98,12 @@ <item> <widget class="QLabel" name="fontSizeLabel_"> <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> <size> <width>22</width> <height>22</height> @@ -127,6 +133,12 @@ <item> <widget class="QLabel" name="trackingLabel_"> <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> <size> <width>22</width> <height>22</height> @@ -159,6 +171,12 @@ <item> <widget class="QLabel" name="widthSpaceLabel"> <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> <size> <width>22</width> <height>22</height> @@ -333,7 +351,7 @@ <widget class="QLabel" name="baselineOffsetLabel_"> <property name="minimumSize"> <size> - <width>10</width> + <width>20</width> <height>0</height> </size> </property> @@ -423,342 +441,355 @@ </widget> </item> <item> - <widget class="QGroupBox" name="hyphenGroup"> - <property name="title"> - <string>Hyphenation</string> - </property> - <layout class="QVBoxLayout" name="verticalLayout_4"> - <item> - <layout class="QHBoxLayout" name="horizontalLayout_3"> - <item> - <widget class="QLabel" name="label_4"> - <property name="text"> - <string>Hyphenation Character:</string> - </property> - </widget> - </item> - <item> - <widget class="SMLineEdit" name="hyphenCharLineEdit"> - <property name="maximumSize"> - <size> - <width>60</width> - <height>16777215</height> - </size> - </property> - </widget> - </item> - <item> - <spacer name="horizontalSpacer_2"> - <property name="orientation"> - <enum>Qt::Horizontal</enum> - </property> - <property name="sizeHint" stdset="0"> - <size> - <width>40</width> - <height>20</height> - </size> - </property> - </spacer> - </item> - </layout> - </item> - <item> - <layout class="QHBoxLayout" name="horizontalLayout"> - <item> - <widget class="QLabel" name="smallestWordLabel"> - <property name="text"> - <string>Smallest Word:</string> - </property> - </widget> - </item> - <item> - <widget class="SMSpinBox" name="smallestWordSpinBox"> - <property name="minimum"> - <number>3</number> - </property> - </widget> - </item> - <item> - <widget class="QLabel" name="smallestWordLabel2"> - <property name="text"> - <string>Characters</string> - </property> - </widget> - </item> - <item> - <spacer name="horizontalSpacer"> - <property name="orientation"> - <enum>Qt::Horizontal</enum> - </property> - <property name="sizeHint" stdset="0"> - <size> - <width>40</width> - <height>20</height> - </size> - </property> - </spacer> + <layout class="QGridLayout" name="gridLayout"> + <item row="0" column="0"> + <widget class="QGroupBox" name="smColorGroup"> + <property name="title"> + <string>Colors</string> + </property> + <layout class="QVBoxLayout" name="verticalLayout"> + <item> + <layout class="QHBoxLayout" name="_2"> + <item> + <widget class="QLabel" name="FillIcon"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>fillColor_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMColorCombo" name="fillColor_"> + <property name="toolTip"> + <string>Fill Color</string> + </property> + </widget> + </item> + <item> + <widget class="QLabel" name="fillShadeLabel"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>fillShade_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMShadeButton" name="fillShade_"> + <property name="toolTip"> + <string>Fill Shade</string> + </property> + <property name="text"> + <string/> + </property> + </widget> + </item> + <item> + <spacer> + <property name="orientation"> + <enum>Qt::Horizontal</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>40</width> + <height>20</height> + </size> + </property> + </spacer> + </item> + </layout> + </item> + <item> + <layout class="QHBoxLayout" name="_10"> + <item> + <widget class="QLabel" name="StrokeIcon"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>strokeColor_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMColorCombo" name="strokeColor_"> + <property name="toolTip"> + <string>Stroke Color</string> + </property> + </widget> + </item> + <item> + <widget class="QLabel" name="strokeShadeLabel"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>strokeShade_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMShadeButton" name="strokeShade_"> + <property name="toolTip"> + <string>Stroke Shade</string> + </property> + <property name="text"> + <string/> + </property> + </widget> + </item> + <item> + <spacer> + <property name="orientation"> + <enum>Qt::Horizontal</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>40</width> + <height>20</height> + </size> + </property> + </spacer> + </item> + </layout> + </item> + <item> + <layout class="QHBoxLayout" name="_11"> + <item> + <widget class="QLabel" name="backIcon"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>fillColor_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMColorCombo" name="backColor_"> + <property name="toolTip"> + <string>Background Color</string> + </property> + </widget> + </item> + <item> + <widget class="QLabel" name="backShadeLabel"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="text"> + <string/> + </property> + <property name="buddy"> + <cstring>fillShade_</cstring> + </property> + </widget> + </item> + <item> + <widget class="SMShadeButton" name="backShade_"> + <property name="toolTip"> + <string>Background Shade</string> + </property> + <property name="text"> + <string/> + </property> + </widget> + </item> + <item> + <spacer> + <property name="orientation"> + <enum>Qt::Horizontal</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>40</width> + <height>20</height> + </size> + </property> + </spacer> + </item> + </layout> </item> </layout> - </item> - </layout> - </widget> - </item> - <item> - <widget class="QGroupBox" name="smColorGroup"> - <property name="title"> - <string>Colors</string> - </property> - <layout class="QVBoxLayout" name="verticalLayout"> - <item> - <layout class="QHBoxLayout" name="_2"> - <item> - <widget class="QLabel" name="FillIcon"> - <property name="minimumSize"> - <size> - <width>20</width> - <height>0</height> - </size> - </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>fillColor_</cstring> - </property> - </widget> - </item> - <item> - <widget class="SMColorCombo" name="fillColor_"> - <property name="toolTip"> - <string>Fill Color</string> - </property> - </widget> - </item> - <item> - <widget class="QLabel" name="fillShadeLabel"> - <property name="minimumSize"> - <size> - <width>20</width> - <height>0</height> - </size> - </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>fillShade_</cstring> - </property> - </widget> - </item> - <item> - <widget class="SMShadeButton" name="fillShade_"> - <property name="toolTip"> - <string>Fill Shade</string> - </property> - <property name="text"> - <string/> - </property> - </widget> + </widget> + </item> + <item row="0" column="1"> + <widget class="QGroupBox" name="hyphenGroup"> + <property name="title"> + <string>Hyphenation</string> + </property> + <layout class="QVBoxLayout" name="verticalLayout_4"> + <item> + <layout class="QHBoxLayout" name="horizontalLayout_3"> + <item> + <widget class="QLabel" name="label_4"> + <property name="text"> + <string>Hyphenation Character:</string> + </property> + </widget> + </item> + <item> + <widget class="SMLineEdit" name="hyphenCharLineEdit"> + <property name="maximumSize"> + <size> + <width>60</width> + <height>16777215</height> + </size> + </property> + </widget> + </item> + <item> + <spacer name="horizontalSpacer_2"> + <property name="orientation"> + <enum>Qt::Horizontal</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>0</width> + <height>20</height> + </size> + </property> + </spacer> + </item> + </layout> + </item> + <item> + <layout class="QHBoxLayout" name="horizontalLayout"> + <item> + <widget class="QLabel" name="smallestWordLabel"> + <property name="text"> + <string>Smallest Word:</string> + </property> + </widget> + </item> + <item> + <widget class="SMSpinBox" name="smallestWordSpinBox"> + <property name="suffix"> + <string> characters</string> + </property> + <property name="minimum"> + <number>3</number> + </property> + </widget> + </item> + <item> + <spacer name="horizontalSpacer"> + <property name="orientation"> + <enum>Qt::Horizontal</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>0</width> + <height>20</height> + </size> + </property> + </spacer> + </item> + </layout> </item> <item> <spacer> <property name="orientation"> - <enum>Qt::Horizontal</enum> + <enum>Qt::Vertical</enum> </property> - <property name="sizeHint" stdset="0"> - <size> - <width>40</width> - <height>20</height> - </size> - </property> - </spacer> - </item> - </layout> - </item> - <item> - <layout class="QHBoxLayout" name="_10"> - <item> - <widget class="QLabel" name="StrokeIcon"> - <property name="minimumSize"> - <size> - <width>20</width> - <height>0</height> - </size> - </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>strokeColor_</cstring> - </property> - </widget> - </item> - <item> - <widget class="SMColorCombo" name="strokeColor_"> - <property name="toolTip"> - <string>Stroke Color</string> - </property> - </widget> - </item> - <item> - <widget class="QLabel" name="strokeShadeLabel"> - <property name="minimumSize"> - <size> - <width>20</width> - <height>0</height> - </size> - </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>strokeShade_</cstring> - </property> - </widget> - </item> - <item> - <widget class="SMShadeButton" name="strokeShade_"> - <property name="toolTip"> - <string>Stroke Shade</string> - </property> - <property name="text"> - <string/> - </property> - </widget> - </item> - <item> - <spacer> - <property name="orientation"> - <enum>Qt::Horizontal</enum> + <property name="sizeType"> + <enum>QSizePolicy::MinimumExpanding</enum> </property> <property name="sizeHint" stdset="0"> - <size> - <width>40</width> - <height>20</height> - </size> - </property> - </spacer> - </item> - </layout> - </item> - <item> - <layout class="QHBoxLayout" name="_11"> - <item> - <widget class="QLabel" name="backIcon"> - <property name="minimumSize"> - <size> - <width>20</width> - <height>0</height> - </size> - </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>fillColor_</cstring> - </property> - </widget> - </item> - <item> - <widget class="SMColorCombo" name="backColor_"> - <property name="toolTip"> - <string>Background Color</string> - </property> - </widget> - </item> - <item> - <widget class="QLabel" name="backShadeLabel"> - <property name="minimumSize"> <size> <width>20</width> <height>0</height> </size> </property> - <property name="maximumSize"> - <size> - <width>22</width> - <height>22</height> - </size> - </property> - <property name="text"> - <string/> - </property> - <property name="buddy"> - <cstring>fillShade_</cstring> - </property> - </widget> - </item> - <item> - <widget class="SMShadeButton" name="backShade_"> - <property name="toolTip"> - <string>Background Shade</string> - </property> - <property name="text"> - <string/> - </property> - </widget> - </item> - <item> - <spacer> - <property name="orientation"> - <enum>Qt::Horizontal</enum> - </property> - <property name="sizeHint" stdset="0"> - <size> - <width>40</width> - <height>20</height> - </size> - </property> </spacer> </item> </layout> - </item> - </layout> - </widget> + </widget> + </item> + </layout> </item> </layout> </item> <item> - <spacer> + <spacer name="verticalSpacer"> <property name="orientation"> <enum>Qt::Vertical</enum> </property> - <property name="sizeType"> - <enum>QSizePolicy::MinimumExpanding</enum> - </property> <property name="sizeHint" stdset="0"> <size> - <width>300</width> + <width>20</width> <height>0</height> </size> </property> diff --git a/scribus/ui/smpstylewidget.cpp b/scribus/ui/smpstylewidget.cpp index 03d158f92..7d81f051d 100644 --- a/scribus/ui/smpstylewidget.cpp +++ b/scribus/ui/smpstylewidget.cpp @@ -103,6 +103,8 @@ void SMPStyleWidget::iconSetChange() lineSpacingLabel->setPixmap(iconManager.loadPixmap("linespacing2.png")); spaceAboveLabel->setPixmap(iconManager.loadPixmap("above.png") ); spaceBelowLabel->setPixmap(iconManager.loadPixmap("below.png") ); + keepLabelStart->setPixmap(iconManager.loadPixmap("22/orphan.png") ); + keepLabelEnd->setPixmap(iconManager.loadPixmap("22/widow.png") ); backIcon->setPixmap(iconManager.loadPixmap("16/color-fill.png")); backShadeLabel->setPixmap(iconManager.loadPixmap("shade.png")); diff --git a/scribus/ui/smpstylewidget.ui b/scribus/ui/smpstylewidget.ui index 447d9677c..5973e828e 100644 --- a/scribus/ui/smpstylewidget.ui +++ b/scribus/ui/smpstylewidget.ui @@ -248,25 +248,25 @@ </size> </property> </spacer> - </item> - </layout> - </item> - <item> - <spacer name="verticalSpacer_3"> - <property name="orientation"> - <enum>Qt::Vertical</enum> - </property> - <property name="sizeHint" stdset="0"> - <size> - <width>20</width> - <height>0</height> - </size> - </property> - </spacer> - </item> - </layout> - </widget> - </item> + </item> + </layout> + </item> + <item> + <spacer name="verticalSpacer_3"> + <property name="orientation"> + <enum>Qt::Vertical</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + </spacer> + </item> + </layout> + </widget> + </item> <item row="0" column="1"> <widget class="QGroupBox" name="textFlowBox"> <property name="sizePolicy"> @@ -282,19 +282,28 @@ <item> <layout class="QHBoxLayout" name="horizontalLayout_11"> <item> - <widget class="QLabel" name="keepLabelStart"> - <property name="toolTip"> - <string>Ensure that first lines of a paragraph won't end up separated from the rest (known as widow/orphan control)</string> + <widget class="QLabel" name="keepLabelEnd"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> </property> - <property name="text"> - <string>Don't separate first</string> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="toolTip"> + <string>Ensure that last lines of a paragraph won't end up separated from the rest (known as widow/orphan control)</string> </property> </widget> </item> <item> - <widget class="SMSpinBox" name="keepLinesStart"> + <widget class="SMSpinBox" name="keepLinesEnd"> <property name="toolTip"> - <string>Ensure that first lines of a paragraph won't end up separated from the rest (known as widow/orphan control)</string> + <string>Ensure that last lines of a paragraph won't end up separated from the rest (known as widow/orphan control)</string> </property> <property name="suffix"> <string> lines</string> @@ -317,21 +326,29 @@ </property> </spacer> </item> - </layout> - </item> - <item> - <layout class="QHBoxLayout" name="horizontalLayout_14"> <item> - <widget class="QLabel" name="keepLabelEnd"> - <property name="text"> - <string>Don't separate last</string> + <widget class="QLabel" name="keepLabelStart"> + <property name="minimumSize"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + <property name="maximumSize"> + <size> + <width>22</width> + <height>22</height> + </size> + </property> + <property name="toolTip"> + <string>Ensure that first lines of a paragraph won't end up separated from the rest (known as widow/orphan control)</string> </property> </widget> </item> <item> - <widget class="SMSpinBox" name="keepLinesEnd"> + <widget class="SMSpinBox" name="keepLinesStart"> <property name="toolTip"> - <string>Ensure that last lines of a paragraph won't end up separated from the rest (known as widow/orphan control)</string> + <string>Ensure that first lines of a paragraph won't end up separated from the rest (known as widow/orphan control)</string> </property> <property name="suffix"> <string> lines</string> @@ -376,28 +393,41 @@ </property> </widget> </item> + <item> + <spacer name="verticalSpacer_4"> + <property name="orientation"> + <enum>Qt::Vertical</enum> + </property> + <property name="sizeHint" stdset="0"> + <size> + <width>20</width> + <height>0</height> + </size> + </property> + </spacer> + </item> </layout> </widget> </item> <item row="1" column="0"> <widget class="QGroupBox" name="opticalMarginsGroupBox"> <property name="title"> - <string>Optical Margins</string> - </property> - <layout class="QGridLayout" name="gridLayout_3"> - <item row="1" column="0" colspan="2"> - <layout class="QGridLayout" name="gridLayout_5"> - <item row="2" column="0"> - <widget class="SMRadioButton" name="optMarginRadioLeft"> - <property name="text"> - <string>Left Only</string> - </property> - </widget> - </item> - <item row="1" column="0"> - <widget class="SMRadioButton" name="optMarginRadioBoth"> - <property name="sizePolicy"> - <sizepolicy hsizetype="Minimum" vsizetype="Fixed"> + <string>Optical Margins</string> + </property> + <layout class="QGridLayout" name="gridLayout_3"> + <item row="1" column="0" colspan="2"> + <layout class="QGridLayout" name="gridLayout_5"> + <item row="2" column="0"> + <widget class="SMRadioButton" name="optMarginRadioLeft"> + <property name="text"> + <string>Left Only</string> + </property> + </widget> + </item> + <item row="1" column="0"> + <widget class="SMRadioButton" name="optMarginRadioBoth"> + <property name="sizePolicy"> + <sizepolicy hsizetype="Minimum" vsizetype="Fixed"> <horstretch>0</horstretch> <verstretch>0</verstretch> </sizepolicy> @@ -420,39 +450,39 @@ </property> <property name="checked"> <bool>true</bool> - </property> - </widget> - </item> - <item row="3" column="0"> - <widget class="SMRadioButton" name="optMarginRadioRight"> - <property name="sizePolicy"> - <sizepolicy hsizetype="Minimum" vsizetype="Fixed"> + </property> + </widget> + </item> + <item row="3" column="0"> + <widget class="SMRadioButton" name="optMarginRadioRight"> + <property name="sizePolicy"> + <sizepolicy hsizetype="Minimum" vsizetype="Fixed"> <horstretch>0</horstretch> <verstretch>0</verstretch> </sizepolicy> </property> <property name="text"> <string>Right Only</string> - </property> - </widget> - </item> - <item row="0" column="1"> - <widget class="QPushButton" name="optMarginDefaultButton"> - <property name="text"> - <string>Reset to Default</string> - </property> - </widget> - </item> - <item row="1" column="1"> - <widget class="QPushButton" name="optMarginParentButton"> - <property name="text"> - <string>Use Parent Value</string> - </property> - </widget> - </item> - </layout> - </item> - </layout> + </property> + </widget> + </item> + <item row="0" column="1"> + <widget class="QPushButton" name="optMarginDefaultButton"> + <property name="text"> + <string>Reset to Default</string> + </property> + </widget> + </item> + <item row="1" column="1"> + <widget class="QPushButton" name="optMarginParentButton"> + <property name="text"> + <string>Use Parent Value</string> + </property> + </widget> + </item> + </layout> + </item> + </layout> </widget> </item> <item row="1" column="1"> -- 2.27.0 0001-Update-layout-for-Style-Manager-widow-and-orphans-ch-4.patch (37,558 bytes) style_manager-4.gif (309,125 bytes) style_manager-4.gif (309,125 bytes)

cbradney 2021-03-14 17:07 administrator ~0048930	Committed with a couple of colour changes to the icons to match existing and set first/last order in orphan/widow control.

FirasH 2021-03-21 14:58 reporter ~0048985	Thanks! Fixed in 1.5.7.svn (24561)

Date Modified	Username	Field	Change
2021-03-03 21:45	bubu	New Issue
2021-03-03 21:45	bubu	File Added: 0001-Update-layout-for-Style-Manager-widow-and-orphans-ch.patch
2021-03-03 21:45	bubu	File Added: icons.png.zip
2021-03-03 21:45	bubu	File Added: icons.svg.zip

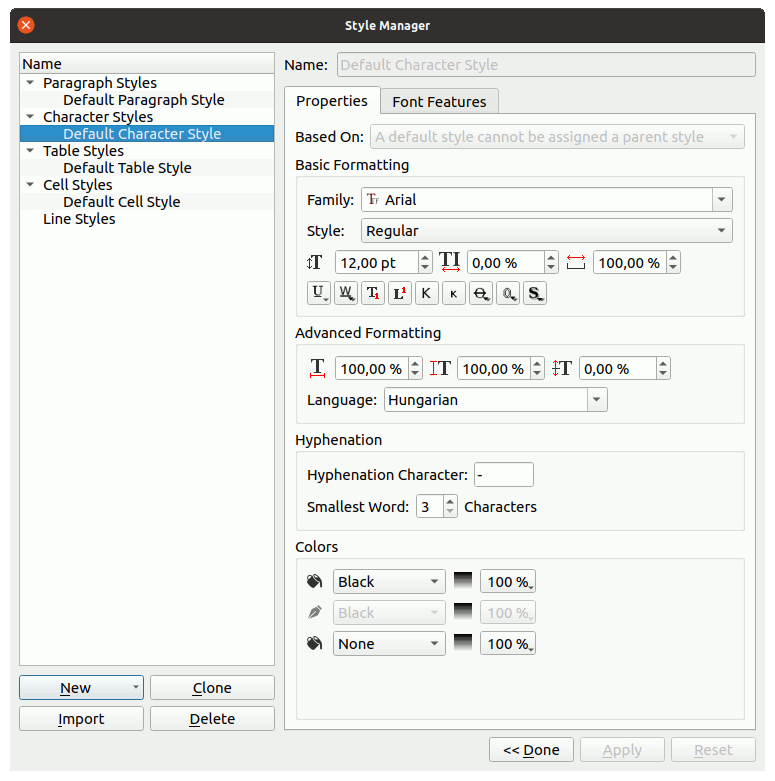

2021-03-03 21:45	bubu	File Added: character_layout.gif
2021-03-03 21:45	bubu	File Added: widows_orphans.gif
2021-03-04 05:51	PeterBenedek	Relationship added	child of 0013906
2021-03-04 07:22	bubu	File Added: 0001-Update-layout-for-Style-Manager-widow-and-orphans-ch-2.patch
2021-03-04 07:22	bubu	File Added: icons.png-2.zip
2021-03-04 07:22	bubu	Note Added: 0048910
2021-03-05 12:18	bubu	File Added: 0001-Update-layout-for-Style-Manager-widow-and-orphans-ch-3.patch
2021-03-05 12:18	bubu	Note Added: 0048913
2021-03-14 16:11	bubu	Note Added: 0048929
2021-03-14 16:11	bubu	File Added: 0001-Update-layout-for-Style-Manager-widow-and-orphans-ch-4.patch

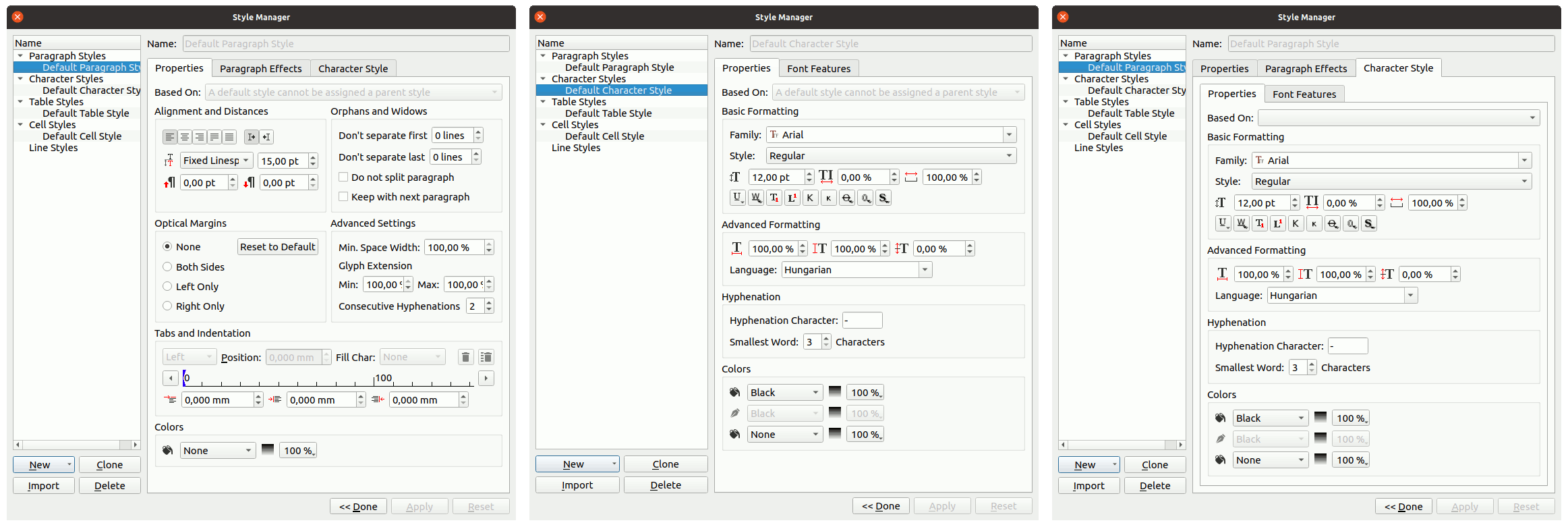

2021-03-14 16:11	bubu	File Added: style_manager-4.gif
2021-03-14 17:07	cbradney	Assigned To	=> cbradney
2021-03-14 17:07	cbradney	Status	new => resolved
2021-03-14 17:07	cbradney	Resolution	open => fixed
2021-03-14 17:07	cbradney	Fixed in Version	=> 1.5.7.svn
2021-03-14 17:07	cbradney	Note Added: 0048930
2021-03-21 14:58	FirasH	Status	resolved => closed
2021-03-21 14:58	FirasH	Note Added: 0048985
