IDProjectCategoryView StatusDate SubmittedLast Update
0016837ScribusStory Editor / Text Framespublic2022-08-26 10:152022-09-02 06:59
Reporterbnudavid Assigned To
PrioritynormalSeverityminorReproducibilityalways
Status newResolutionopen
Product Version1.6.0.svn
Summary0016837: Line wrap error after setting text frame width to an integer multiple of font size of CJK characters
DescriptionHello! I find a small problem in Scribus.
In CJK typesetting, we often need to pre-set the number of characters per line, thus we first set the width of text frame.
However, when the width of the text frame is set to a integer multiple (e.g. n) of the font size , only n-1 characters are filled and the nth character is incorrectly placed on the next line
I find that when the width plus with 1, the nth character fits perfectly on a line.
Besides, plus 0.99 does't help.

Thank for your reading!

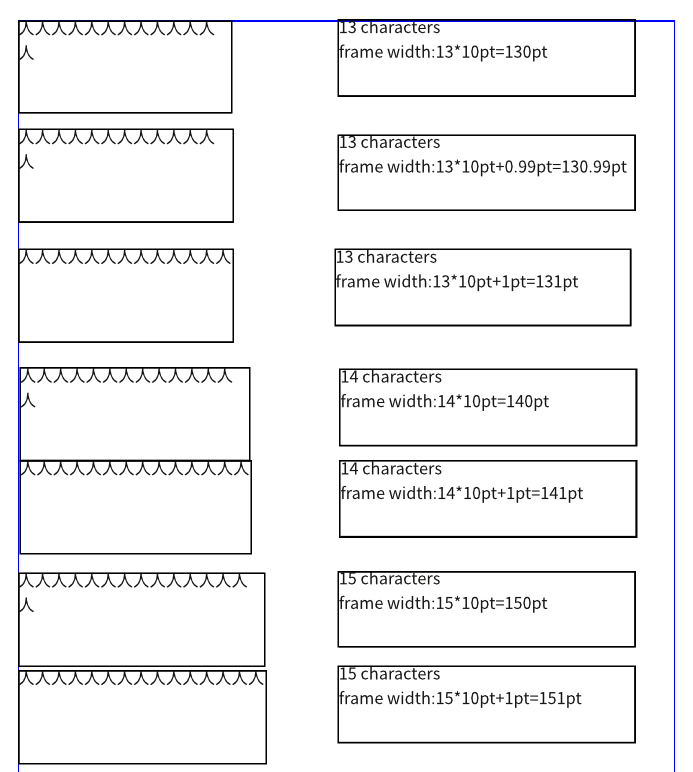

Steps To Reproduce1. Set font size to 10pt with font Source Han Sans CN;
2. Set a text frame intened to containing 5 CJK charachters, thus set the width with 5*10pt=50pt;
3. The 5th charachter is wrongly pushed to the next line.
4. Set the plus width with 1pt: 5*10pt+1pt=51pt;
5. Perfect!
Additional Informationattached is the sla file.
TagsCJK, line breaks
PatchNo

Activities

bnudavid

2022-08-26 10:15

reporter

CJK wrap problem.sla (27,726 bytes)
<?xml version="1.0" encoding="UTF-8"?>
<SCRIBUSUTF8NEW Version="1.5.9.svn">
    <DOCUMENT ANZPAGES="1" PAGEWIDTH="595.28" PAGEHEIGHT="841.89" BORDERLEFT="97.64" BORDERRIGHT="97.64" BORDERTOP="40" BORDERBOTTOM="40" PRESET="0" BleedTop="0" BleedLeft="0" BleedRight="0" BleedBottom="0" ORIENTATION="0" PAGESIZE="A4" FIRSTNUM="1" BOOK="0" AUTOSPALTEN="1" ABSTSPALTEN="31.1811023622047" UNITS="0" DFONT="OPPOSans Regular" DSIZE="10" DCOL="1" DGAP="0" TabFill="" TabWidth="36" TextDistLeft="0" TextDistRight="0" TextDistBottom="0" TextDistTop="0" FirstLineOffset="0" AUTHOR="" COMMENTS="" KEYWORDS="" PUBLISHER="" DOCDATE="" DOCTYPE="" DOCFORMAT="" DOCIDENT="" DOCSOURCE="" DOCLANGINFO="" DOCRELATION="" DOCCOVER="" DOCRIGHTS="" DOCCONTRIB="" TITLE="" SUBJECT="" VHOCH="33" VHOCHSC="66" VTIEF="33" VTIEFSC="66" VKAPIT="75" BASEGRID="15" BASEO="0" AUTOL="120" UnderlinePos="-1" UnderlineWidth="-1" StrikeThruPos="-1" StrikeThruWidth="-1" GROUPC="2" HCMS="1" DPSo="0" DPSFo="0" DPuse="1" DPgam="0" DPbla="1" DPPr="ISO Coated v2 300% (basICColor)" DPIn="sRGB display profile (ICC v2.2)" DPInCMYK="ISO Coated v2 300% (basICColor)" DPIn2="sRGB display profile (ICC v2.2)" DPIn3="ISO Coated v2 300% (basICColor)" DISc="1" DIIm="0" ALAYER="0" LANGUAGE="zh" AUTOMATIC="1" AUTOCHECK="0" GUIDELOCK="0" SnapToGuides="0" SnapToGrid="0" SnapToElement="0" MINGRID="15.0009448818898" MAJGRID="29.9990551181102" SHOWGRID="0" SHOWGUIDES="1" showcolborders="1" SHOWFRAME="1" SHOWControl="0" SHOWLAYERM="0" SHOWMARGIN="1" SHOWBASE="0" SHOWPICT="1" SHOWLINK="0" rulerMode="1" showrulers="1" showBleed="1" rulerXoffset="0" rulerYoffset="0" GuideRad="10" GRAB="4" POLYC="4" POLYF="0.502045814642449" POLYR="0" POLYIR="0" POLYCUR="0" POLYOCUR="0" POLYS="0" arcStartAngle="30" arcSweepAngle="300" spiralStartAngle="0" spiralEndAngle="1080" spiralFactor="1.2" AutoSave="1" AutoSaveTime="600000" AutoSaveCount="1" AutoSaveKeep="0" AUtoSaveInDocDir="1" AutoSaveDir="" ScratchBottom="20.0012598425197" ScratchLeft="100.00062992126" ScratchRight="100.00062992126" ScratchTop="20.0012598425197" GapHorizontal="0" GapVertical="39.9996850393701" StartArrow="0" EndArrow="0" PEN="Black" BRUSH="None" PENLINE="Black" PENTEXT="Black" StrokeText="Black" TextBackGround="None" TextLineColor="None" TextBackGroundShade="100" TextLineShade="100" TextPenShade="100" TextStrokeShade="100" STIL="1" STILLINE="1" WIDTH="1" WIDTHLINE="1" PENSHADE="100" LINESHADE="100" BRUSHSHADE="100" CPICT="None" PICTSHADE="100" CSPICT="None" PICTSSHADE="100" PICTSCX="1" PICTSCY="1" PSCALE="0" PASPECT="1" EmbeddedPath="0" HalfRes="2" dispX="10.0006299212598" dispY="10.0006299212598" constrain="15" MINORC="#dddddd" MAJORC="#bababa" GuideC="#000080" BaseC="#c0c0c0" renderStack="2 0 4 1 3" GridType="0" PAGEC="#ffffff" MARGC="#0000ff" RANDF="0" currentProfile="PDF 1.4" calligraphicPenFillColor="Black" calligraphicPenLineColor="Black" calligraphicPenFillColorShade="100" calligraphicPenLineColorShade="100" calligraphicPenLineWidth="1" calligraphicPenAngle="0" calligraphicPenWidth="10" calligraphicPenStyle="1">
        <CheckProfile Name="PDF 1.3" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="1" minResolution="144" maxResolution="2400" checkAnnotations="0" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="0" checkDeviceColorsAndOutputIntent="0" checkFontNotEmbedded="1" checkFontIsOpenType="1" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/>
        <CheckProfile Name="PDF 1.4" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="0" minResolution="144" maxResolution="2400" checkAnnotations="0" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="0" checkDeviceColorsAndOutputIntent="0" checkFontNotEmbedded="1" checkFontIsOpenType="1" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/>
        <CheckProfile Name="PDF 1.5" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="0" minResolution="144" maxResolution="2400" checkAnnotations="0" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="0" checkDeviceColorsAndOutputIntent="0" checkFontNotEmbedded="1" checkFontIsOpenType="1" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/>
        <CheckProfile Name="PDF 1.6" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="0" minResolution="144" maxResolution="2400" checkAnnotations="0" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="0" checkDeviceColorsAndOutputIntent="0" checkFontNotEmbedded="1" checkFontIsOpenType="0" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/>
        <CheckProfile Name="PDF/X-1a" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="1" minResolution="144" maxResolution="2400" checkAnnotations="1" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="1" checkDeviceColorsAndOutputIntent="0" checkFontNotEmbedded="1" checkFontIsOpenType="1" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/>
        <CheckProfile Name="PDF/X-3" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="1" minResolution="144" maxResolution="2400" checkAnnotations="1" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="0" checkDeviceColorsAndOutputIntent="1" checkFontNotEmbedded="1" checkFontIsOpenType="1" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/>
        <CheckProfile Name="PDF/X-4" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="0" minResolution="144" maxResolution="2400" checkAnnotations="1" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="0" checkDeviceColorsAndOutputIntent="1" checkFontNotEmbedded="1" checkFontIsOpenType="0" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/>
        <CheckProfile Name="PostScript" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="1" minResolution="144" maxResolution="2400" checkAnnotations="0" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="0" checkDeviceColorsAndOutputIntent="0" checkFontNotEmbedded="0" checkFontIsOpenType="0" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/>
        <COLOR NAME="Black" SPACE="CMYK" C="0" M="0" Y="0" K="100"/>
        <COLOR NAME="Registration" SPACE="CMYK" C="100" M="100" Y="100" K="100" Register="1"/>
        <COLOR NAME="White" SPACE="CMYK" C="0" M="0" Y="0" K="0"/>
        <HYPHEN/>
        <CHARSTYLE CNAME="Default Character Style" DefaultStyle="1" FONT="Source Han Sans CN Regular" FONTSIZE="10" FONTFEATURES="-clig" FEATURES="inherit" FCOLOR="Black" FSHADE="100" HyphenWordMin="3" SCOLOR="Black" BGCOLOR="None" BGSHADE="100" SSHADE="100" TXTSHX="5" TXTSHY="-5" TXTOUT="1" TXTULP="-0.1" TXTULW="-0.1" TXTSTP="-0.1" TXTSTW="-0.1" SCALEH="100" SCALEV="100" BASEO="0" KERN="0" LANGUAGE="zh"/>
        <STYLE NAME="Default Paragraph Style" DefaultStyle="1" ALIGN="0" DIRECTION="0" LINESPMode="0" LINESP="15" INDENT="0" RMARGIN="0" FIRST="0" VOR="0" NACH="0" ParagraphEffectOffset="0" DROP="0" DROPLIN="2" Bullet="0" Numeration="0" HyphenConsecutiveLines="2" BCOLOR="None" BSHADE="100"/>
        <TableStyle NAME="Default Table Style" DefaultStyle="1" FillColor="None" FillShade="100">
            <TableBorderLeft>
                <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/>
            </TableBorderLeft>
            <TableBorderRight>
                <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/>
            </TableBorderRight>
            <TableBorderTop>
                <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/>
            </TableBorderTop>
            <TableBorderBottom>
                <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/>
            </TableBorderBottom>
        </TableStyle>
        <CellStyle NAME="Default Cell Style" DefaultStyle="1" FillColor="None" FillShade="100" LeftPadding="1" RightPadding="1" TopPadding="1" BottomPadding="1">
            <TableBorderLeft>
                <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/>
            </TableBorderLeft>
            <TableBorderRight>
                <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/>
            </TableBorderRight>
            <TableBorderTop>
                <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/>
            </TableBorderTop>
            <TableBorderBottom>
                <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/>
            </TableBorderBottom>
        </CellStyle>
        <LAYERS NUMMER="0" LEVEL="0" NAME="背景" SICHTBAR="1" DRUCKEN="1" EDIT="1" SELECT="0" FLOW="1" TRANS="1" BLEND="0" OUTL="0" LAYERC="#000000"/>
        <Printer firstUse="1" toFile="0" useAltPrintCommand="0" outputSeparations="0" useSpotColors="1" useColor="1" mirrorH="0" mirrorV="0" useICC="1" doGCR="0" doClip="0" setDevParam="0" useDocBleeds="1" cropMarks="0" bleedMarks="0" registrationMarks="0" colorMarks="0" includePDFMarks="1" PSLevel="3" PrintEngine="4" markLength="20.0013" markOffset="0" BleedTop="0" BleedLeft="0" BleedRight="0" BleedBottom="0" printer="Canon MG3600 series Printer WS" filename="" separationName="All" printerCommand=""/>
        <PDF firstUse="1" Thumbnails="0" Articles="0" Bookmarks="0" Compress="1" CMethod="0" Quality="0" EmbedPDF="0" MirrorH="0" MirrorV="0" Clip="0" rangeSel="0" rangeTxt="" RotateDeg="0" PresentMode="0" RecalcPic="0" FontEmbedding="0" Grayscale="0" RGBMode="1" UseProfiles="0" UseProfiles2="0" Binding="0" PicRes="300" Resolution="300" Version="14" Intent="1" Intent2="0" SolidP="sRGB display profile (ICC v2.2)" ImageP="sRGB display profile (ICC v2.2)" PrintP="ISO Coated v2 300% (basICColor)" InfoString="" BTop="0" BLeft="0" BRight="0" BBottom="0" useDocBleeds="1" cropMarks="0" bleedMarks="0" registrationMarks="0" colorMarks="0" docInfoMarks="0" markLength="20.0012598425197" markOffset="0" ImagePr="0" PassOwner="" PassUser="" Permissions="-4" Encrypt="0" UseLayers="0" UseLpi="0" UseSpotColors="1" doMultiFile="0" displayBookmarks="0" displayFullscreen="0" displayLayers="0" displayThumbs="0" hideMenuBar="0" hideToolBar="0" fitWindow="0" openAfterExport="0" PageLayout="0" openAction="">
            <LPI Color="Black" Frequency="133" Angle="45" SpotFunction="3"/>
            <LPI Color="Cyan" Frequency="133" Angle="105" SpotFunction="3"/>
            <LPI Color="Magenta" Frequency="133" Angle="75" SpotFunction="3"/>
            <LPI Color="Yellow" Frequency="133" Angle="90" SpotFunction="3"/>
        </PDF>
        <DocItemAttributes/>
        <TablesOfContents/>
        <NotesStyles>
            <notesStyle Name="Default" Start="1" Endnotes="0" Type="Type_1_2_3" Range="0" Prefix="" Suffix=")" AutoHeight="1" AutoWidth="1" AutoRemove="1" AutoWeld="1" SuperNote="1" SuperMaster="1" MarksStyle="" NotesStyle=""/>
        </NotesStyles>
        <PageSets>
            <Set Name="Single Page" FirstPage="0" Rows="1" Columns="1"/>
            <Set Name="Facing Pages" FirstPage="1" Rows="1" Columns="2">
                <PageNames Name="Left Page"/>
                <PageNames Name="Right Page"/>
            </Set>
            <Set Name="3-Fold" FirstPage="0" Rows="1" Columns="3">
                <PageNames Name="Left Page"/>
                <PageNames Name="Middle"/>
                <PageNames Name="Right Page"/>
            </Set>
            <Set Name="4-Fold" FirstPage="0" Rows="1" Columns="4">
                <PageNames Name="Left Page"/>
                <PageNames Name="Middle Left"/>
                <PageNames Name="Middle Right"/>
                <PageNames Name="Right Page"/>
            </Set>
        </PageSets>
        <Sections>
            <Section Number="0" Name="0" From="0" To="0" Type="Type_1_2_3" Start="1" Reversed="0" Active="1" FillChar="0" FieldWidth="0"/>
        </Sections>
        <MASTERPAGE PAGEXPOS="100.00062992126" PAGEYPOS="20.0012598425197" PAGEWIDTH="595.28" PAGEHEIGHT="841.89" BORDERLEFT="97.64" BORDERRIGHT="97.64" BORDERTOP="40" BORDERBOTTOM="40" NUM="0" NAM="普通母版页" MNAM="" Size="A4" Orientation="0" LEFT="0" PRESET="0" VerticalGuides="" HorizontalGuides="" AGhorizontalAutoGap="0" AGverticalAutoGap="0" AGhorizontalAutoCount="0" AGverticalAutoCount="0" AGhorizontalAutoRefer="0" AGverticalAutoRefer="0" AGSelection="0 0 0 0" pageEffectDuration="1" pageViewDuration="1" effectType="0" Dm="0" M="0" Di="0"/>
        <PAGE PAGEXPOS="100.00062992126" PAGEYPOS="20.0012598425197" PAGEWIDTH="595.28" PAGEHEIGHT="841.89" BORDERLEFT="97.64" BORDERRIGHT="97.64" BORDERTOP="40" BORDERBOTTOM="40" NUM="0" NAM="" MNAM="普通母版页" Size="A4" Orientation="0" LEFT="0" PRESET="0" VerticalGuides="" HorizontalGuides="" AGhorizontalAutoGap="0" AGverticalAutoGap="0" AGhorizontalAutoCount="0" AGverticalAutoCount="0" AGhorizontalAutoRefer="0" AGverticalAutoRefer="0" AGSelection="0 0 0 0" pageEffectDuration="1" pageViewDuration="1" effectType="0" Dm="0" M="0" Di="0"/>
        <FRAMEOBJECT InID="7397" XPOS="0" YPOS="0" OwnPage="-1" ItemID="319136832" PTYPE="4" WIDTH="180.39937007874" HEIGHT="46.3428571428571" FRTYPE="0" CLIPEDIT="0" PWIDTH="1" PLINEART="1" LOCALSCX="1" LOCALSCY="1" LOCALX="0" LOCALY="0" LOCALROT="0" PICART="1" SCALETYPE="1" RATIO="1" COLUMNS="1" COLGAP="0" AUTOTEXT="0" EXTRA="0" TEXTRA="0" BEXTRA="0" REXTRA="0" VAlign="0" FLOP="0" PLTSHOW="0" BASEOF="0" textPathType="0" textPathFlipped="0" path="M0 0 L180.399 0 L180.399 46.3429 L0 46.3429 L0 0 Z" copath="M0 0 L180.399 0 L180.399 46.3429 L0 46.3429 L0 0 Z" ImageRes="2" isInline="1" gXpos="0" gYpos="0" gWidth="198.39937007874" gHeight="215.342857142857" LAYER="0" NEXTITEM="-1" BACKITEM="-1">
            <StoryText>
                <DefaultStyle/>
                <ITEXT CH="13 characters "/>
                <para/>
                <ITEXT CH="frame width:13*10pt=130pt"/>
                <trail/>
            </StoryText>
        </FRAMEOBJECT>
        <PAGEOBJECT XPOS="197.582857142857" YPOS="59.6236734693877" OwnPage="0" ItemID="222266400" PTYPE="4" WIDTH="130" HEIGHT="56.5028571428572" FRTYPE="0" CLIPEDIT="0" PWIDTH="1" PLINEART="1" LOCALSCX="1" LOCALSCY="1" LOCALX="0" LOCALY="0" LOCALROT="0" PICART="1" SCALETYPE="1" RATIO="1" COLUMNS="1" COLGAP="0" AUTOTEXT="0" EXTRA="0" TEXTRA="0" BEXTRA="0" REXTRA="0" VAlign="0" FLOP="0" PLTSHOW="0" BASEOF="0" textPathType="0" textPathFlipped="0" path="M0 0 L130 0 L130 56.5029 L0 56.5029 L0 0 Z" copath="M0 0 L130 0 L130 56.5029 L0 56.5029 L0 0 Z" ImageRes="2" gXpos="197.582857142857" gYpos="59.6236734693877" gWidth="0" gHeight="0" LAYER="0" NEXTITEM="-1" BACKITEM="-1">
            <StoryText>
                <DefaultStyle/>
                <ITEXT CH="人人人人人人人人人人人人人"/>
                <trail/>
            </StoryText>
        </PAGEOBJECT>
        <PAGEOBJECT XPOS="197.582857142857" YPOS="317.423673469388" OwnPage="0" ItemID="227311520" PTYPE="4" WIDTH="140" HEIGHT="56.5028571428572" FRTYPE="0" CLIPEDIT="0" PWIDTH="1" PLINEART="1" LOCALSCX="1" LOCALSCY="1" LOCALX="0" LOCALY="0" LOCALROT="0" PICART="1" SCALETYPE="1" RATIO="1" COLUMNS="1" COLGAP="0" AUTOTEXT="0" EXTRA="0" TEXTRA="0" BEXTRA="0" REXTRA="0" VAlign="0" FLOP="0" PLTSHOW="0" BASEOF="0" textPathType="0" textPathFlipped="0" path="M0 0 L140 0 L140 56.5029 L0 56.5029 L0 0 Z" copath="M0 0 L140 0 L140 56.5029 L0 56.5029 L0 0 Z" ImageRes="2" gXpos="197.582857142857" gYpos="317.423673469388" gWidth="0" gHeight="0" LAYER="0" NEXTITEM="-1" BACKITEM="-1">
            <StoryText>
                <DefaultStyle/>
                <ITEXT CH="人人人人人人人人人人人人人人"/>
                <para/>
            </StoryText>
        </PAGEOBJECT>
        <PAGEOBJECT XPOS="196.582857142857" YPOS="463.223673469388" OwnPage="0" ItemID="227325680" PTYPE="4" WIDTH="150" HEIGHT="56.5028571428572" FRTYPE="0" CLIPEDIT="0" PWIDTH="1" PLINEART="1" LOCALSCX="1" LOCALSCY="1" LOCALX="0" LOCALY="0" LOCALROT="0" PICART="1" SCALETYPE="1" RATIO="1" COLUMNS="1" COLGAP="0" AUTOTEXT="0" EXTRA="0" TEXTRA="0" BEXTRA="0" REXTRA="0" VAlign="0" FLOP="0" PLTSHOW="0" BASEOF="0" textPathType="0" textPathFlipped="0" path="M0 0 L150 0 L150 56.5029 L0 56.5029 L0 0 Z" copath="M0 0 L150 0 L150 56.5029 L0 56.5029 L0 0 Z" ImageRes="2" gXpos="196.582857142857" gYpos="463.223673469388" gWidth="0" gHeight="0" LAYER="0" NEXTITEM="-1" BACKITEM="-1">
            <StoryText>
                <DefaultStyle/>
                <ITEXT CH="人人人人人人人人人人人人人人人"/>
                <trail/>
            </StoryText>
        </PAGEOBJECT>
        <PAGEOBJECT XPOS="197.582857142857" YPOS="199.023673469388" OwnPage="0" ItemID="227320016" PTYPE="4" WIDTH="131" HEIGHT="56.5028571428572" FRTYPE="0" CLIPEDIT="0" PWIDTH="1" PLINEART="1" LOCALSCX="1" LOCALSCY="1" LOCALX="0" LOCALY="0" LOCALROT="0" PICART="1" SCALETYPE="1" RATIO="1" COLUMNS="1" COLGAP="0" AUTOTEXT="0" EXTRA="0" TEXTRA="0" BEXTRA="0" REXTRA="0" VAlign="0" FLOP="0" PLTSHOW="0" BASEOF="0" textPathType="0" textPathFlipped="0" path="M0 0 L131 0 L131 56.5029 L0 56.5029 L0 0 Z" copath="M0 0 L131 0 L131 56.5029 L0 56.5029 L0 0 Z" ImageRes="2" gXpos="197.582857142857" gYpos="199.023673469388" gWidth="0" gHeight="0" LAYER="0" NEXTITEM="-1" BACKITEM="-1">
            <StoryText>
                <DefaultStyle/>
                <ITEXT CH="人人人人人人人人人人人人人"/>
                <trail/>
            </StoryText>
        </PAGEOBJECT>
        <PAGEOBJECT XPOS="197.582857142857" YPOS="373.823673469388" OwnPage="0" ItemID="227314352" PTYPE="4" WIDTH="141" HEIGHT="56.5028571428572" FRTYPE="0" CLIPEDIT="0" PWIDTH="1" PLINEART="1" LOCALSCX="1" LOCALSCY="1" LOCALX="0" LOCALY="0" LOCALROT="0" PICART="1" SCALETYPE="1" RATIO="1" COLUMNS="1" COLGAP="0" AUTOTEXT="0" EXTRA="0" TEXTRA="0" BEXTRA="0" REXTRA="0" VAlign="0" FLOP="0" PLTSHOW="0" BASEOF="0" textPathType="0" textPathFlipped="0" path="M0 0 L141 0 L141 56.5029 L0 56.5029 L0 0 Z" copath="M0 0 L141 0 L141 56.5029 L0 56.5029 L0 0 Z" ImageRes="2" gXpos="197.582857142857" gYpos="373.823673469388" gWidth="0" gHeight="0" LAYER="0" NEXTITEM="-1" BACKITEM="-1">
            <StoryText>
                <DefaultStyle/>
                <ITEXT CH="人人人人人人人人人人人人人人"/>
                <para/>
            </StoryText>
        </PAGEOBJECT>
        <PAGEOBJECT XPOS="196.582857142857" YPOS="518.623673469388" OwnPage="0" ItemID="227331344" PTYPE="4" WIDTH="151" HEIGHT="56.5028571428572" FRTYPE="0" CLIPEDIT="0" PWIDTH="1" PLINEART="1" LOCALSCX="1" LOCALSCY="1" LOCALX="0" LOCALY="0" LOCALROT="0" PICART="1" SCALETYPE="1" RATIO="1" COLUMNS="1" COLGAP="0" AUTOTEXT="0" EXTRA="0" TEXTRA="0" BEXTRA="0" REXTRA="0" VAlign="0" FLOP="0" PLTSHOW="0" BASEOF="0" textPathType="0" textPathFlipped="0" path="M0 0 L151 0 L151 56.5029 L0 56.5029 L0 0 Z" copath="M0 0 L151 0 L151 56.5029 L0 56.5029 L0 0 Z" ImageRes="2" gXpos="196.582857142857" gYpos="518.623673469388" gWidth="0" gHeight="0" LAYER="0" NEXTITEM="-1" BACKITEM="-1">
            <StoryText>
                <DefaultStyle/>
                <ITEXT CH="人人人人人人人人人人人人人人人"/>
                <para/>
            </StoryText>
        </PAGEOBJECT>
        <PAGEOBJECT XPOS="393.00062992126" YPOS="59.2571428571429" OwnPage="0" ItemID="227322848" PTYPE="4" WIDTH="180.39937007874" HEIGHT="46.3428571428571" FRTYPE="0" CLIPEDIT="0" PWIDTH="1" PLINEART="1" LOCALSCX="1" LOCALSCY="1" LOCALX="0" LOCALY="0" LOCALROT="0" PICART="1" SCALETYPE="1" RATIO="1" COLUMNS="1" COLGAP="0" AUTOTEXT="0" EXTRA="0" TEXTRA="0" BEXTRA="0" REXTRA="0" VAlign="0" FLOP="0" PLTSHOW="0" BASEOF="0" textPathType="0" textPathFlipped="0" path="M0 0 L180.399 0 L180.399 46.3429 L0 46.3429 L0 0 Z" copath="M0 0 L180.399 0 L180.399 46.3429 L0 46.3429 L0 0 Z" ImageRes="2" gXpos="393.00062992126" gYpos="59.2571428571429" gWidth="0" gHeight="0" LAYER="0" NEXTITEM="-1" BACKITEM="-1">
            <StoryText>
                <DefaultStyle/>
                <ITEXT CH="13 characters "/>
                <para/>
                <ITEXT CH="frame width:13*10pt=130pt"/>
                <trail/>
            </StoryText>
        </PAGEOBJECT>
        <PAGEOBJECT XPOS="393.00062992126" YPOS="318.257142857143" OwnPage="0" ItemID="227334176" PTYPE="4" WIDTH="180.39937007874" HEIGHT="46.3428571428571" FRTYPE="0" CLIPEDIT="0" PWIDTH="1" PLINEART="1" LOCALSCX="1" LOCALSCY="1" LOCALX="0" LOCALY="0" LOCALROT="0" PICART="1" SCALETYPE="1" RATIO="1" COLUMNS="1" COLGAP="0" AUTOTEXT="0" EXTRA="0" TEXTRA="0" BEXTRA="0" REXTRA="0" VAlign="0" FLOP="0" PLTSHOW="0" BASEOF="0" textPathType="0" textPathFlipped="0" path="M0 0 L180.399 0 L180.399 46.3429 L0 46.3429 L0 0 Z" copath="M0 0 L180.399 0 L180.399 46.3429 L0 46.3429 L0 0 Z" ImageRes="2" gXpos="393.00062992126" gYpos="318.257142857143" gWidth="0" gHeight="0" LAYER="0" NEXTITEM="-1" BACKITEM="-1">
            <StoryText>
                <DefaultStyle/>
                <ITEXT CH="14 characters "/>
                <para/>
                <ITEXT CH="frame width:14*10pt=140pt"/>
                <trail/>
            </StoryText>
        </PAGEOBJECT>
        <PAGEOBJECT XPOS="392.00062992126" YPOS="462.257142857143" OwnPage="0" ItemID="227317184" PTYPE="4" WIDTH="180.39937007874" HEIGHT="46.3428571428571" FRTYPE="0" CLIPEDIT="0" PWIDTH="1" PLINEART="1" LOCALSCX="1" LOCALSCY="1" LOCALX="0" LOCALY="0" LOCALROT="0" PICART="1" SCALETYPE="1" RATIO="1" COLUMNS="1" COLGAP="0" AUTOTEXT="0" EXTRA="0" TEXTRA="0" BEXTRA="0" REXTRA="0" VAlign="0" FLOP="0" PLTSHOW="0" BASEOF="0" textPathType="0" textPathFlipped="0" path="M0 0 L180.399 0 L180.399 46.3429 L0 46.3429 L0 0 Z" copath="M0 0 L180.399 0 L180.399 46.3429 L0 46.3429 L0 0 Z" ImageRes="2" gXpos="392.00062992126" gYpos="462.257142857143" gWidth="0" gHeight="0" LAYER="0" NEXTITEM="-1" BACKITEM="-1">
            <StoryText>
                <DefaultStyle/>
                <ITEXT CH="15 characters "/>
                <para/>
                <ITEXT CH="frame width:15*10pt=150pt"/>
                <trail/>
            </StoryText>
        </PAGEOBJECT>
        <PAGEOBJECT XPOS="391.00062992126" YPOS="199.257142857143" OwnPage="0" ItemID="227308688" PTYPE="4" WIDTH="180.39937007874" HEIGHT="46.3428571428571" FRTYPE="0" CLIPEDIT="0" PWIDTH="1" PLINEART="1" LOCALSCX="1" LOCALSCY="1" LOCALX="0" LOCALY="0" LOCALROT="0" PICART="1" SCALETYPE="1" RATIO="1" COLUMNS="1" COLGAP="0" AUTOTEXT="0" EXTRA="0" TEXTRA="0" BEXTRA="0" REXTRA="0" VAlign="0" FLOP="0" PLTSHOW="0" BASEOF="0" textPathType="0" textPathFlipped="0" path="M0 0 L180.399 0 L180.399 46.3429 L0 46.3429 L0 0 Z" copath="M0 0 L180.399 0 L180.399 46.3429 L0 46.3429 L0 0 Z" ImageRes="2" gXpos="391.00062992126" gYpos="199.257142857143" gWidth="0" gHeight="0" LAYER="0" NEXTITEM="-1" BACKITEM="-1">
            <StoryText>
                <DefaultStyle/>
                <ITEXT CH="13 characters "/>
                <para/>
                <ITEXT CH="frame width:13*10pt+1pt=131pt"/>
                <trail/>
            </StoryText>
        </PAGEOBJECT>
        <PAGEOBJECT XPOS="393.00062992126" YPOS="374.257142857143" OwnPage="0" ItemID="227337008" PTYPE="4" WIDTH="180.39937007874" HEIGHT="46.3428571428571" FRTYPE="0" CLIPEDIT="0" PWIDTH="1" PLINEART="1" LOCALSCX="1" LOCALSCY="1" LOCALX="0" LOCALY="0" LOCALROT="0" PICART="1" SCALETYPE="1" RATIO="1" COLUMNS="1" COLGAP="0" AUTOTEXT="0" EXTRA="0" TEXTRA="0" BEXTRA="0" REXTRA="0" VAlign="0" FLOP="0" PLTSHOW="0" BASEOF="0" textPathType="0" textPathFlipped="0" path="M0 0 L180.399 0 L180.399 46.3429 L0 46.3429 L0 0 Z" copath="M0 0 L180.399 0 L180.399 46.3429 L0 46.3429 L0 0 Z" ImageRes="2" gXpos="393.00062992126" gYpos="374.257142857143" gWidth="0" gHeight="0" LAYER="0" NEXTITEM="-1" BACKITEM="-1">
            <StoryText>
                <DefaultStyle/>
                <ITEXT CH="14 characters "/>
                <para/>
                <ITEXT CH="frame width:14*10pt+1pt=141pt"/>
                <trail/>
            </StoryText>
        </PAGEOBJECT>
        <PAGEOBJECT XPOS="392.00062992126" YPOS="517.257142857143" OwnPage="0" ItemID="319159488" PTYPE="4" WIDTH="180.39937007874" HEIGHT="46.3428571428571" FRTYPE="0" CLIPEDIT="0" PWIDTH="1" PLINEART="1" LOCALSCX="1" LOCALSCY="1" LOCALX="0" LOCALY="0" LOCALROT="0" PICART="1" SCALETYPE="1" RATIO="1" COLUMNS="1" COLGAP="0" AUTOTEXT="0" EXTRA="0" TEXTRA="0" BEXTRA="0" REXTRA="0" VAlign="0" FLOP="0" PLTSHOW="0" BASEOF="0" textPathType="0" textPathFlipped="0" path="M0 0 L180.399 0 L180.399 46.3429 L0 46.3429 L0 0 Z" copath="M0 0 L180.399 0 L180.399 46.3429 L0 46.3429 L0 0 Z" ImageRes="2" gXpos="392.00062992126" gYpos="517.257142857143" gWidth="0" gHeight="0" LAYER="0" NEXTITEM="-1" BACKITEM="-1">
            <StoryText>
                <DefaultStyle/>
                <ITEXT CH="15 characters "/>
                <para/>
                <ITEXT CH="frame width:15*10pt+1pt=151pt"/>
                <trail/>
            </StoryText>
        </PAGEOBJECT>
        <PAGEOBJECT XPOS="197.582857142857" YPOS="126.023673469388" OwnPage="0" ItemID="319150992" PTYPE="4" WIDTH="130.99" HEIGHT="56.5028571428572" FRTYPE="0" CLIPEDIT="0" PWIDTH="1" PLINEART="1" LOCALSCX="1" LOCALSCY="1" LOCALX="0" LOCALY="0" LOCALROT="0" PICART="1" SCALETYPE="1" RATIO="1" COLUMNS="1" COLGAP="0" AUTOTEXT="0" EXTRA="0" TEXTRA="0" BEXTRA="0" REXTRA="0" VAlign="0" FLOP="0" PLTSHOW="0" BASEOF="0" textPathType="0" textPathFlipped="0" path="M0 0 L130.99 0 L130.99 56.5029 L0 56.5029 L0 0 Z" copath="M0 0 L130.99 0 L130.99 56.5029 L0 56.5029 L0 0 Z" ImageRes="2" gXpos="197.582857142857" gYpos="126.023673469388" gWidth="0" gHeight="0" LAYER="0" NEXTITEM="-1" BACKITEM="-1">
            <StoryText>
                <DefaultStyle/>
                <ITEXT CH="人人人人人人人人人人人人人"/>
                <trail/>
            </StoryText>
        </PAGEOBJECT>
        <PAGEOBJECT XPOS="393.00062992126" YPOS="129.257142857143" OwnPage="0" ItemID="319145328" PTYPE="4" WIDTH="180.39937007874" HEIGHT="46.3428571428571" FRTYPE="0" CLIPEDIT="0" PWIDTH="1" PLINEART="1" LOCALSCX="1" LOCALSCY="1" LOCALX="0" LOCALY="0" LOCALROT="0" PICART="1" SCALETYPE="1" RATIO="1" COLUMNS="1" COLGAP="0" AUTOTEXT="0" EXTRA="0" TEXTRA="0" BEXTRA="0" REXTRA="0" VAlign="0" FLOP="0" PLTSHOW="0" BASEOF="0" textPathType="0" textPathFlipped="0" path="M0 0 L180.399 0 L180.399 46.3429 L0 46.3429 L0 0 Z" copath="M0 0 L180.399 0 L180.399 46.3429 L0 46.3429 L0 0 Z" ImageRes="2" gXpos="393.00062992126" gYpos="129.257142857143" gWidth="0" gHeight="0" LAYER="0" NEXTITEM="-1" BACKITEM="-1">
            <StoryText>
                <DefaultStyle/>
                <ITEXT CH="13 characters "/>
                <para/>
                <ITEXT CH="frame width:13*10pt+0.99pt=130.99pt"/>
                <trail/>
            </StoryText>
        </PAGEOBJECT>
    </DOCUMENT>
</SCRIBUSUTF8NEW>
CJK wrap problem.sla (27,726 bytes)

Issue History

Date Modified Username Field Change
2022-08-26 10:15 bnudavid New Issue
2022-08-26 10:15 bnudavid Tag Attached: CJK
2022-08-26 10:15 bnudavid Tag Attached: line breaks
2022-08-26 10:15 bnudavid File Added: uTools_1661508439239.png
2022-08-26 10:15 bnudavid File Added: CJK wrap problem.sla
2022-09-02 06:59 jghali Priority high => normal
