View Issue Details

IDProjectCategoryView StatusLast Update
0016887ScribusGeneralpublic2023-01-25 16:24
Reporterpmjdebruijn Assigned To
PrioritynormalSeverityminorReproducibilityalways
Status newResolutionopen
Product Version1.5.9.svn
Summary0016887: Multilevel Table of Content support
DescriptionCurrently the Scribus Table of Contents generator effectively only supports Chapter/Heading1 level table of contents entries. This is problematic for non-trivial documents, which requires manual (and therefore error-prone) intervention to get a multi-level Table of Contents.

This one-liner change, introduces basic multi-level ToC support:

tocMap.insert(key, QString("\t").repeated(objAttr.parameter.toInt() - 1) + objAttr.value);

Important notes:

repeated(n) returns an empty string, if n is 0 or less
toInt() returns 0 on error, so if attribute parameter is empty or has non-numeric content, 0-1=-1, results in an empty string prefix
when parameter has a numeric value of 2(-1=1), results in a single Tab character being prefixed
TagsNo tags attached.
PatchYes

Activities

pmjdebruijn

2023-01-08 17:26

reporter

tocgenerator-levels.patch (616 bytes)
Index: a/scribus/tocgenerator.cpp
===================================================================
--- a/scribus/tocgenerator.cpp	(revision 25241)
+++ a/scribus/tocgenerator.cpp	(working copy)
@@ -117,7 +117,7 @@
 				//Third is the section based page number which is actually used in the TOC.
 				QString tocID = QString("%1").arg(pageCounter[currentDocItem->OwnPage]++, 3 , 10, QChar('0'));
 				QString key = QString("%1,%2,%3").arg(pageID, tocID, sectionID);
-				tocMap.insert(key, objAttr.value);
+				tocMap.insert(key, QString("\t").repeated(objAttr.parameter.toInt() - 1) + objAttr.value);
 			}
 		}

tocgenerator-levels.patch (616 bytes)

pmjdebruijn

2023-01-08 17:30

reporter   ~0049865

Tab stops need to be setup via the Stylist to actually make it look good of course :)

pmjdebruijn

2023-01-08 17:32

reporter   ~0049866

And I might add a qMin(lvl, 4) to guard against weird behavior if large values are accidentally entered?

pmjdebruijn

2023-01-08 17:43

reporter   ~0049867

Here is a patch with qmin(4, lvl) added
tocgenerator-levels-qmin4.patch (625 bytes)
Index: a/scribus/tocgenerator.cpp
===================================================================
--- a/scribus/tocgenerator.cpp	(revision 25241)
+++ a/scribus/tocgenerator.cpp	(working copy)
@@ -117,7 +117,7 @@
 				//Third is the section based page number which is actually used in the TOC.
 				QString tocID = QString("%1").arg(pageCounter[currentDocItem->OwnPage]++, 3 , 10, QChar('0'));
 				QString key = QString("%1,%2,%3").arg(pageID, tocID, sectionID);
-				tocMap.insert(key, objAttr.value);
+				tocMap.insert(key, QString("\t").repeated(qMin(4, objAttr.parameter.toInt() - 1)) + objAttr.value);
 			}
 		}


pmjdebruijn

2023-01-12 17:08

reporter   ~0049886

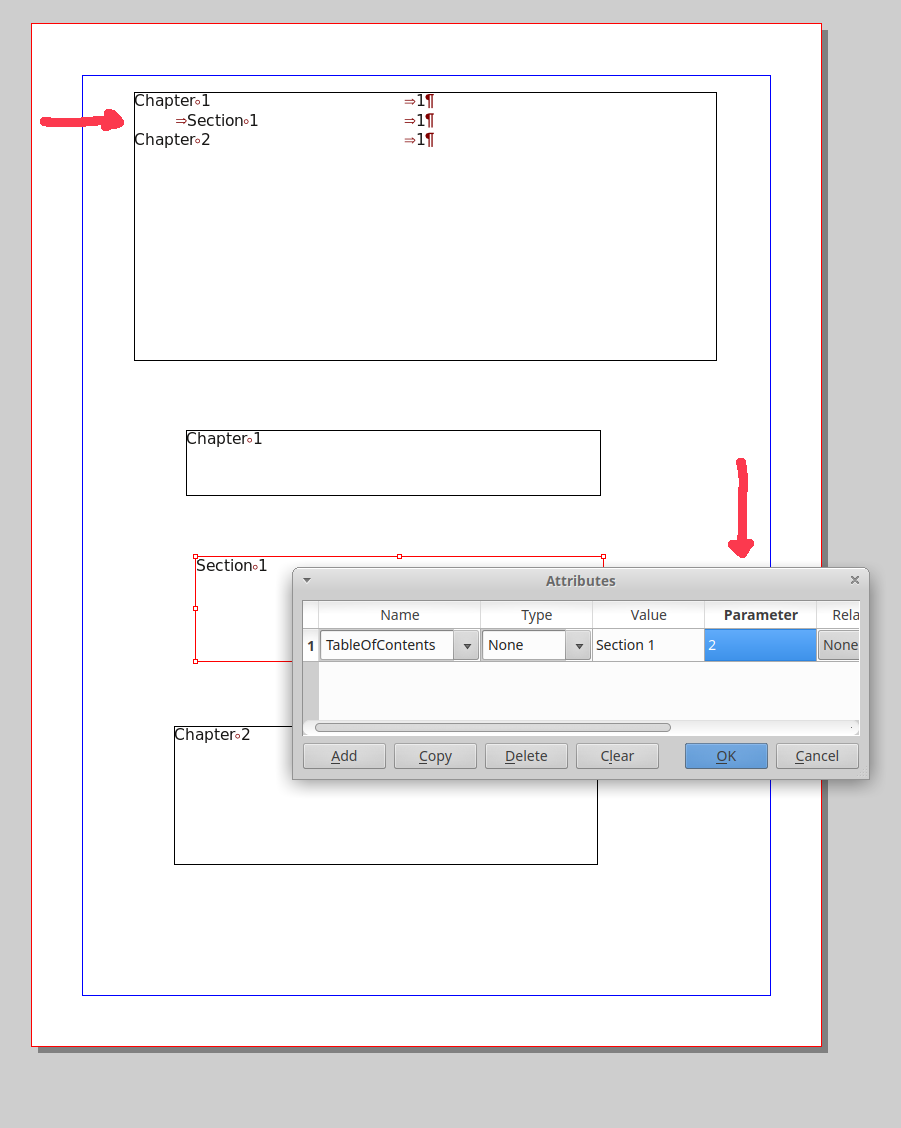

Here's a screenshot illustrating the crucial part:

ale

2023-01-14 21:13

manager   ~0049927

... just a thought: wouldn't it be better to apply a different styles for each level of the TOC?
(personally, i normally prefer not to indent the TOC)

the simplest way to do so, might be to add a checkbox:

[ ] Use indexed style names for the table of contents

some notes:

- I don't know what would be a good label for the new checkbox... but the one above might be good enough to get started... or you can always use the style and remove the checkbox...
- if the checkbox is checked, only style names that end in 1 are shown in "Paragraph Style"
- for each level use the style with the same name as the one that has been chosen and the correct index (toc_1 -> toc_2; if the style does not exist, use the "highest" that exists)

this might be added in a second step, after the attached patch has been accepted.

pmjdebruijn

2023-01-15 12:15

reporter   ~0049929

I do see this as out of scope for my efforts, but I'm not opposed to having more flexibility.

BTW, not indenting subsection is already the default behavior, because the default style doesn't have any tab stops defined. To get the indent you need to define a tab stop.

ale

2023-01-22 16:13

manager   ~0049965

i gave up on the idea of adding support for multiple TOC styles in the TOC frame. (in favor of a python only solution)

since now there is a ok way to create style based multilevel TOCs, i would prefer to see some work towards a real style based TOC in scribus that replaces the current implementation rather than putting more efforts in a tool that is basically broken by design.

pmjdebruijn

2023-01-22 19:38

reporter   ~0049966

Given the trivial nature of the change, I don't see why long term future development should prevent my patch from being applied, as it immediately makes the toc generator more useful.

ale

2023-01-23 09:36

manager   ~0049967

yes, it's a trivial patch.
and it should be a trivial thing to accept it.

the problem with it, is that -- in my eyes -- adding a tab is the wrong way to do the multilevel TOC.
it really should apply different styles.

that is not a huge problem per se.
but i really fear that if the tab "feature" gets added now, future versions of the TOC might need to support that too (the team has a hard time removing features, even if it's very likely that nobody uses them).
and that would be a useless complexity. (and scribus is full of such things!)

all in all: i still believe that the current TOC tool is not usable (for trivial TOCs you'd better write them as text; for complex ones you won't be able to fill the attributes with the titles and it's really impossible to make sure that edits in the titles are reflected in the attributes).

the script i've wrote make it usable, if there is the support for a multilevel TOC.
but if you need to run a script, why would you want it to fill the attribute and then run the TOC tool and still not get proper styles in the TOC... if you can run a better script that directly fills the TOC?

i understand that you did some work and it would be a pity to throw it away... but, in this case, it might be for the better (in exchange you get a nice script that creates TOCs with styles : - )

pmjdebruijn

2023-01-24 16:51

reporter   ~0049970

That's a concern I get, though it's 2023, and Scribus still doesn't have multi-level ToC, so I'm not exactly hopeful for a "proper" implementation of multi-level ToC any time soon, and while I totally get you've had to prioritize given limited resources...

Given there's no real alternative on the horizon, isn't the tiny long term risk worth taking, so Scribus gains this fairly rudimentary function?

ale

2023-01-24 18:23

manager   ~0049972

as said, you can use the script i've put in my github repository... utnik tested it and i fixed a couple of bugs already that he has reported...

on the other side, i'm all for having a real TOC (and remove the thing that is now in scribus) and maybe my script can be used as a prototype for the real thing in scribus.

pmjdebruijn

2023-01-25 16:24

reporter   ~0049975

I thought you had given up on that... Presumably you mean:
https://github.com/aoloe/scribus-script-repository/tree/master/table-of-contents

BTW, I'd suggest using (by default) 'Heading 1', 'Heading 2', 'Heading 3' and 'Content 1', 'Content 2', 'Content 3' respectively, since this is what LibreOffice Writer uses.
