View Issue Details

IDProjectCategoryView StatusLast Update
0017018ScribusPDFpublic2023-09-25 19:14
ReporterJLuc Assigned To
PrioritynormalSeverityminorReproducibilityhave not tried
Status newResolutionopen
Summary0017018: Missing glyphs in exported PDF

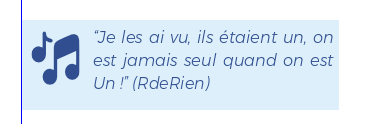

DescriptionThis text includes inlined groups
each being made of a grouped text and icon ;
when exported to PDF (with vectorize font option), some glyph disappear.
Steps To ReproduceOpen joined SLA
See text
Export to PDF
See a different text
Additional InformationIssue appears to be : glyphs in an inlined text-frame are not correctly collected-and-exported when exporting the document to PDF
TagsNo tags attached.
PatchNo

Activities

JLuc

2023-09-24 21:00

developer

test_insitu.pdf (48,388 bytes)
test_insitu.sla (74,223 bytes)
when edited.png (9,562 bytes)
PDF export.png (14,329 bytes)

JLuc

2023-09-24 21:03

developer   ~0050352

When PDF embeds fonts instead of vectorizing, instead of the void is a "tofu" glyph

JLuc

2023-09-24 21:12

developer   ~0050353

Last edited: 2023-09-24 21:14

After some edits (= use « and » instead of " + embed fonts) i got this other version of the same edited text where the produced PDF is empty except a single tofu glyph.
test_insitu-2.pdf (31,378 bytes)
test_insitu-2.sla (75,008 bytes)

JLuc

2023-09-24 21:22

developer   ~0050354

Last edited: 2023-09-24 21:22

Instead of having a 2 item group (= textframe with coloured background + SVG) inlined
i try with a 3 items group (= empty background rectangle with couloured background + svg icon + text frame with text)
It isnt any better
test_insitu-3.pdf (31,326 bytes)
test_insitu-3.sla (74,999 bytes)

JLuc

2023-09-24 21:30

developer   ~0050355

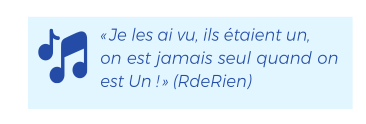

I found a workaround :
include a copy of the offending group outside of the page (so it doesnt appear in the produced PDF).
test_insitu-4.pdf (50,303 bytes)
test_insitu-4.sla (81,736 bytes)

jghali

2023-09-25 19:14

administrator   ~0050356

I can reproduce your issue in 1.5.8, but I can't in current 1.5.9.svn code.
