View Issue Details
ID | Project | Category | View Status | Date Submitted | Last Update |
---|---|---|---|---|---|
0017608 | Scribus | public | 2025-08-26 16:53 | 2025-08-26 16:53 | |
Reporter | maximilian | Assigned To | |||
Priority | normal | Severity | major | Reproducibility | always |
Status | new | Resolution | open | ||
Platform | x64 | OS | Windows | OS Version | 10 Home 64-bit |
Product Version | 1.6.4 | ||||
Summary | 0017608: Incorrect blending color space assigned to objects in generated PDF file intended for printer | ||||
Description | When exporting a Scribus document containing objects in a layer with a blend mode other than „normal“ to a PDF/X-4 file, the blending color space of the corresponding objects in the PDF file will be set to the document’s output intent (a CMYK color profile) instead of the color space in which Scribus blends the colors, which seems to be one of the two document’s RGB color profiles. Depending on the blend mode used, this can cause the blend’s result colors in the PDF document to be noticeably different from the colors displayed in the Scribus document, even when taking the expected conversion of the visible color from RGB to CMYK into account. I have only tried this with exclusion blend mode, but I suppose it is the same for other blend modes. The problem also seems to occur when choosing not a PDF/X version as the desired format, but simply PDF 1.4 or higher and manually choosing "printer" as the document's intended output. | ||||
Steps To Reproduce | Make a new Scribus document. Enable color management and define a color profile for printing. Create an object in the default layer. Create a second layer, configure a blending mode for this layer and ensure that this layer is placed before the first layer. Create an object in the second layer and place it in front of the first object. Export the document to a PDF/X-4 file. | ||||

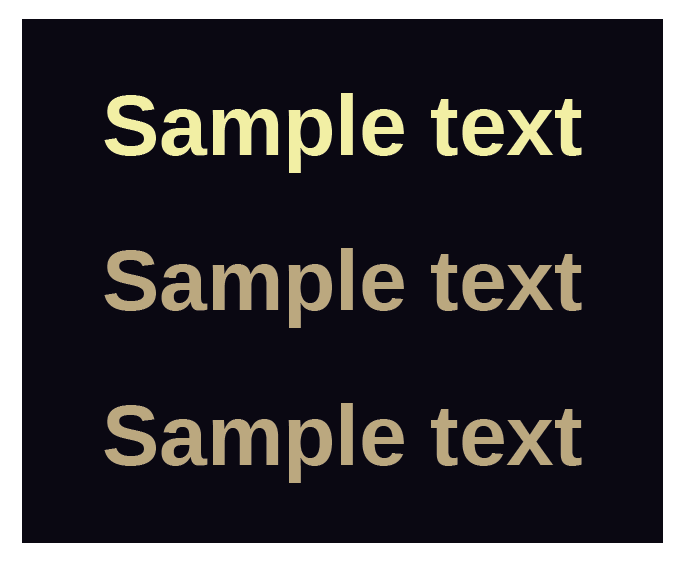

Additional Information | To demonstrate this problem, I have attached a sample document containing the same text three times in a row. The middle text is in a layer with the blend mode set to exclusion, the first and the third text are in a layer without a blend mode. The first text has its color hardcoded to the color that would result from the second text's blend being performed in RGB space, and the third text has the color hardcoded that would result from the blend being performed in a CMYK blending color space (I used the blend formula in this PDF 1.6 reference: https://printtechnologies.org/standards/files/pdf-reference-1.6-addendum-blend-modes.pdf; see the attached ods file for the color calculations I performed for this document). I have also attached the PDF/X-4 file generated from this document by Scribus. It is rendered correctly in the desktop version of Acrobat Reader, but not in the mobile version (this is an intended limitation of the mobile version, see https://community.adobe.com/t5/acrobat-reader-mobile-discussions/probable-bug-color-blend-with-cmyk-blending-color-space-rendered-incorrectly-on-iphone/m-p/15476006), so the effect of the bug can only be observed when viewing the PDF file in a desktop version of Acrobat Reader or Acrobat. I included a screenshot of how the file is rendered in the desktop version of Acrobat Reader for the sake of completeness. | ||||
Tags | color, colors, export to PDF, pdf export | ||||
Patch | No | ||||
|
Sample document.sla (20,720 bytes)
<?xml version="1.0" encoding="UTF-8"?> <SCRIBUSUTF8NEW Version="1.6.4"> <DOCUMENT ANZPAGES="1" PAGEWIDTH="595.275590551181" PAGEHEIGHT="841.889763779528" BORDERLEFT="40" BORDERRIGHT="40" BORDERTOP="40" BORDERBOTTOM="40" PRESET="0" BleedTop="0" BleedLeft="0" BleedRight="0" BleedBottom="0" ORIENTATION="0" PAGESIZE="A4" FIRSTNUM="1" BOOK="0" AUTOSPALTEN="1" ABSTSPALTEN="11" UNITS="1" DFONT="Arial Regular" DSIZE="12" DCOL="1" DGAP="0" TabFill="" TabWidth="36" TextDistLeft="0" TextDistRight="0" TextDistBottom="0" TextDistTop="0" FirstLineOffset="1" AUTHOR="" COMMENTS="" KEYWORDS="" PUBLISHER="" DOCDATE="" DOCTYPE="" DOCFORMAT="" DOCIDENT="" DOCSOURCE="" DOCLANGINFO="" DOCRELATION="" DOCCOVER="" DOCRIGHTS="" DOCCONTRIB="" TITLE="" SUBJECT="" VHOCH="33" VHOCHSC="66" VTIEF="33" VTIEFSC="66" VKAPIT="75" BASEGRID="14.4" BASEO="0" AUTOL="100" UnderlinePos="-1" UnderlineWidth="-1" StrikeThruPos="-1" StrikeThruWidth="-1" GROUPC="1" HCMS="1" DPSo="0" DPSFo="0" DPuse="1" DPgam="0" DPbla="1" DPPr="ISO Coated v2 300% (basICColor)" DPIn="sRGB display profile (ICC v2.2)" DPInCMYK="ISO Coated v2 300% (basICColor)" DPIn2="sRGB display profile (ICC v2.2)" DPIn3="ISO Coated v2 300% (basICColor)" DISc="1" DIIm="0" ALAYER="2" LANGUAGE="en_GB" AUTOMATIC="1" AUTOCHECK="0" GUIDELOCK="0" SnapToGuides="0" SnapToGrid="0" SnapToElement="0" MINGRID="20.0012598425197" MAJGRID="100.00062992126" SHOWGRID="0" SHOWGUIDES="1" showcolborders="1" SHOWFRAME="1" SHOWControl="0" SHOWLAYERM="0" SHOWMARGIN="1" SHOWBASE="0" SHOWPICT="1" SHOWLINK="0" rulerMode="1" showrulers="1" showBleed="1" rulerXoffset="0" rulerYoffset="0" GuideRad="10" GRAB="4" POLYC="4" POLYF="0.502045814642449" POLYR="0" POLYIR="0" POLYCUR="0" POLYOCUR="0" POLYS="0" arcStartAngle="30" arcSweepAngle="300" spiralStartAngle="0" spiralEndAngle="1080" spiralFactor="1.2" AutoSave="1" AutoSaveTime="600000" AutoSaveCount="1" AutoSaveKeep="0" AUtoSaveInDocDir="1" AutoSaveDir="" ScratchBottom="20.0012598425197" ScratchLeft="100.00062992126" ScratchRight="100.00062992126" ScratchTop="20.0012598425197" GapHorizontal="0" GapVertical="39.9996850393701" StartArrow="0" EndArrow="0" PEN="Black" BRUSH="None" PENLINE="Black" PENTEXT="Black" StrokeText="Black" TextBackGround="None" TextLineColor="None" TextBackGroundShade="100" TextLineShade="100" TextPenShade="100" TextStrokeShade="100" STIL="1" STILLINE="1" WIDTH="1" WIDTHLINE="1" PENSHADE="100" LINESHADE="100" BRUSHSHADE="100" CPICT="None" PICTSHADE="100" CSPICT="None" PICTSSHADE="100" PICTSCX="1" PICTSCY="1" PSCALE="1" PASPECT="1" EmbeddedPath="0" HalfRes="1" dispX="10.0006299212598" dispY="10.0006299212598" constrain="15" MINORC="#00ff00" MAJORC="#00ff00" GuideC="#000080" BaseC="#c0c0c0" renderStack="2 0 4 1 3" GridType="0" PAGEC="#ffffff" MARGC="#0000ff" RANDF="0" currentProfile="PDF 1.4" calligraphicPenFillColor="Black" calligraphicPenLineColor="Black" calligraphicPenFillColorShade="100" calligraphicPenLineColorShade="100" calligraphicPenLineWidth="1" calligraphicPenAngle="0" calligraphicPenWidth="10" calligraphicPenStyle="1"> <CheckProfile Name="PDF 1.3" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="1" minResolution="144" maxResolution="2400" checkAnnotations="0" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="0" checkDeviceColorsAndOutputIntent="0" checkFontNotEmbedded="1" checkFontIsOpenType="1" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/> <CheckProfile Name="PDF 1.4" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="0" minResolution="144" maxResolution="2400" checkAnnotations="0" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="0" checkDeviceColorsAndOutputIntent="0" checkFontNotEmbedded="1" checkFontIsOpenType="1" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/> <CheckProfile Name="PDF 1.5" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="0" minResolution="144" maxResolution="2400" checkAnnotations="0" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="0" checkDeviceColorsAndOutputIntent="0" checkFontNotEmbedded="1" checkFontIsOpenType="1" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/> <CheckProfile Name="PDF 1.6" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="0" minResolution="144" maxResolution="2400" checkAnnotations="0" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="0" checkDeviceColorsAndOutputIntent="0" checkFontNotEmbedded="1" checkFontIsOpenType="0" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/> <CheckProfile Name="PDF/X-1a" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="1" minResolution="144" maxResolution="2400" checkAnnotations="1" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="1" checkDeviceColorsAndOutputIntent="0" checkFontNotEmbedded="1" checkFontIsOpenType="1" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/> <CheckProfile Name="PDF/X-3" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="1" minResolution="144" maxResolution="2400" checkAnnotations="1" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="0" checkDeviceColorsAndOutputIntent="1" checkFontNotEmbedded="1" checkFontIsOpenType="1" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/> <CheckProfile Name="PDF/X-4" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="0" minResolution="144" maxResolution="2400" checkAnnotations="1" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="0" checkDeviceColorsAndOutputIntent="1" checkFontNotEmbedded="1" checkFontIsOpenType="0" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/> <CheckProfile Name="PostScript" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="1" minResolution="144" maxResolution="2400" checkAnnotations="0" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="0" checkDeviceColorsAndOutputIntent="0" checkFontNotEmbedded="0" checkFontIsOpenType="0" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/> <COLOR NAME="Black" SPACE="CMYK" C="0" M="0" Y="0" K="100"/> <COLOR NAME="Blue" SPACE="RGB" R="0" G="0" B="255"/> <COLOR NAME="Blue dark" SPACE="RGB" R="0" G="0" B="13"/> <COLOR NAME="Blue dark CMYK" SPACE="CMYK" C="81.2710765239948" M="73.8826581216144" Y="51.5465018692302" K="87.2312504768444"/> <COLOR NAME="Cool Black" SPACE="CMYK" C="60" M="0" Y="0" K="100"/> <COLOR NAME="Cyan" SPACE="CMYK" C="100" M="0" Y="0" K="0"/> <COLOR NAME="Green" SPACE="RGB" R="0" G="255" B="0"/> <COLOR NAME="Magenta" SPACE="CMYK" C="0" M="100" Y="0" K="0"/> <COLOR NAME="Red" SPACE="RGB" R="255" G="0" B="0"/> <COLOR NAME="Registration" SPACE="CMYK" C="100" M="100" Y="100" K="100" Register="1"/> <COLOR NAME="Rich Black" SPACE="CMYK" C="60" M="40" Y="40" K="100"/> <COLOR NAME="Warm Black" SPACE="CMYK" C="0" M="60" Y="29.8039215686275" K="100"/> <COLOR NAME="White" SPACE="CMYK" C="0" M="0" Y="0" K="0"/> <COLOR NAME="Yellow" SPACE="CMYK" C="0" M="0" Y="100" K="0"/> <COLOR NAME="Yellow pale" SPACE="RGB" R="243" G="243" B="169"/> <COLOR NAME="Yellow pale CMYK" SPACE="CMYK" C="7.55779354543374" M="0.439459830624857" Y="44.2084382391089" K="0"/> <COLOR NAME="Yellow pale after CMYK-exclusion flattened" SPACE="CMYK" C="23.5" M="26.3" Y="49.8" K="12.8"/> <COLOR NAME="Yellow pale after RGB-exclusion flattened" SPACE="RGB" R="243" G="243" B="165"/> <HYPHEN/> <CHARSTYLE CNAME="Default Character Style" DefaultStyle="1" FONT="Arial Regular" FONTSIZE="12" FONTFEATURES="" FEATURES="inherit" FCOLOR="Black" FSHADE="100" HyphenWordMin="3" SCOLOR="Black" BGCOLOR="None" BGSHADE="100" SSHADE="100" TXTSHX="5" TXTSHY="-5" TXTOUT="1" TXTULP="-0.1" TXTULW="-0.1" TXTSTP="-0.1" TXTSTW="-0.1" SCALEH="100" SCALEV="100" BASEO="0" KERN="0" LANGUAGE="en_GB"/> <STYLE NAME="Default Paragraph Style" DefaultStyle="1" ALIGN="0" DIRECTION="0" LINESPMode="0" LINESP="15" INDENT="0" RMARGIN="0" FIRST="0" VOR="0" NACH="0" ParagraphEffectOffset="0" DROP="0" DROPLIN="2" Bullet="0" Numeration="0" HyphenConsecutiveLines="2" BCOLOR="None" BSHADE="100"/> <TableStyle NAME="Default Table Style" DefaultStyle="1" FillColor="None" FillShade="100"> <TableBorderLeft> <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/> </TableBorderLeft> <TableBorderRight> <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/> </TableBorderRight> <TableBorderTop> <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/> </TableBorderTop> <TableBorderBottom> <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/> </TableBorderBottom> </TableStyle> <CellStyle NAME="Default Cell Style" DefaultStyle="1" FillColor="None" FillShade="100" LeftPadding="1" RightPadding="1" TopPadding="1" BottomPadding="1"> <TableBorderLeft> <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/> </TableBorderLeft> <TableBorderRight> <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/> </TableBorderRight> <TableBorderTop> <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/> </TableBorderTop> <TableBorderBottom> <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/> </TableBorderBottom> </CellStyle> <LAYERS NUMMER="0" LEVEL="0" NAME="Background" SICHTBAR="1" DRUCKEN="1" EDIT="1" SELECT="1" FLOW="1" TRANS="1" BLEND="0" OUTL="0" LAYERC="#000000"/> <LAYERS NUMMER="1" LEVEL="2" NAME="Text with blend mode" SICHTBAR="1" DRUCKEN="1" EDIT="1" SELECT="1" FLOW="1" TRANS="1" BLEND="9" OUTL="0" LAYERC="#ff0000"/> <LAYERS NUMMER="2" LEVEL="1" NAME="Text without blend mode" SICHTBAR="1" DRUCKEN="1" EDIT="1" SELECT="1" FLOW="1" TRANS="1" BLEND="0" OUTL="0" LAYERC="#00ff00"/> <Printer firstUse="1" toFile="0" useAltPrintCommand="0" outputSeparations="0" useSpotColors="1" useColor="1" mirrorH="0" mirrorV="0" useICC="1" doGCR="0" doClip="0" setDevParam="0" useDocBleeds="1" cropMarks="0" bleedMarks="0" registrationMarks="0" colorMarks="0" includePDFMarks="1" PSLevel="3" PrintEngine="4" markLength="20.0013" markOffset="0" BleedTop="0" BleedLeft="0" BleedRight="0" BleedBottom="0" printer="HP5AC57F.home (HP ENVY 5000 series)" filename="" separationName="All" printerCommand=""/> <PDF firstUse="0" Thumbnails="0" Articles="0" Bookmarks="0" Compress="1" CMethod="0" Quality="0" EmbedPDF="0" MirrorH="0" MirrorV="0" Clip="0" rangeSel="0" rangeTxt="" RotateDeg="0" PresentMode="0" RecalcPic="0" FontEmbedding="0" Grayscale="0" RGBMode="0" UseProfiles="0" UseProfiles2="1" Binding="0" PicRes="300" Resolution="300" Version="16" Intent="1" Intent2="0" SolidP="sRGB display profile (ICC v2.2)" ImageP="sRGB display profile (ICC v2.2)" PrintP="ISO Coated v2 300% (basICColor)" InfoString="Sample document.sla" BTop="0" BLeft="0" BRight="0" BBottom="0" useDocBleeds="1" cropMarks="0" bleedMarks="0" registrationMarks="0" colorMarks="0" docInfoMarks="0" markLength="20.0012598425197" markOffset="0" ImagePr="0" PassOwner="" PassUser="" Permissions="-4" Encrypt="0" UseLayers="0" UseLpi="0" UseSpotColors="1" doMultiFile="0" displayBookmarks="0" displayFullscreen="0" displayLayers="0" displayThumbs="0" hideMenuBar="0" hideToolBar="0" fitWindow="0" openAfterExport="0" PageLayout="0" openAction=""> <Subset Name="Liberation Sans Bold"/> <LPI Color="" Frequency="133" Angle="45" SpotFunction="3"/> <LPI Color="Black" Frequency="133" Angle="45" SpotFunction="3"/> <LPI Color="Cyan" Frequency="133" Angle="105" SpotFunction="3"/> <LPI Color="Magenta" Frequency="133" Angle="75" SpotFunction="3"/> <LPI Color="Yellow" Frequency="133" Angle="90" SpotFunction="3"/> </PDF> <DocItemAttributes/> <TablesOfContents/> <NotesStyles> <notesStyle Name="Default" Start="1" Endnotes="0" Type="Type_1_2_3" Range="0" Prefix="" Suffix=")" AutoHeight="1" AutoWidth="1" AutoRemove="1" AutoWeld="1" SuperNote="1" SuperMaster="1" MarksStyle="" NotesStyle=""/> </NotesStyles> <PageSets> <Set Name="Single Page" FirstPage="0" Rows="1" Columns="1"/> <Set Name="Facing Pages" FirstPage="1" Rows="1" Columns="2"> <PageNames Name="Left Page"/> <PageNames Name="Right Page"/> </Set> <Set Name="3-Fold" FirstPage="0" Rows="1" Columns="3"> <PageNames Name="Left Page"/> <PageNames Name="Middle"/> <PageNames Name="Right Page"/> </Set> <Set Name="4-Fold" FirstPage="0" Rows="1" Columns="4"> <PageNames Name="Left Page"/> <PageNames Name="Middle Left"/> <PageNames Name="Middle Right"/> <PageNames Name="Right Page"/> </Set> <Set Name="Single Page" FirstPage="0" Rows="1" Columns="1"/> <Set Name="Facing Pages" FirstPage="1" Rows="1" Columns="2"> <PageNames Name="Left Page"/> <PageNames Name="Right Page"/> </Set> <Set Name="3-Fold" FirstPage="0" Rows="1" Columns="3"> <PageNames Name="Left Page"/> <PageNames Name="Middle"/> <PageNames Name="Right Page"/> </Set> <Set Name="4-Fold" FirstPage="0" Rows="1" Columns="4"> <PageNames Name="Left Page"/> <PageNames Name="Middle Left"/> <PageNames Name="Middle Right"/> <PageNames Name="Right Page"/> </Set> <Set Name="Single Page" FirstPage="0" Rows="1" Columns="1"/> <Set Name="Facing Pages" FirstPage="1" Rows="1" Columns="2"> <PageNames Name="Left Page"/> <PageNames Name="Right Page"/> </Set> <Set Name="3-Fold" FirstPage="0" Rows="1" Columns="3"> <PageNames Name="Left Page"/> <PageNames Name="Middle"/> <PageNames Name="Right Page"/> </Set> <Set Name="4-Fold" FirstPage="0" Rows="1" Columns="4"> <PageNames Name="Left Page"/> <PageNames Name="Middle Left"/> <PageNames Name="Middle Right"/> <PageNames Name="Right Page"/> </Set> </PageSets> <Sections> <Section Number="0" Name="Section 1" From="0" To="0" Type="Type_1_2_3" Start="1" Reversed="0" Active="1" FillChar="0" FieldWidth="0"/> </Sections> <MASTERPAGE PAGEXPOS="100.00062992126" PAGEYPOS="20.0012598425197" PAGEWIDTH="595.275590551181" PAGEHEIGHT="841.889763779528" BORDERLEFT="40" BORDERRIGHT="40" BORDERTOP="40" BORDERBOTTOM="40" NUM="0" NAM="Normal" MNAM="" Size="A4" Orientation="0" LEFT="0" PRESET="0" VerticalGuides="" HorizontalGuides="" AGhorizontalAutoGap="0" AGverticalAutoGap="0" AGhorizontalAutoCount="0" AGverticalAutoCount="0" AGhorizontalAutoRefer="0" AGverticalAutoRefer="0" AGSelection="0 0 0 0" pageEffectDuration="1" pageViewDuration="1" effectType="0" Dm="0" M="0" Di="0"/> <PAGE PAGEXPOS="100.00062992126" PAGEYPOS="20.0012598425197" PAGEWIDTH="595.275590551181" PAGEHEIGHT="841.889763779528" BORDERLEFT="40" BORDERRIGHT="40" BORDERTOP="40" BORDERBOTTOM="40" NUM="0" NAM="" MNAM="Normal" Size="A4" Orientation="0" LEFT="0" PRESET="0" VerticalGuides="" HorizontalGuides="" AGhorizontalAutoGap="0" AGverticalAutoGap="0" AGhorizontalAutoCount="0" AGverticalAutoCount="0" AGhorizontalAutoRefer="0" AGverticalAutoRefer="0" AGSelection="0 0 0 0" pageEffectDuration="1" pageViewDuration="1" effectType="0" Dm="0" M="0" Di="0"/> <PAGEOBJECT XPOS="188.066996625422" YPOS="314.083160854893" OwnPage="0" ItemID="198641840" PTYPE="6" WIDTH="419.142857142857" HEIGHT="342.27398200225" FRTYPE="0" CLIPEDIT="0" PWIDTH="1" PCOLOR="Blue dark" PLINEART="1" path="M0 0 L419.143 0 L419.143 342.274 L0 342.274 L0 0 Z" copath="M0 0 L419.143 0 L419.143 342.274 L0 342.274 L0 0 Z" gXpos="188.066996625422" gYpos="314.083160854893" gWidth="0" gHeight="0" LAYER="0"/> <PAGEOBJECT XPOS="231.13842519685" YPOS="526.812705286838" OwnPage="0" ItemID="199491872" PTYPE="4" WIDTH="333" HEIGHT="119.571428571429" FRTYPE="0" CLIPEDIT="0" PWIDTH="1" SHADE="98" PLINEART="1" ANNAME="Text_CMYK_blending_flattened" LOCALSCX="1" LOCALSCY="1" LOCALX="0" LOCALY="0" LOCALROT="0" PICART="1" SCALETYPE="1" RATIO="1" COLUMNS="1" COLGAP="0" AUTOTEXT="0" EXTRA="0" TEXTRA="0" BEXTRA="0" REXTRA="0" VAlign="1" FLOP="1" PLTSHOW="0" BASEOF="0" textPathType="0" textPathFlipped="0" path="M0 0 L333 0 L333 119.571 L0 119.571 L0 0 Z" copath="M0 0 L333 0 L333 119.571 L0 119.571 L0 0 Z" gXpos="2.8421709430404e-14" gYpos="202.75653543307" gWidth="333" gHeight="322.327964004499" LAYER="2" NEXTITEM="-1" BACKITEM="-1"> <StoryText> <DefaultStyle FONT="Liberation Sans Bold" FONTSIZE="56" FCOLOR="Yellow pale after CMYK-exclusion flattened"/> <ITEXT FONT="Liberation Sans Bold" FONTSIZE="56" FCOLOR="Yellow pale after CMYK-exclusion flattened" CH="Sample text"/> <trail ALIGN="1"/> </StoryText> </PAGEOBJECT> <PAGEOBJECT XPOS="231.13842519685" YPOS="425.434437570303" OwnPage="0" ItemID="5749696" PTYPE="4" WIDTH="333" HEIGHT="119.571428571429" FRTYPE="0" CLIPEDIT="0" PWIDTH="1" SHADE="98" PLINEART="1" LOCALSCX="1" LOCALSCY="1" LOCALX="0" LOCALY="0" LOCALROT="0" PICART="1" SCALETYPE="1" RATIO="1" COLUMNS="1" COLGAP="0" AUTOTEXT="0" EXTRA="0" TEXTRA="0" BEXTRA="0" REXTRA="0" VAlign="1" FLOP="1" PLTSHOW="0" BASEOF="0" textPathType="0" textPathFlipped="0" path="M0 0 L333 0 L333 119.571 L0 119.571 L0 0 Z" copath="M0 0 L333 0 L333 119.571 L0 119.571 L0 0 Z" gXpos="0" gYpos="101.378267716535" gWidth="333" gHeight="322.327964004499" LAYER="1" NEXTITEM="-1" BACKITEM="-1"> <StoryText> <DefaultStyle FONT="Liberation Sans Bold" FONTSIZE="56" FCOLOR="Yellow pale"/> <ITEXT FONT="Liberation Sans Bold" FONTSIZE="56" FCOLOR="Yellow pale" CH="Sample text"/> <trail ALIGN="1"/> </StoryText> </PAGEOBJECT> <PAGEOBJECT XPOS="231.13842519685" YPOS="324.056169853769" OwnPage="0" ItemID="5653360" PTYPE="4" WIDTH="333" HEIGHT="119.571428571429" FRTYPE="0" CLIPEDIT="0" PWIDTH="1" SHADE="98" PLINEART="1" ANNAME="Text_RGB_blending_flattened" LOCALSCX="1" LOCALSCY="1" LOCALX="0" LOCALY="0" LOCALROT="0" PICART="1" SCALETYPE="1" RATIO="1" COLUMNS="1" COLGAP="0" AUTOTEXT="0" EXTRA="0" TEXTRA="0" BEXTRA="0" REXTRA="0" VAlign="1" FLOP="1" PLTSHOW="0" BASEOF="0" textPathType="0" textPathFlipped="0" path="M0 0 L333 0 L333 119.571 L0 119.571 L0 0 Z" copath="M0 0 L333 0 L333 119.571 L0 119.571 L0 0 Z" gXpos="0" gYpos="0" gWidth="333" gHeight="322.327964004499" LAYER="2" NEXTITEM="-1" BACKITEM="-1"> <StoryText> <DefaultStyle FONT="Liberation Sans Bold" FONTSIZE="56" FCOLOR="Yellow pale after RGB-exclusion flattened"/> <ITEXT FONT="Liberation Sans Bold" FONTSIZE="56" FCOLOR="Yellow pale after RGB-exclusion flattened" CH="Sample text"/> <trail ALIGN="1"/> </StoryText> </PAGEOBJECT> </DOCUMENT> </SCRIBUSUTF8NEW> |
