View Issue Details
ID | Project | Category | View Status | Date Submitted | Last Update |
---|---|---|---|---|---|
0017623 | Scribus | General | public | 2025-09-08 13:52 | 2025-09-08 13:56 |
Reporter | qirat | Assigned To | |||
Priority | normal | Severity | minor | Reproducibility | always |
Status | new | Resolution | open | ||
Platform | Linux | OS | Fedora | OS Version | 42 Workstation |
Product Version | 1.7.1.svn | ||||
Summary | 0017623: Align and distribute - Making gaps between equal needs multiple clicks | ||||
Description | In normal use-case, it works fine: select a few objects and make vertical or horizontal gaps equal. Does it fine. However, there is one specific case where it does not work as before. The steps would describe it better. | ||||

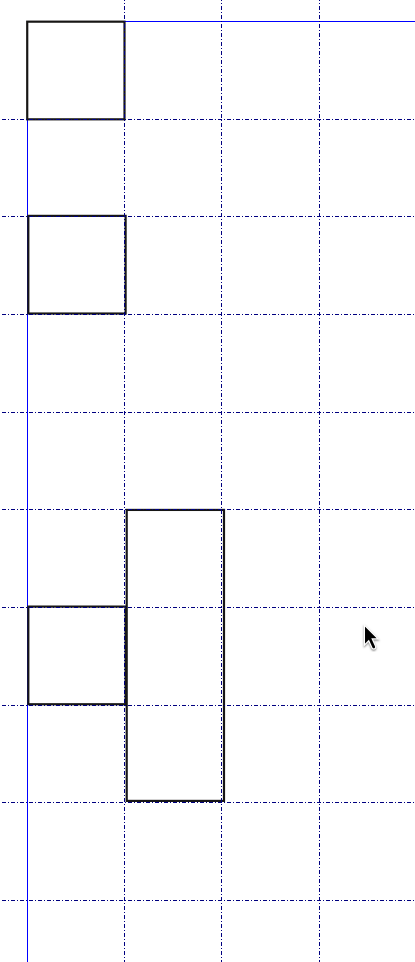

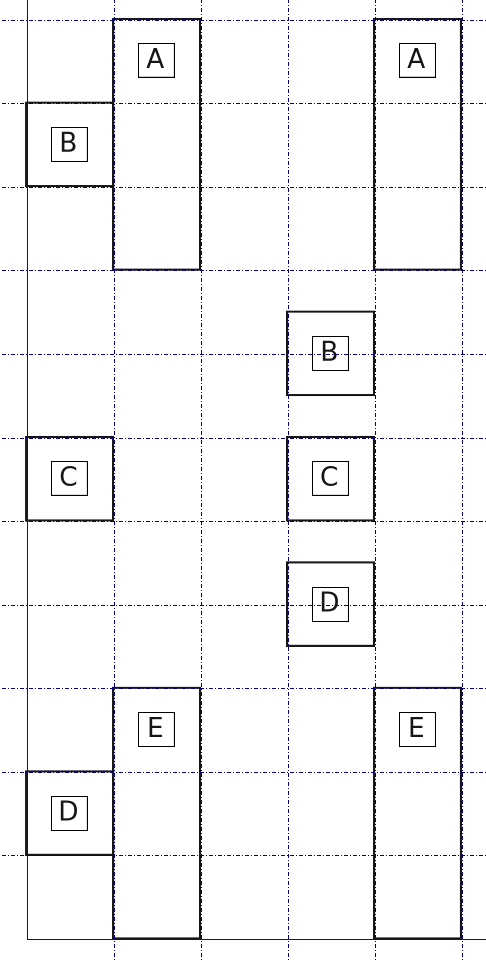

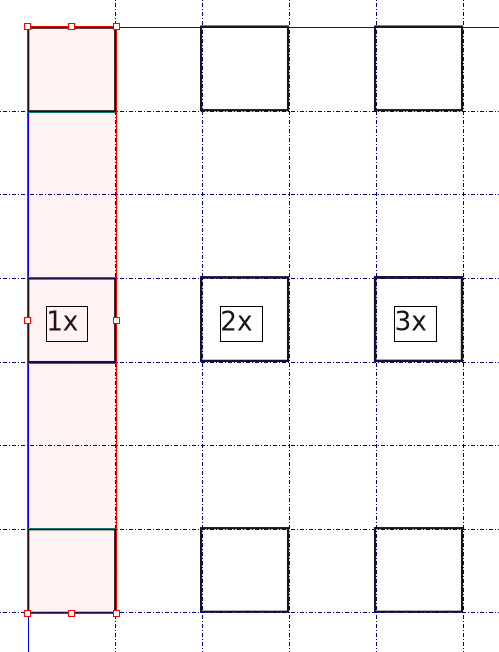

Steps To Reproduce | 1. Draw a shape. 2. Ctrl+C and Ctrl+V that item (pastes in place). 3. Move the new item far aside (vertically or horizontally). 4. Repeat step 0000002 for the original item. 5. Bring the latest item between those two. 6. Now, do Ctrl+C and then Ctrl+V for the middle one, multiple times (like 6, 7 times). 7. Now click the first item (original), then the last, finally drag over the multiple copies in the middle (stacked over each-other) 8. Press the Make gaps between items equal (either vertical or horizontal). Scribus does not do the job in one click as before. It will do the job, but it would take many clicks (probably equal to the number of copies in the middle). | ||||
Additional Information | I just hope that was not too complicated. Moreover, I am attaching a file with first 6 steps complete. Open that file and start at step 0000007 (before you do the entire thing yourself). And I could not find the Align and Distribute category so I went with General. Please feel free to fix if there is a better suitable option. | ||||
Tags | align, align and distribute, alignment | ||||
Attached Files | test-gap-distibution.sla (22,275 bytes)
<?xml version="1.0" encoding="UTF-8"?> <SCRIBUSUTF8NEW Version="1.7.1.svn"> <Document PageCount="1" PageWidth="595.275590551181" PageHeight="841.889763779528" BorderLeft="43.92" BorderRight="42.48" BorderTop="60.48" BorderBottom="42.48" MarginPreset="0" BleedTop="0" BleedLeft="0" BleedRight="0" BleedBottom="0" PageOrientation="0" PageSize="IsoA_A04" FirstPageNumber="1" PagePositioning="0" AutomaticTextFrameColumnCount="1" AutomaticTextFrameColumnGap="279.432" UnitIndex="1" FontFace="EB Garamond Regular" FontSize="12" TextColumnCount="1" TextColumnGap="0" TabFillCharacter="" TabWidth="36" TextDistanceLeft="0" TextDistanceRight="0" TextDistanceBottom="0" TextDistanceTop="0" FirstLineOffset="1" DocumentInfoAuthor="" DocumentInfoComments="" DocumentInfoKeywords="" DocumentInfoPublisher="" DocumentInfoDate="" DocumentInfoType="" DocumentInfoFormat="" DocumentInfoIdentifier="" DocumentInfoSource="" DocumentInfoLanguage="" DocumentInfoRelation="" DocumentInfoCoverage="" DocumentInfoRights="" DocumentInfoContributors="" DocumentInfoTitle="" DocumentInfoSubject="" SuperScriptDisplacement="33" SuperScriptScaling="66" SubScriptDisplacement="33" SubScriptScaling="66" SmallCapsScaling="75" BaselineGridSpacing="14.4" BaselineGridOffset="0" AutoLineSpacingPct="100" UnderlinePosition="-1" UnderlineWidth="-1" StrikeThruPosition="-1" StrikeThruWidth="-1" GroupCounter="1" DocumentHasCMS="1" SoftProofOn="1" SoftProofFullOn="1" ColorManagementActive="1" GamutCheck="1" BlackPoint="1" DefaultPrinterProfile="ISO Coated v2 300% (basICColor)" DefaultImageRGBProfile="sRGB display profile (ICC v2.2)" DefaultImageCMYKProfile="ISO Coated v2 300% (basICColor)" DefaultSolidColorRGBProfile="sRGB display profile (ICC v2.2)" DefaultSolidColorCMYKProfile="ISO Coated v2 300% (basICColor)" DefaultIntentColors="1" DefaultIntentImages="0" ActiveLayer="0" Language="en_GB" AutomaticHyphenation="1" AutomaticHyphenationCheck="0" GuideLock="0" SnapToGuides="0" SnapToGrid="0" SnapToElement="0" MinorGridSpacing="20.002" MajorGridSpacing="100.001" ShowGrid="0" ShowGuides="1" ShowColumnBorders="1" ShowFrames="1" ShowControls="0" ShowLayerMarkers="0" ShowMargins="1" ShowBaselineGrid="0" ShowImages="1" ShowLinks="0" RulerMode="1" ShowRulers="1" ShowBleed="1" RulerXOffset="0" RulerYOffset="0" GuideRadius="10" GrabRadius="4" PolygonCorners="4" PolygonFactor="0.502" PolygonRotation="0" PolygonInnerRotation="0" PolygonCurvature="0" PolygonOuterCurvature="0" PolygonUseFactor="0" ArcStartAngle="30" ArcSweepAngle="300" SpiralStartAngle="0" SpiralEndAngle="1080" SpiralFactor="1.2" AutoSave="1" AutoSaveTime="600000" AutoSaveCount="1" AutoSaveKeep="0" AutoSaveInDocumentDirectory="1" AutoSaveDirectory="" ScratchBottom="0.785" ScratchLeft="3.938" ScratchRight="3.938" ScratchTop="0.785" GapHorizontal="0" GapVertical="1.577" LineStartArrow="0" LineEndArrow="0" ShapeLineColor="Black" ShapeFillColor="None" LineColor="Black" TextColor="Black" TextStrokeColor="Black" TextBackgroundColor="None" TextLineColor="None" TextBackgroundColorShade="100" TextLineColorShade="100" TextColorShade="100" TextStrokeColorShade="100" ShapeLineStyle="1" LineStyle="1" ShapeLineWidth="1" LineWidth="1" ShapeLineColorShade="100" LineColorShade="100" ShapeFillColorShade="100" ImageFillColor="None" ImageFillColorShade="100" ImageStrokeColor="None" ImageStrokeColorShade="100" ImageScaleX="1" ImageScaleY="1" ImageScaleType="1" ImageAspectRatio="1" ImageUseEmbeddedPath="0" ImageLowResType="1" DisplayOffsetX="10.001" DisplayOffsetY="10.001" RotationConstrainAngle="15" MinorGridColor="#00ff00" MajorGridColor="#00ff00" GuidesColor="#000080" BaselineGridColor="#c0c0c0" RenderStack="2 4 1 0 3" GridType="0" PageColor="#ffffff" MarginColor="#ff55ff" ShowMarginsFilled="0" CurrentProfile="PDF/X-4" CalligraphicPenFillColor="Black" CalligraphicPenLineColor="Black" CalligraphicPenFillColorShade="100" CalligraphicPenLineColorShade="100" CalligraphicPenLineWidth="1" CalligraphicPenAngle="0" CalligraphicPenWidth="10" CalligraphicPenStyle="1"> <CheckProfile Name="PDF 1.3" IgnoreErrors="0" AutoCheck="1" CheckGlyphs="1" CheckOrphans="1" CheckOverflow="1" CheckPictures="1" CheckPartFilledImageFrames="0" CheckResolution="1" CheckTransparency="1" MinimumResolution="144" MaximumResolution="2400" CheckAnnotations="0" CheckRasterPDF="1" CheckForGIF="1" IgnoreOffLayers="0" CheckNotCMYKOrSpot="0" CheckDeviceColorsAndOutputIntent="0" CheckFontNotEmbedded="1" CheckFontIsOpenType="1" CheckAppliedMasterDifferentSide="1" CheckEmptyTextFrames="1" CheckImageHasProgressiveEncoding="0"/> <CheckProfile Name="PDF 1.4" IgnoreErrors="0" AutoCheck="1" CheckGlyphs="1" CheckOrphans="1" CheckOverflow="1" CheckPictures="1" CheckPartFilledImageFrames="0" CheckResolution="1" CheckTransparency="0" MinimumResolution="144" MaximumResolution="2400" CheckAnnotations="0" CheckRasterPDF="1" CheckForGIF="1" IgnoreOffLayers="0" CheckNotCMYKOrSpot="0" CheckDeviceColorsAndOutputIntent="0" CheckFontNotEmbedded="1" CheckFontIsOpenType="1" CheckAppliedMasterDifferentSide="1" CheckEmptyTextFrames="1" CheckImageHasProgressiveEncoding="1"/> <CheckProfile Name="PDF 1.5" IgnoreErrors="0" AutoCheck="1" CheckGlyphs="1" CheckOrphans="1" CheckOverflow="1" CheckPictures="1" CheckPartFilledImageFrames="0" CheckResolution="1" CheckTransparency="0" MinimumResolution="144" MaximumResolution="2400" CheckAnnotations="0" CheckRasterPDF="1" CheckForGIF="1" IgnoreOffLayers="0" CheckNotCMYKOrSpot="0" CheckDeviceColorsAndOutputIntent="0" CheckFontNotEmbedded="1" CheckFontIsOpenType="1" CheckAppliedMasterDifferentSide="1" CheckEmptyTextFrames="1" CheckImageHasProgressiveEncoding="1"/> <CheckProfile Name="PDF 1.6" IgnoreErrors="0" AutoCheck="1" CheckGlyphs="1" CheckOrphans="1" CheckOverflow="1" CheckPictures="1" CheckPartFilledImageFrames="0" CheckResolution="1" CheckTransparency="0" MinimumResolution="144" MaximumResolution="2400" CheckAnnotations="0" CheckRasterPDF="1" CheckForGIF="1" IgnoreOffLayers="0" CheckNotCMYKOrSpot="0" CheckDeviceColorsAndOutputIntent="0" CheckFontNotEmbedded="1" CheckFontIsOpenType="0" CheckAppliedMasterDifferentSide="1" CheckEmptyTextFrames="1" CheckImageHasProgressiveEncoding="1"/> <CheckProfile Name="PDF/X-1a" IgnoreErrors="0" AutoCheck="1" CheckGlyphs="1" CheckOrphans="1" CheckOverflow="1" CheckPictures="1" CheckPartFilledImageFrames="0" CheckResolution="1" CheckTransparency="1" MinimumResolution="144" MaximumResolution="2400" CheckAnnotations="1" CheckRasterPDF="1" CheckForGIF="1" IgnoreOffLayers="0" CheckNotCMYKOrSpot="1" CheckDeviceColorsAndOutputIntent="0" CheckFontNotEmbedded="1" CheckFontIsOpenType="1" CheckAppliedMasterDifferentSide="1" CheckEmptyTextFrames="1" CheckImageHasProgressiveEncoding="1"/> <CheckProfile Name="PDF/X-3" IgnoreErrors="0" AutoCheck="1" CheckGlyphs="1" CheckOrphans="1" CheckOverflow="1" CheckPictures="1" CheckPartFilledImageFrames="0" CheckResolution="1" CheckTransparency="1" MinimumResolution="144" MaximumResolution="2400" CheckAnnotations="1" CheckRasterPDF="1" CheckForGIF="1" IgnoreOffLayers="0" CheckNotCMYKOrSpot="0" CheckDeviceColorsAndOutputIntent="1" CheckFontNotEmbedded="1" CheckFontIsOpenType="1" CheckAppliedMasterDifferentSide="1" CheckEmptyTextFrames="1" CheckImageHasProgressiveEncoding="1"/> <CheckProfile Name="PDF/X-4" IgnoreErrors="0" AutoCheck="1" CheckGlyphs="1" CheckOrphans="1" CheckOverflow="1" CheckPictures="1" CheckPartFilledImageFrames="0" CheckResolution="1" CheckTransparency="0" MinimumResolution="144" MaximumResolution="2400" CheckAnnotations="1" CheckRasterPDF="1" CheckForGIF="1" IgnoreOffLayers="0" CheckNotCMYKOrSpot="0" CheckDeviceColorsAndOutputIntent="1" CheckFontNotEmbedded="1" CheckFontIsOpenType="0" CheckAppliedMasterDifferentSide="1" CheckEmptyTextFrames="1" CheckImageHasProgressiveEncoding="1"/> <CheckProfile Name="PostScript" IgnoreErrors="0" AutoCheck="1" CheckGlyphs="1" CheckOrphans="1" CheckOverflow="1" CheckPictures="1" CheckPartFilledImageFrames="0" CheckResolution="1" CheckTransparency="1" MinimumResolution="144" MaximumResolution="2400" CheckAnnotations="0" CheckRasterPDF="1" CheckForGIF="1" IgnoreOffLayers="0" CheckNotCMYKOrSpot="0" CheckDeviceColorsAndOutputIntent="0" CheckFontNotEmbedded="0" CheckFontIsOpenType="0" CheckAppliedMasterDifferentSide="1" CheckEmptyTextFrames="1" CheckImageHasProgressiveEncoding="1"/> <Color Name="Black" Space="CMYK" C="0" M="0" Y="0" K="100"/> <Color Name="Registration" Space="CMYK" C="100" M="100" Y="100" K="100" Register="1"/> <Color Name="White" Space="CMYK" C="0" M="0" Y="0" K="0"/> <Hyphenator/> <CharacterStyle Name="Default Character Style" DefaultStyle="1" Font="EB Garamond Regular" FontSize="12" FontFeatures="" Features="inherit" FontColor="Black" FillShade="100" HyphenWordMinimum="3" StrokeColor="Black" BackgroundColor="None" BackgroundShade="100" StrokeShade="100" TextShadowXOffset="5" TextShadowYOffset="-5" TextOutlineWidth="1" TextUnderlineOffset="-0.1" TextUnderlineWidth="-0.1" TextStrikeThroughOffset="-0.1" TextStrikeThroughWidth="-0.1" ScaleHorizontal="100" ScaleVertical="100" BaselineOffset="0" Kerning="0" Language="en_GB"/> <ParagraphStyle Name="Default Paragraph Style" DefaultStyle="1" Alignment="0" Direction="0" LineSpacingMode="0" LineSpacing="15" LeftMargin="0" RightMargin="0" FirstIndent="0" GapBefore="0" GapAfter="0" ParagraphEffectOffset="0" HasDropCap="0" DropCapLines="2" Bullet="0" Numeration="0" HyphenConsecutiveLines="2" ParagraphBackgroundColor="None" ParagraphBackgroundColorShade="100"/> <TableStyle Name="Default Table Style" DefaultStyle="1" FillColor="None" FillShade="100"> <TableBorderLeft> <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/> </TableBorderLeft> <TableBorderRight> <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/> </TableBorderRight> <TableBorderTop> <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/> </TableBorderTop> <TableBorderBottom> <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/> </TableBorderBottom> </TableStyle> <CellStyle Name="Default Cell Style" DefaultStyle="1" FillColor="None" FillShade="100" LeftPadding="1" RightPadding="1" TopPadding="1" BottomPadding="1"> <TableBorderLeft> <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/> </TableBorderLeft> <TableBorderRight> <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/> </TableBorderRight> <TableBorderTop> <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/> </TableBorderTop> <TableBorderBottom> <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/> </TableBorderBottom> </CellStyle> <Layers Number="0" Level="0" Name="Background" IsViewable="1" IsPrintable="1" IsEditable="1" IsSelectable="0" FlowControl="1" Transparency="1" BlendMode="0" OutlineMode="0" LayerColor="#000000"/> <Printer firstUse="1" toFile="0" useAltPrintCommand="0" outputSeparations="0" useSpotColors="1" useColor="1" mirrorH="0" mirrorV="0" useICC="1" doGCR="0" doClip="0" setDevParam="0" useDocBleeds="1" cropMarks="0" bleedMarks="0" registrationMarks="0" colorMarks="0" includePDFMarks="1" PSLevel="3" PrintEngine="3" markLength="20.0016" markOffset="0" BleedTop="0" BleedLeft="0" BleedRight="0" BleedBottom="0" printer="File" filename="" separationName="All" printerCommand=""/> <PDF firstUse="1" Thumbnails="0" Articles="0" Bookmarks="0" Compress="1" CMethod="0" Quality="0" EmbedPDF="0" MirrorH="0" MirrorV="0" Clip="0" rangeSel="0" rangeTxt="" RotateDeg="0" PresentMode="0" RecalcPic="0" FontEmbedding="0" Grayscale="0" RGBMode="0" UseProfiles="0" UseProfiles2="1" Binding="0" PicRes="300" Resolution="300" Version="10" Intent="1" Intent2="0" SolidP="sRGB display profile (ICC v2.2)" ImageP="sRGB display profile (ICC v2.2)" PrintP="ISO Coated v2 300% (basICColor)" InfoString="" BTop="0" BLeft="0" BRight="0" BBottom="0" useDocBleeds="1" cropMarks="0" bleedMarks="0" registrationMarks="0" colorMarks="0" docInfoMarks="0" markLength="20.0016" markOffset="0" ImagePr="0" PassOwner="" PassUser="" Permissions="-4" Encrypt="0" UseLayers="0" UseLpi="0" UseSpotColors="1" doMultiFile="0" displayBookmarks="0" displayFullscreen="0" displayLayers="0" displayThumbs="0" hideMenuBar="0" hideToolBar="0" fitWindow="0" openAfterExport="0" PageLayout="0" openAction=""> <LPI Color="Black" Frequency="133" Angle="45" SpotFunction="3"/> <LPI Color="Cyan" Frequency="133" Angle="105" SpotFunction="3"/> <LPI Color="Magenta" Frequency="133" Angle="75" SpotFunction="3"/> <LPI Color="Yellow" Frequency="133" Angle="90" SpotFunction="3"/> </PDF> <DocItemAttributes/> <Indexes/> <TablesOfContents/> <NotesStyles> <notesStyle Name="Default" Start="1" Endnotes="0" Type="Type_1_2_3" Range="0" Prefix="" Suffix=")" AutoHeight="1" AutoWidth="1" AutoRemove="1" AutoWeld="1" SuperNote="1" SuperMaster="1" MarksStyle="" NotesStyle=""/> </NotesStyles> <OpticalMarginSets> <Set Id="preset_0" Type="preset" Name="Default"> <Rules> <Rule Left="0" Right="0.5" Unit="7" Characters="U+003A,U+003B,U+2013,U+2033"/> <Rule Left="0" Right="0.75" Unit="7" Characters="U+002C,U+002D,U+002E,U+2010,U+2032"/> <Rule Left="0.25" Right="0.25" Unit="7" Characters="U+2014"/> <Rule Left="0.5" Right="0" Unit="7" Characters="U+2036"/> <Rule Left="0.5" Right="0.5" Unit="7" Characters="U+0022,U+0028,U+0029,U+005B,U+005D,U+00AB,U+00BB,U+201C,U+201D,U+201E,U+201F"/> <Rule Left="0.75" Right="0" Unit="7" Characters="U+2035"/> <Rule Left="0.75" Right="0.75" Unit="7" Characters="U+0027,U+002A,U+0060,U+007E,U+00B4,U+2018,U+2019,U+201A,U+201B,U+2039,U+203A"/> </Rules> </Set> </OpticalMarginSets> <PageSets> <Set Name="Single Page" FirstPage="0" Rows="1" Columns="1"/> <Set Name="Facing Pages" FirstPage="1" Rows="1" Columns="2"> <PageNames Name="Left Page"/> <PageNames Name="Right Page"/> </Set> <Set Name="3-Fold" FirstPage="0" Rows="1" Columns="3"> <PageNames Name="Left Page"/> <PageNames Name="Middle"/> <PageNames Name="Right Page"/> </Set> <Set Name="4-Fold" FirstPage="0" Rows="1" Columns="4"> <PageNames Name="Left Page"/> <PageNames Name="Middle Left"/> <PageNames Name="Middle Right"/> <PageNames Name="Right Page"/> </Set> </PageSets> <Sections> <Section Number="0" Name="Section 1" From="0" To="0" Type="Type_1_2_3" Start="1" Reversed="0" Active="1" FillChar="0" FieldWidth="0"/> </Sections> <MasterPage PageXPosition="3.938" PageYPosition="0.785" PageWidth="595.275590551181" PageHeight="841.889763779528" BorderLeft="43.92" BorderRight="42.48" BorderTop="60.48" BorderBottom="42.48" PageNumber="0" PageName="Normal" MasterPageName="" Size="IsoA_A04" Orientation="0" LeftPage="0" Preset="0" VerticalGuides="" HorizontalGuides="" AutoGuideHorizontalGap="0" AutoGuideVerticalGap="0" AutoGuideHorizontalCount="0" AutoGuideVerticalCount="0" AutoGuideHorizontalReference="0" AutoGuideVerticalReference="0" AutoGuideSelection="0 0 0 0" PageEffectDuration="1" PageViewDuration="1" PageEffectType="0" PageEffectLineDirection="0" PageEffectInsideOutside="0" PageEffectDirection="0"/> <Page PageXPosition="3.938" PageYPosition="0.785" PageWidth="595.275590551181" PageHeight="841.889763779528" BorderLeft="43.92" BorderRight="42.48" BorderTop="60.48" BorderBottom="42.48" PageNumber="0" PageName="" MasterPageName="Normal" Size="IsoA_A04" Orientation="0" LeftPage="0" Preset="0" VerticalGuides="" HorizontalGuides="" AutoGuideHorizontalGap="0" AutoGuideVerticalGap="0" AutoGuideHorizontalCount="0" AutoGuideVerticalCount="0" AutoGuideHorizontalReference="0" AutoGuideVerticalReference="0" AutoGuideSelection="0 0 0 0" PageEffectDuration="1" PageViewDuration="1" PageEffectType="0" PageEffectLineDirection="0" PageEffectInsideOutside="0" PageEffectDirection="0"/> <PageObject XPosition="200.648736452061" YPosition="126.494117647059" OwnPage="0" ItemID="12681525" ItemType="6" Width="203.294117647059" Height="33.8823529411765" FrameType="0" ClipEdited="0" LineWidth="1" LineColor="Black" LinePenStyle="1" Path="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" ContourLinePath="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" gXpos="200.648736452061" gYpos="126.494117647059" gWidth="0" gHeight="0" Layer="0"/> <PageObject XPosition="200.648736452061" YPosition="690.588605836036" OwnPage="0" ItemID="1248712330" ItemType="6" Width="203.294117647059" Height="33.8823529411765" FrameType="0" ClipEdited="0" LineWidth="1" LineColor="Black" LinePenStyle="1" Path="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" ContourLinePath="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" gXpos="200.648736452061" gYpos="690.588605836036" gWidth="0" gHeight="0" Layer="0"/> <PageObject XPosition="200.648736452061" YPosition="324.919314497453" OwnPage="0" ItemID="1637347436" ItemType="6" Width="203.294117647059" Height="33.8823529411765" FrameType="0" ClipEdited="0" LineWidth="1" LineColor="Black" LinePenStyle="1" Path="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" ContourLinePath="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" gXpos="200.648736452061" gYpos="324.919314497453" gWidth="0" gHeight="0" Layer="0"/> <PageObject XPosition="200.648736452061" YPosition="324.919314497453" OwnPage="0" ItemID="1588624684" ItemType="6" Width="203.294117647059" Height="33.8823529411765" FrameType="0" ClipEdited="0" LineWidth="1" LineColor="Black" LinePenStyle="1" Path="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" ContourLinePath="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" gXpos="200.648736452061" gYpos="324.919314497453" gWidth="0" gHeight="0" Layer="0"/> <PageObject XPosition="200.648736452061" YPosition="324.919314497453" OwnPage="0" ItemID="42384689" ItemType="6" Width="203.294117647059" Height="33.8823529411765" FrameType="0" ClipEdited="0" LineWidth="1" LineColor="Black" LinePenStyle="1" Path="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" ContourLinePath="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" gXpos="200.648736452061" gYpos="324.919314497453" gWidth="0" gHeight="0" Layer="0"/> <PageObject XPosition="200.648736452061" YPosition="324.919314497453" OwnPage="0" ItemID="1212383273" ItemType="6" Width="203.294117647059" Height="33.8823529411765" FrameType="0" ClipEdited="0" LineWidth="1" LineColor="Black" LinePenStyle="1" Path="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" ContourLinePath="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" gXpos="200.648736452061" gYpos="324.919314497453" gWidth="0" gHeight="0" Layer="0"/> <PageObject XPosition="200.648736452061" YPosition="324.919314497453" OwnPage="0" ItemID="200984829" ItemType="6" Width="203.294117647059" Height="33.8823529411765" FrameType="0" ClipEdited="0" LineWidth="1" LineColor="Black" LinePenStyle="1" Path="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" ContourLinePath="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" gXpos="200.648736452061" gYpos="324.919314497453" gWidth="0" gHeight="0" Layer="0"/> <PageObject XPosition="200.648736452061" YPosition="324.919314497453" OwnPage="0" ItemID="856523332" ItemType="6" Width="203.294117647059" Height="33.8823529411765" FrameType="0" ClipEdited="0" LineWidth="1" LineColor="Black" LinePenStyle="1" Path="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" ContourLinePath="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" gXpos="200.648736452061" gYpos="324.919314497453" gWidth="0" gHeight="0" Layer="0"/> <PageObject XPosition="200.648736452061" YPosition="324.919314497453" OwnPage="0" ItemID="1934095951" ItemType="6" Width="203.294117647059" Height="33.8823529411765" FrameType="0" ClipEdited="0" LineWidth="1" LineColor="Black" LinePenStyle="1" Path="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" ContourLinePath="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" gXpos="200.648736452061" gYpos="324.919314497453" gWidth="0" gHeight="0" Layer="0"/> <PageObject XPosition="200.648736452061" YPosition="324.919314497453" OwnPage="0" ItemID="799326" ItemType="6" Width="203.294117647059" Height="33.8823529411765" FrameType="0" ClipEdited="0" LineWidth="1" LineColor="Black" LinePenStyle="1" Path="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" ContourLinePath="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" gXpos="200.648736452061" gYpos="324.919314497453" gWidth="0" gHeight="0" Layer="0"/> <PageObject XPosition="200.648736452061" YPosition="324.919314497453" OwnPage="0" ItemID="1694810429" ItemType="6" Width="203.294117647059" Height="33.8823529411765" FrameType="0" ClipEdited="0" LineWidth="1" LineColor="Black" LinePenStyle="1" Path="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" ContourLinePath="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" gXpos="200.648736452061" gYpos="324.919314497453" gWidth="0" gHeight="0" Layer="0"/> <PageObject XPosition="200.648736452061" YPosition="324.919314497453" OwnPage="0" ItemID="19983559" ItemType="6" Width="203.294117647059" Height="33.8823529411765" FrameType="0" ClipEdited="0" LineWidth="1" LineColor="Black" LinePenStyle="1" Path="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" ContourLinePath="M0 0 L203.294 0 L203.294 33.8824 L0 33.8824 L0 0 Z" gXpos="200.648736452061" gYpos="324.919314497453" gWidth="0" gHeight="0" Layer="0"/> </Document> </SCRIBUSUTF8NEW> | ||||
Patch | No | ||||
Date Modified | Username | Field | Change |
---|---|---|---|
2025-09-08 13:52 | qirat | New Issue | |
2025-09-08 13:52 | qirat | Tag Attached: align | |
2025-09-08 13:52 | qirat | Tag Attached: align and distribute | |
2025-09-08 13:52 | qirat | Tag Attached: alignment | |
2025-09-08 13:52 | qirat | File Added: test-gap-distibution.sla | |
2025-09-08 13:56 | qirat | Note Added: 0053013 |
