Summary0002205: PSD import doesn't work if the image is grayscale or in 16bit depth
DescriptionPSD files can come in different flavours: 8/16bit, cmyk, grayscale, rgb.
Scribus currently only imports 8bit cmyk and rgb, and those have color issues, see transscript below.
Steps To ReproduceLoad the attached files into Scribus
Additional InformationOriginal transcript:

<avox> You are on Linux now? Care to test if these images work in your Scribus?
[12:26] <ringerc> Sure
[12:27] <avox> Preview in getimage should be ok. If it doesn't show up there, it won't load
[12:28] <ringerc> Doesn't like most of the PSDs
[12:28] <ringerc> only the 8-bit CMYK previews
[12:28] <avox> only rgb8 and cmyk8?
[12:28] <ringerc> the 8-bit RGB shows resolution and size, but no preview image
[12:29] <ringerc> the rest the preview is blank
[12:29] <avox> Hm, care to load it and check?
[12:29] --- DCC RECV avox_tiffs.tar.bz2 from ringerc complete [48842 cps].
[12:29] <ringerc> blank when loaded, too
[12:29] <ringerc> weird
[12:30] <avox> It only show yellow here. That's weird for rgb, isn't it?
[12:30] <ringerc> blank in PDF export as well. The CMYK one shows up but *really* ugly
[12:30] --- ringerc has offered test.pdf (553773 bytes)
[12:30] <ringerc> that's the PDF of the CMYK one
[12:30] --- DCC RECV connection established to ringerc [202.72.149.28:14165]
[12:31] --- DCC RECV test.pdf from ringerc complete [30765 cps].
[12:31] <ringerc> the red/green/blue scales look fine, but the CMYK swatches are messed up
TagsCMYK, grayscale, PSD
PatchNo

Relationships

related to 0002064 assignedfschmid Importing of cmyk tiffs with 16bit depth does not work

Activities

2005-07-08 09:57



test.pdf (553,773 bytes)

2005-07-08 10:06



psdcmyk.tar.bz2 (4,007,986 bytes)

2005-07-08 10:08



psdgrayrgb.tar.bz2 (2,823,455 bytes)

fschmid

2005-11-06 11:27

developer   ~0007353

Loading of grayscale .psd files works now.

plinnell

2005-11-06 12:58

viewer   ~0007354

i am getting a red tint in on the canvas, in the file dialog preview it is displaying correctly. Tested with several grey scale psd files and confirmed they are GS psd in photoshop 6.

fschmid

2005-11-06 16:20

developer   ~0007355

Should be fixed now, try again with current CVS.

plinnell

2005-11-06 17:23

viewer   ~0007357

Works fine now with CVS.

Kunda

2014-09-12 03:08

updater   ~0033636

Last edited: 2014-09-12 03:09

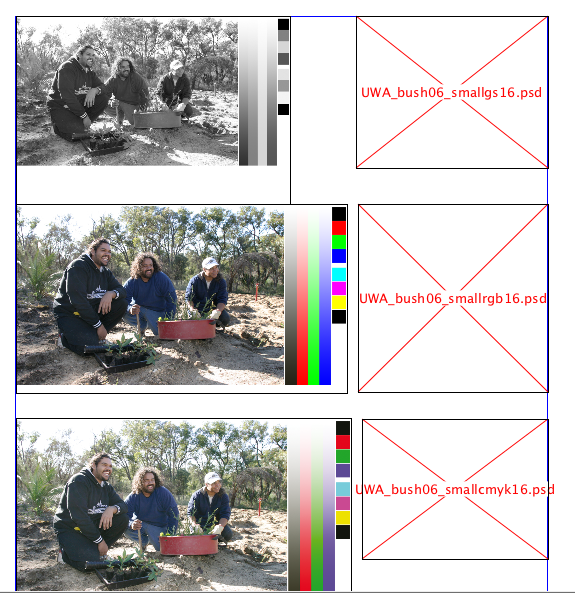

 Confirm on 10.8.5 1.5svn r19502

In the psdcmyk archive:
UWA_bush06_smallcmyk8.psd Success
UWA_bush06_smallcmyk16.psd Fail

In the psdgrayrgb archive:
UWA_bush06_smallgs8.psd Success
UWA_bush06_smallgs16.psd Fail

UWA_bush06_smallrgb8.psd Success
UWA_bush06_smallrgb16.psd Fail

See attchment

Kunda

2014-09-12 03:10

updater

Screenshot 2014-09-11 22.08.39.png (349,650 bytes)
Screenshot 2014-09-11 22.08.39.png (349,650 bytes)
