Summary0003774: wrong svg export/import
Description[Marking as major since it totally doesn't work, though this isn't personally urgent for me right now.]

Exporting a simple file as svg and reimporting it made a mess of one of the objects (which was a group). Appears to be mostly an import issue as svg rendered ok in opera, except too small.

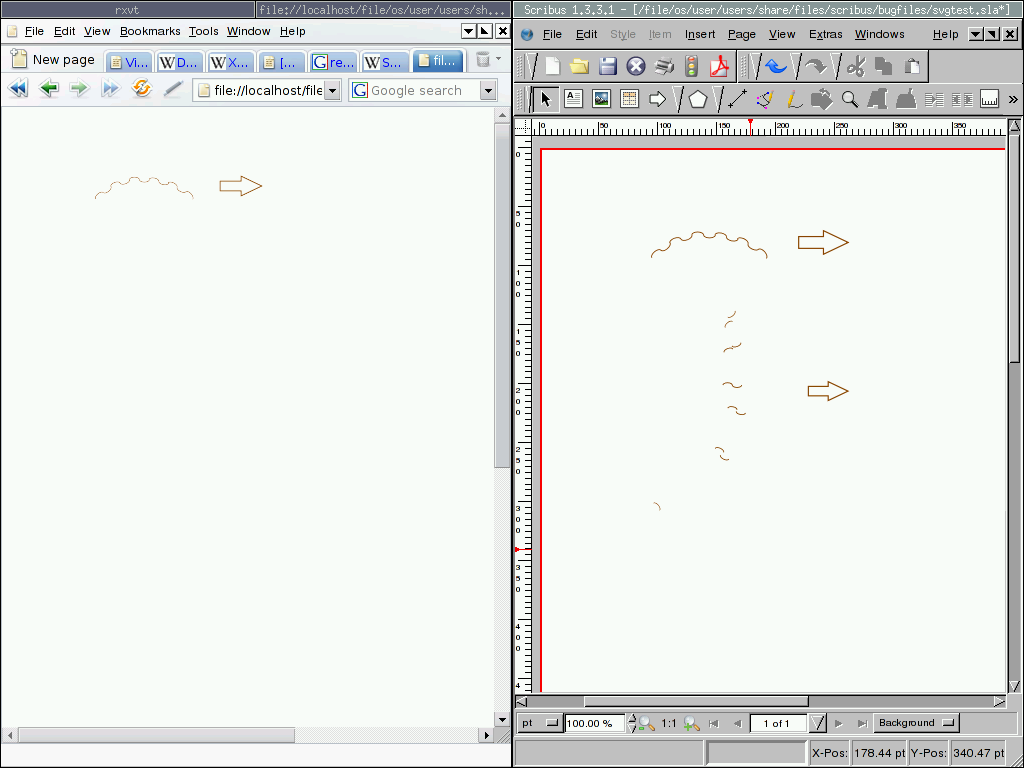

Screenshot 1: Doc in scribus with original objects and reimported set below; svg rendered in opera on left. Export seems ok except that size is reduced, which seems preserved on input (compare arrow sizes). The wavy line group is totally dissociated on import.

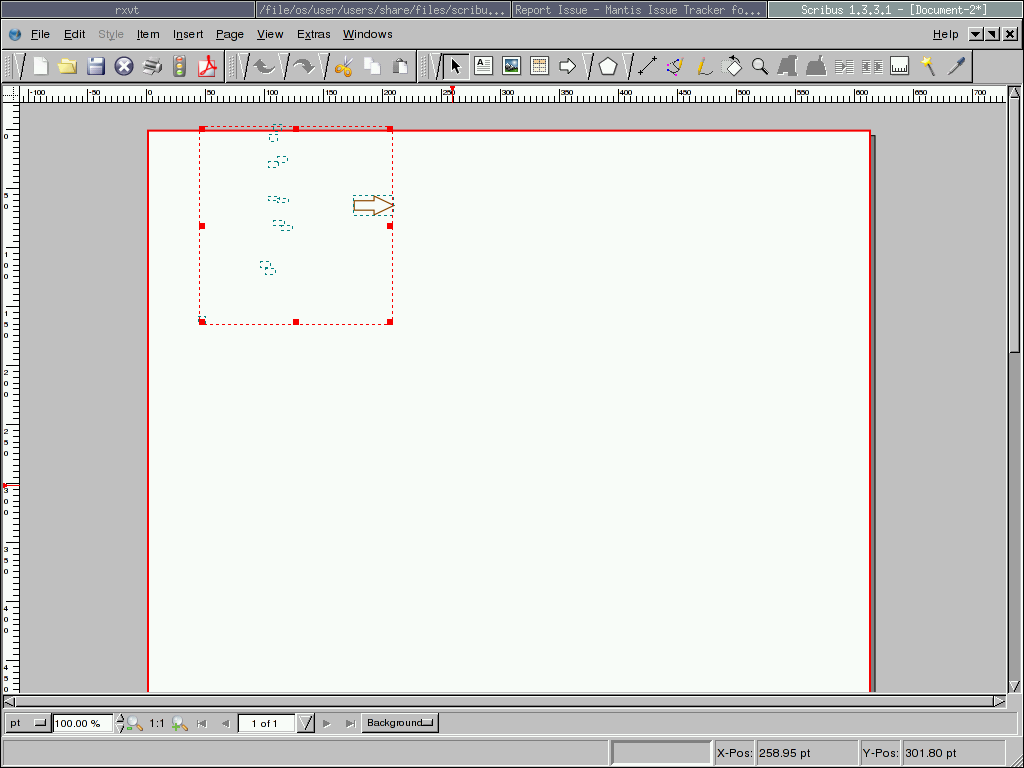

Screenshot 2: Additional problem importing as a new file (with no file previously open): same messed up structure but now the wavelets aren't even rendered.
Additional InformationI can provide the files involved if necessary.
TagsNo tags attached.
Patch

Relationships

related to 0003714 closedfschmid SVG import causes GUI freeze
related to 0003670 closed SVG cannot be flipped
related to 0003440 closedjghali SVG import does not handle <use> tags
related to 0003278 closedjghali SVG gradients don't import correctly
child of 0002931 acknowledged Metabug: SVG

Activities

2006-05-08 23:24




2006-05-08 23:27




avox

2006-05-09 09:28

updater   ~0011134

> I can provide the files involved if necessary.

Yes, please.

plinnell

2006-05-09 13:08

viewer   ~0011144

FYI, The best and most reliable viewer for SVG in my experience and in the opinion of many Inkscape developers is batik, from apache. 'Squiggle' is the viewer. This is a java app and should run anywhere. Opera's support is quite new and may not be as mature.

There are know issues with the SVG importer, but I have found Batik is the most reliable and correct SVG viewer. Correct, in that it will give off warnings for non-conformant SVG.

2006-05-09 15:44



svgtest.sla (62,984 bytes)

2006-05-09 15:45



svgtest.svg (3,374 bytes)
<?xml version="1.0" encoding="UTF-8"?>
<svg width="612pt" xmlns:xlink="http://www.w3.org/1999/xlink" xmlns="http://www.w3.org/2000/svg" height="792pt" >
 <g transform="translate(92, 90.077) rotate(-40)" style="fill:none; stroke:#8b4500; stroke-width:0.75pt; stroke-linecap:butt; stroke-linejoin:miter; stroke-dasharray:none;" >
  <path d="M0 2.5 C0 1.11929 2.23858 0 5 0 C7.76152 0 10 1.11929 10 2.5 " />
 </g>
 <g transform="translate(101.267, 85.564) rotate(-40)" style="fill:none; stroke:#8b4500; stroke-width:0.75pt; stroke-linecap:butt; stroke-linejoin:miter; stroke-dasharray:none;" >
  <path d="M0 0 C0 1.38071 2.23858 2.5 5 2.5 C7.76152 2.5 10 1.38071 10 0 " />
 </g>
 <g transform="translate(107.912, 77.1536) rotate(-20)" style="fill:none; stroke:#8b4500; stroke-width:0.75pt; stroke-linecap:butt; stroke-linejoin:miter; stroke-dasharray:none;" >
  <path d="M0 2.5 C0 1.11929 2.23858 0 5 0 C7.76152 0 10 1.11929 10 2.5 " />
 </g>
 <g transform="translate(118.164, 76.0826) rotate(-20)" style="fill:none; stroke:#8b4500; stroke-width:0.75pt; stroke-linecap:butt; stroke-linejoin:miter; stroke-dasharray:none;" >
  <path d="M0 0 C0 1.38071 2.23858 2.5 5 2.5 C7.76152 2.5 10 1.38071 10 0 " />
 </g>
 <g transform="translate(127.416, 70.1356)" style="fill:none; stroke:#8b4500; stroke-width:0.75pt; stroke-linecap:butt; stroke-linejoin:miter; stroke-dasharray:none;" >
  <path d="M0 2.5 C0 1.11929 2.23858 0 5 0 C7.76152 0 10 1.11929 10 2.5 " />
 </g>
 <g transform="translate(137.416, 72.6356)" style="fill:none; stroke:#8b4500; stroke-width:0.75pt; stroke-linecap:butt; stroke-linejoin:miter; stroke-dasharray:none;" >
  <path d="M0 0 C0 1.38071 2.23858 2.5 5 2.5 C7.76152 2.5 10 1.38071 10 0 " />
 </g>
 <g transform="translate(147.416, 70.1356) rotate(-350)" style="fill:none; stroke:#8b4500; stroke-width:0.75pt; stroke-linecap:butt; stroke-linejoin:miter; stroke-dasharray:none;" >
  <path d="M0 2.5 C0 1.11929 2.23858 0 5 0 C7.76152 0 10 1.11929 10 2.5 " />
 </g>
 <g transform="translate(156.83, 74.3346) rotate(-350)" style="fill:none; stroke:#8b4500; stroke-width:0.75pt; stroke-linecap:butt; stroke-linejoin:miter; stroke-dasharray:none;" >
  <path d="M0 0 C0 1.38071 2.23858 2.5 5 2.5 C7.76152 2.5 10 1.38071 10 0 " />
 </g>
 <g transform="translate(167.102, 73.7586) rotate(-1055)" style="fill:none; stroke:#8b4500; stroke-width:0.75pt; stroke-linecap:butt; stroke-linejoin:miter; stroke-dasharray:none;" >
  <path d="M0 2.5 C0 1.11929 2.23858 0 5 0 C7.76152 0 10 1.11929 10 2.5 " />
 </g>
 <g transform="translate(175.109, 80.2506) rotate(-1055)" style="fill:none; stroke:#8b4500; stroke-width:0.75pt; stroke-linecap:butt; stroke-linejoin:miter; stroke-dasharray:none;" >
  <path d="M0 0 C0 1.38071 2.23858 2.5 5 2.5 C7.76152 2.5 10 1.38071 10 0 " />
 </g>
 <g transform="translate(186.109, 83.197) rotate(-2470)" style="fill:none; stroke:#8b4500; stroke-width:0.75pt; stroke-linecap:butt; stroke-linejoin:miter; stroke-dasharray:none;" >
  <path d="M0 2.5 C0 1.11929 2.23858 0 5 0 C7.76152 0 10 1.11929 10 2.5 " />
 </g>
 <g transform="translate(218, 69)" style="fill:#ffffff; fill-rule:evenodd; stroke:#8b4500; stroke-width:1pt; stroke-linecap:butt; stroke-linejoin:miter; stroke-dasharray:none;" >
  <path d="M0 5 C0 5 21 5 21 5 C21 5 21 0 21 0 C21 0 42 10 42 10 C42 10 21 20 21 20 C21 20 21 15 21 15 C21 15 0 15 0 15 C0 15 0 5 0 5 Z" />
 </g>
</svg>
svgtest.svg (3,374 bytes)

2006-05-09 15:45



svgtest_reimport.sla (85,184 bytes)

mkoren

2006-05-09 15:55

reporter   ~0011151

avox: uploaded original file, exported svg, and result of reimporting into original.

plinnel: thanks. It looked like in this case Opera was correct by comparison to the original and imported views in scribus, so I didn't look for anything better, but I'll certainly get a better viewer if I do much work with SVG.

jghali

2006-10-10 22:00

administrator   ~0012897

I have fixed the problem of the messed up objects

jghali

2006-10-11 06:55

administrator   ~0012907

Wavelets are now rendered when importing as a new file

plinnell

2006-10-14 14:51

viewer   ~0012977

tested, fixed

mkoren

2006-12-31 20:00

reporter   ~0014336

I just tested this in 1.3.3.6, and the structural problems have been fixed, but the elements still get smaller upon exporting and reimporting. Export and reimport from my original sla to see what I mean.

jghali

2006-12-31 21:22

administrator   ~0014337

this is another issue not particular to this svg files and which has been recently fixed in 1.3.4cvs
