View Issue Details

Jump to NotesJump to History
IDProjectCategoryView StatusDate SubmittedLast Update
0003822ScribusFontspublic2006-05-15 19:222016-12-13 11:27
Reporteragusmba Assigned To
PrioritynormalSeverityfeatureReproducibilityalways
Status feedbackResolutionopen
Platformx86OSWindowsOS VersionXP
Product Version1.3.3.1
Target VersionFuture Release - High Priority
Summary0003822: Stroke of letters overlap the inside of the letters themselves.
DescriptionDefault behavior for "outline" in the font dialog etches the outline of the font with a selectable thickness. This stroke can fill the inside of the letter.

I would like to be able to have the "outline" below the actual letter so that the inside of the letter is not changed.

I can think of two ways of doing this:
- Option 1: being able to select (option) whether the outline is drawn over the letter or below it.
- Option 2: Having more control over the shadow effect. Specially being able to have the shadow outlined but not the text casting the shadow. And being able to choose the color of the outline for the shadow (or make it the same color as the shadow).
Steps To ReproduceCreate a text box.
Enter some text. Go to font properties, select outline with a different color, and thickness of the outline 20%.
The inside of the letter can not be seen, since the outline overlaps it.
Additional InformationSee sample of the intended behavior at: http://www.edgeent.com/anima/es/pdf/Complemento_Web_Anima_Vol_1.pdf
See the titles "Complemento Web" are surounded by white.

Workaround: I have reproduced this effect in Scribus by duplicating a textframe (with the text inside) an placing one on top of the other. I use outline mode on the lower one. However, this *only* works well with whole textframes. If I want to do this for a single paragraph in a big text frame, I won't be able to align it well (or would have to duplicate the entire big text frame whis seems like overkill).
Tags#please_test
PatchNo

Relationships

related to 0014027 new Option to choose the direction of an outline border (outwards vs inwards)
related to 0010283 confirmed transparency of the frame border affects also the glyph border
related to 0001462 acknowledged Lines (borders) on frames are drawn from the center of the edge to the outside
related to 0004259 closed Alignment of strokes frames
has duplicate 0014381 closedjghali about stroke is outside or inside

Activities

Kunda

2014-08-01 21:04

updater   ~0033136

agusmba, can you confirm this is still an issue on the latest stable or dev versions of scribus ?

Kunda

2015-10-10 13:38

updater   ~0036599

Last edited: 2016-05-24 20:08

 Can anyone duplicate this ?

PeterBenedek

2016-05-24 18:11

developer


PeterBenedek

2016-05-24 18:20

developer   ~0041376

I do not clearly understand...

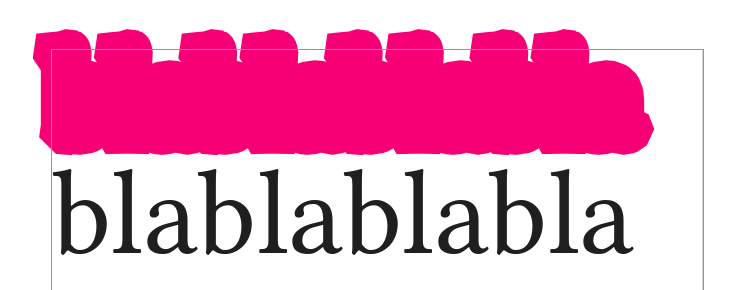

Picture upload. That's it?

Connected?
0014027

Kunda

2016-05-24 20:07

updater   ~0041380

Yea... looks correct. And it seems related to 0014027

Kunda

2016-05-24 20:11

updater   ~0041381

Issue still exist on 1.5.3svn r21350
Wow, 10 year anniversary
