Summary0004842: Drop caps hang in margin or overlap above line and needs further fine tuning
DescriptionDepending on the font and character, some drop caps hang in the margin, like A, V and W. Some others don't reach the margin like K. Letters higher than the other caps such as J and Q sit on the baseline instead of hanging from the cap's height of the font and thus overlap the line above.

For those two, the actual choice is clear: the constraint that wins is the number of line and the baseline. I would suggest that whenever the case happens, the number of line is increased (generally one extra line will do) and the drop caps hangs from the top instead.

Also, the gap between the drop cap and the text varies a lot depending on the letter, from overlap like with J and Q to a tight gap such as with letter K to a wide gap such as with letter W.

The workaround to this is nearly impracticable (and sometimes impossible) because you have to tweak each and every drop cap to get the desired result. This includes the manual tracking to the drop cap which is split into all the lines of the drop cap.

I acknowledge manual tracking on *each* line of the drop cap is a welcomed addition (QXP doesn't allow to do that, for instance, only *all* the lines). But there is also a need to be able to manually set this distance to all the lines at once.
Steps To ReproduceTo be able to easily see the issue, set a paragraph style with a 5-line drop cap and a zero gap. I used Utopia and Nimbus Roman No9 L to test. I tested with a typesize of 13 pts and a lock to baseline grid set at 15 pts. The text frame is set to 2 columns. Get any text and play with the initial caps of a few paragraph.
Additional InformationFurther down the road, I suggest 3 additions to the drop cap menu:
1. To be able to set a different font from the text (very common)
2. To be able to set a different color and tint from the text (also common)
3. To be able to tweak the character scale (common as well)
TagsNo tags attached.
Patch

Relationships

child of 0003964 closedplinnell 1.3.4 Release Metabug

Activities

2006-12-17 17:30




louisdesjardins

2006-12-17 17:33

developer   ~0013980

The uploaded file might not reflect exactly the settings I described since I played a lot with the paragraph style and made only a few screenshots. However, the result is the same.

louisdesjardins

2006-12-17 17:37

developer   ~0013981

The additional info (my "further down the road" suggestion) in that report is mostly a duplicate of bug 0001212

louisdesjardins

2006-12-17 17:50

developer   ~0013982

Am I right to think this is going to be difficult to solve as an automatism from the program because the issue mainly depends on font parameters such as kerning pairs?

QXP has some issues with drop caps as well. :)

Here is what we do to solve the margin issue in QXP : we set the drop cap to 2 characters (something we can't do yet in Scribus) and we add a space in front of the drop cap. Then, we manually track to get the drop cap to overlap the space until we reach the desired position. It's a clumsy workaround but it works. Might give an idea on how to solve the issue.

avox

2006-12-17 18:47

administrator   ~0013983

is this a regression to 1.3.3 ?

louisdesjardins

2006-12-17 19:14

developer   ~0013985

I am unable to tell as I don't have 1.3.3 installed. Running only CVS.

avox

2007-02-01 03:39

administrator   ~0015060

remaining difference is that 1338 aligns to capheight, 134 to fontheight

avox

2007-04-09 15:09

administrator   ~0015828

seems fixed now

Issue History

Date Modified Username Field Change
2006-12-17 17:30 louisdesjardins New Issue

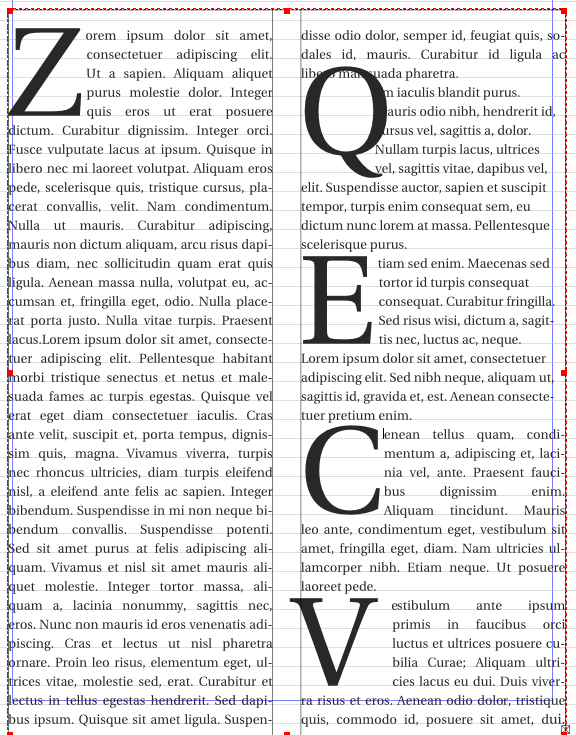

2006-12-17 17:30 louisdesjardins File Added: DropCapsInMargin2.png
2006-12-17 17:33 louisdesjardins Note Added: 0013980
2006-12-17 17:37 louisdesjardins Note Added: 0013981
2006-12-17 17:50 louisdesjardins Note Added: 0013982
2006-12-17 18:47 avox Note Added: 0013983
2006-12-17 19:14 louisdesjardins Note Added: 0013985
2006-12-21 18:51 avox Status new => assigned
2006-12-21 18:51 avox Assigned To => avox
2007-01-04 00:09 cbradney Relationship added child of 0003964
2007-02-01 03:39 avox Note Added: 0015060
2007-04-09 15:09 avox Status assigned => resolved
2007-04-09 15:09 avox Fixed in Version => 1.3.4cvs
2007-04-09 15:09 avox Resolution open => fixed
2007-04-09 15:09 avox Note Added: 0015828
2007-04-13 23:36 cbradney Status resolved => closed
