View Issue Details

IDProjectCategoryView StatusLast Update
0008445ScribusGeneralpublic2018-04-30 13:21
Reportercrabs Assigned To
PriorityhighSeverityminorReproducibilityalways
Status confirmedResolutionopen
Platformx86OSSlackware LinuxOS Version13.0
Product Version1.3.5
Summary0008445: Tabs are no longer respected when justified
DescriptionDans un style j'ai défini :
1 tabulation "alignement à droite" à 45mn
1 tabulation "alignement à gauche" à 47mn
Le texte est justifié dans ce paragraphe.
Effet recherché (les tabulations sont tapées à la place des '_', les espaces suivant le '_' ne sont pas saisis) :
_ bla bla bla :_ blabla ...
_ un blabla :_ bla bla blabla...
La tabulation à 45 mn est destiné à l'alignement des ":"
La tabulation à 47 mn aligne le premier caractère après le 2 points
Lorsque le texte après le ':' s'étale sur plusieurs lignes les ':' ne sont plus situés à 45 mn et le 1er caractère n'est pas à 47 mn.
Si le paragraphe reste "aligné à gauche", ce défaut n'apparait pas.
Steps To ReproduceSteps to reproduce translated:
In a style I have defined:
one tab "right alignment" 45 mm
another tab "Left alignment" to 47 mm
The text is justified in this paragraph.
Effect (the tabs are typed instead of '_', the spaces following the '_' are not captured):
_ bar bla bla bla :_ blabla ...
_ foo blabla :_ bla bla blabla...
The 45 mm tab is intended to align the ":" character.
The 47 mm tab aligns the first character after the ":".
When the text after the ':' spans multiple lines, the ':' are no longer located at 45 mm and the following first character is no longer located at 47 mm.

Only if the paragraph is "left aligned", everything works alright.
Additional InformationLe fichier joint contient deux styles qui présente l'effet recherché a l'aide de lignes jaunes.

"The attached file contains two styles which shows the desired effect with the help of yellow lines."
Tagslayout
PatchNo

Relationships

related to 0011071 confirmed buggy behaviour with align-right tabs
has duplicate 0010819 closedjghali TAB position not fixed in justified text

Activities

2009-09-20 21:14



scribus_bug_tab.sla (22,738 bytes)

dietmar83

2010-06-22 19:24

reporter   ~0024185

Let's try to translate...

In a style I have defined:
one tab "right alignment" 45 mm
another tab "Left alignment" to 47 mm
The text is justified in this paragraph.
Effect (the tabs are typed instead of '_', the spaces following the '_' are not captured):
_ bar bla bla bla :_ blabla ...
_ foo blabla :_ bla bla blabla...
The 45 mm tab is intended to align the ":" character.
The 47 mm tab aligns the first character after the ":".
When the text after the ':' spans multiple lines, the ':' are no longer located at 45 mm and the following first character is no longer located at 47 mm.

Only if the paragraph is "left aligned", everything works alright.

The attached file contains two styles which shows the desired effect with the help of yellow lines.

Remark: Could reproduce this in 1.3.8.svn.

JLuc

2014-04-09 21:00

developer   ~0031668

Last edited: 2014-04-09 21:17

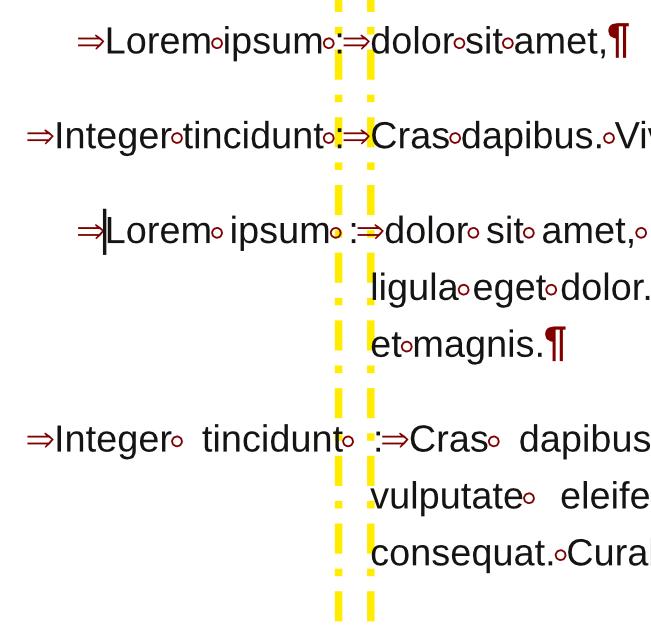

I confirm for 1.5 and upload screenshot.

0011071 is related to align right tabs too

JLuc

2014-04-10 20:53

developer

Kunda

2015-12-13 11:47

updater   ~0037911

Last edited: 2015-12-13 11:51

Original summary in french: "les tabulations ne sont plus repesctées lorsqu'on justifie"

Suggested summary: "Tabs are no longer respected when justified"

Issue History

Date Modified Username Field Change
2009-09-20 21:14 crabs New Issue
2009-09-20 21:14 crabs File Added: scribus_bug_tab.sla
2010-06-22 19:24 dietmar83 Note Added: 0024185
2010-06-22 21:44 christoph_s Status new => confirmed
2012-06-29 11:39 jghali Relationship added has duplicate 0010819
2014-04-07 15:49 JLuc Tag Attached: layout
2014-04-09 20:59 JLuc File Added: justified tabs not OK.jpg
2014-04-09 21:00 JLuc Note Added: 0031668
2014-04-09 21:00 JLuc File Deleted: justified tabs not OK.jpg
2014-04-09 21:01 JLuc File Added: justified para = right align tabs not OK.jpg
2014-04-09 21:17 JLuc Note Edited: 0031668
2014-04-10 20:52 JLuc File Deleted: justified para = right align tabs not OK.jpg
2014-04-10 20:53 JLuc File Added: align-right-tabs in justified paragraphs.jpg
2014-06-27 01:53 Kunda Relationship added related to 0011071
2015-12-13 11:47 Kunda Note Added: 0037911
2015-12-13 11:49 Kunda Patch => No
2015-12-13 11:49 Kunda Target Version => 1.5.2
2015-12-13 11:49 Kunda Steps to Reproduce Updated
2015-12-13 11:49 Kunda Additional Information Updated
2015-12-13 11:51 Kunda Note Edited: 0037911
2015-12-13 11:52 Kunda Summary les tabulations ne sont plus repesctées lorsqu'on justifie => Tabs are no longer respected when justified
2015-12-13 11:52 Kunda Priority normal => high
2016-01-23 17:15 cbradney Target Version 1.5.2 => 1.5.4.svn
2018-04-30 13:21 jghali Target Version 1.5.4.svn =>
