View Issue Details

IDProjectCategoryView StatusLast Update
0004622ScribusStylespublic2016-01-19 15:51
Reporterchristoph_s Assigned To
PrioritynormalSeverityfeatureReproducibilityalways
Status newResolutionopen
PlatformanyOSanyOS Versionany
Product Version1.3
Summary0004622: Frame Styles (Mockup included)
DescriptionNext mockup: Frame styles.

Description:
Four Tabs; no. 4 is shortcuts, thus no reason to explain it here. The rest uses features from the PP and the setup dialogs, but also adds some new suggestions.

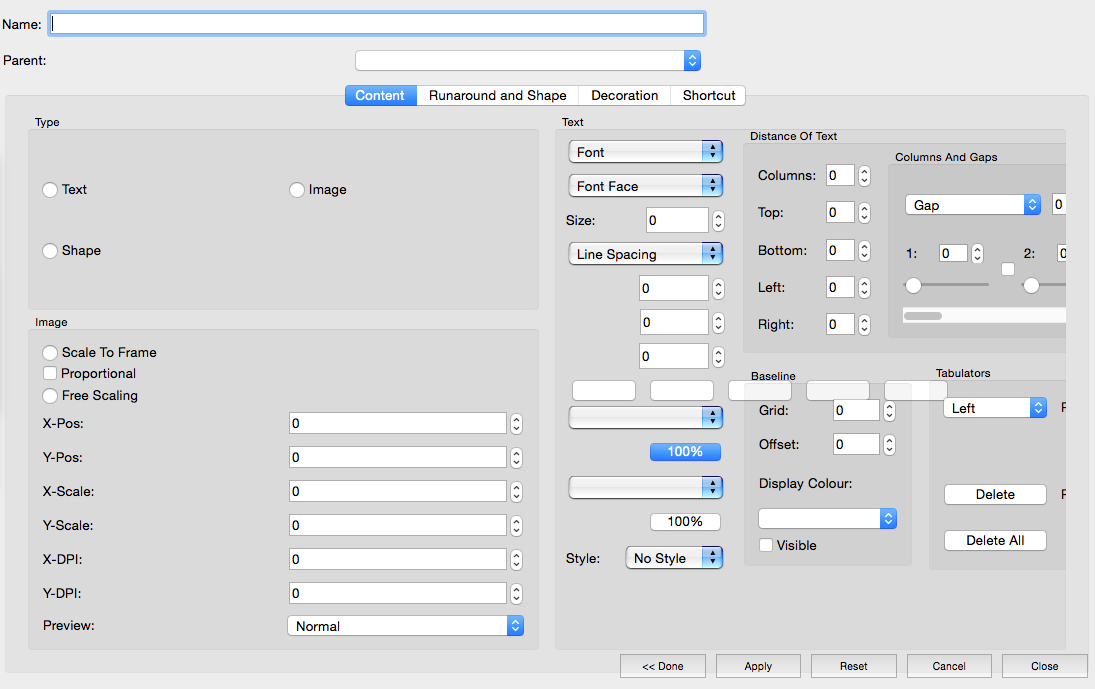

Tab 1, "Content", It uses basic features for images and texts from the PP and also adds the currently separate "tabulators" dialog. It also contains a suggested more flexible way to edit columns/gaps as discussed in 162. It takes also into consideration rfe 518 that required individual baselines for frames.

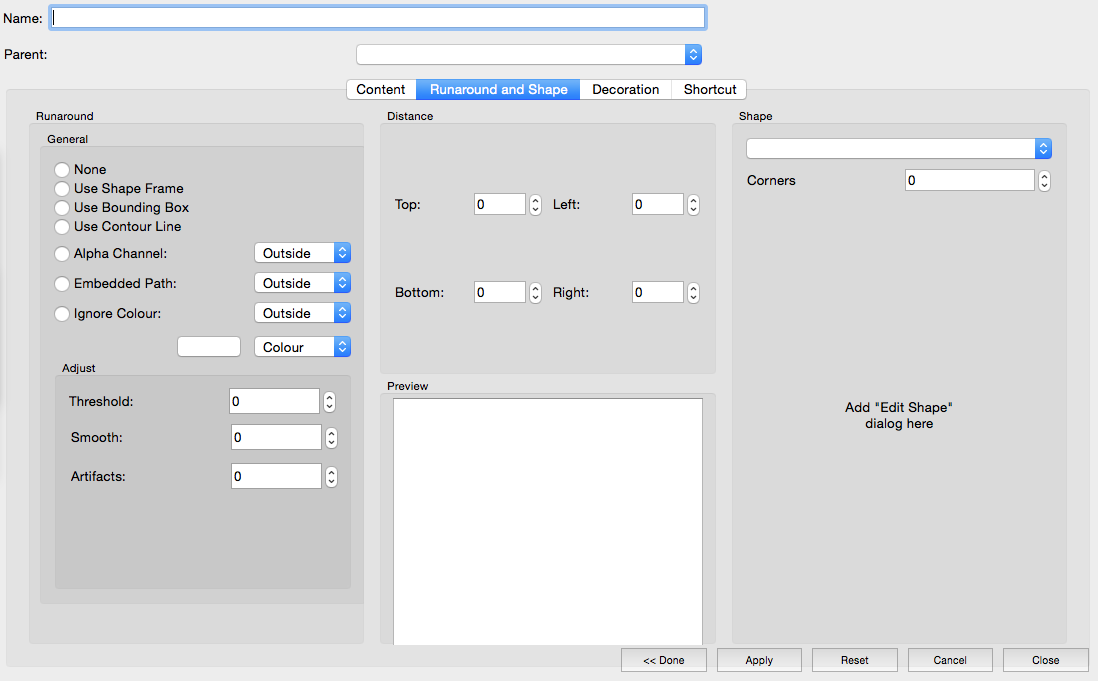

Tab 2, "Shape And Runaround", includes the current shape tab, but the suggestion is to integrate "Edit Shape" here as well (minus edit contour lines). The "Runaround" box includes 3 new rfes (AFAICT): Runaround based on alpha channels and on a selected colour (e.g. white). It'd also be possible to use only the outside of an image or to let the text flow in transparent spaces inside. The dialog would also allow to define the distance of runaround for left, right, top, and bottom separately.

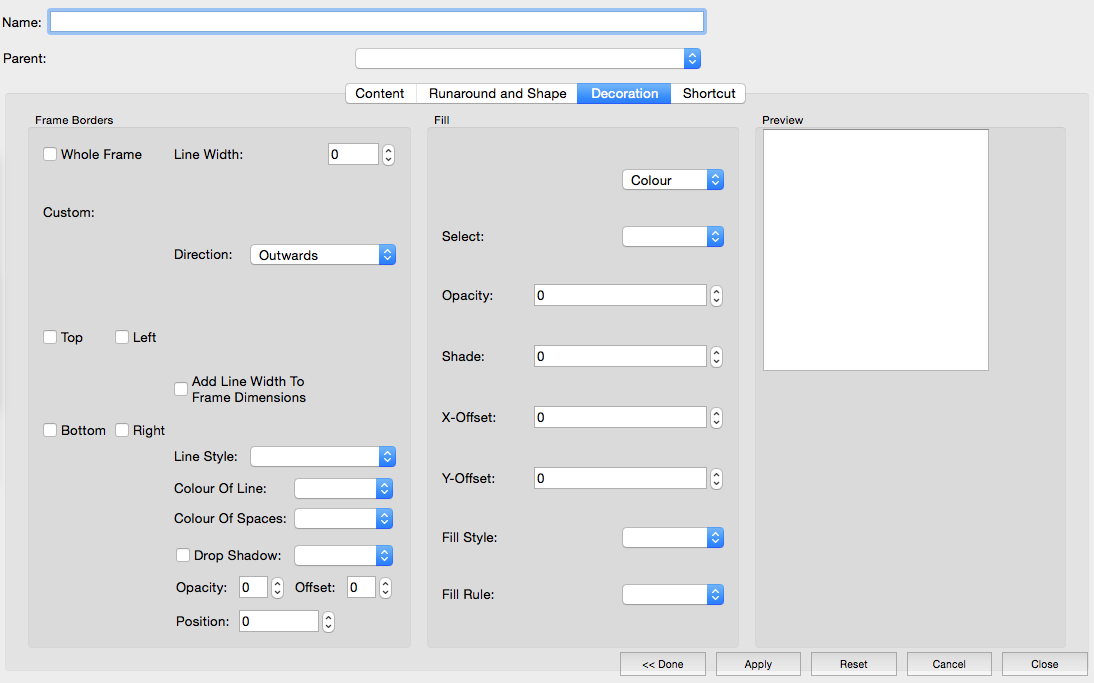

Tab 3, "Decoration", contains the frame decoration and the fill. What's new is that the frame border could be edited similar to cells in a table (see 4621). The user could also choose to move the line width of the frame to the outside, inside or both. He could even add the new line width to the frame dimensions.
TagsNo tags attached.
Patch

Relationships

parent of 0013216 closed Paragraph Style Space Above bug
has duplicate 0008625 closedjghali Graphic Styles for Shapes and Images
related to 0006745 acknowledged Wish - enable to copy object properties and paste to other object

Activities

2006-11-28 16:18



framestyle.ui (115,436 bytes)

Kunda

2015-07-09 16:31

updater   ~0035716

Heads-up: the .ui file needs to be updated to Qt5.x

Kunda

2016-01-19 15:48

updater

framestyle-qt4.ui (55,486 bytes)

Kunda

2016-01-19 15:49

updater


Kunda

2016-01-19 15:49

updater


Kunda

2016-01-19 15:49

updater


Kunda

2016-01-19 15:50

updater   ~0038269

Last edited: 2016-01-19 15:51

Uploaded Qt4 .ui that can be opened in Qt5 Designer.
Also uploaded screenshots of proposed mockups for convenience
(Thanks to Christoph for providing compatible .ui files)

Issue History

Date Modified Username Field Change
2006-11-28 16:18 christoph_s New Issue
2006-11-28 16:18 christoph_s File Added: framestyle.ui
2008-02-23 10:25 louisdesjardins Relationship added related to 0006745
2009-12-10 07:46 jghali Relationship added has duplicate 0008625
2015-07-09 16:31 Kunda Note Added: 0035716
2015-07-09 16:31 Kunda Relationship added parent of 0013216
2016-01-19 15:48 Kunda File Added: framestyle-qt4.ui
2016-01-19 15:49 Kunda File Added: Content-Tab.png
2016-01-19 15:49 Kunda File Added: Runaround_and_Shape-Tab.png
2016-01-19 15:49 Kunda File Added: Decoration-Tab.png
2016-01-19 15:50 Kunda Note Added: 0038269
2016-01-19 15:51 Kunda Note Edited: 0038269
