Summary0013338: Images cropped and scaled in MS Publisher are imported with incorrect scale and region of image when .pub is opened in Scribus
DescriptionCropping and scaling (MS Publisher terminology) is not imported as image position and scaling (Scribus terminology) so an incorrect part of an incorrectly scaled image appears in the imported document. Trying to manually scale to same scale as publisher causes image quality loss.
Steps To ReproducePlace an image in a .PUB document.
Crop it to select some region of the image.
Scale the cropped image.
Save the .PUB
Open/Import the .PUB in Scribus
Observe that the image is present and correct size, position on page but showing incorrect part of the original image.
Additional InformationIn example attached publisher shows image was scaled 208% and also displays (in inches) what part of the original image was cropped.
Scribus image properties show 100% scale, no offset in position to reflect cropping region.
Manually setting scaling to same as publisher (208%) and manually positioning to produce same "crop" within frame results in an image at lower resolution (dpi) than original publisher image, so even manual fixup is lossy (as well as impractical).
Tagslibrevenge, mspub, upstream
PatchNo

Activities

alfaed

2015-09-06 11:18

reporter

trivialpage.pub (1,526,784 bytes)

alfaed

2015-09-06 11:19

reporter


alfaed

2015-09-06 11:19

reporter


fschmid

2015-09-09 17:43

developer   ~0036180

Sorry, can't fix that, as the underlying libmspub doesn't provide the needed informations to get the cropping and scaling right.

Kunda

2015-09-12 12:33

updater   ~0036189

Franz, it doesn't provide it 'yet' or definitively never ?
Shall we let the documentliberation folks know or is this a known issue?

fschmid

2015-09-12 14:18

developer   ~0036199

It's already two times in their bugtracker.

Kunda

2015-09-14 13:41

updater   ~0036214

fschmid, thanks for the reply. Can you post the bug urls? I have trouble searching their bug tracker (haven't figured out how to navigate bugzilla yet)

Kunda

2015-10-04 12:31

updater   ~0036501

These are the 2 libmspub upstream bugs:
https://bugs.documentfoundation.org/show_bug.cgi?id=54189
https://bugs.documentfoundation.org/show_bug.cgi?id=78733

Issue History

Date Modified Username Field Change
2015-09-06 11:18 alfaed New Issue
2015-09-06 11:18 alfaed File Added: trivialpage.pub

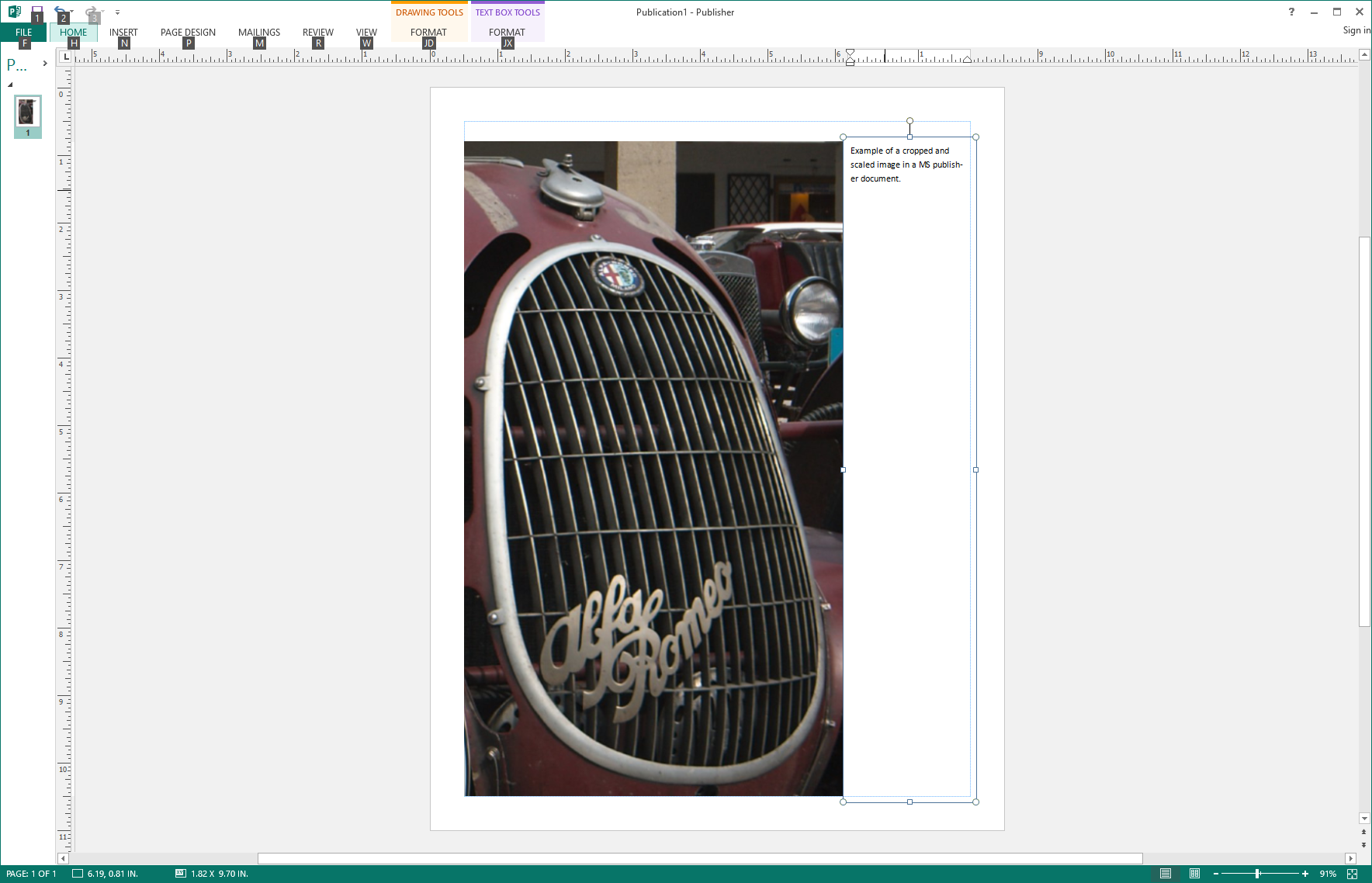

2015-09-06 11:19 alfaed File Added: trivialpagepublisher.png

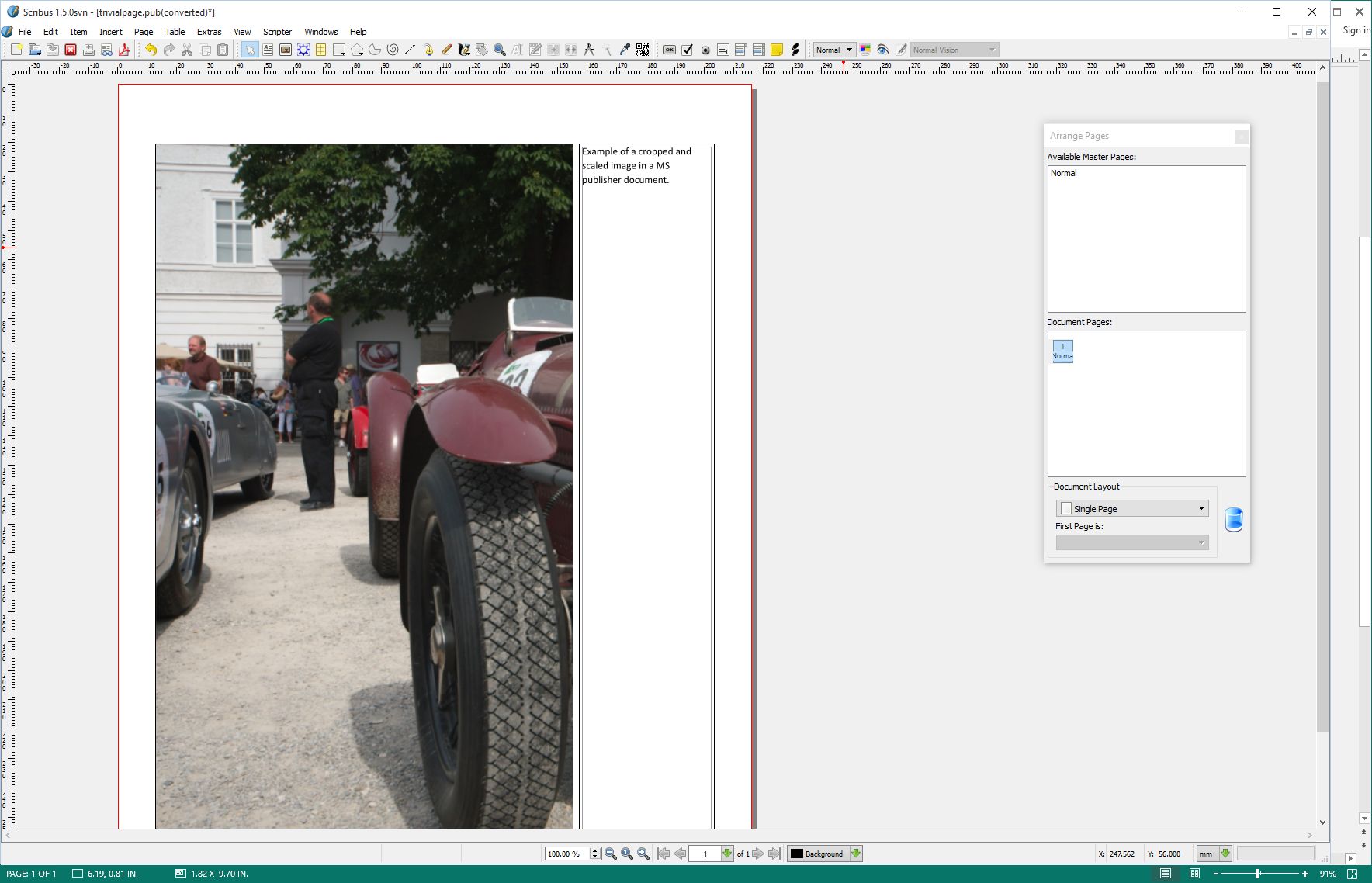

2015-09-06 11:19 alfaed File Added: trivialpagescribus.png
