View Issue Details

IDProjectCategoryView StatusLast Update
0016884ScribusUser Interfacepublic2024-07-12 14:15
Reporterpmjdebruijn Assigned To
PrioritynormalSeverityminorReproducibilityalways
Status newResolutionopen
Product Version1.6.0.svn
Summary0016884: Style Manager UI resizing
DescriptionCurrently when opening the Style Manager the first time, it's a fairly small window, however when pressing the "Edit >>" button, the window resizes (significantly larger) both horizontally and vertically. And when pressing the "<< Done" button, the window again resizes (significantly smaller) horizontally and vertically. This isn't great from a usability perspective.

The attached patch...
... enforces a minimum height for the Style Manager window, so in most cases the window will only resize horizontally (caveat, the minium height of 705pixels may vary per OS, due to default fonts, so this value may need to be slightly increased)
... enforces a minimum width for the Styles list box, as it often gets "crushed" when pressing the "Edit >>" button, when a Paragraph style is selected
TagsNo tags attached.
PatchYes

Relationships

related to 0017134 new remove the expanding / collapsing of the style manager

Activities

pmjdebruijn

2023-01-06 17:57

reporter

stylemanagerui.patch (1,049 bytes)
diff --git a/scribus/ui/stylemanager.ui b/scribus/ui/stylemanager.ui
index be11f8d6a..fd057cdf8 100644
--- a/scribus/ui/stylemanager.ui
+++ b/scribus/ui/stylemanager.ui
@@ -9,8 +9,8 @@
    <rect>
     <x>0</x>
     <y>0</y>
-    <width>772</width>
-    <height>422</height>
+    <width>775</width>
+    <height>705</height>
    </rect>
   </property>
   <property name="sizePolicy">
@@ -19,6 +19,12 @@
     <verstretch>0</verstretch>
    </sizepolicy>
   </property>
+  <property name="minimumSize">
+   <size>
+    <width>0</width>
+    <height>705</height>
+   </size>
+  </property>
   <property name="windowTitle">
    <string>Style Manager</string>
   </property>
@@ -53,6 +59,12 @@
            <verstretch>0</verstretch>
           </sizepolicy>
          </property>
+         <property name="minimumSize">
+          <size>
+           <width>272</width>
+           <height>0</height>
+          </size>
+         </property>
          <property name="contextMenuPolicy">
           <enum>Qt::CustomContextMenu</enum>
          </property>
stylemanagerui.patch (1,049 bytes)

PeterBenedek

2023-01-07 13:06

developer   ~0049856

Loose connection: 0009786

Hi pmjdebruijn,
Would you consider making a patch for the full size style editor window?
Edit button: unnecessary
Done button: unnecessary

Advantage if no "Edit button":
-- User friendly
-- Easy to use
-- Faster use
-- No jumping (small size -> full size -> small size). This is horrid.

The size of current monitors is already quite large, no need to reduce the window size, no point, no advantage.

pmjdebruijn

2023-01-07 13:22

reporter   ~0049857

I agree, that the button has no real use anymore, but I wanted to keep my first patch very small, so it has a very large chance of being accepted.

Removing the Edit button will likely involve a large amount of refactoring, which I might want to take a look at later (though it might end up being out of my league), though I won't attempt it if I'm not having success with my other patches being accepted as well...

pmjdebruijn

2023-01-11 17:06

reporter   ~0049877

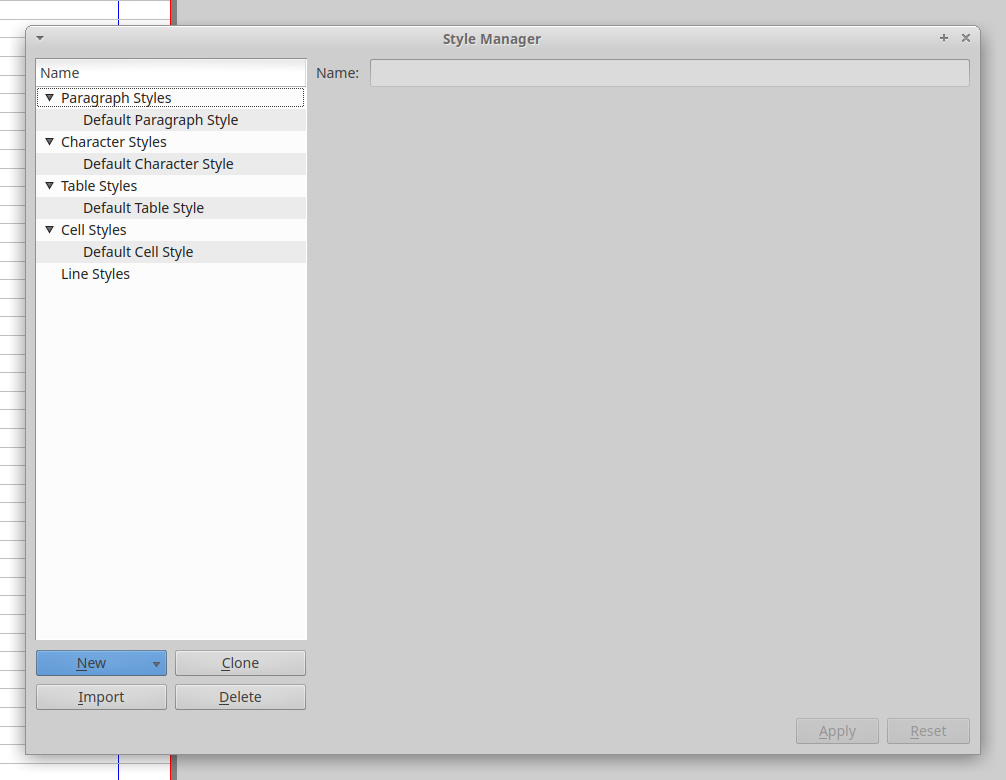

Here's minimalist patch that essentially removes the dialog modal button, which results in a much nicer user experience indeed.

The current implementation is erhm... hacky... but functional... I'll look into further refactoring...
stylemanager.patch (5,006 bytes)
Index: a/scribus/ui/stylemanager.cpp
===================================================================
--- a/scribus/ui/stylemanager.cpp	(revision 25249)
+++ a/scribus/ui/stylemanager.cpp	(working copy)
@@ -65,7 +65,6 @@
 	m_newPopup->setEnabled(false);

 	connect(m_newPopup, SIGNAL(triggered(QAction*)), this, SLOT(slotNewPopup(QAction*)));
-	connect(okButton, SIGNAL(clicked()), this, SLOT(slotOk()));
 	connect(importButton, SIGNAL(clicked()), this, SLOT(slotImport()));
 	connect(resetButton, SIGNAL(clicked()), this, SLOT(slotClean()));
 	connect(applyButton, SIGNAL(clicked()), this, SLOT(slotApply()));
@@ -79,6 +78,7 @@

 	languageChange();
 	slotOk();
+	slotOk();
 }

 void StyleManager::changeEvent(QEvent *e)
@@ -121,17 +121,11 @@
 	applyButton->setText( tr("&Apply"));
 	m_doneText= tr("&Done");
 	m_editText= tr("&Edit");
-	setOkButtonText();
 	newButton->setText( tr("&New"));
 	importButton->setText( tr("&Import"));
 	cloneButton->setText( tr("&Clone"));
 	deleteButton->setText( tr("&Delete"));

-	if (m_isEditMode)
-		okButton->setToolTip( m_exitEditModeOk);
-	else
-		okButton->setToolTip( m_enterEditModeOk);
-
 	if (m_shortcutWidget)
 		m_shortcutWidget->languageChange();

@@ -196,14 +190,6 @@
 	return nullptr;
 }

-void StyleManager::setOkButtonText()
-{
-	if (!m_isStoryEditMode)
-		okButton->setText(m_isEditMode ? "<< " + m_doneText : m_editText + " >>");
-	else
-		okButton->setText(CommonStrings::tr_OK);
-}
-
 void StyleManager::setDoc(ScribusDoc *doc)
 {
 	ScribusDoc* oldDoc = m_doc;
@@ -800,7 +786,6 @@
 		disconnect(styleView, SIGNAL(itemSelectionChanged()), this, SLOT(slotSetupWidget()));
 		slotApply();

-		okButton->setText(QString("%1 >>").arg( tr("&Edit")));
 		editFrame->hide();
 		applyButton->hide();
 		resetButton->hide();
@@ -811,7 +796,6 @@
 			m_items.at(i)->apply();
 			m_items.at(i)->editMode(false);
 		}
-		okButton->setToolTip( m_enterEditModeOk);
 		slotClean();
 		slotDocSelectionChanged();

@@ -853,13 +837,11 @@
 		m_isEditMode = true;
 		for (int i = 0; i < m_items.count(); ++i)
 			m_items.at(i)->editMode(true);
-		okButton->setToolTip( m_exitEditModeOk);
 		slotClean();

 		m_prefs->set("isEditMode", m_isEditMode);
 		connect(styleView, SIGNAL(itemSelectionChanged()), this, SLOT(slotSetupWidget()));
 	}
-	setOkButtonText();
 	isFirst = false;

 	resize(1, 1); // megahack to keep palette small
@@ -1036,7 +1018,6 @@
 {
 	if (m_item && name.isEmpty())
 	{
-		okButton->setEnabled(false);
 		applyButton->setEnabled(false);
 		return;
 	}
@@ -1043,7 +1024,6 @@
 	if (m_item && !nameIsUnique(name))
 	{
 		uniqueLabel->show();
-		okButton->setEnabled(false);
 		applyButton->setEnabled(false);
 		return;
 	}
@@ -1050,7 +1030,6 @@
 	if (uniqueLabel->isVisible())
 	{
 		uniqueLabel->hide();
-		okButton->setEnabled(true);
 		applyButton->setEnabled(true);
 	}

@@ -1410,7 +1389,6 @@
 		applyButton->setEnabled(false);
 		slotEdit();
 	}
-	setOkButtonText();
 	ScrPaletteBase::showEvent(e);
 	if (isFirst)
 	{
Index: a/scribus/ui/stylemanager.ui
===================================================================
--- a/scribus/ui/stylemanager.ui	(revision 25249)
+++ a/scribus/ui/stylemanager.ui	(working copy)
@@ -9,8 +9,8 @@
    <rect>
     <x>0</x>
     <y>0</y>
-    <width>772</width>
-    <height>422</height>
+    <width>954</width>
+    <height>705</height>
    </rect>
   </property>
   <property name="sizePolicy">
@@ -19,6 +19,12 @@
     <verstretch>0</verstretch>
    </sizepolicy>
   </property>
+  <property name="minimumSize">
+   <size>
+    <width>954</width>
+    <height>705</height>
+   </size>
+  </property>
   <property name="windowTitle">
    <string>Style Manager</string>
   </property>
@@ -53,6 +59,12 @@
            <verstretch>0</verstretch>
           </sizepolicy>
          </property>
+         <property name="minimumSize">
+          <size>
+           <width>272</width>
+           <height>0</height>
+          </size>
+         </property>
          <property name="contextMenuPolicy">
           <enum>Qt::CustomContextMenu</enum>
          </property>
@@ -372,28 +384,6 @@
         <number>0</number>
        </property>
        <item>
-        <widget class="QPushButton" name="okButton">
-         <property name="sizePolicy">
-          <sizepolicy hsizetype="Preferred" vsizetype="Fixed">
-           <horstretch>0</horstretch>
-           <verstretch>0</verstretch>
-          </sizepolicy>
-         </property>
-         <property name="minimumSize">
-          <size>
-           <width>85</width>
-           <height>24</height>
-          </size>
-         </property>
-         <property name="text">
-          <string>&lt;&lt; &amp;Done</string>
-         </property>
-         <property name="shortcut">
-          <string>Alt+D</string>
-         </property>
-        </widget>
-       </item>
-       <item>
         <widget class="QPushButton" name="applyButton">
          <property name="sizePolicy">
           <sizepolicy hsizetype="Preferred" vsizetype="Fixed">
stylemanager.patch (5,006 bytes)

pmjdebruijn

2023-01-11 18:32

reporter   ~0049879

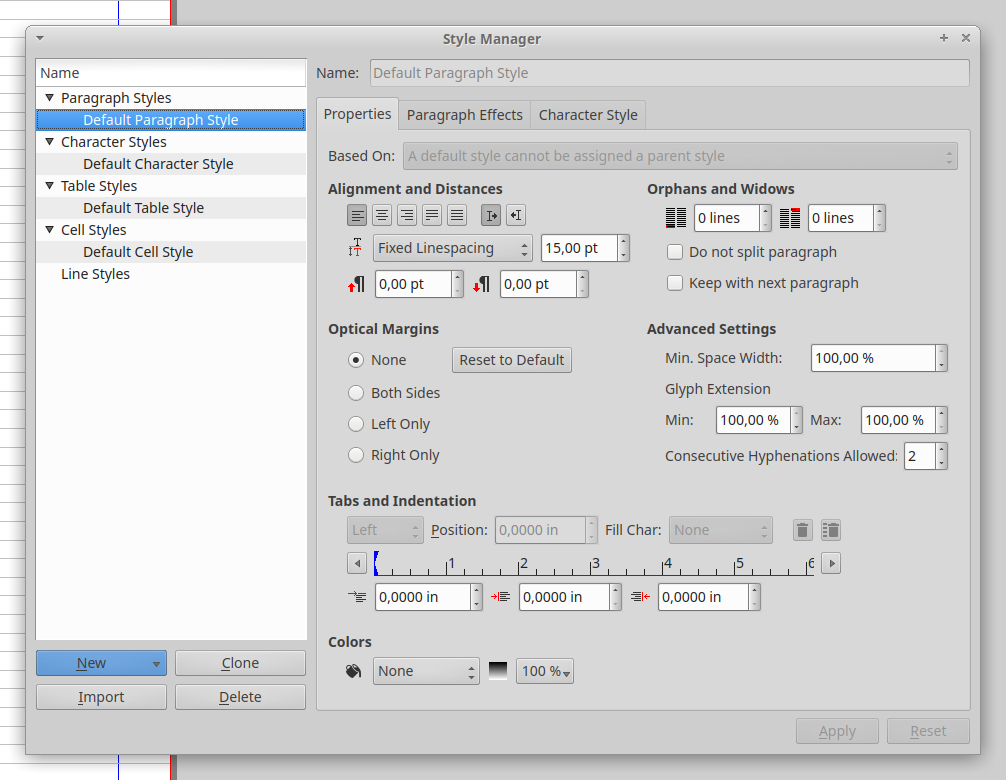

And this is with a very large part of the refactoring done.

@PeterBenedek, would you mind testing as well?
stylemanager-2.patch (13,450 bytes)
Index: a/scribus/ui/stylemanager.cpp
===================================================================
--- a/scribus/ui/stylemanager.cpp	(revision 25249)
+++ a/scribus/ui/stylemanager.cpp	(working copy)
@@ -65,7 +65,6 @@
 	m_newPopup->setEnabled(false);

 	connect(m_newPopup, SIGNAL(triggered(QAction*)), this, SLOT(slotNewPopup(QAction*)));
-	connect(okButton, SIGNAL(clicked()), this, SLOT(slotOk()));
 	connect(importButton, SIGNAL(clicked()), this, SLOT(slotImport()));
 	connect(resetButton, SIGNAL(clicked()), this, SLOT(slotClean()));
 	connect(applyButton, SIGNAL(clicked()), this, SLOT(slotApply()));
@@ -99,11 +98,6 @@
 /***********************************/
 // These are for general Style Manager widgets (not for c/pstyles except the name field

-	// for the "<< Done" button when in edit mode
-	m_exitEditModeOk = tr("Apply all changes and exit edit mode");
-	// for the "Edit >>" button when not in edit mode
-	m_enterEditModeOk= tr("Edit styles");
-
 	nameEdit->setToolTip(     tr("Name of the selected style"));
 	resetButton->setToolTip(  tr("Reset all changes"));
 	applyButton->setToolTip(  tr("Apply all changes"));
@@ -121,17 +115,11 @@
 	applyButton->setText( tr("&Apply"));
 	m_doneText= tr("&Done");
 	m_editText= tr("&Edit");
-	setOkButtonText();
 	newButton->setText( tr("&New"));
 	importButton->setText( tr("&Import"));
 	cloneButton->setText( tr("&Clone"));
 	deleteButton->setText( tr("&Delete"));

-	if (m_isEditMode)
-		okButton->setToolTip( m_exitEditModeOk);
-	else
-		okButton->setToolTip( m_enterEditModeOk);
-
 	if (m_shortcutWidget)
 		m_shortcutWidget->languageChange();

@@ -196,14 +184,6 @@
 	return nullptr;
 }

-void StyleManager::setOkButtonText()
-{
-	if (!m_isStoryEditMode)
-		okButton->setText(m_isEditMode ? "<< " + m_doneText : m_editText + " >>");
-	else
-		okButton->setText(CommonStrings::tr_OK);
-}
-
 void StyleManager::setDoc(ScribusDoc *doc)
 {
 	ScribusDoc* oldDoc = m_doc;
@@ -290,9 +270,6 @@

 void StyleManager::slotDelete()
 {
-	if (!m_isEditMode)
-		slotOk(); // switch to edit mode before deleting
-
 	QStringList selected;

 	if (!m_rcStyle.isNull())
@@ -379,8 +356,6 @@
 //#7315 		QList<QPair<QString, QString> > selected;
 	if (dia2->exec())
 	{
-//#7385 			if (!m_isEditMode)
-//#7385 				slotOk();
 		QStringList neededColors;
 		neededColors.clear();

@@ -505,9 +480,6 @@

 void StyleManager::slotEdit()
 {
-	if (!m_isEditMode)
-		slotOk(); // switch to edit mode for cloning
-
 	if (m_rcStyle.isNull())
 		return;

@@ -534,9 +506,6 @@

 void StyleManager::slotClone()
 {
-	if (!m_isEditMode)
-		slotOk(); // switch to edit mode for cloning
-
 	if (!m_rcStyle.isNull())
 	{
 		QTreeWidgetItemIterator it(styleView);
@@ -582,10 +551,6 @@

 void StyleManager::slotNew()
 {
-//#5334: Don't open into edit mdoe until user has selected a style type
-// 	if (!m_isEditMode)
-// 		slotOk(); // switch to edit mode for a new style
-
 	// TODO maybe there's something more clever for this
 	m_newPopup->exec(newButton->mapToGlobal(QPoint(0, newButton->height() + 2)));
 }
@@ -592,9 +557,6 @@

 void StyleManager::slotNewPopup(QAction *action)
 {
-	if (!m_isEditMode)
-		slotOk(); // switch to edit mode for a new style
-
 	QString typeName = m_rcType;
 	QString actionType = action->data().toString();
 	if (actionType.isEmpty())
@@ -621,7 +583,7 @@
 	m_rcStyle.clear();
 	m_rcType.clear();

-	if (m_isEditMode && item) // make item the only selection if in edit mode
+	if (item) // make item the only selection if in edit mode
 	{                        // default behaviour for right clicking is not to select the item
 		styleView->clearSelection();
 		styleView->setCurrentItem(item);
@@ -705,7 +667,7 @@
 	m_rcStyle.clear();
 	m_rcType.clear();

-	if (m_isEditMode && item) // make item the only selection if in edit mode
+	if (item) // make item the only selection if in edit mode
 	{
 		styleView->clearSelection();
 		styleView->setCurrentItem(item);
@@ -724,8 +686,6 @@
 	{
 		//slotOk will recreate all items so sitem is invalid after that call
 		QString itext = sitem->text(0);
-		if (!m_isEditMode)
-			slotOk();
 		createNewStyle(itext);
 	}
 	m_rcStyle.clear();
@@ -794,77 +754,21 @@
 // open or close edit mode
 void StyleManager::slotOk()
 {
-	static bool isFirst = true;
-	if (m_isEditMode)
-	{
-		disconnect(styleView, SIGNAL(itemSelectionChanged()), this, SLOT(slotSetupWidget()));
-		slotApply();
+	slotSetupWidget();

-		okButton->setText(QString("%1 >>").arg( tr("&Edit")));
-		editFrame->hide();
-		applyButton->hide();
-		resetButton->hide();
-		rightFrame->hide();
-		m_isEditMode = false;
-		for (int i = 0; i < m_items.count(); ++i)
-		{
-			m_items.at(i)->apply();
-			m_items.at(i)->editMode(false);
-		}
-		okButton->setToolTip( m_enterEditModeOk);
-		slotClean();
-		slotDocSelectionChanged();
+	m_editPosition.setX(x());
+	m_editPosition.setY(y());
+	m_prefs->set("eX", x());
+	m_prefs->set("eY", y());
+	editFrame->show();
+	applyButton->show();
+	resetButton->show();
+	rightFrame->show();
+	for (int i = 0; i < m_items.count(); ++i)
+		m_items.at(i)->editMode(true);
+	slotClean();

-		if (!isFirst)
-			move(m_editPosition);
-		m_prefs->set("isEditMode", m_isEditMode);
-// 		qDebug() <<"CONNECT slotOK";
-// 		connect(styleView, SIGNAL(currentItemChanged(QTreeWidgetItem*,QTreeWidgetItem*)),
-// 		        this, SLOT(slotApplyStyle(QTreeWidgetItem*,QTreeWidgetItem*)));
-// 		connect(styleView, SIGNAL(itemClicked(QTreeWidgetItem*,int)),
-// 				this, SLOT(slotApplyStyle(QTreeWidgetItem*,int)));
-		if (m_isStoryEditMode)
-		{
-			m_isStoryEditMode=false;
-			hide();
-		}
-
-		m_rcStyle.clear();
-		m_rcType.clear();
-	}
-	else
-	{
-// 		qDebug() <<"DISCONNECT slotOK";
-// 		disconnect(styleView, SIGNAL(currentItemChanged(QTreeWidgetItem*,QTreeWidgetItem*)),
-// 				   this, SLOT(slotApplyStyle(QTreeWidgetItem*,QTreeWidgetItem*)));
-// 		disconnect(styleView, SIGNAL(itemClicked(QTreeWidgetItem*,int)),
-// 				   this, SLOT(slotApplyStyle(QTreeWidgetItem*,int)));
-
-		slotSetupWidget();
-
-		m_editPosition.setX(x());
-		m_editPosition.setY(y());
-		m_prefs->set("eX", x());
-		m_prefs->set("eY", y());
-		editFrame->show();
-		applyButton->show();
-		resetButton->show();
-		rightFrame->show();
-		m_isEditMode = true;
-		for (int i = 0; i < m_items.count(); ++i)
-			m_items.at(i)->editMode(true);
-		okButton->setToolTip( m_exitEditModeOk);
-		slotClean();
-
-		m_prefs->set("isEditMode", m_isEditMode);
-		connect(styleView, SIGNAL(itemSelectionChanged()), this, SLOT(slotSetupWidget()));
-	}
-	setOkButtonText();
-	isFirst = false;
-
-	resize(1, 1); // megahack to keep palette small
-	updateGeometry();
-	adjustSize();
+	connect(styleView, SIGNAL(itemSelectionChanged()), this, SLOT(slotSetupWidget()));
 }

 void StyleManager::addNewType(StyleItem *item, bool loadFromDoc)
@@ -954,18 +858,16 @@
 		++it;
 	}

-	if (m_isEditMode)
+	StyleItem *tmp = m_item;
+
+	for (int i = 0; i < m_items.count(); ++i)
 	{
-		StyleItem *tmp = m_item;
+		m_item = m_items.at(i);
+		reloadStyleView();
+	}
+	slotSetupWidget();
+	m_item = tmp;

-		for (int i = 0; i < m_items.count(); ++i)
-		{
-			m_item = m_items.at(i);
-			reloadStyleView();
-		}
-		slotSetupWidget();
-		m_item = tmp;
-	}
 	applyButton->setEnabled(false);
 	resetButton->setEnabled(false);
 	uniqueLabel->hide();
@@ -1036,7 +938,6 @@
 {
 	if (m_item && name.isEmpty())
 	{
-		okButton->setEnabled(false);
 		applyButton->setEnabled(false);
 		return;
 	}
@@ -1043,7 +944,6 @@
 	if (m_item && !nameIsUnique(name))
 	{
 		uniqueLabel->show();
-		okButton->setEnabled(false);
 		applyButton->setEnabled(false);
 		return;
 	}
@@ -1050,7 +950,6 @@
 	if (uniqueLabel->isVisible())
 	{
 		uniqueLabel->hide();
-		okButton->setEnabled(true);
 		applyButton->setEnabled(true);
 	}

@@ -1146,18 +1045,7 @@

 void StyleManager::slotApplyStyle(const QString& keyString)
 {
-	if (m_isEditMode)
-		return;
-
-	QStringList slist = keyString.split(SEPARATOR, Qt::SkipEmptyParts);
-	Q_ASSERT(slist.count() == 2);
-
-	loadType(slist[0]);
-	m_item->toSelection(slist[1]);
-	slotDocSelectionChanged();
-
-	m_rcStyle.clear();
-	m_rcType.clear();
+	return;
 }

 bool StyleManager::nameIsUnique(const QString &name)
@@ -1224,7 +1112,7 @@
 {
 	StyleViewItem *sitem = dynamic_cast<StyleViewItem*>(item);

-	if (m_isEditMode || !sitem || sitem->isRoot())
+	if (!sitem || sitem->isRoot())
 		return; // don't apply a style in edit mode or if there was no item/type selected

 	styleView->clearSelection();
@@ -1254,44 +1142,7 @@

 void StyleManager::slotDocSelectionChanged()
 {
-	if (m_isEditMode)
-		return; // don't track changes when in edit mode
-
-// 	qDebug() << "Style Manager : doc selection changed";
-
-// 	qDebug() <<"DISCONNECT slotDocSelectionChanged";
-// 	disconnect(styleView, SIGNAL(currentItemChanged(QTreeWidgetItem*, QTreeWidgetItem*)),
-// 	           this, SLOT(slotApplyStyle(QTreeWidgetItem*, QTreeWidgetItem*)));
-
-	styleView->clearSelection();
-
-	QList<QPair<QString, QString> > selected;
-
-	for (int i = 0; i < m_items.count(); ++i)
-		selected << QPair<QString, QString>(m_items.at(i)->typeName(), m_items.at(i)->fromSelection());
-
-	QTreeWidgetItemIterator it(styleView, QTreeWidgetItemIterator::Selectable);
-	StyleViewItem *item;
-
-	while (*it)
-	{
-		item = dynamic_cast<StyleViewItem*>(*it);
-		if (item)
-		{
-			for (int i = 0; i < selected.count(); ++i)
-			{
-				if (item->rootName() == selected[i].first && item->text(NAME_COL) == selected[i].second)
-				{
-					styleView->setCurrentItem(item);
-					item->setSelected(true);
-				}
-			}
-		}
-		++it;
-	}
-// 	qDebug() <<"CONNECT slotDocSelectionChanged";
-// 	connect(styleView, SIGNAL(currentItemChanged(QTreeWidgetItem*,QTreeWidgetItem*)),
-// 	        this, SLOT(slotApplyStyle(QTreeWidgetItem*,QTreeWidgetItem*)));
+	return; // don't track changes when in edit mode
 }

 void StyleManager::slotDocStylesChanged()
@@ -1379,7 +1230,6 @@
 		disconnect(m_doc->m_Selection, SIGNAL(selectionChanged()), this, SLOT(slotDocSelectionChanged()));
 	m_prefs->set("eX", x());
 	m_prefs->set("eY", y());
-	m_prefs->set("isEditMode", m_isEditMode);
 	m_prefs->set("InitX", x());
 	m_prefs->set("InitY", y());
 	storeVisibility(false);
@@ -1392,7 +1242,6 @@
 {
 	m_prefs->set("eX", x());
 	m_prefs->set("eY", y());
-	m_prefs->set("isEditMode", m_isEditMode);
 	m_prefs->set("InitX", x());
 	m_prefs->set("InitY", y());
 	storeVisibility(false);
@@ -1410,7 +1259,6 @@
 		applyButton->setEnabled(false);
 		slotEdit();
 	}
-	setOkButtonText();
 	ScrPaletteBase::showEvent(e);
 	if (isFirst)
 	{
@@ -1426,7 +1274,6 @@
 {
 	m_prefs->set("eX", x());
 	m_prefs->set("eY", y());
-	m_prefs->set("isEditMode", m_isEditMode);
 	m_prefs->set("InitX", x());
 	m_prefs->set("InitY", y());
 	storeVisibility(this->isVisible());
Index: a/scribus/ui/stylemanager.h
===================================================================
--- a/scribus/ui/stylemanager.h	(revision 25249)
+++ a/scribus/ui/stylemanager.h	(working copy)
@@ -64,13 +64,10 @@
 //	QAction            *m_rcpToScrapId;
 	ScrAction	*m_selectedStyleAction { nullptr };

-	bool                m_isEditMode { true };
 	bool                m_isStoryEditMode { false };
 	QPoint              m_editPosition;
 	QString             m_rcStyle;
 	QString             m_rcType;
-	QString             m_exitEditModeOk;
-	QString             m_enterEditModeOk;
 	QString             m_doneText;
 	QString             m_editText;

Index: a/scribus/ui/stylemanager.ui
===================================================================
--- a/scribus/ui/stylemanager.ui	(revision 25249)
+++ a/scribus/ui/stylemanager.ui	(working copy)
@@ -9,8 +9,8 @@
    <rect>
     <x>0</x>
     <y>0</y>
-    <width>772</width>
-    <height>422</height>
+    <width>954</width>
+    <height>705</height>
    </rect>
   </property>
   <property name="sizePolicy">
@@ -19,6 +19,12 @@
     <verstretch>0</verstretch>
    </sizepolicy>
   </property>
+  <property name="minimumSize">
+   <size>
+    <width>954</width>
+    <height>705</height>
+   </size>
+  </property>
   <property name="windowTitle">
    <string>Style Manager</string>
   </property>
@@ -53,6 +59,12 @@
            <verstretch>0</verstretch>
           </sizepolicy>
          </property>
+         <property name="minimumSize">
+          <size>
+           <width>272</width>
+           <height>0</height>
+          </size>
+         </property>
          <property name="contextMenuPolicy">
           <enum>Qt::CustomContextMenu</enum>
          </property>
@@ -372,28 +384,6 @@
         <number>0</number>
        </property>
        <item>
-        <widget class="QPushButton" name="okButton">
-         <property name="sizePolicy">
-          <sizepolicy hsizetype="Preferred" vsizetype="Fixed">
-           <horstretch>0</horstretch>
-           <verstretch>0</verstretch>
-          </sizepolicy>
-         </property>
-         <property name="minimumSize">
-          <size>
-           <width>85</width>
-           <height>24</height>
-          </size>
-         </property>
-         <property name="text">
-          <string>&lt;&lt; &amp;Done</string>
-         </property>
-         <property name="shortcut">
-          <string>Alt+D</string>
-         </property>
-        </widget>
-       </item>
-       <item>
         <widget class="QPushButton" name="applyButton">
          <property name="sizePolicy">
           <sizepolicy hsizetype="Preferred" vsizetype="Fixed">
stylemanager-2.patch (13,450 bytes)

PeterBenedek

2023-01-11 20:03

developer   ~0049881

Thank you very mutch pmjdebruijn!
It is huge patch.

pmjdebruijn

2023-01-12 17:10

reporter   ~0049888

Here's two screenshots illustrating how the Style Manager dialog looks after the patch:

ale

2023-01-12 17:23

manager   ~0049889

i won't miss the removed buttons!

but the save and cancel could be at the same height as the lower ones on the left side...

PeterBenedek

2023-01-12 17:35

developer   ~0049890

Excellent work!

pmjdebruijn

2023-01-12 17:56

reporter   ~0049891

@ale, moving Apply/Reset into the right pane would suggest it only applies/reset the currently edited style, but those button apply to ALL edited styles, thus those buttons are exactly where they should be.

PeterBenedek

2023-01-12 18:13

developer   ~0049892

Last edited: 2023-01-12 18:21

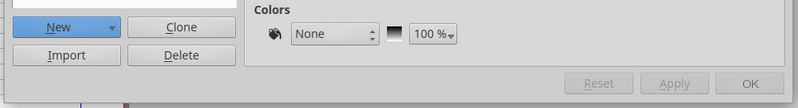

I just want an OK button that applies the style and closes the window (but not important)

PeterBenedek

2023-01-12 18:19

developer   ~0049893

Clipboard 1.jpg (17,089 bytes)
Clipboard 1.jpg (17,089 bytes)

pmjdebruijn

2023-01-12 18:47

reporter   ~0049894

I'd first like to see my work thus far committed before investing more time though...

pmjdebruijn

2023-01-12 18:54

reporter   ~0049895

As @PeterBenedek pointed out, this also obsoletes 0009786

pmjdebruijn

2023-01-13 16:12

reporter   ~0049902

@jghali would you please take a look?

ale

2023-01-14 08:28

manager   ~0049908

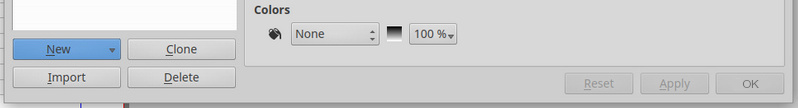

i wonder if it's hard to achieve something like this...
Clipboard 1-2.jpg (23,334 bytes)
Clipboard 1-2.jpg (23,334 bytes)

pmjdebruijn

2023-01-14 10:43

reporter   ~0049910

@ale @PeterBenedek suggested this as well, I might take a stab at this, if my patch thus far gets committed first.

PeterBenedek

2023-01-14 11:13

developer   ~0049911

ale's suggestion: New, Clone, Import and Delete buttons should be at the bottom of the window.
I don't insist on that.

pmjdebruijn

2023-01-14 11:42

reporter   ~0049913

@PeterBenedek @ale, I won't be doing that, I think that looks much much much worse... It also makes the signalling what belongs to what slightly worse, so it's probably a minor degradation of usability as well.

ale

2023-01-14 17:04

manager   ~0049917

all in all, waiting for the current patch being applied is fine : - )

PeterBenedek

2023-01-15 19:03

developer   ~0049934

Last edited: 2023-01-16 15:06

@jghali, do you see any chance of this long awaited modification being implemented?

pmjdebruijn

2023-01-25 16:55

reporter   ~0049978

@jghali, I realize this somewhat larger patch is a bit more time consuming to review, but I've noticed no regressions thus far, any chance for you to take a look and consider it for inclusion?

PeterBenedek

2023-03-16 14:47

developer   ~0050032

Hi @jghali.
Maybe you didn't notice this patch...
 @jghali, do you see any chance of this long awaited modification being applied?

jghali

2023-03-16 17:42

administrator   ~0050033

I just did a quick test : I cannot apply this patch because it makes style manager much too big on my 15" screen. I can not even resize the window or access the buttons at the bottom of the dialog. One big problem for me is also that it removes the "Apply Style" functionality.

pmjdebruijn

2023-03-20 18:20

reporter   ~0050041

@jghali, can you try without the changes in the .ui file? As those aren't critical...

pmjdebruijn

2023-03-21 17:25

reporter   ~0050042

Please try this one
stylemanager-3.patch (12,568 bytes)
Index: a/scribus/ui/stylemanager.cpp
===================================================================
--- a/scribus/ui/stylemanager.cpp	(revision 25249)
+++ a/scribus/ui/stylemanager.cpp	(working copy)
@@ -65,7 +65,6 @@
 	m_newPopup->setEnabled(false);

 	connect(m_newPopup, SIGNAL(triggered(QAction*)), this, SLOT(slotNewPopup(QAction*)));
-	connect(okButton, SIGNAL(clicked()), this, SLOT(slotOk()));
 	connect(importButton, SIGNAL(clicked()), this, SLOT(slotImport()));
 	connect(resetButton, SIGNAL(clicked()), this, SLOT(slotClean()));
 	connect(applyButton, SIGNAL(clicked()), this, SLOT(slotApply()));
@@ -99,11 +98,6 @@
 /***********************************/
 // These are for general Style Manager widgets (not for c/pstyles except the name field

-	// for the "<< Done" button when in edit mode
-	m_exitEditModeOk = tr("Apply all changes and exit edit mode");
-	// for the "Edit >>" button when not in edit mode
-	m_enterEditModeOk= tr("Edit styles");
-
 	nameEdit->setToolTip(     tr("Name of the selected style"));
 	resetButton->setToolTip(  tr("Reset all changes"));
 	applyButton->setToolTip(  tr("Apply all changes"));
@@ -121,17 +115,11 @@
 	applyButton->setText( tr("&Apply"));
 	m_doneText= tr("&Done");
 	m_editText= tr("&Edit");
-	setOkButtonText();
 	newButton->setText( tr("&New"));
 	importButton->setText( tr("&Import"));
 	cloneButton->setText( tr("&Clone"));
 	deleteButton->setText( tr("&Delete"));

-	if (m_isEditMode)
-		okButton->setToolTip( m_exitEditModeOk);
-	else
-		okButton->setToolTip( m_enterEditModeOk);
-
 	if (m_shortcutWidget)
 		m_shortcutWidget->languageChange();

@@ -196,14 +184,6 @@
 	return nullptr;
 }

-void StyleManager::setOkButtonText()
-{
-	if (!m_isStoryEditMode)
-		okButton->setText(m_isEditMode ? "<< " + m_doneText : m_editText + " >>");
-	else
-		okButton->setText(CommonStrings::tr_OK);
-}
-
 void StyleManager::setDoc(ScribusDoc *doc)
 {
 	ScribusDoc* oldDoc = m_doc;
@@ -290,9 +270,6 @@

 void StyleManager::slotDelete()
 {
-	if (!m_isEditMode)
-		slotOk(); // switch to edit mode before deleting
-
 	QStringList selected;

 	if (!m_rcStyle.isNull())
@@ -379,8 +356,6 @@
 //#7315 		QList<QPair<QString, QString> > selected;
 	if (dia2->exec())
 	{
-//#7385 			if (!m_isEditMode)
-//#7385 				slotOk();
 		QStringList neededColors;
 		neededColors.clear();

@@ -505,9 +480,6 @@

 void StyleManager::slotEdit()
 {
-	if (!m_isEditMode)
-		slotOk(); // switch to edit mode for cloning
-
 	if (m_rcStyle.isNull())
 		return;

@@ -534,9 +506,6 @@

 void StyleManager::slotClone()
 {
-	if (!m_isEditMode)
-		slotOk(); // switch to edit mode for cloning
-
 	if (!m_rcStyle.isNull())
 	{
 		QTreeWidgetItemIterator it(styleView);
@@ -582,10 +551,6 @@

 void StyleManager::slotNew()
 {
-//#5334: Don't open into edit mdoe until user has selected a style type
-// 	if (!m_isEditMode)
-// 		slotOk(); // switch to edit mode for a new style
-
 	// TODO maybe there's something more clever for this
 	m_newPopup->exec(newButton->mapToGlobal(QPoint(0, newButton->height() + 2)));
 }
@@ -592,9 +557,6 @@

 void StyleManager::slotNewPopup(QAction *action)
 {
-	if (!m_isEditMode)
-		slotOk(); // switch to edit mode for a new style
-
 	QString typeName = m_rcType;
 	QString actionType = action->data().toString();
 	if (actionType.isEmpty())
@@ -621,7 +583,7 @@
 	m_rcStyle.clear();
 	m_rcType.clear();

-	if (m_isEditMode && item) // make item the only selection if in edit mode
+	if (item) // make item the only selection if in edit mode
 	{                        // default behaviour for right clicking is not to select the item
 		styleView->clearSelection();
 		styleView->setCurrentItem(item);
@@ -705,7 +667,7 @@
 	m_rcStyle.clear();
 	m_rcType.clear();

-	if (m_isEditMode && item) // make item the only selection if in edit mode
+	if (item) // make item the only selection if in edit mode
 	{
 		styleView->clearSelection();
 		styleView->setCurrentItem(item);
@@ -724,8 +686,6 @@
 	{
 		//slotOk will recreate all items so sitem is invalid after that call
 		QString itext = sitem->text(0);
-		if (!m_isEditMode)
-			slotOk();
 		createNewStyle(itext);
 	}
 	m_rcStyle.clear();
@@ -794,77 +754,21 @@
 // open or close edit mode
 void StyleManager::slotOk()
 {
-	static bool isFirst = true;
-	if (m_isEditMode)
-	{
-		disconnect(styleView, SIGNAL(itemSelectionChanged()), this, SLOT(slotSetupWidget()));
-		slotApply();
+	slotSetupWidget();

-		okButton->setText(QString("%1 >>").arg( tr("&Edit")));
-		editFrame->hide();
-		applyButton->hide();
-		resetButton->hide();
-		rightFrame->hide();
-		m_isEditMode = false;
-		for (int i = 0; i < m_items.count(); ++i)
-		{
-			m_items.at(i)->apply();
-			m_items.at(i)->editMode(false);
-		}
-		okButton->setToolTip( m_enterEditModeOk);
-		slotClean();
-		slotDocSelectionChanged();
+	m_editPosition.setX(x());
+	m_editPosition.setY(y());
+	m_prefs->set("eX", x());
+	m_prefs->set("eY", y());
+	editFrame->show();
+	applyButton->show();
+	resetButton->show();
+	rightFrame->show();
+	for (int i = 0; i < m_items.count(); ++i)
+		m_items.at(i)->editMode(true);
+	slotClean();

-		if (!isFirst)
-			move(m_editPosition);
-		m_prefs->set("isEditMode", m_isEditMode);
-// 		qDebug() <<"CONNECT slotOK";
-// 		connect(styleView, SIGNAL(currentItemChanged(QTreeWidgetItem*,QTreeWidgetItem*)),
-// 		        this, SLOT(slotApplyStyle(QTreeWidgetItem*,QTreeWidgetItem*)));
-// 		connect(styleView, SIGNAL(itemClicked(QTreeWidgetItem*,int)),
-// 				this, SLOT(slotApplyStyle(QTreeWidgetItem*,int)));
-		if (m_isStoryEditMode)
-		{
-			m_isStoryEditMode=false;
-			hide();
-		}
-
-		m_rcStyle.clear();
-		m_rcType.clear();
-	}
-	else
-	{
-// 		qDebug() <<"DISCONNECT slotOK";
-// 		disconnect(styleView, SIGNAL(currentItemChanged(QTreeWidgetItem*,QTreeWidgetItem*)),
-// 				   this, SLOT(slotApplyStyle(QTreeWidgetItem*,QTreeWidgetItem*)));
-// 		disconnect(styleView, SIGNAL(itemClicked(QTreeWidgetItem*,int)),
-// 				   this, SLOT(slotApplyStyle(QTreeWidgetItem*,int)));
-
-		slotSetupWidget();
-
-		m_editPosition.setX(x());
-		m_editPosition.setY(y());
-		m_prefs->set("eX", x());
-		m_prefs->set("eY", y());
-		editFrame->show();
-		applyButton->show();
-		resetButton->show();
-		rightFrame->show();
-		m_isEditMode = true;
-		for (int i = 0; i < m_items.count(); ++i)
-			m_items.at(i)->editMode(true);
-		okButton->setToolTip( m_exitEditModeOk);
-		slotClean();
-
-		m_prefs->set("isEditMode", m_isEditMode);
-		connect(styleView, SIGNAL(itemSelectionChanged()), this, SLOT(slotSetupWidget()));
-	}
-	setOkButtonText();
-	isFirst = false;
-
-	resize(1, 1); // megahack to keep palette small
-	updateGeometry();
-	adjustSize();
+	connect(styleView, SIGNAL(itemSelectionChanged()), this, SLOT(slotSetupWidget()));
 }

 void StyleManager::addNewType(StyleItem *item, bool loadFromDoc)
@@ -954,18 +858,16 @@
 		++it;
 	}

-	if (m_isEditMode)
+	StyleItem *tmp = m_item;
+
+	for (int i = 0; i < m_items.count(); ++i)
 	{
-		StyleItem *tmp = m_item;
+		m_item = m_items.at(i);
+		reloadStyleView();
+	}
+	slotSetupWidget();
+	m_item = tmp;

-		for (int i = 0; i < m_items.count(); ++i)
-		{
-			m_item = m_items.at(i);
-			reloadStyleView();
-		}
-		slotSetupWidget();
-		m_item = tmp;
-	}
 	applyButton->setEnabled(false);
 	resetButton->setEnabled(false);
 	uniqueLabel->hide();
@@ -1036,7 +938,6 @@
 {
 	if (m_item && name.isEmpty())
 	{
-		okButton->setEnabled(false);
 		applyButton->setEnabled(false);
 		return;
 	}
@@ -1043,7 +944,6 @@
 	if (m_item && !nameIsUnique(name))
 	{
 		uniqueLabel->show();
-		okButton->setEnabled(false);
 		applyButton->setEnabled(false);
 		return;
 	}
@@ -1050,7 +950,6 @@
 	if (uniqueLabel->isVisible())
 	{
 		uniqueLabel->hide();
-		okButton->setEnabled(true);
 		applyButton->setEnabled(true);
 	}

@@ -1146,18 +1045,7 @@

 void StyleManager::slotApplyStyle(const QString& keyString)
 {
-	if (m_isEditMode)
-		return;
-
-	QStringList slist = keyString.split(SEPARATOR, Qt::SkipEmptyParts);
-	Q_ASSERT(slist.count() == 2);
-
-	loadType(slist[0]);
-	m_item->toSelection(slist[1]);
-	slotDocSelectionChanged();
-
-	m_rcStyle.clear();
-	m_rcType.clear();
+	return;
 }

 bool StyleManager::nameIsUnique(const QString &name)
@@ -1224,7 +1112,7 @@
 {
 	StyleViewItem *sitem = dynamic_cast<StyleViewItem*>(item);

-	if (m_isEditMode || !sitem || sitem->isRoot())
+	if (!sitem || sitem->isRoot())
 		return; // don't apply a style in edit mode or if there was no item/type selected

 	styleView->clearSelection();
@@ -1254,44 +1142,7 @@

 void StyleManager::slotDocSelectionChanged()
 {
-	if (m_isEditMode)
-		return; // don't track changes when in edit mode
-
-// 	qDebug() << "Style Manager : doc selection changed";
-
-// 	qDebug() <<"DISCONNECT slotDocSelectionChanged";
-// 	disconnect(styleView, SIGNAL(currentItemChanged(QTreeWidgetItem*, QTreeWidgetItem*)),
-// 	           this, SLOT(slotApplyStyle(QTreeWidgetItem*, QTreeWidgetItem*)));
-
-	styleView->clearSelection();
-
-	QList<QPair<QString, QString> > selected;
-
-	for (int i = 0; i < m_items.count(); ++i)
-		selected << QPair<QString, QString>(m_items.at(i)->typeName(), m_items.at(i)->fromSelection());
-
-	QTreeWidgetItemIterator it(styleView, QTreeWidgetItemIterator::Selectable);
-	StyleViewItem *item;
-
-	while (*it)
-	{
-		item = dynamic_cast<StyleViewItem*>(*it);
-		if (item)
-		{
-			for (int i = 0; i < selected.count(); ++i)
-			{
-				if (item->rootName() == selected[i].first && item->text(NAME_COL) == selected[i].second)
-				{
-					styleView->setCurrentItem(item);
-					item->setSelected(true);
-				}
-			}
-		}
-		++it;
-	}
-// 	qDebug() <<"CONNECT slotDocSelectionChanged";
-// 	connect(styleView, SIGNAL(currentItemChanged(QTreeWidgetItem*,QTreeWidgetItem*)),
-// 	        this, SLOT(slotApplyStyle(QTreeWidgetItem*,QTreeWidgetItem*)));
+	return; // don't track changes when in edit mode
 }

 void StyleManager::slotDocStylesChanged()
@@ -1379,7 +1230,6 @@
 		disconnect(m_doc->m_Selection, SIGNAL(selectionChanged()), this, SLOT(slotDocSelectionChanged()));
 	m_prefs->set("eX", x());
 	m_prefs->set("eY", y());
-	m_prefs->set("isEditMode", m_isEditMode);
 	m_prefs->set("InitX", x());
 	m_prefs->set("InitY", y());
 	storeVisibility(false);
@@ -1392,7 +1242,6 @@
 {
 	m_prefs->set("eX", x());
 	m_prefs->set("eY", y());
-	m_prefs->set("isEditMode", m_isEditMode);
 	m_prefs->set("InitX", x());
 	m_prefs->set("InitY", y());
 	storeVisibility(false);
@@ -1410,7 +1259,6 @@
 		applyButton->setEnabled(false);
 		slotEdit();
 	}
-	setOkButtonText();
 	ScrPaletteBase::showEvent(e);
 	if (isFirst)
 	{
@@ -1426,7 +1274,6 @@
 {
 	m_prefs->set("eX", x());
 	m_prefs->set("eY", y());
-	m_prefs->set("isEditMode", m_isEditMode);
 	m_prefs->set("InitX", x());
 	m_prefs->set("InitY", y());
 	storeVisibility(this->isVisible());
Index: a/scribus/ui/stylemanager.h
===================================================================
--- a/scribus/ui/stylemanager.h	(revision 25249)
+++ a/scribus/ui/stylemanager.h	(working copy)
@@ -64,13 +64,10 @@
 //	QAction            *m_rcpToScrapId;
 	ScrAction	*m_selectedStyleAction { nullptr };

-	bool                m_isEditMode { true };
 	bool                m_isStoryEditMode { false };
 	QPoint              m_editPosition;
 	QString             m_rcStyle;
 	QString             m_rcType;
-	QString             m_exitEditModeOk;
-	QString             m_enterEditModeOk;
 	QString             m_doneText;
 	QString             m_editText;

Index: a/scribus/ui/stylemanager.ui
===================================================================
--- a/scribus/ui/stylemanager.ui	(revision 25249)
+++ a/scribus/ui/stylemanager.ui	(working copy)
@@ -372,28 +384,6 @@
         <number>0</number>
        </property>
        <item>
-        <widget class="QPushButton" name="okButton">
-         <property name="sizePolicy">
-          <sizepolicy hsizetype="Preferred" vsizetype="Fixed">
-           <horstretch>0</horstretch>
-           <verstretch>0</verstretch>
-          </sizepolicy>
-         </property>
-         <property name="minimumSize">
-          <size>
-           <width>85</width>
-           <height>24</height>
-          </size>
-         </property>
-         <property name="text">
-          <string>&lt;&lt; &amp;Done</string>
-         </property>
-         <property name="shortcut">
-          <string>Alt+D</string>
-         </property>
-        </widget>
-       </item>
-       <item>
         <widget class="QPushButton" name="applyButton">
          <property name="sizePolicy">
           <sizepolicy hsizetype="Preferred" vsizetype="Fixed">
stylemanager-3.patch (12,568 bytes)

Issue History

Date Modified Username Field Change
2023-01-06 17:57 pmjdebruijn New Issue
2023-01-06 17:57 pmjdebruijn File Added: stylemanagerui.patch
2023-01-07 13:06 PeterBenedek Note Added: 0049856
2023-01-07 13:22 pmjdebruijn Note Added: 0049857
2023-01-11 17:06 pmjdebruijn Note Added: 0049877
2023-01-11 17:06 pmjdebruijn File Added: stylemanager.patch
2023-01-11 18:32 pmjdebruijn Note Added: 0049879
2023-01-11 18:32 pmjdebruijn File Added: stylemanager-2.patch
2023-01-11 20:03 PeterBenedek Note Added: 0049881
2023-01-12 17:10 pmjdebruijn Note Added: 0049888
2023-01-12 17:10 pmjdebruijn File Added: scribus_style_manager_first_open.png
2023-01-12 17:10 pmjdebruijn File Added: scribus_style_manager_paragraph_style.png
2023-01-12 17:23 ale Note Added: 0049889
2023-01-12 17:35 PeterBenedek Note Added: 0049890
2023-01-12 17:56 pmjdebruijn Note Added: 0049891
2023-01-12 18:13 PeterBenedek Note Added: 0049892
2023-01-12 18:19 PeterBenedek Note Added: 0049893
2023-01-12 18:19 PeterBenedek File Added: Clipboard 1.jpg
2023-01-12 18:21 PeterBenedek Note Edited: 0049892
2023-01-12 18:47 pmjdebruijn Note Added: 0049894
2023-01-12 18:54 pmjdebruijn Note Added: 0049895
2023-01-13 16:12 pmjdebruijn Note Added: 0049902
2023-01-14 08:28 ale Note Added: 0049908
2023-01-14 08:28 ale File Added: Clipboard 1-2.jpg
2023-01-14 10:43 pmjdebruijn Note Added: 0049910
2023-01-14 11:13 PeterBenedek Note Added: 0049911
2023-01-14 11:42 pmjdebruijn Note Added: 0049913
2023-01-14 17:04 ale Note Added: 0049917
2023-01-15 19:03 PeterBenedek Note Added: 0049934
2023-01-16 15:06 PeterBenedek Note Edited: 0049934
2023-01-25 16:55 pmjdebruijn Note Added: 0049978
2023-03-16 14:47 PeterBenedek Note Added: 0050032
2023-03-16 17:42 jghali Note Added: 0050033
2023-03-20 18:20 pmjdebruijn Note Added: 0050041
2023-03-21 17:25 pmjdebruijn Note Added: 0050042
2023-03-21 17:25 pmjdebruijn File Added: stylemanager-3.patch
2024-01-20 09:38 ale Relationship added related to 0017134
