View Issue Details

IDProjectCategoryView StatusLast Update
0017050ScribusUser Interfacepublic2023-12-24 10:00
Reportersfhwdt9e Assigned Toale
PrioritynormalSeverityfeatureReproducibilityalways
Status closedResolutionfixed
PlatformEndeavourOSOSLinuxOS Version6.5.9-arch2-1
Product Version1.5.8
Fixed in Version1.6.0.svn
Summary0017050: Snapping doesn't work when scaling frames
DescriptionSnapping (ctrl u) works fine when positioning frames, but doesn't work when scaling a frame. It would be useful when dragging it by a corner to be able to snap to adjacent frames.
Steps To Reproduce1. Create two (text or image) frames.
2. Start scaling one of them towards to other (by dragging one corner with ctrl and alt pressed).
3. Drag it close to the other frame.
4. Observe snapping not working.
Additional InformationIt can be quite annoying when you have lots of frames just slightly misaligned towards each other or towards page margins. You need to use align tools, but there is always the last corner that doesn't fit right (although very small).
Tagspatch
PatchYes

Activities

JLuc

2023-11-14 22:16

developer   ~0050466

Last edited: 2023-11-14 22:18

AMOF i've met that issue several times.
It's not specific to image frames : it also happens with text frames.

sfhwdt9e

2023-11-15 16:16

reporter   ~0050470

@JLuc that's true, sorry I can't see any button to edit this issue (change the name to include more objects)

ale

2023-11-15 20:04

manager   ~0050473

Last edited: 2023-11-15 20:35

here is a patch...
snap-items.diff (494 bytes)
diff --git a/scribus/canvasgesture_resize.cpp b/scribus/canvasgesture_resize.cpp
index ccb572d012465485b3a26119bbe99de54942c028..02b154a8697624639fd39a1858561b4e7696a327 100644
--- a/scribus/canvasgesture_resize.cpp
+++ b/scribus/canvasgesture_resize.cpp
@@ -814,7 +814,7 @@ FPoint ResizeGesture::applyGuides(const FPoint& docPoint)
 {
 	int pointPage;

-	if (!m_doc->SnapGuides)
+	if (!m_doc->SnapGuides && !m_doc->SnapElement)
 		return docPoint;
 	FPoint snappedPoint = docPoint;

snap-items.diff (494 bytes)

jghali

2023-11-26 17:07

administrator   ~0050519

@ale, thanks, I applied your patch. i will not close the issue tho, as after testing, it seems the issue is still not completely fixed.

sfhwdt9e

2023-11-26 17:47

reporter   ~0050520

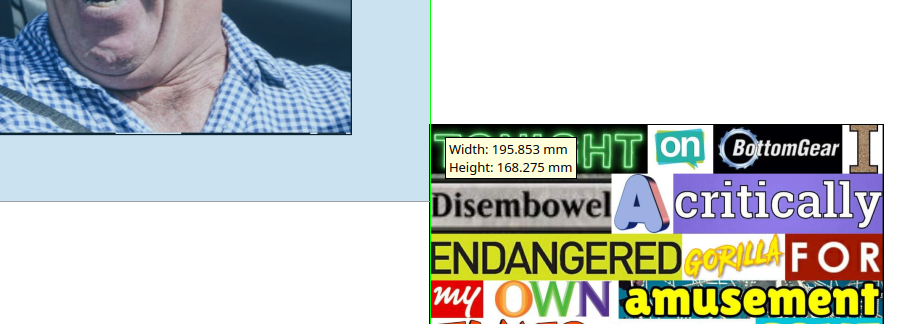

Perfect, thank you very much! It seems to be working fine here (tried both image and text objects).

ale

2023-11-26 19:18

manager   ~0050521

@jghali thanks for committing.

i also have the feeling that in some cases it does not work correctly, but i cannot reproduce.

if it's not clear what the issue is, i would close this ticket and wait for somebody to figure out what is going wrong and create a new specific ticket.

jghali

2023-11-27 22:46

administrator   ~0050531

It is indeed hard to reproduce, so I am going to close this ticket for now.
