View Issue Details

IDProjectCategoryView StatusLast Update
0011432ScribusGraphics / Image Framespublic2013-02-24 19:35
ReporterWelblaud Assigned Tojghali
PrioritynormalSeverityminorReproducibilityalways
Status closedResolutionduplicate
PlatformPCOSUbuntuOS Version12.10
Product Version1.5.0svn
Summary0011432: Duotone – final poor quality

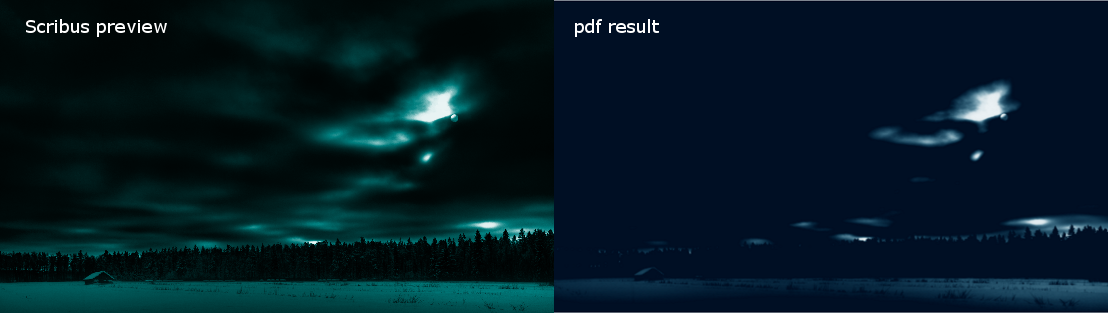

DescriptionThere is a strange difference between previewed image when duotone effect is aplied, and the image in pdf result. Pdf is still correct (tested on Acrobat) pdf/x-1a but the overall image quality with the effect is non satisfying.

in Scribus > looks great
in pdf > looks ugly

CMS is turned ON, icc profile for PC display used.
Steps To ReproduceApply duotone effect to any image (e.g. black and cyan) and export as pdf/x-1a. (Other standards as well.)
TagsNo tags attached.
Patch

Relationships

duplicate of 0004270 confirmed Color management applied before, not after, image effects

Activities

Welblaud

2013-02-21 14:29

reporter


jghali

2013-02-23 12:52

administrator   ~0029882

Duplicate of 0004270.

Image effects are currently applied after color management. When an RGB image is exported to RGB, the effect is applied in RGB colorspace. All is ok. But when an RGB image is exported to CMYK, the image is first converted to CMYK then effect is applied in CMYK colorspace, which can lead to somewhat different result.

In any case, one can not expect RGB to CMYK conversion to systematically preserve colors : the full RGB color range cannot be achieved in CMYK. ICC profiles implement gamut mapping strategy depending on color management settings used. The gamut mapping may in particular not preserve the color luminosity. Try to modify the rendering intent used in color management preferences : "Perceptual" and "Relative colorimetric" is what usually allow to get the best result.

Welblaud

2013-02-24 19:13

reporter   ~0029891

I am sorry but I have changed color space of the picture to cmyk (cmyktool), tried to change Perceptual to Colorimetric and it is still the same :o/

jghali

2013-02-24 19:34

administrator   ~0029893

Last edited: 2013-02-24 19:35

Sorry, but given the nature of the problem converting the image will not avoid the problem : the effects is always computed in RGB colorspace for display after color management has been applied, ie after the image has been converted from cmyk to screen colorspace. This is a known issue which has already been reported as 0004270.
