View Issue Details Jump to Notes ] Issue History ] Print ]
IDProjectCategoryView StatusDate SubmittedLast Update
0012344ScribusPDFpublic2014-06-03 15:362014-06-14 08:39
Assigned Tojghali
PlatformOSOS Version
Product Version1.5.0svn
Target Version1.5.0Fixed in Version1.5.0svn
Summary0012344: setting for columns and text flow around frame ignored when generating a pdf
Descriptioni have a page containing a text frame with text on 2 columns.
i have a picture frame that is over the text frame. the setting for "text flow around frame" is set to "use contour line".

on screen, it looks fine, when i export that page (or any page with that setting), the pdf result show the text frame under the picture, but the text doesn't go around the picture. also, the text is shown as 1 column. when the document come back in scribus, it looks the same : picture over the text and 1 column. but as soon as i click on the picture, everything goes back to normal.
Steps To Reproducei included the sla document in the zip file

1. open the file

(i am translating the menu, since it seems that there is a bug with the display language, display french even if english is selected in the preferences)

2. menu file -> export -> save as pdf

3. button : "ignore errors"

4. choose an output file

5. button : save

6. check the pdf, the text is 1 column with picture overlapping the text

7. go back in scribus, the text doesn't flow on the pic anymore

8. select the picture, everything goes back to normal
Additional Informationi just put the main files, since i can't upload the whole zip file containing all the pdf and jpeg proof. i can send the file by email upon request. this is the content of the complete zip file

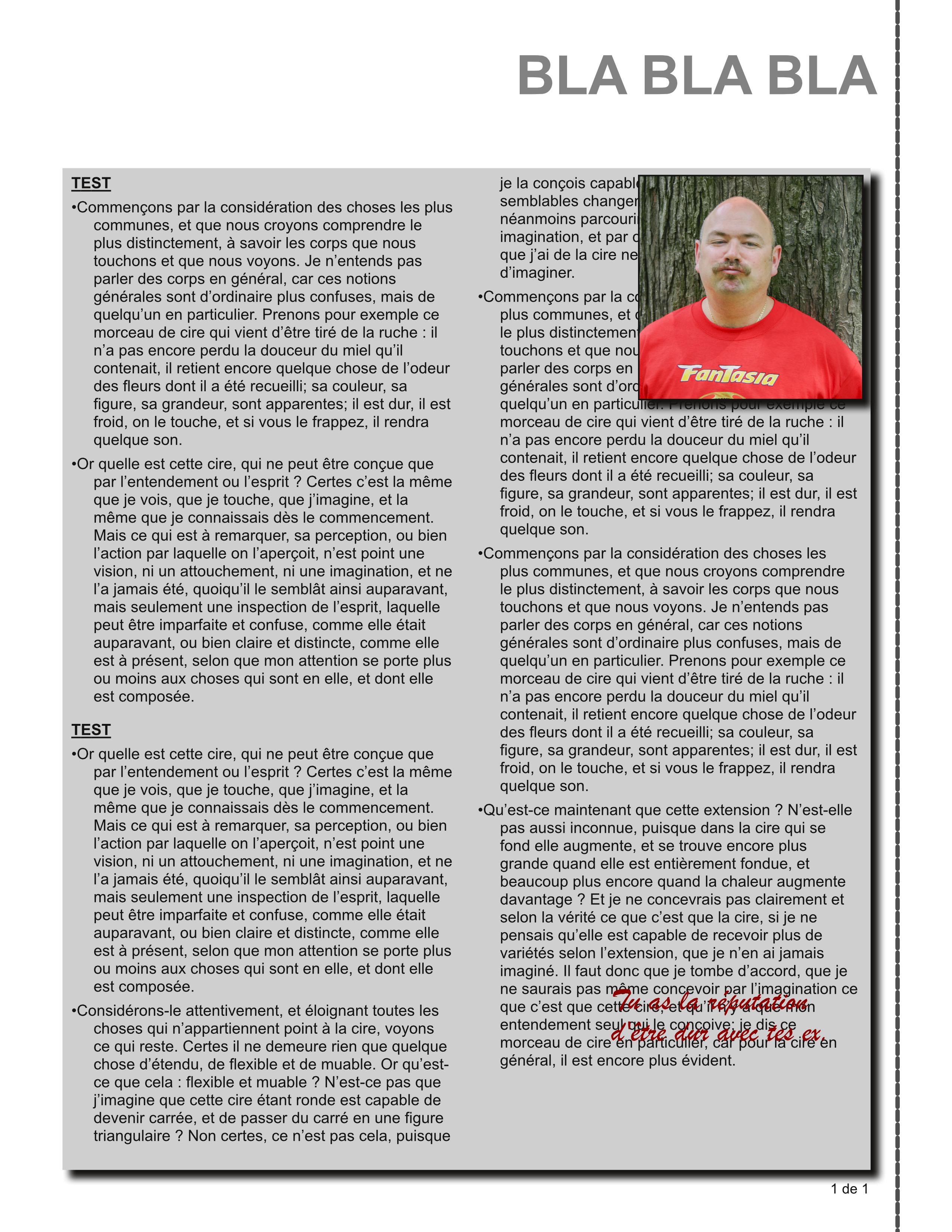

- scribus-bug-wraparounf-in-pdf-page001-before click.jpeg : exported in jpeg of the text after export in pdf (after step 5). this is how the screen look before clicking on the picture (step 8)

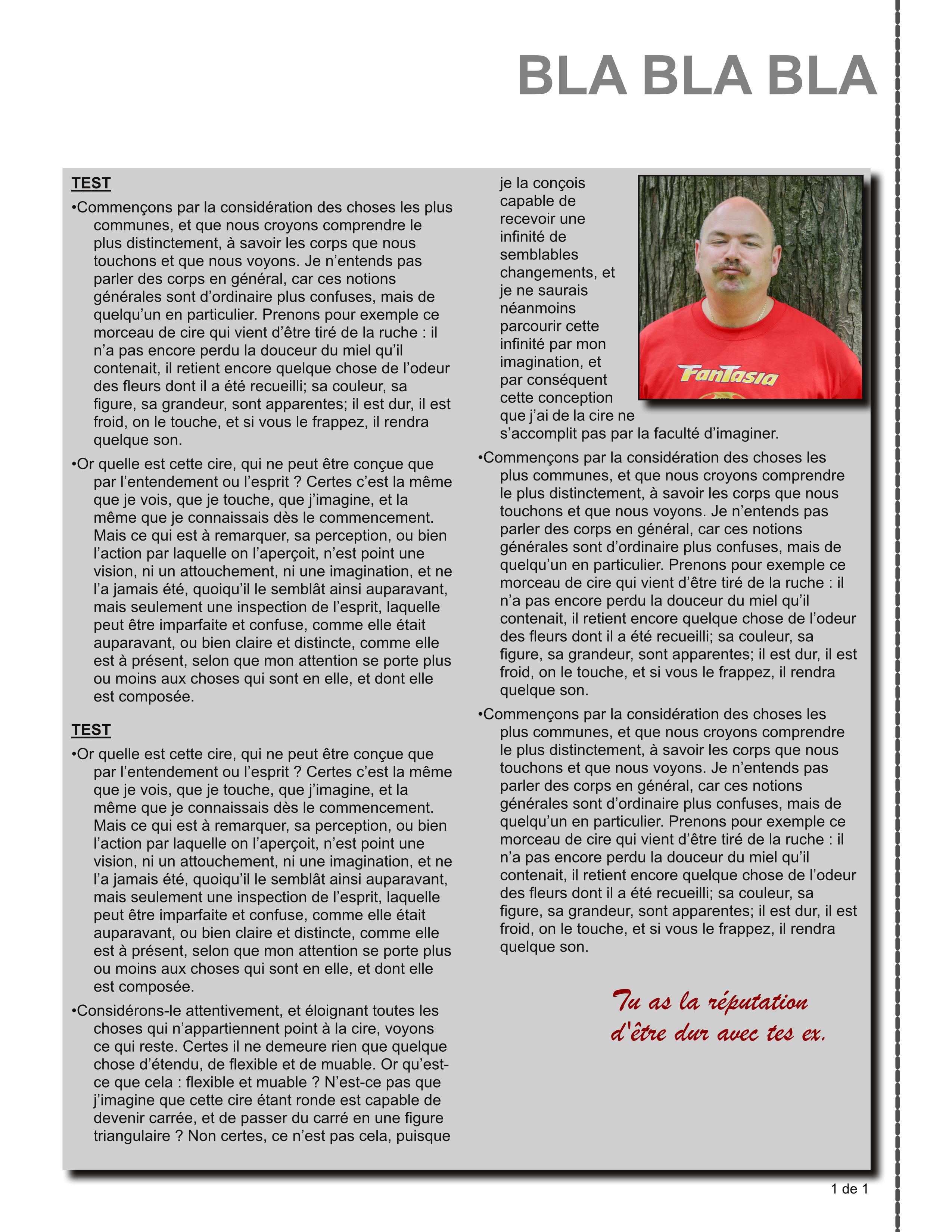

- scribus-bug-wraparounf-in-pdf-page001.jpeg : same page exported with menu file -> export -> save as image

- scribus-bug-wraparounf-in-pdf.pdf : the resulting pdf

- scribus-bug-wraparounf-in-pdf.sla : the source file

- 2006-07-18 Patrice Nolin-wisdom-bio-(ori-sans titre-20060718-3042).jpg : the picture
TagsNo tags attached.
Attached Fileszip file icon [^] (2,800,003 bytes) 2014-06-03 15:36
jpeg file icon scribus-bug-wraparounf-in-pdf-page001.jpeg [^] (949,147 bytes) 2014-06-03 15:38
jpeg file icon scribus-bug-wraparounf-in-pdf-page001-before click.jpeg [^] (1,008,710 bytes) 2014-06-03 15:39

- Relationships
has duplicate 0012343closedjghali setting for columns and text flow around frame igbored when generating a pdf

-  Notes
kumafoto (reporter)
2014-06-03 15:40

i uploaded the 2 jpeg file for proof. also, when i print directly on the printer, the output is good.
kumafoto (reporter)
2014-06-12 14:54

Hi Jghli

Thanks for fixing this issue.

I saw the bug is resolved. Does it means I can redownloaD the 1.5.0svn and recompile to make it work ?


JLuc (developer)
2014-06-12 16:40

yes kumafoto please do, upgrade, compile, test and confirm here it's been fixed.
kumafoto (reporter)
2014-06-13 00:18

hi, it doesnt compile.... this is the error. do you need any log or other information

this is the command line i used

 brew install --HEAD [^] -verbose

[ 4%] Building CXX object scribus/third_party/lib2geom/CMakeFiles/scribus_2geom_lib.dir/convex-cover.cpp.o
[ 4%] Building CXX object scribus/third_party/lib2geom/CMakeFiles/scribus_2geom_lib.dir/solve-bezier-one-d.cpp.o
[ 4%] Building CXX object scribus/third_party/lib2geom/CMakeFiles/scribus_2geom_lib.dir/solve-bezier-parametric.cpp.o
[ 4%] Building CXX object scribus/third_party/lib2geom/CMakeFiles/scribus_2geom_lib.dir/scribushelper.cpp.o
Linking CXX static library libscribus_2geom_lib.a
[ 4%] Built target scribus_2geom_lib
make: *** [all] Error 2
==> Formula
Tap: path or URL
Path: /Library/Caches/Homebrew/Formula/scribus-dev.rb
==> Configuration
HEAD: eac1ef3f5a3e8d34455e6e4a93c093aca6bdea64
CPU: quad-core 64-bit sandybridge
OS X: 10.9.2-x86_64
Xcode: 5.1.1 => /Applications/xcode/
X11: 2.7.5 => /opt/X11
==> ENV
CMAKE_PREFIX_PATH: /usr/local/opt/gettext:/usr/local/opt/libffi:/usr/local/opt/openssl:/usr/local/opt/readline:/usr/local/opt/sqlite:/usr/local/opt/zlib:/usr/local
CMAKE_INCLUDE_PATH: /usr/include/libxml2:/opt/X11/include:/opt/X11/include/freetype2
CMAKE_FRAMEWORK_PATH: /usr/local/opt/python/Frameworks
PKG_CONFIG_PATH: /usr/local/opt/libtiff/lib/pkgconfig:/usr/local/opt/little-cms2/lib/pkgconfig:/usr/local/opt/libpng/lib/pkgconfig:/usr/local/opt/freetype/lib/pkgconfig:/usr/local/opt/fontconfig/lib/pkgconfig:/usr/local/opt/pixman/lib/pkgconfig:/usr/local/opt/libffi/lib/pkgconfig:/usr/local/opt/glib/lib/pkgconfig:/usr/local/opt/cairo/lib/pkgconfig:/usr/local/opt/libart/lib/pkgconfig:/usr/local/opt/openssl/lib/pkgconfig:/usr/local/opt/sqlite/lib/pkgconfig:/usr/local/opt/hunspell/lib/pkgconfig:/usr/local/opt/zlib/lib/pkgconfig:/usr/local/opt/graphicsmagick/lib/pkgconfig
PKG_CONFIG_LIBDIR: /usr/lib/pkgconfig:/usr/local/Library/ENV/pkgconfig/10.9:/opt/X11/lib/pkgconfig:/opt/X11/share/pkgconfig
ACLOCAL_PATH: /usr/local/opt/gettext/share/aclocal:/usr/local/share/aclocal:/opt/X11/share/aclocal
PATH: /usr/local/Library/ENV/4.3:/usr/local/opt/cmake/bin:/usr/local/opt/jpeg/bin:/usr/local/opt/libtiff/bin:/usr/local/opt/little-cms2/bin:/usr/local/opt/libpng/bin:/usr/local/opt/freetype/bin:/usr/local/opt/fontconfig/bin:/usr/local/opt/gettext/bin:/usr/local/opt/glib/bin:/usr/local/opt/cairo/bin:/usr/local/opt/libart/bin:/usr/local/opt/openssl/bin:/usr/local/opt/pkg-config/bin:/usr/local/opt/sqlite/bin:/usr/local/opt/gdbm/bin:/usr/local/opt/python/bin:/usr/local/opt/hunspell/bin:/usr/local/opt/jbig2dec/bin:/usr/local/opt/ghostscript/bin:/usr/local/opt/libtool/bin:/usr/local/opt/graphicsmagick/bin:/opt/X11/bin:/usr/bin:/bin:/usr/sbin:/sbin

Error: scribus-dev HEAD did not build

what should i do ?
Kunda (manager)
2014-06-13 13:45
edited on: 2014-06-13 13:46

@kumafoto that's an outdated gist formula of scribus-dev, where did you find that?
This is the most up-to-date:
brew install --HEAD [^] -verbose

(Make sure that you run the below command before you run the above. There is an issue that has yet to be solved with the podofo package. When it does this step not be needed.)
brew install [^]

- Issue History
Date Modified Username Field Change
2014-06-03 15:36 kumafoto New Issue
2014-06-03 15:36 kumafoto File Added:
2014-06-03 15:38 kumafoto File Added: scribus-bug-wraparounf-in-pdf-page001.jpeg
2014-06-03 15:39 kumafoto File Added: scribus-bug-wraparounf-in-pdf-page001-before click.jpeg
2014-06-03 15:40 kumafoto Note Added: 0031976
2014-06-03 21:16 jghali Relationship added has duplicate 0012343
2014-06-03 22:21 jghali Target Version => 1.5.0
2014-06-12 13:46 jghali Summary setting for columns and text flow around frame igbored when generating a pdf => setting for columns and text flow around frame ignored when generating a pdf
2014-06-12 13:47 jghali Status new => resolved
2014-06-12 13:47 jghali Fixed in Version => 1.5.0svn
2014-06-12 13:47 jghali Resolution open => fixed
2014-06-12 13:47 jghali Assigned To => jghali
2014-06-12 14:54 kumafoto Note Added: 0032098
2014-06-12 16:40 JLuc Note Added: 0032100
2014-06-13 00:18 kumafoto Note Added: 0032115
2014-06-13 13:45 Kunda Note Added: 0032141
2014-06-13 13:46 Kunda Note Edited: 0032141 View Revisions
2014-06-14 08:39 cbradney Status resolved => closed
