View Issue Details

IDProjectCategoryView StatusLast Update
0016777ScribusTypographypublic2022-04-05 03:37
ReporterLuuk Kouijzer Assigned To
PrioritynormalSeveritymajorReproducibilityalways
Status newResolutionopen
Summary0016777: positive baseline offset pushes next paragraph one line down, Scribus 1.5.2 or higher
DescriptionI have put all my text on a baseline grid of 4mm/11,34pt. I want to use baseline offset for my header text (17 pt) to set the top of the header text at the same height as the text of the body text in the next column. I need a baseline offset of 30 percent to get this effect. When I use a baseline offset of more than 1 percent the header text is put the right percentage up, but the body text underneath the header is pushed down 1 line.

I have tested the baseline offset in different versions of Scribus on Windows 10. I was not able to get older, working versions of Scribus for linux.
In the versions 1.4.8 and 1.5.1 the offset reacts as I expected, the header text is placed as expected and de body text keeps its place.
From version 1.5.2 the offset does not react as I expected, the header text is placed as expected but the body text is pushed 1 line down.

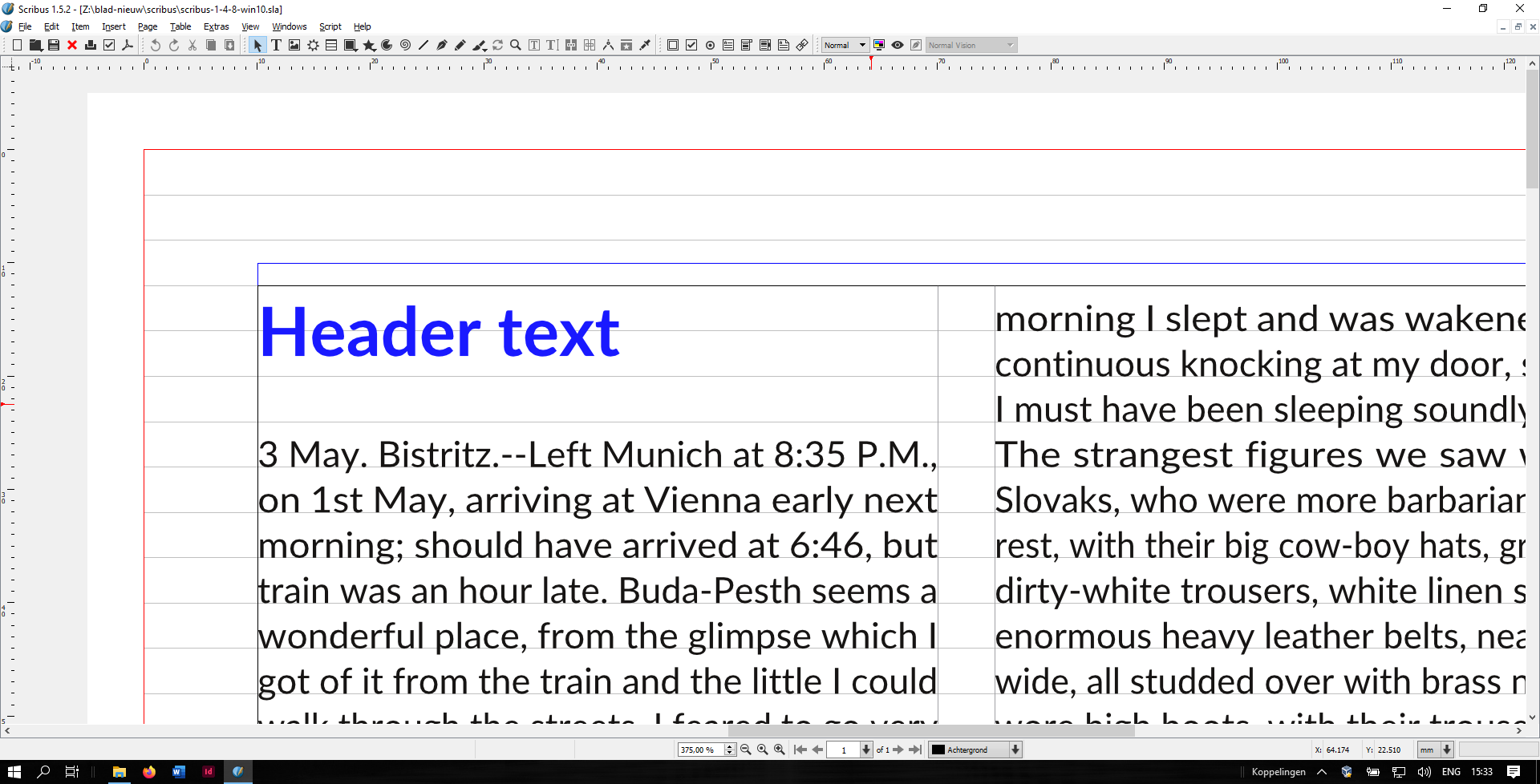

See the attached screenshots. I have also attached the Scribus document I used.
Steps To ReproduceOpen document in Scribus 1.5.1 or older: no error found
Open document in Scribus 1.5.2 or later: error found, body text pushed down 1 line.
See attached document and screenshots
Used paragraph styles:
- body text, aligned to baseline grid, 9 pt Lato Regular
- header text, aligned to baseline grid, baseline offset +30%, 17 pt Montserrat Bold
Additional InformationPosted in Scribus Forums » Scribus » Text and Typography » Using baseline offset

Quote from: Luuk on April 03, 2022, 05:00:20 pm
------------------------------------------------------------------------------------------------------------------------------------------------------
    …In the versions 1.4.8 and 1.5.1 the offset reacts as I expected…
    …From version 1.5.2 the offset does not react as I expected, the header text is placed as expected but the body text is pushed 1 line down…

    Should I report this as a bug?
------------------------------------------------------------------------------------------------------------------------------------------------------
yes, please report it!

utnik
Tagsbaseline grid
PatchNo

Activities

Luuk Kouijzer

2022-04-04 07:14

reporter

scribus-1-4-8-win10.sla (14,935 bytes)
<?xml version="1.0" encoding="UTF-8"?>
<SCRIBUSUTF8NEW Version="1.4.8">
    <DOCUMENT ANZPAGES="1" PAGEWIDTH="595.28125984252" PAGEHEIGHT="841.889763779528" BORDERLEFT="28.3464566929134" BORDERRIGHT="28.3464566929134" BORDERTOP="28.3464566929134" BORDERBOTTOM="28.3464566929134" PRESET="0" BleedTop="14.1703937007874" BleedLeft="14.1703937007874" BleedRight="14.1703937007874" BleedBottom="14.1703937007874" ORIENTATION="0" PAGESIZE="A4" FIRSTNUM="1" BOOK="1" AUTOSPALTEN="1" ABSTSPALTEN="3.881" UNITS="1" DFONT="Arial Regular" DSIZE="12" DCOL="1" DGAP="0" TabFill="" TabWidth="36" AUTHOR="" COMMENTS="" KEYWORDS="" PUBLISHER="" DOCDATE="" DOCTYPE="" DOCFORMAT="" DOCIDENT="" DOCSOURCE="" DOCLANGINFO="" DOCRELATION="" DOCCOVER="" DOCRIGHTS="" DOCCONTRIB="" TITLE="" SUBJECT="" VHOCH="33" VHOCHSC="66" VTIEF="33" VTIEFSC="66" VKAPIT="75" BASEGRID="11.3385826771654" BASEO="0" AUTOL="20" UnderlinePos="-1" UnderlineWidth="-1" StrikeThruPos="-1" StrikeThruWidth="-1" GROUPC="1" HCMS="0" DPSo="0" DPSFo="0" DPuse="0" DPgam="0" DPbla="1" DPMo="sRGB display profile (ICC v2.2)" DPPr="Fogra27L CMYK Coated Press" DPIn="sRGB display profile (ICC v2.2)" DPInCMYK="Fogra27L CMYK Coated Press" DPIn2="sRGB display profile (ICC v2.2)" DPIn3="Fogra27L CMYK Coated Press" DISc="1" DIIm="0" ALAYER="0" LANGUAGE="Dutch" MINWORDLEN="3" HYCOUNT="2" AUTOMATIC="1" AUTOCHECK="0" GUIDELOCK="0" SnapToGuides="0" SnapToGrid="0" MINGRID="20.0012598425197" MAJGRID="100.00062992126" SHOWGRID="0" SHOWGUIDES="1" showcolborders="1" SHOWFRAME="1" SHOWLAYERM="0" SHOWMARGIN="1" SHOWBASE="1" SHOWPICT="1" SHOWControl="0" SHOWLINK="0" rulerMode="1" showrulers="1" showBleed="1" rulerXoffset="0" rulerYoffset="0" GuideRad="10" GRAB="4" POLYC="4" POLYF="0.707106781186548" POLYR="0" POLYCUR="0" POLYFD="0" POLYS="0" AutoSave="1" AutoSaveTime="600000" ScratchBottom="20.0012598425197" ScratchLeft="100.00062992126" ScratchRight="100.00062992126" ScratchTop="20.0012598425197" GapHorizontal="0" GapVertical="39.9996850393701" StartArrow="0" EndArrow="0" PEN="Black" BRUSH="None" PENLINE="Black" PENTEXT="Black" StrokeText="Black" TextBackGround="None" TextLineColor="None" TextBackGroundShade="100" TextLineShade="100" TextPenShade="100" TextStrokeShade="100" STIL="1" STILLINE="1" WIDTH="1" WIDTHLINE="1" PENSHADE="100" LINESHADE="100" BRUSHSHADE="100" MAGMIN="10" MAGMAX="3200" MAGSTEP="200" CPICT="None" PICTSHADE="100" PICTSCX="1" PICTSCY="1" PSCALE="1" PASPECT="1" EmbeddedPath="0" HalfRes="1" dispX="3.528" dispY="3.528" constrain="15" MINORC="#00ff00" MAJORC="#00ff00" GuideC="#000080" BaseC="#c0c0c0" GuideZ="10" BACKG="1" PAGEC="#ffffff" MARGC="#0000ff" RANDF="0" currentProfile="PostScript">
        <CheckProfile Name="PDF 1.3" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkResolution="1" checkTransparency="1" minResolution="144" maxResolution="2400" checkAnnotations="0" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkOffConflictLayers="0"/>
        <CheckProfile Name="PDF 1.4" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkResolution="1" checkTransparency="0" minResolution="144" maxResolution="2400" checkAnnotations="0" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkOffConflictLayers="0"/>
        <CheckProfile Name="PDF 1.5" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkResolution="1" checkTransparency="0" minResolution="144" maxResolution="2400" checkAnnotations="0" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkOffConflictLayers="0"/>
        <CheckProfile Name="PDF/X-1a" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkResolution="1" checkTransparency="1" minResolution="144" maxResolution="2400" checkAnnotations="1" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkOffConflictLayers="0"/>
        <CheckProfile Name="PDF/X-3" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkResolution="1" checkTransparency="1" minResolution="144" maxResolution="2400" checkAnnotations="1" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkOffConflictLayers="0"/>
        <CheckProfile Name="PostScript" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkResolution="1" checkTransparency="1" minResolution="144" maxResolution="2400" checkAnnotations="0" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkOffConflictLayers="0"/>
        <COLOR NAME="Black" CMYK="#000000ff" Spot="0" Register="0"/>
        <COLOR NAME="Blue" RGB="#0000ff" Spot="0" Register="0"/>
        <COLOR NAME="Cool Black" CMYK="#990000ff" Spot="0" Register="0"/>
        <COLOR NAME="Cyan" CMYK="#ff000000" Spot="0" Register="0"/>
        <COLOR NAME="Green" RGB="#00ff00" Spot="0" Register="0"/>
        <COLOR NAME="Magenta" CMYK="#00ff0000" Spot="0" Register="0"/>
        <COLOR NAME="Red" RGB="#ff0000" Spot="0" Register="0"/>
        <COLOR NAME="Registration" CMYK="#ffffffff" Spot="0" Register="1"/>
        <COLOR NAME="Rich Black" CMYK="#996666ff" Spot="0" Register="0"/>
        <COLOR NAME="Warm Black" CMYK="#00994cff" Spot="0" Register="0"/>
        <COLOR NAME="White" CMYK="#00000000" Spot="0" Register="0"/>
        <COLOR NAME="Yellow" CMYK="#0000ff00" Spot="0" Register="0"/>
        <HYPHEN/>
        <STYLE NAME="Default Paragraph Style" DefaultStyle="1" ALIGN="0" LINESPMode="0" LINESP="15" INDENT="0" RMARGIN="0" FIRST="0" VOR="0" NACH="0" DROP="0" DROPLIN="2" DROPDIST="0"/>
        <STYLE NAME="body text" ALIGN="3" LINESPMode="2" MinGlyphShrink="0.9" MaxGlyphExtend="1.1" FONT="Lato Regular" FONTSIZE="9" LANGUAGE="Dutch"/>
        <STYLE NAME="header text" LINESPMode="2" FONT="Lato Bold" FONTSIZE="17" FCOLOR="Blue" FSHADE="90" BASEO="30" LANGUAGE="Dutch"/>
        <CHARSTYLE CNAME="Default Character Style" DefaultStyle="1" FONT="Arial Regular" FONTSIZE="12" FEATURES="inherit" FCOLOR="Black" FSHADE="100" SCOLOR="Black" SSHADE="100" TXTSHX="5" TXTSHY="-5" TXTOUT="1" TXTULP="-0.1" TXTULW="-0.1" TXTSTP="-0.1" TXTSTW="-0.1" SCALEH="100" SCALEV="100" BASEO="0" KERN="0" LANGUAGE="Dutch"/>
        <LAYERS NUMMER="0" LEVEL="0" NAME="Achtergrond" SICHTBAR="1" DRUCKEN="1" EDIT="1" FLOW="1" TRANS="1" BLEND="0" OUTL="0" LAYERC="#000000"/>
        <Printer firstUse="1" toFile="0" useAltPrintCommand="0" outputSeparations="0" useSpotColors="0" useColor="0" mirrorH="0" mirrorV="0" useICC="0" doGCR="0" doClip="0" setDevParam="0" useDocBleeds="0" cropMarks="0" bleedMarks="0" registrationMarks="0" colorMarks="0" includePDFMarks="0" PSLevel="0" PDLanguage="0" markOffset="0" BleedTop="0" BleedLeft="0" BleedRight="0" BleedBottom="0" printer="" filename="" separationName="" printerCommand=""/>
        <PDF firstUse="1" Thumbnails="0" Articles="0" Bookmarks="0" Compress="1" CMethod="0" Quality="0" EmbedPDF="0" MirrorH="0" MirrorV="0" Clip="0" RotateDeg="0" PresentMode="0" RecalcPic="0" Grayscale="0" RGBMode="1" UseProfiles="0" UseProfiles2="0" Binding="0" PicRes="300" Resolution="300" Version="14" Intent="1" Intent2="0" SolidP="sRGB display profile (ICC v2.2)" ImageP="sRGB display profile (ICC v2.2)" PrintP="Fogra27L CMYK Coated Press" InfoString="" BTop="0" BLeft="0" BRight="0" BBottom="0" useDocBleeds="0" cropMarks="0" bleedMarks="0" registrationMarks="0" colorMarks="0" docInfoMarks="0" markOffset="0" ImagePr="0" PassOwner="" PassUser="" Permissions="-4" Encrypt="0" UseLayers="0" UseLpi="0" UseSpotColors="1" doMultiFile="0" displayBookmarks="0" displayFullscreen="0" displayLayers="0" displayThumbs="0" hideMenuBar="0" hideToolBar="0" fitWindow="0" PageLayout="0" openAction="">
            <LPI Color="" Frequency="0" Angle="0" SpotFunction="0"/>
            <LPI Color="Black" Frequency="133" Angle="45" SpotFunction="3"/>
            <LPI Color="Cyan" Frequency="133" Angle="105" SpotFunction="3"/>
            <LPI Color="Magenta" Frequency="133" Angle="75" SpotFunction="3"/>
            <LPI Color="Yellow" Frequency="133" Angle="90" SpotFunction="3"/>
        </PDF>
        <DocItemAttributes/>
        <TablesOfContents/>
        <PageSets>
            <Set Name="Single Page" FirstPage="0" Rows="1" Columns="1"/>
            <Set Name="Double Sided" FirstPage="1" Rows="1" Columns="2">
                <PageNames Name="Left Page"/>
                <PageNames Name="Right Page"/>
            </Set>
            <Set Name="3-Fold" FirstPage="0" Rows="1" Columns="3">
                <PageNames Name="Left Page"/>
                <PageNames Name="Middle"/>
                <PageNames Name="Right Page"/>
            </Set>
            <Set Name="4-Fold" FirstPage="0" Rows="1" Columns="4">
                <PageNames Name="Left Page"/>
                <PageNames Name="Middle Left"/>
                <PageNames Name="Middle Right"/>
                <PageNames Name="Right Page"/>
            </Set>
        </PageSets>
        <Sections>
            <Section Number="0" Name="0" From="0" To="0" Type="Type_1_2_3" Start="1" Reversed="0" Active="1"/>
        </Sections>
        <MASTERPAGE PAGEXPOS="100.00062992126" PAGEYPOS="20.0012598425197" PAGEWIDTH="595.28125984252" PAGEHEIGHT="841.889763779528" BORDERLEFT="28.3464566929134" BORDERRIGHT="28.3464566929134" BORDERTOP="28.3464566929134" BORDERBOTTOM="28.3464566929134" NUM="0" NAM="Normaal links" MNAM="" Size="A4" Orientation="0" LEFT="1" PRESET="0" VerticalGuides="" HorizontalGuides="" AGhorizontalAutoGap="0" AGverticalAutoGap="0" AGhorizontalAutoCount="0" AGverticalAutoCount="0" AGhorizontalAutoRefer="0" AGverticalAutoRefer="0" AGSelection="0 0 0 0"/>
        <MASTERPAGE PAGEXPOS="100.00062992126" PAGEYPOS="20.0012598425197" PAGEWIDTH="595.28125984252" PAGEHEIGHT="841.889763779528" BORDERLEFT="28.3464566929134" BORDERRIGHT="28.3464566929134" BORDERTOP="28.3464566929134" BORDERBOTTOM="28.3464566929134" NUM="1" NAM="Normaal rechts" MNAM="" Size="A4" Orientation="0" LEFT="0" PRESET="0" VerticalGuides="" HorizontalGuides="" AGhorizontalAutoGap="0" AGverticalAutoGap="0" AGhorizontalAutoCount="0" AGverticalAutoCount="0" AGhorizontalAutoRefer="0" AGverticalAutoRefer="0" AGSelection="0 0 0 0"/>
        <PAGE PAGEXPOS="695.28188976378" PAGEYPOS="20.0012598425197" PAGEWIDTH="595.28125984252" PAGEHEIGHT="841.889763779528" BORDERLEFT="28.3464566929134" BORDERRIGHT="28.3464566929134" BORDERTOP="28.3464566929134" BORDERBOTTOM="28.3464566929134" NUM="0" NAM="" MNAM="Normaal links" Size="A4" Orientation="0" LEFT="0" PRESET="0" VerticalGuides="" HorizontalGuides="" AGhorizontalAutoGap="0" AGverticalAutoGap="0" AGhorizontalAutoCount="0" AGverticalAutoCount="0" AGhorizontalAutoRefer="0" AGverticalAutoRefer="0" AGSelection="0 0 0 0"/>
        <PAGEOBJECT OwnPage="0" PTYPE="4" XPOS="723.628346456693" YPOS="54.0170078740149" WIDTH="538.582677165354" HEIGHT="229.606299212598" RADRECT="0" FRTYPE="0" CLIPEDIT="0" PWIDTH="1" PCOLOR="None" PCOLOR2="None" COLUMNS="3" COLGAP="14.1732283464567" NAMEDLST="" SHADE="100" SHADE2="100" GRTYP="0" ROT="0" PLINEART="1" PLINEEND="0" PLINEJOIN="0" LOCALSCX="1" LOCALSCY="1" LOCALX="0" LOCALY="0" PICART="1" PLTSHOW="0" BASEOF="0" textPathType="0" textPathFlipped="0" FLIPPEDH="0" FLIPPEDV="0" SCALETYPE="1" RATIO="1" PRINTABLE="1" ANNOTATION="0" ANNAME="" TEXTFLOWMODE="0" TEXTFLOW="0" TEXTFLOW2="0" TEXTFLOW3="0" AUTOTEXT="0" EXTRA="0" TEXTRA="0" BEXTRA="0" REXTRA="0" FLOP="0" PFILE="" PFILE2="" PFILE3="" PRFILE="" EPROF="" IRENDER="1" EMBEDDED="1" LOCK="0" LOCKR="0" REVERS="0" TransValue="0" TransValueS="0" TransBlend="0" TransBlendS="0" isTableItem="0" TopLine="0" LeftLine="0" RightLine="0" BottomLine="0" isGroupControl="0" NUMDASH="0" DASHS="" DASHOFF="0" NUMPO="16" POCOOR="0 0 0 0 538.583 0 538.583 0 538.583 0 538.583 0 538.583 229.606 538.583 229.606 538.583 229.606 538.583 229.606 0 229.606 0 229.606 0 229.606 0 229.606 0 0 0 0 " NUMCO="16" COCOOR="0 0 0 0 538.583 0 538.583 0 538.583 0 538.583 0 538.583 229.606 538.583 229.606 538.583 229.606 538.583 229.606 0 229.606 0 229.606 0 229.606 0 229.606 0 0 0 0 " NUMGROUP="0" GROUPS="" startArrowIndex="0" endArrowIndex="0" OnMasterPage="" ImageClip="" ImageRes="1" Pagenumber="0" isInline="0" fillRule="1" doOverprint="0" gXpos="0" gYpos="0" gWidth="0" gHeight="0" LAYER="0" BOOKMARK="0" NEXTITEM="-1" BACKITEM="-1">
            <ITEXT CH="Header text"/>
            <para PARENT="header text"/>
            <ITEXT FONTSIZE="9" CH="3 May. Bistritz.--Left Munich at 8:35 P.M., on 1st May, arriving at Vienna early next morning; should have arrived at 6:46, but train was an hour late. Buda-Pesth seems a wonderful place, from the glimpse which I got of it from the train and the little I could walk through the streets. I feared to go very far from the station, as we had arrived late and would start as near the correct time as possible."/>
            <para PARENT="body text"/>
            <ITEXT FONTSIZE="9" CH="I did not sleep well, though my bed was comfortable enough, for I had all sorts of queer dreams. There was a dog howling all night under my window, which may have had something to do with it; or it may have been the paprika, for I had to drink up all the water in my carafe, and was still thirsty. Towards morning I slept and was wakened by the continuous knocking at my door, so I guess I must have been sleeping soundly then."/>
            <para PARENT="body text"/>
            <ITEXT FONTSIZE="9" CH="The strangest figures we saw were the Slovaks, who were more barbarian than the rest, with their big cow-boy hats, great baggy dirty-white trousers, white linen shirts, and enormous heavy leather belts, nearly a foot wide, all studded over with brass nails. They wore high boots, with their trousers tucked into them, and had long black hair and heavy black moustaches. They are very picturesque, but do not look prepossessing. On the stage they would be set down at once as some old Oriental band of brigands. They are, however, I am told, very harmless and rather wanting in natural self-assertion."/>
            <para PARENT="body text"/>
            <ITEXT FONTSIZE="9" CH="The women looked pretty, except when you got near them, but they were very clumsy about the waist. They had all full white sleeves of some kind or other, and most of them had big belts with a lot of strips of something fluttering from them like the dresses in a ballet, but of course there were petticoats under them."/>
            <para PARENT="body text"/>
            <ITEXT FONTSIZE="9" CH="I had to hurry breakfast, for the train started a little before eight, or rather it ought to have done so, for after rushing to the station at 7:30 I had to sit in the carriage for more than an hour before we began to move."/>
            <trail PARENT="body text"/>
            <PageItemAttributes/>
        </PAGEOBJECT>
    </DOCUMENT>
</SCRIBUSUTF8NEW>
scribus-1-4-8-win10.sla (14,935 bytes)

cbradney

2022-04-04 17:56

administrator   ~0049612

Please attach the sample file

Luuk Kouijzer

2022-04-04 19:19

reporter   ~0049613

The name of the sample file is scribus-1-4-8-win10.sla, see the third attachment.

utnik

2022-04-05 03:37

updater   ~0049614

just tested the sample with scribus1.5.9.svn and 1.7.0.svn (r25074) – the same effect.
up to an offset of 6% the body text stays put. but from 7% to the max. value that keeps the header inside of the frame, the body text moves one grid line down. (with a higher offset it moves another line, but this is expected…)
