View Issue Details

IDProjectCategoryView StatusLast Update
0007644ScribusPlug-inspublic2008-12-15 17:32
Reportermhanski Assigned To
PrioritynormalSeveritymajorReproducibilityhave not tried
Status closedResolutionno change required
Product Version1.3.5svn
Summary0007644: Latex Frames: Possible error with utf8 characters

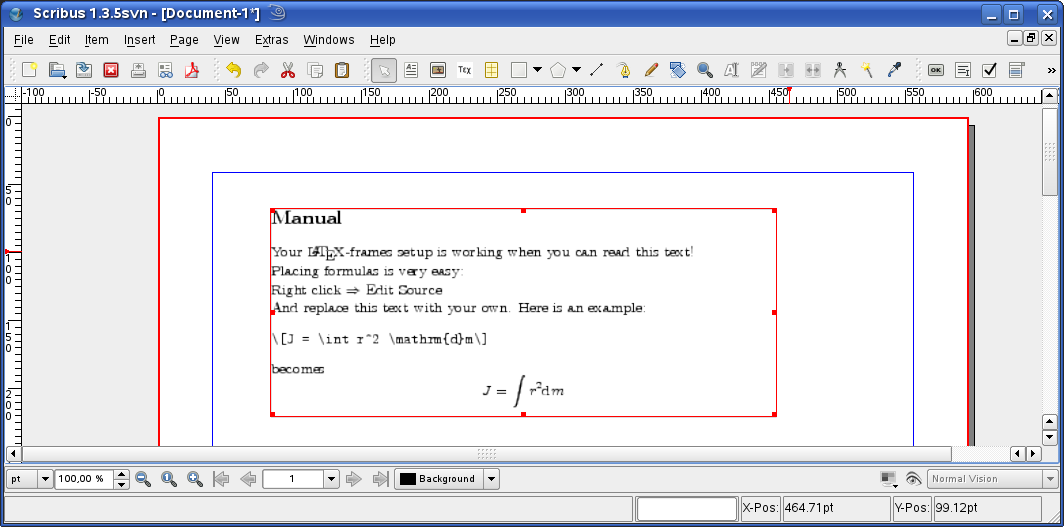

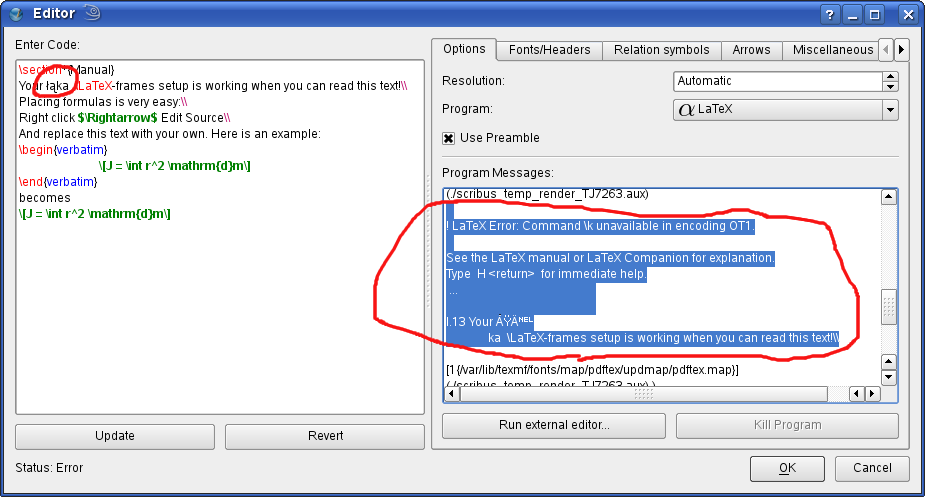

DescriptionLatex is installed and works fine in Latex frames (see screenshot 1), but if you try to insert a character outside of latin1 (IS08859-1), it stops working with "RENDER FRAME: updateImage(): "Running the external application failed!", Latex error says sth about "Command \k unavailable in encoding OT1." (see screenshot 2).

I'm also attaching a Polish sample text to play with while testing latex frames.
Additional InformationI'm very impressed by render frames, this one could be a killer feature of Scribus:)
TagsNo tags attached.
Patch

Relationships

child of 0007647 acknowledgedHerm Metabug: Render Frames (LaTeX, GnuPlot, LilyPond, GraphViz, etc.)

Activities

2008-12-08 23:40




2008-12-08 23:40




2008-12-08 23:41



polish_sample_text_utf8.txt (24 bytes)
łąka łódź Wałęsa

jghali

2008-12-09 00:00

administrator   ~0020746

Last edited: 2008-12-09 00:01

Encoding selection is in no way automatic in latex. You generally have to explicitly specify which encoding your latex source is using. Eg:
\usepackage{ucs}
\usepackage[utf8]{inputenc}

mhanski

2008-12-09 00:38

developer   ~0020747

I'd tried before using \usepackage[utf8]{inputenc} under "Font/Headers", and I tried using your usepackage statements, but it won't work. Neither with \usepackage[utf8x]{inputenc}.

I'm attaching a scribus document containing a one-word latex frame , could you try to get it working?

2008-12-09 00:39



latexframe_test.sla (11,288 bytes)

jghali

2008-12-09 01:14

administrator   ~0020748

\usepackage[utf8]{inputenc} placed under "Font/Headers" should be enough to get most of the characters working, i do not even need that additional package here, but that depends much of the latex distro used. I managed to output some cyrillic characters too. Looks more like a basic problem of latex use than anything.

jghali

2008-12-09 01:31

administrator   ~0020749

Sample of latex code that works (to run without preamble):

\documentclass[a4paper,12pt]{article}
\usepackage[utf8]{inputenc}
\begin{document}
Polish: ? ?
\end{document}

mhanski

2008-12-09 07:00

developer   ~0020750

I've tried the last latex sample (without preamble), it works with latin1, but as soon as I enter a Polish word (see the attached Polish text sample), I get the "Running the external application failed!" error.

Could you check if the sample latext code works for you with current svn135?

2008-12-09 08:06



latexframe_test_2.sla (11,386 bytes)

jghali

2008-12-09 08:11

administrator   ~0020751

I attached a sample of polish text which works perfectly here. As i said the problem appears only when specific characters are used. That's why I wrote that issue looks more like a basic problem of latex use than anything.

mhanski

2008-12-09 20:59

developer   ~0020752

Last edited: 2008-12-09 21:03

the latex code with one polish word w/o preamble from your scribus document worked on my system too (the preview wasn't ok, but it didn't at least end with an error). But you are right, as soon, as I use other polish characters like aogonek 0x0105 it stops working.

Please do not close yet, I'm going to seek assistance among non-latin1 Scribus users on the mailing list.

BTW, see the error I get on loading your document -- is the path to the latex config file really meant to be stored within the scribus document?

2008-12-09 20:59



jghali

2008-12-09 21:19

administrator   ~0020753

I think you should better look for assistance amongst non-latin1 *latex* users! After having read some page about latex encoding handling, it looks like it's far from easy as users may have to change some font encoding parameters too.

2008-12-14 23:10



2008-12-14 23:12



mhanski

2008-12-14 23:28

developer   ~0020784

I've found someone with both Scribus 1.3.5 _and_ LaTeX experience:)

either:

1. Enter this latex code into Font/Headers tab of a LaTex frame, the option "MeX" can be omitted:

\usepackage[utf8]{inputenc}
\usepackage[MeX]{polski}


or:

2. This sample should work without preamble:

\documentclass{article}
\usepackage[utf8]{inputenc}
\usepackage{polski}

\begin{document}
enter some weird Polish characters here
\end{document}

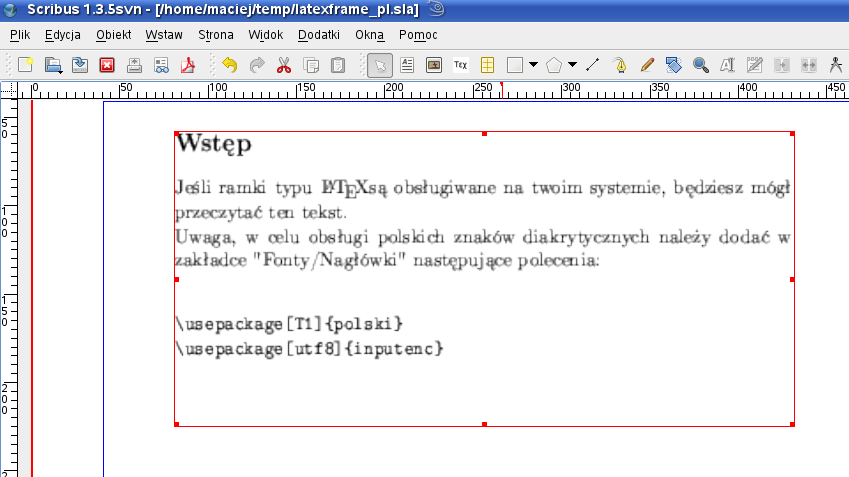

Tested, works, see the attached screenshot and sample Scribus doc. Please don't close yet, since I'd like to wait for verification (there was something about package babel not working).

jghali

2008-12-14 23:40

administrator   ~0020785

Babel is not related to scribus. If it's not working for you, this is a latex distro problem, not a scribus problem.

mhanski

2008-12-15 16:43

developer   ~0020790

verified, closing. Jean and Mariusz, thank you for your patience, all hints will go into this article:

http://wiki.scribus.net/index.php/Get_Started_with_Render_Frames_in_Scribus

mhanski

2008-12-15 17:32

developer   ~0020791

closing.

btw, jghali, could you send a new mantis password to mslonina (the user monitoring this issue)?
He lost his mantis account data.
