Summary0011628: Layout issues
DescriptionUploaded doc shows 2 problematic layout strategies when a some obstacle lays on top of a text frame.

- First situation shows how the words are broken in parts without any concern for hyphen rules. Should scribus break words without caring langage rules in that specific situation ?

- 2nd situation is worse. Notice that first letter is now lower case. It shows how layout is performed for the first line of a text frame (but same happens for the last line) : letters are laid as long as they fit in the frame and as soon as some part of a letter does not fit (here the upper part of the 'l') then a line break is performed and letters now flow on the next line.

Problem is : AFAIK in such a case, there is NO usual WAY to have text flow on a unbroken first line.
In case we are not in a linked text frame it is possible to insert a line break at the begining of the frame. But this is kindof a hack rather than a proper solution. And in the case of a linked frame as here, there is no solid solution !

I'm not sure what alternative strategy would be OK. Other DTP program or text editors have various solutions that might be of interest.
TagsNo tags attached.
Patch

Relationships

parent of 0012861 confirmed layout line break with no good reason
related to 0014849 new Fixed Line spacing causes overflow with Khand font
Not all the children of this issue are yet resolved or closed.

Activities

JLuc

2013-06-24 14:56

developer

JLuc

2013-06-24 14:56

developer

JLuc

2013-06-24 15:03

developer   ~0030342

Last edited: 2013-06-24 15:27

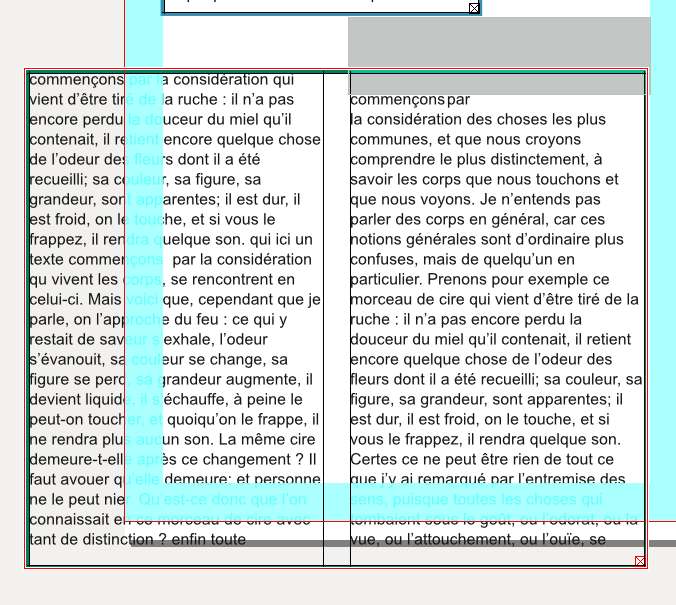

AMOF my real life issue was in the case of a 2 columns text frame :
in such a situation its not possible to move the 2nd column's top
without moving the first column's top...

This happens very frequently, allmost allways, when an image is laid out on top of a text frame.

So the solution is to use 2 linked text frames instead of 2 columns text frames ???
:-((
No, i think this behaviour is not correct and has to be improved.

I upload new file version.

Note that sentences are broken in the same way as in the first situation described here : without caring the langage hyphen rules.

JLuc

2013-06-24 15:05

developer

bad layout 2 columns.sla (33,012 bytes)

JLuc

2013-06-24 15:06

developer

JLuc

2013-07-03 21:25

developer   ~0030402

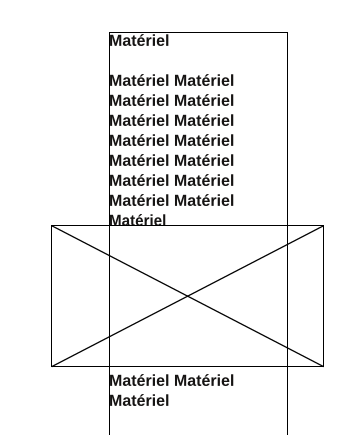

This issue happens also without linking texts or with single colum text frames, in a very basic shape as in new uploaded example "bad layout basic" :

"Matériel" word is broken after t because é is too high... but only when the barrier is an other frame, not when it is the border of the text frame itself.

JLuc

2013-07-03 21:25

developer

bad layout basic.sla (14,277 bytes)

JLuc

2013-07-03 21:25

developer

bad layout basic.jpg (10,648 bytes)
bad layout basic.jpg (10,648 bytes)

JLuc

2013-09-08 19:54

developer   ~0030575

Last edited: 2013-09-16 16:57

see also 0004773, 0011727

As 0011727 mentions, the good hyphens placements are not taken care of.

JLuc

2013-09-16 16:43

developer

strange bad layout.sla (15,555 bytes)

JLuc

2013-09-16 16:43

developer

strange bad layout.png (14,667 bytes)
strange bad layout.png (14,667 bytes)

JLuc

2013-09-16 16:55

developer   ~0030595

Last edited: 2013-09-16 17:27

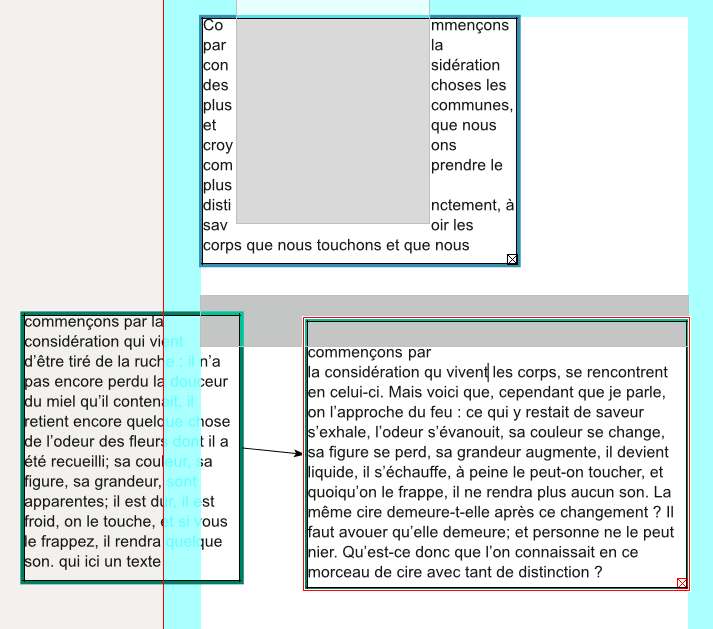

I uploaded another sample with strange results : "strange bad layout.sla"
