View Issue Details

IDProjectCategoryView StatusLast Update
0012507ScribusUser Interfacepublic2015-02-23 18:04
ReporterKunda Assigned Tocbradney
PrioritynormalSeverityminorReproducibilityalways
Status closedResolutionfixed
Product Version1.5.0svn
Target Version1.5.0Fixed in Version1.5.0svn
Summary0012507: [PATCH] Added tooltip "Create range of pages" to ellipsis icon in all Scribus export dialogs

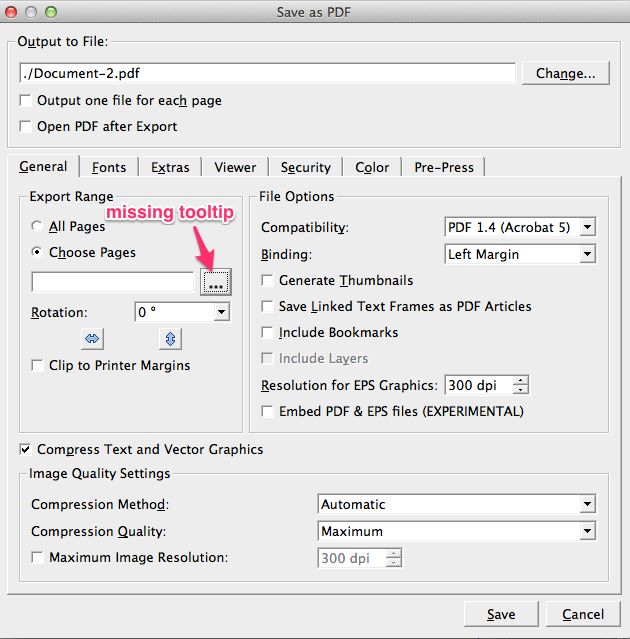

DescriptionThe '...' elipsis box/button could use a tooltip that says (Create Range) or something.

All the patches attached are built and tested.
Tags#easyhack
Patch

Relationships

related to 0012201 closedjghali [PATCH] Empty tooltips in Preferences window
related to 0012604 closedjghali [PATCH] "Convert To" should be "Convert to" under Item menu
related to 0012615 closedjghali [PATCH] Fix some untranslatable UI strings (3)

Activities

Kunda

2014-07-09 21:57

updater


FirasH

2014-08-08 16:59

developer   ~0033209

Attached a .patch adding the tooltip "Create a range of pages".

FirasH

2014-08-15 13:43

developer

12507-part1 (1,552 bytes)
Index: scribus/ui/prefs_pdfexport.cpp
===================================================================
--- scribus/ui/prefs_pdfexport.cpp	(revisione 19425)
+++ scribus/ui/prefs_pdfexport.cpp	(copia locale)
@@ -50,6 +50,7 @@
	exportPageListLineEdit->setToolTip( "<qt>" + tr( "Insert a comma separated list of tokens where "
											"a token can be * for all the pages, 1-5 for "
											"a range of pages or a single page number.") + "</qt>" );
+	exportRangeMorePushButton->setToolTip( "<qt>" + tr( "Create a range of pages" ) + "</qt>");

	pdfVersionComboBox->setToolTip( "<qt>" + tr( "Determines the PDF compatibility.<br/>The default is <b>PDF 1.3</b> which gives the widest compatibility.<br/>Choose <b>PDF 1.4</b> if your file uses features such as transparency or you require 128 bit encryption.<br/><b>PDF 1.5</b> is necessary when you wish to preserve objects in separate layers within the PDF.<br/><b>PDF/X-3</b> is for exporting the PDF when you want color managed RGB for commercial printing and is selectable when you have activated color management. Use only when advised by your printer or in some cases printing to a 4 color digital color laser printer.<br/><b>PDF/X-1a</b> is for blind exchange with colors strictly specified in CMYK or spot colors.<br/><b>PDF/X-4</b> is an extension of PDF/X-3 to support transparancy and layering." ) + "</qt>");
	pageBindingComboBox->setToolTip( "<qt>" + tr( "Determines the binding of pages in the PDF. Unless you know you need to change it leave the default choice - Left." ) + "</qt>" );
12507-part1 (1,552 bytes)

FirasH

2014-08-15 13:43

developer

12507-part2 (1,506 bytes)
Index: scribus/ui/tabpdfoptions.cpp
===================================================================
--- scribus/ui/tabpdfoptions.cpp	(revisione 19425)
+++ scribus/ui/tabpdfoptions.cpp	(copia locale)
@@ -963,6 +963,7 @@
	PageNr->setToolTip( "<qt>" + tr( "Insert a comma separated list of tokens where "
											"a token can be * for all the pages, 1-5 for "
											"a range of pages or a single page number.") + "</qt>" );
+	pageNrButton->setToolTip( "<qt>" + tr( "Create a range of pages" ) + "</qt>");

	PDFVersionCombo->setToolTip( "<qt>" + tr( "Determines the PDF compatibility.<br/>The default is <b>PDF 1.3</b> which gives the widest compatibility.<br/>Choose <b>PDF 1.4</b> if your file uses features such as transparency or you require 128 bit encryption.<br/><b>PDF 1.5</b> is necessary when you wish to preserve objects in separate layers within the PDF.<br/><b>PDF/X-3</b> is for exporting the PDF when you want color managed RGB for commercial printing and is selectable when you have activated color management. Use only when advised by your printer or in some cases printing to a 4 color digital color laser printer.<br/><b>PDF/X-1a</b> is for blind exchange with colors strictly specified in CMYK or spot colors.<br/><b>PDF/X-4</b> is an extension of PDF/X-3 to support transparancy and layering." ) + "</qt>");
	ComboBind->setToolTip( "<qt>" + tr( "Determines the binding of pages in the PDF. Unless you know you need to change it leave the default choice - Left." ) + "</qt>" );
12507-part2 (1,506 bytes)

FirasH

2014-08-17 22:33

developer

12507-part3 (806 bytes)
Index: scribus/plugins/export/pixmapexport/dialog.cpp
===================================================================
--- scribus/plugins/export/pixmapexport/dialog.cpp	(revisione 19430)
+++ scribus/plugins/export/pixmapexport/dialog.cpp	(copia locale)
@@ -117,6 +117,7 @@
 {
	intervalPagesRadio->setToolTip( tr( "Export a range of pages" ) );
	rangeVal->setToolTip( tr( "Insert a comma separated list of tokens where\na token can be * for all the pages, 1-5 for\na range of pages or a single page number." ) );
+	pageNrButton->setToolTip( tr( "Create a range of pages" ) );
	allPagesRadio->setToolTip( tr( "Export all pages" ) );
	onePageRadio->setToolTip( tr( "Export only the current page" ) );
	DPIBox->setToolTip( tr( "Resolution of the Images\nUse 72 dpi for Images intended for the Screen" ) );
12507-part3 (806 bytes)

FirasH

2014-08-17 22:34

developer

12507-part4 (1,473 bytes)
Index: scribus/ui/printdialogbase.ui
===================================================================
--- scribus/ui/printdialogbase.ui	(revisione 19430)
+++ scribus/ui/printdialogbase.ui	(copia locale)
@@ -26,9 +26,18 @@
	   <property name="spacing">
		<number>5</number>
	   </property>
-      <property name="margin">
+      <property name="leftMargin">
		<number>10</number>
	   </property>
+      <property name="topMargin">
+       <number>10</number>
+      </property>
+      <property name="rightMargin">
+       <number>10</number>
+      </property>
+      <property name="bottomMargin">
+       <number>10</number>
+      </property>
	   <item>
		<layout class="QHBoxLayout">
		 <property name="spacing">
@@ -160,9 +169,18 @@
	   <string>Range</string>
	  </property>
	  <layout class="QGridLayout">
-      <property name="margin">
+      <property name="leftMargin">
		<number>10</number>
	   </property>
+      <property name="topMargin">
+       <number>10</number>
+      </property>
+      <property name="rightMargin">
+       <number>10</number>
+      </property>
+      <property name="bottomMargin">
+       <number>10</number>
+      </property>
	   <property name="spacing">
		<number>5</number>
	   </property>
@@ -243,6 +261,9 @@
		   <height>16</height>
		  </size>
		 </property>
+        <property name="toolTip">
+         <string>Create a range of pages</string>
+        </property>
		 <property name="text">
		  <string/>
		 </property>
12507-part4 (1,473 bytes)

Issue History

Date Modified Username Field Change
2014-07-09 21:53 Kunda New Issue
2014-07-09 21:53 Kunda Issue generated from: 0008178
2014-07-09 21:57 Kunda File Added: choose-pages_range.png
2014-07-09 22:26 Kunda Tag Attached: easyhack
2014-07-11 07:50 Kunda Reproducibility N/A => always
2014-07-11 07:50 Kunda Status new => confirmed
2014-07-11 07:50 Kunda Target Version => 1.5.1
2014-08-08 16:59 FirasH Note Added: 0033209
2014-08-08 17:03 FirasH File Added: 12507-Add tooltip.zip
2014-08-08 17:03 FirasH Summary Export PDF dialogue, Choose Pages tooltip => [PATCH] Export PDF dialogue, Choose Pages tooltip
2014-08-08 17:08 FirasH Relationship added related to 0012201
2014-08-14 00:49 FirasH Relationship added related to 0012604
2014-08-15 13:43 FirasH File Deleted: 12507-Add tooltip.zip
2014-08-15 13:43 FirasH File Added: 12507-part1
2014-08-15 13:43 FirasH File Added: 12507-part2
2014-08-17 22:32 FirasH Severity tweak => minor
2014-08-17 22:32 FirasH Summary [PATCH] Export PDF dialogue, Choose Pages tooltip => [PATCH] Added tooltip "Create range of pages" to ellipsis icon in all Scribus export dialogs
2014-08-17 22:32 FirasH Description Updated
2014-08-17 22:33 FirasH File Added: 12507-part3
2014-08-17 22:34 FirasH File Added: 12507-part4
2014-08-17 22:36 FirasH Relationship added related to 0012615
2014-09-12 22:19 cbradney Status confirmed => closed
2014-09-12 22:19 cbradney Assigned To => cbradney
2014-09-12 22:19 cbradney Resolution open => fixed
2014-09-12 22:19 cbradney Fixed in Version => 1.5.0svn
2014-10-15 17:07 Kunda Tag Renamed easyhack => #easyhack
2015-02-23 18:04 cbradney Target Version 1.5.1 => 1.5.0
