View Issue Details

IDProjectCategoryView StatusLast Update
0014849ScribusFontspublic2017-06-10 13:41
ReporterEneen Assigned To
PrioritynormalSeveritymajorReproducibilityhave not tried
Status newResolutionopen
Product Version1.5.3
Target VersionFixed in Version
Summary0014849: Fixed Line spacing causes overflow with Khand font

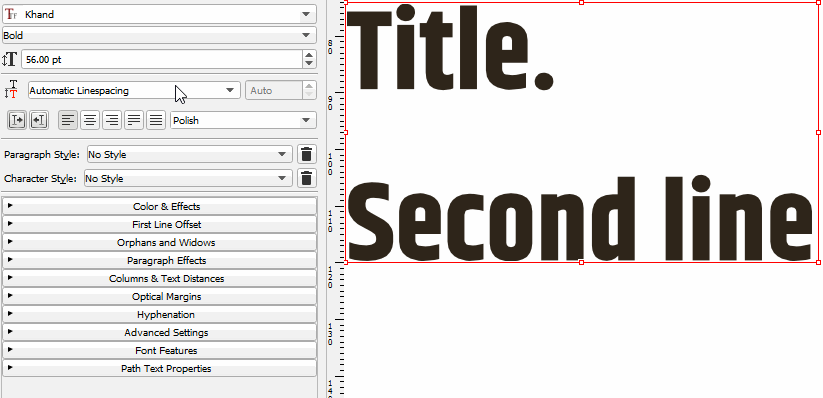

DescriptionI'm not sure if it's Scribus bug or font issue, but take a look @ gif. Font used: Khand. With automatic line spacing all is fine, but can't adjust line spacing ;)
TagsNo tags attached.
PatchNo

Relationships

related to 0011628 closedavox Layout issues

Activities

Eneen

2017-06-05 10:11

reporter

Eneen

2017-06-05 10:18

reporter   ~0044001

Sorry, not that file previously uploaded.

fixed_line_spacing_text_overflow.sla (14,161 bytes)

jghali

2017-06-10 13:36

administrator   ~0044026

Last edited: 2017-06-10 13:41

View 3 revisions

It looks like the issue is related to the fix applied for solving 0011628. The fix implies using full font ascent and descent for baseline grid and fixed line spacing modes for computing the placement of next line, ensure there is enough vertical place for all letters, and avoid premature line breaks when text flow around an object (amongst other things). Hence the need of additional space below the text baseline when using Khand font, as this font has an important descent. I have currently no idea how to change this without causing a regression for 0011628.

Issue History

Date Modified Username Field Change
2017-06-05 10:11 Eneen New Issue
2017-06-05 10:11 Eneen File Added: fixed_line_spacing_text_overflow.gif
2017-06-05 10:11 Eneen File Added: first_letter_not_black.sla
2017-06-05 10:17 Eneen File Deleted: first_letter_not_black.sla
2017-06-05 10:18 Eneen File Added: fixed_line_spacing_text_overflow.sla
2017-06-05 10:18 Eneen Note Added: 0044001
2017-06-10 13:22 jghali Relationship added related to 0011628
2017-06-10 13:36 jghali Note Added: 0044026
2017-06-10 13:37 jghali Note Edited: 0044026 View Revisions
2017-06-10 13:41 jghali Note Edited: 0044026 View Revisions
