IDProjectCategoryView StatusDate SubmittedLast Update
0015446ScribusUser Interfacepublic2018-09-30 07:242025-01-09 09:29
Reporterale Assigned To
PrioritynormalSeverityfeatureReproducibilityN/A
Status newResolutionopen
Product Version1.5.5.svn
Summary0015446: reorder the fields in the image tab of the properties palette
Descriptionwile working on a reset button for the image properties, i've noticed that the fields:

- do not seem to follow a strong logical ordered (at least not for me)
- do not make it easy to access the fields that are (probably) most used.

this makes it harder to find a good place for the reset button.

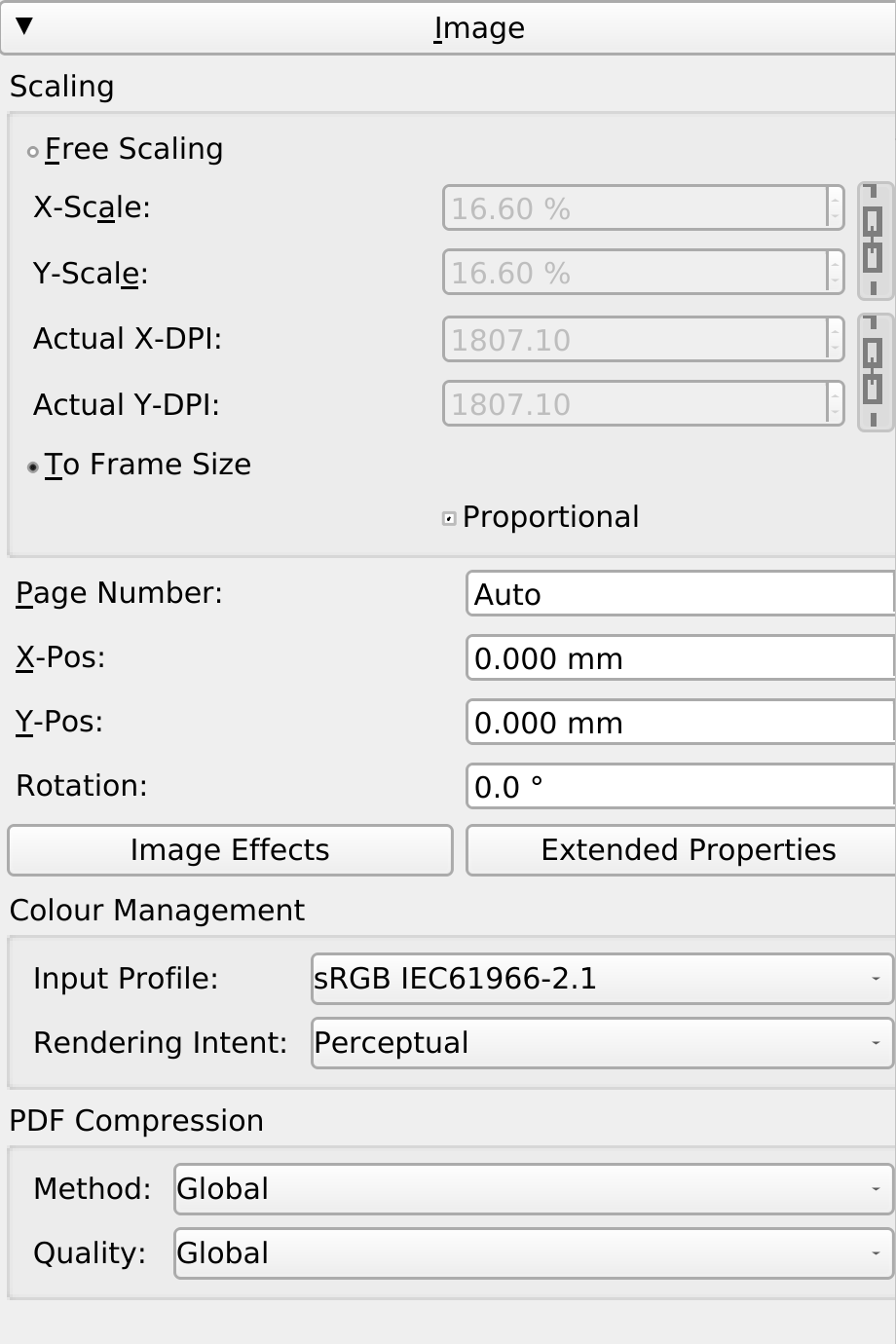

i suggest the following order:

- scale (the one that i almost always use...)
- position
- rotation
- image effects (only visible when an image is loaded) + extended properties (only visible for image types with extend properties)
- Colour management (visible if active)
- page number (should only be visible on multi page images? ... in this case it could also be on top...)
- PDF compression (only visible when a PDF is in the frame?)
- (reset button)

i will add a patch for this soon.
TagsNo tags attached.
PatchNo

Relationships

related to 0017073 new integrate "extra > manage images" into the the image content palette
related to 0017369 new add to the content palette the actions from the "image" and "preview" section" in the context menu

Activities

ale

2018-09-30 08:49

manager   ~0045489

oooh... i see that the fields are alphabetically ordered:

- page number
- position
- rotation
- scale

... is this on purpose? is this what we want?

ale

2018-09-30 09:45

manager

image-tab-order.patch (9,392 bytes)
diff --git a/scribus/ui/propertiespalette_imagebase.ui b/scribus/ui/propertiespalette_imagebase.ui
index b4932b3c2..e4b571d7e 100644
--- a/scribus/ui/propertiespalette_imagebase.ui
+++ b/scribus/ui/propertiespalette_imagebase.ui
@@ -29,81 +29,6 @@
    <property name="bottomMargin">
     <number>2</number>
    </property>
-   <item>
-    <layout class="QGridLayout" name="gridLayout">
-     <item row="2" column="0">
-      <widget class="QLabel" name="xposImgLabel">
-       <property name="text">
-        <string>&amp;X-Pos:</string>
-       </property>
-      </widget>
-     </item>
-     <item row="2" column="1">
-      <widget class="ScrSpinBox" name="imageXOffsetSpinBox">
-       <property name="sizePolicy">
-        <sizepolicy hsizetype="Minimum" vsizetype="Fixed">
-         <horstretch>0</horstretch>
-         <verstretch>0</verstretch>
-        </sizepolicy>
-       </property>
-       <property name="toolTip">
-        <string>Horizontal offset of image within frame</string>
-       </property>
-      </widget>
-     </item>
-     <item row="4" column="0">
-      <widget class="QLabel" name="imageRotationLabel">
-       <property name="text">
-        <string>Rotation:</string>
-       </property>
-      </widget>
-     </item>
-     <item row="4" column="1">
-      <widget class="ScrSpinBox" name="imageRotation">
-       <property name="sizePolicy">
-        <sizepolicy hsizetype="Minimum" vsizetype="Fixed">
-         <horstretch>0</horstretch>
-         <verstretch>0</verstretch>
-        </sizepolicy>
-       </property>
-      </widget>
-     </item>
-     <item row="1" column="0">
-      <widget class="QLabel" name="imagePageNumberLabel">
-       <property name="text">
-        <string>&amp;Page Number:</string>
-       </property>
-      </widget>
-     </item>
-     <item row="3" column="0">
-      <widget class="QLabel" name="yposImgLabel">
-       <property name="text">
-        <string>&amp;Y-Pos:</string>
-       </property>
-      </widget>
-     </item>
-     <item row="3" column="1">
-      <widget class="ScrSpinBox" name="imageYOffsetSpinBox">
-       <property name="sizePolicy">
-        <sizepolicy hsizetype="Minimum" vsizetype="Fixed">
-         <horstretch>0</horstretch>
-         <verstretch>0</verstretch>
-        </sizepolicy>
-       </property>
-       <property name="toolTip">
-        <string>Vertical offset of image within frame</string>
-       </property>
-      </widget>
-     </item>
-     <item row="1" column="1">
-      <widget class="ScrSpinBox" name="imagePageNumber">
-       <property name="specialValueText">
-        <string>Auto</string>
-       </property>
-      </widget>
-     </item>
-    </layout>
-   </item>
    <item>
     <widget class="QGroupBox" name="scalingGroupBox">
      <property name="title">
@@ -208,23 +133,6 @@
         </property>
        </widget>
       </item>
-      <item row="0" column="2">
-       <widget class="QToolButton" name="resetPositionScale">
-        <property name="maximumSize">
-         <size>
-          <width>22</width>
-          <height>22</height>
-         </size>
-        </property>
-        <property name="text">
-         <string>Reset Scale and Position</string>
-        </property>
-        <property name="icon">
-         <iconset>
-          <normaloff>../../resources/icons/16/edit-clear.png</normaloff>../../resources/icons/16/edit-clear.png</iconset>
-        </property>
-       </widget>
-      </item>
       <item row="7" column="1">
        <widget class="QCheckBox" name="cbProportional">
         <property name="toolTip">
@@ -275,6 +183,111 @@
      </layout>
     </widget>
    </item>
+   <item>
+    <layout class="QGridLayout" name="gridLayout">
+     <item row="1" column="0">
+      <widget class="QLabel" name="imagePageNumberLabel">
+       <property name="text">
+        <string>&amp;Page Number:</string>
+       </property>
+      </widget>
+     </item>
+     <item row="1" column="1">
+      <widget class="ScrSpinBox" name="imagePageNumber">
+       <property name="specialValueText">
+        <string>Auto</string>
+       </property>
+      </widget>
+     </item>
+     <item row="2" column="0">
+      <widget class="QLabel" name="xposImgLabel">
+       <property name="text">
+        <string>&amp;X-Pos:</string>
+       </property>
+      </widget>
+     </item>
+     <item row="2" column="1">
+      <widget class="ScrSpinBox" name="imageXOffsetSpinBox">
+       <property name="sizePolicy">
+        <sizepolicy hsizetype="Minimum" vsizetype="Fixed">
+         <horstretch>0</horstretch>
+         <verstretch>0</verstretch>
+        </sizepolicy>
+       </property>
+       <property name="toolTip">
+        <string>Horizontal offset of image within frame</string>
+       </property>
+      </widget>
+     </item>
+     <item row="3" column="0">
+      <widget class="QLabel" name="yposImgLabel">
+       <property name="text">
+        <string>&amp;Y-Pos:</string>
+       </property>
+      </widget>
+     </item>
+     <item row="3" column="1">
+      <widget class="ScrSpinBox" name="imageYOffsetSpinBox">
+       <property name="sizePolicy">
+        <sizepolicy hsizetype="Minimum" vsizetype="Fixed">
+         <horstretch>0</horstretch>
+         <verstretch>0</verstretch>
+        </sizepolicy>
+       </property>
+       <property name="toolTip">
+        <string>Vertical offset of image within frame</string>
+       </property>
+      </widget>
+     </item>
+     <item row="4" column="0">
+      <widget class="QLabel" name="imageRotationLabel">
+       <property name="text">
+        <string>Rotation:</string>
+       </property>
+      </widget>
+     </item>
+     <item row="4" column="1">
+      <widget class="ScrSpinBox" name="imageRotation">
+       <property name="sizePolicy">
+        <sizepolicy hsizetype="Minimum" vsizetype="Fixed">
+         <horstretch>0</horstretch>
+         <verstretch>0</verstretch>
+        </sizepolicy>
+       </property>
+      </widget>
+     </item>
+    </layout>
+   </item>
+   <item>
+    <layout class="QHBoxLayout" name="horizontalLayout">
+     <item>
+      <widget class="QToolButton" name="imgEffectsButton">
+       <property name="sizePolicy">
+        <sizepolicy hsizetype="MinimumExpanding" vsizetype="Fixed">
+         <horstretch>0</horstretch>
+         <verstretch>0</verstretch>
+        </sizepolicy>
+       </property>
+       <property name="text">
+        <string>Image Effects</string>
+       </property>
+      </widget>
+     </item>
+     <item>
+      <widget class="QToolButton" name="imgExtProperties">
+       <property name="sizePolicy">
+        <sizepolicy hsizetype="MinimumExpanding" vsizetype="Fixed">
+         <horstretch>0</horstretch>
+         <verstretch>0</verstretch>
+        </sizepolicy>
+       </property>
+       <property name="text">
+        <string>Extended Properties</string>
+       </property>
+      </widget>
+     </item>
+    </layout>
+   </item>
    <item>
     <widget class="QGroupBox" name="colorMgmtGroup">
      <property name="title">
@@ -367,36 +380,6 @@
      </layout>
     </widget>
    </item>
-   <item>
-    <layout class="QHBoxLayout" name="horizontalLayout">
-     <item>
-      <widget class="QToolButton" name="imgEffectsButton">
-       <property name="sizePolicy">
-        <sizepolicy hsizetype="MinimumExpanding" vsizetype="Fixed">
-         <horstretch>0</horstretch>
-         <verstretch>0</verstretch>
-        </sizepolicy>
-       </property>
-       <property name="text">
-        <string>Image Effects</string>
-       </property>
-      </widget>
-     </item>
-     <item>
-      <widget class="QToolButton" name="imgExtProperties">
-       <property name="sizePolicy">
-        <sizepolicy hsizetype="MinimumExpanding" vsizetype="Fixed">
-         <horstretch>0</horstretch>
-         <verstretch>0</verstretch>
-        </sizepolicy>
-       </property>
-       <property name="text">
-        <string>Extended Properties</string>
-       </property>
-      </widget>
-     </item>
-    </layout>
-   </item>
    <item>
     <spacer name="verticalSpacer">
      <property name="orientation">
@@ -425,25 +408,17 @@
   </customwidget>
  </customwidgets>
  <tabstops>
-  <tabstop>imagePageNumber</tabstop>
   <tabstop>imageXOffsetSpinBox</tabstop>
   <tabstop>imageYOffsetSpinBox</tabstop>
   <tabstop>imageRotation</tabstop>
-  <tabstop>freeScale</tabstop>
-  <tabstop>imageXScaleSpinBox</tabstop>
-  <tabstop>imageYScaleSpinBox</tabstop>
-  <tabstop>imgDpiX</tabstop>
-  <tabstop>imgDpiY</tabstop>
-  <tabstop>keepImageWHRatioButton</tabstop>
-  <tabstop>keepImageDPIRatioButton</tabstop>
-  <tabstop>frameScale</tabstop>
+  <tabstop>imgEffectsButton</tabstop>
+  <tabstop>imgExtProperties</tabstop>
   <tabstop>cbProportional</tabstop>
+  <tabstop>imagePageNumber</tabstop>
   <tabstop>inputProfiles</tabstop>
   <tabstop>renderIntent</tabstop>
   <tabstop>compressionMethod</tabstop>
   <tabstop>compressionQuality</tabstop>
-  <tabstop>imgEffectsButton</tabstop>
-  <tabstop>imgExtProperties</tabstop>
  </tabstops>
  <resources/>
  <connections/>
image-tab-order.patch (9,392 bytes)

PeterBenedek

2018-09-30 16:23

developer   ~0045491

Last edited: 2018-09-30 16:25

 ale, please consider introducing a new field too (field value read only).

Image name:

This would be useful.

Thanks, Peter


ale

2018-09-30 19:16

manager   ~0045492

the information is already available in the context menu, under "file info".
on the one side, this is for sure an interesting information, but i really wonder if it's wort to use PP space for it.
for the times i need the information, i'm ready to right click on the frame...

i would tend to add it in the "tooltip" in the "outline" window.

and is also accessible in the image manager.

i don't know i'm a bit hesitant to add it on top of the image tab in the PP...

ale

2019-01-28 09:20

manager   ~0045868

adding a link to the image manager?

ale

2019-01-28 09:22

manager   ~0045869

the free scale / fit to frame (/ fill the frame) radio buttons should be push buttons (with an icon) on top of "their" fields.

optionally: only show the active fields for the active fill type.

Issue History

Date Modified Username Field Change
2018-09-30 07:24 ale New Issue
2018-09-30 08:49 ale Note Added: 0045489
2018-09-30 08:52 ale Description Updated
2018-09-30 09:19 ale Description Updated
2018-09-30 09:45 ale File Added: image-tab-order.png
2018-09-30 09:45 ale File Added: image-tab-order.patch
2018-09-30 16:23 PeterBenedek File Added: Scribus_imagename.png
2018-09-30 16:23 PeterBenedek Note Added: 0045491
2018-09-30 16:25 PeterBenedek Note Edited: 0045491
2018-09-30 19:16 ale Note Added: 0045492
2019-01-28 09:20 ale Note Added: 0045868
2019-01-28 09:22 ale Note Added: 0045869
2023-12-14 07:30 ale Relationship added related to 0017073
2025-01-09 09:29 ale Relationship added related to 0017369
