Summary0016249: Part of imported SVG disappear
DescriptionA SVG file that features arrows is badly imported as a vector file in Scribus. Some of the issues are known because transforms are not dealt with, but 2 issues here are "new".

All arrows look the same but
1) Some arrows import well but some arrow heads disappear when imported
2) Once imported, i cannot change the color of the "head" part of the arrows (neither background nor contour) : color is greyed out
Additional Informationuploaded svg features a red arrow that import well and a green arrow that imports headless.
red head is too large but this is not the issue here.
Issue are :
- green head is not imported
- as a workaround I wish to copy red head and turn it green but no, there is no color edit ability.

This specific case is very simple so i will use the ultimate workaround and use scribus line arrows :-)
TagsSVG
PatchNo

Activities

JLuc

2020-09-23 16:02

developer

fleches.svg (4,523 bytes)
fleches.svg (4,523 bytes)

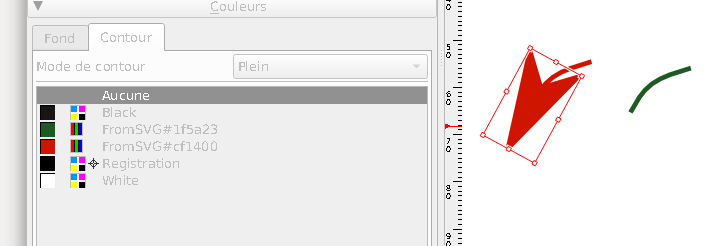

Capture d’écran de 2020-09-23 17-58-02.png (13,911 bytes)
Capture d’écran de 2020-09-23 17-58-02.png (13,911 bytes)

jghali

2020-09-24 00:32

administrator   ~0048090

>> Once imported, i cannot change the color of the "head" part of the arrows (neither background nor contour) : color is greyed out

The arrows are described in the svg as reusable elements and are hence imported as symbols. You can edit these elements by using the Windows > Symbols window. No bug here.

jghali

2020-09-24 01:25

administrator   ~0048092

Import of the green arrow is now fixed.
