View Issue Details

IDProjectCategoryView StatusLast Update
0016388ScribusUser Interfacepublic2020-12-14 21:43
Reporterbubu Assigned Tojghali
PrioritynormalSeverityminorReproducibilityalways
Status resolvedResolutionfixed
Product Version1.5.7.svn
Target VersionFixed in Version1.5.7.svn
Summary0016388: Add missing vertical spacer to Create Range dialog

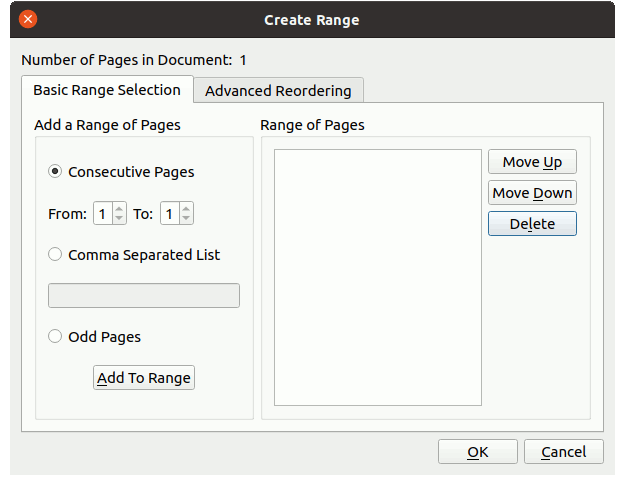

DescriptionThere is a missing vertical spacer in Create Range dialog after "Add to Range" button. See the before-after screenshot, please.

This dialog can be found for example by:
- File > Print > Print Range ...
- File > Export > Save As PDF > Choose Pages ...
- Insert > Frames > Location tab -> Range of Pages ...

This patch adds the missing vertical spacer and shrinks a little bit the height of the dialog. The patch seems big because spacer is inserted to a grid layout but it is really just an inserted spacer, nothing else. Please review the patch. Thanks.
Tagspatch
PatchYes

Activities

bubu

2020-12-14 20:36

reporter

create_range.diff (9,085 bytes)
diff --git a/scribus/ui/createrange.ui b/scribus/ui/createrange.ui
index a0e5e058af60b28a2c1856e7c8a1ae4590835aa4..ce0583279fa3699884aadd1430925bc6810d827f 100644
--- a/scribus/ui/createrange.ui
+++ b/scribus/ui/createrange.ui
@@ -7,7 +7,7 @@
     <x>0</x>
     <y>0</y>
     <width>605</width>
-    <height>437</height>
+    <height>386</height>
    </rect>
   </property>
   <property name="windowTitle">
@@ -80,64 +80,6 @@
        <string>Basic Range Selection</string>
       </attribute>
       <layout class="QGridLayout">
-       <item row="0" column="1">
-        <widget class="QGroupBox" name="groupBox1">
-         <property name="title">
-          <string>Range of Pages</string>
-         </property>
-         <layout class="QGridLayout">
-          <item row="2" column="1">
-           <widget class="QPushButton" name="basicRangeDelButton">
-            <property name="text">
-             <string>De&amp;lete</string>
-            </property>
-            <property name="shortcut">
-             <string>Alt+L</string>
-            </property>
-           </widget>
-          </item>
-          <item row="3" column="1">
-           <spacer>
-            <property name="orientation">
-             <enum>Qt::Vertical</enum>
-            </property>
-            <property name="sizeType">
-             <enum>QSizePolicy::Expanding</enum>
-            </property>
-            <property name="sizeHint" stdset="0">
-             <size>
-              <width>20</width>
-              <height>40</height>
-             </size>
-            </property>
-           </spacer>
-          </item>
-          <item row="1" column="1">
-           <widget class="QPushButton" name="basicRangeDownButton">
-            <property name="text">
-             <string>Move &amp;Down</string>
-            </property>
-            <property name="shortcut">
-             <string>Alt+D</string>
-            </property>
-           </widget>
-          </item>
-          <item row="0" column="1">
-           <widget class="QPushButton" name="basicRangeUpButton">
-            <property name="text">
-             <string>Move &amp;Up</string>
-            </property>
-            <property name="shortcut">
-             <string>Alt+U</string>
-            </property>
-           </widget>
-          </item>
-          <item row="0" column="0" rowspan="4">
-           <widget class="QListWidget" name="basicRangeListBox"/>
-          </item>
-         </layout>
-        </widget>
-       </item>
        <item row="0" column="0">
         <widget class="QGroupBox" name="basicAddARangeButtonGroup">
          <property name="sizePolicy">
@@ -160,49 +102,26 @@
             </property>
            </widget>
           </item>
-          <item row="4" column="0" colspan="5">
-           <widget class="QRadioButton" name="basicEvenRadioButton">
-            <property name="text">
-             <string>Even Pages</string>
-            </property>
-           </widget>
+          <item row="1" column="1">
+           <widget class="ScrSpinBox" name="basicConsecutiveFromSpinBox"/>
           </item>
-          <item row="1" column="0">
-           <widget class="QLabel" name="basicConsecutiveFromLabel">
+          <item row="3" column="0" colspan="5">
+           <widget class="QLineEdit" name="basicCommaSepLineEdit"/>
+          </item>
+          <item row="5" column="0" colspan="5">
+           <widget class="QRadioButton" name="basicOddRadioButton">
             <property name="text">
-             <string>From:</string>
-            </property>
-            <property name="wordWrap">
-             <bool>false</bool>
+             <string>Odd Pages</string>
             </property>
            </widget>
           </item>
           <item row="1" column="3">
            <widget class="ScrSpinBox" name="basicConsecutiveToSpinBox"/>
           </item>
-          <item row="1" column="1">
-           <widget class="ScrSpinBox" name="basicConsecutiveFromSpinBox"/>
-          </item>
-          <item row="1" column="4">
-           <spacer>
-            <property name="orientation">
-             <enum>Qt::Horizontal</enum>
-            </property>
-            <property name="sizeType">
-             <enum>QSizePolicy::Expanding</enum>
-            </property>
-            <property name="sizeHint" stdset="0">
-             <size>
-              <width>40</width>
-              <height>20</height>
-             </size>
-            </property>
-           </spacer>
-          </item>
-          <item row="1" column="2">
-           <widget class="QLabel" name="basicConsecutiveToLabel">
+          <item row="1" column="0">
+           <widget class="QLabel" name="basicConsecutiveFromLabel">
             <property name="text">
-             <string>To:</string>
+             <string>From:</string>
             </property>
             <property name="wordWrap">
              <bool>false</bool>
@@ -255,15 +174,38 @@
             </item>
            </layout>
           </item>
-          <item row="5" column="0" colspan="5">
-           <widget class="QRadioButton" name="basicOddRadioButton">
+          <item row="4" column="0" colspan="5">
+           <widget class="QRadioButton" name="basicEvenRadioButton">
             <property name="text">
-             <string>Odd Pages</string>
+             <string>Even Pages</string>
             </property>
            </widget>
           </item>
-          <item row="3" column="0" colspan="5">
-           <widget class="QLineEdit" name="basicCommaSepLineEdit"/>
+          <item row="1" column="4">
+           <spacer>
+            <property name="orientation">
+             <enum>Qt::Horizontal</enum>
+            </property>
+            <property name="sizeType">
+             <enum>QSizePolicy::Expanding</enum>
+            </property>
+            <property name="sizeHint" stdset="0">
+             <size>
+              <width>40</width>
+              <height>20</height>
+             </size>
+            </property>
+           </spacer>
+          </item>
+          <item row="1" column="2">
+           <widget class="QLabel" name="basicConsecutiveToLabel">
+            <property name="text">
+             <string>To:</string>
+            </property>
+            <property name="wordWrap">
+             <bool>false</bool>
+            </property>
+           </widget>
           </item>
           <item row="2" column="0" colspan="5">
            <widget class="QRadioButton" name="basicCommaSepRadioButton">
@@ -272,6 +214,77 @@
             </property>
            </widget>
           </item>
+          <item row="7" column="0">
+           <spacer name="verticalSpacer">
+            <property name="orientation">
+             <enum>Qt::Vertical</enum>
+            </property>
+            <property name="sizeHint" stdset="0">
+             <size>
+              <width>20</width>
+              <height>0</height>
+             </size>
+            </property>
+           </spacer>
+          </item>
+         </layout>
+        </widget>
+       </item>
+       <item row="0" column="1">
+        <widget class="QGroupBox" name="groupBox1">
+         <property name="title">
+          <string>Range of Pages</string>
+         </property>
+         <layout class="QGridLayout">
+          <item row="2" column="1">
+           <widget class="QPushButton" name="basicRangeDelButton">
+            <property name="text">
+             <string>De&amp;lete</string>
+            </property>
+            <property name="shortcut">
+             <string>Alt+L</string>
+            </property>
+           </widget>
+          </item>
+          <item row="3" column="1">
+           <spacer>
+            <property name="orientation">
+             <enum>Qt::Vertical</enum>
+            </property>
+            <property name="sizeType">
+             <enum>QSizePolicy::Expanding</enum>
+            </property>
+            <property name="sizeHint" stdset="0">
+             <size>
+              <width>20</width>
+              <height>40</height>
+             </size>
+            </property>
+           </spacer>
+          </item>
+          <item row="1" column="1">
+           <widget class="QPushButton" name="basicRangeDownButton">
+            <property name="text">
+             <string>Move &amp;Down</string>
+            </property>
+            <property name="shortcut">
+             <string>Alt+D</string>
+            </property>
+           </widget>
+          </item>
+          <item row="0" column="1">
+           <widget class="QPushButton" name="basicRangeUpButton">
+            <property name="text">
+             <string>Move &amp;Up</string>
+            </property>
+            <property name="shortcut">
+             <string>Alt+U</string>
+            </property>
+           </widget>
+          </item>
+          <item row="0" column="0" rowspan="4">
+           <widget class="QListWidget" name="basicRangeListBox"/>
+          </item>
          </layout>
         </widget>
        </item>
create_range.diff (9,085 bytes)

jghali

2020-12-14 21:43

administrator   ~0048552

Applied, thanks!

Issue History

Date Modified Username Field Change
2020-12-14 20:36 bubu New Issue
2020-12-14 20:36 bubu Tag Attached: patch
2020-12-14 20:36 bubu File Added: create_range.diff
2020-12-14 20:36 bubu File Added: create_range.gif
2020-12-14 21:43 jghali Assigned To => jghali
2020-12-14 21:43 jghali Status new => resolved
2020-12-14 21:43 jghali Resolution open => fixed
2020-12-14 21:43 jghali Fixed in Version => 1.5.7.svn
2020-12-14 21:43 jghali Note Added: 0048552
