View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0016390 | Scribus | User Interface | public | 2020-12-16 11:57 | 2021-03-21 15:26 |
| Reporter | bubu | Assigned To | jghali | ||
| Priority | normal | Severity | minor | Reproducibility | always |
| Status | closed | Resolution | fixed | ||
| Product Version | 1.5.7.svn | ||||
| Fixed in Version | 1.5.7.svn | ||||
| Summary | 0016390: Update layout for Manage Guides dialog | ||||

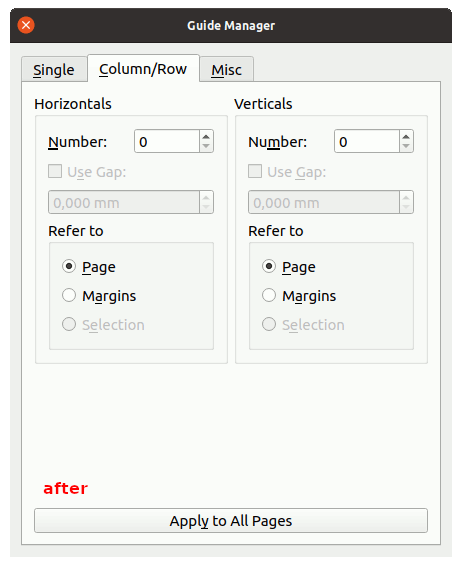

| Description | I propose a several small improvement in the Manage Guides dialog: - Decrease a little bit the default height of the dialog. - Use default margins. - Add a spacer in the 2nd tab. See the before-after screenshot. Please, review the attached patch. Thanks. | ||||
| Tags | No tags attached. | ||||
| Attached Files | manage_guides.diff (2,625 bytes)
diff --git a/scribus/ui/guidemanager.ui b/scribus/ui/guidemanager.ui
index 044d6fa12e5af7d8abbcf1a8be1b39921b953266..f0ed65f4dcaad7a3ab6c36e6e482f5f0d21c022e 100644
--- a/scribus/ui/guidemanager.ui
+++ b/scribus/ui/guidemanager.ui
@@ -9,28 +9,13 @@
<x>0</x>
<y>0</y>
<width>432</width>
- <height>389</height>
+ <height>368</height>
</rect>
</property>
<property name="windowTitle">
<string>Guide Manager</string>
</property>
<layout class="QGridLayout">
- <property name="leftMargin">
- <number>11</number>
- </property>
- <property name="topMargin">
- <number>11</number>
- </property>
- <property name="rightMargin">
- <number>11</number>
- </property>
- <property name="bottomMargin">
- <number>11</number>
- </property>
- <property name="spacing">
- <number>6</number>
- </property>
<item row="0" column="0">
<widget class="QTabWidget" name="tabWidget">
<property name="currentIndex">
@@ -168,6 +153,19 @@
<string>&Column/Row</string>
</attribute>
<layout class="QGridLayout">
+ <item row="2" column="0" colspan="2">
+ <widget class="QPushButton" name="applyToAllAutoButton">
+ <property name="toolTip">
+ <string>Apply the shown guides to all pages in the document</string>
+ </property>
+ <property name="text">
+ <string>Appl&y to All Pages</string>
+ </property>
+ <property name="shortcut">
+ <string>Alt+Y</string>
+ </property>
+ </widget>
+ </item>
<item row="0" column="0">
<widget class="QGroupBox" name="horizontalAutoGroup">
<property name="title">
@@ -378,18 +376,18 @@
</layout>
</widget>
</item>
- <item row="1" column="0" colspan="2">
- <widget class="QPushButton" name="applyToAllAutoButton">
- <property name="toolTip">
- <string>Apply the shown guides to all pages in the document</string>
- </property>
- <property name="text">
- <string>Appl&y to All Pages</string>
+ <item row="1" column="0">
+ <spacer name="verticalSpacer">
+ <property name="orientation">
+ <enum>Qt::Vertical</enum>
</property>
- <property name="shortcut">
- <string>Alt+Y</string>
+ <property name="sizeHint" stdset="0">
+ <size>
+ <width>20</width>
+ <height>0</height>
+ </size>
</property>
- </widget>
+ </spacer>
</item>
</layout>
</widget>
| ||||
| Patch | Yes | ||||
| child of | 0013906 | acknowledged | Metabug: UI enhancement proposals (1.5.x.svn) |
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2020-12-16 11:57 | bubu | New Issue | |
| 2020-12-16 11:57 | bubu | File Added: manage_guides.diff | |
| 2020-12-16 11:57 | bubu | File Added: manage_guides.gif | |
| 2020-12-17 08:13 | PeterBenedek | Relationship added | child of 0013906 |
| 2020-12-18 01:09 | jghali | Assigned To | => jghali |
| 2020-12-18 01:09 | jghali | Status | new => resolved |
| 2020-12-18 01:09 | jghali | Resolution | open => fixed |
| 2020-12-18 01:09 | jghali | Fixed in Version | => 1.5.7.svn |
| 2020-12-18 01:09 | jghali | Note Added: 0048587 | |
| 2021-03-21 15:26 | FirasH | Status | resolved => closed |
| 2021-03-21 15:26 | FirasH | Note Added: 0049022 |
