It should be tiped "experimental" |
|
|
|

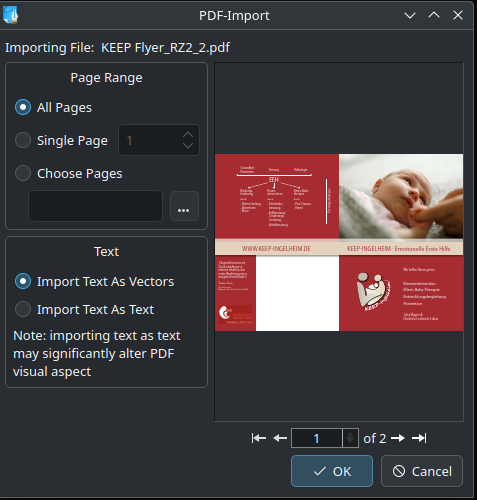

I've changed the alignment (to top) in the PDF text import mode groupbox so as to leave more space for the note. Not sure what we can do in this case as it seems Qt has given the dialog a too small size. |
|
|
|

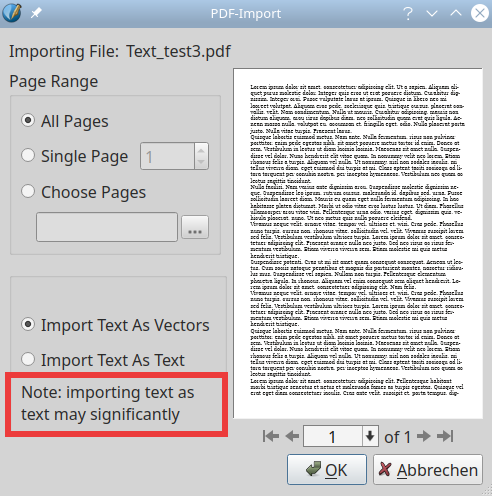

This looks much better now, but I'm not sure that it is the best solution.
Perhaps we should make the note shorter and use the warning sign icon instead of the word "Note"? The text would then be something like: "This option may result in problems with layouts involving text."
There should also be a tooltip for the text import checkbox: "Text import only works reliably in terms of preserving the original layout if the fonts used in a PDF file are either embedded or installed on your computer. Moreover, the import quality depends on the way the PDF file has been created and the version and/or subset of it. You'll probably need to experiment a bit to find out what's the best way to import PDFs with editable text." |
|
|
|

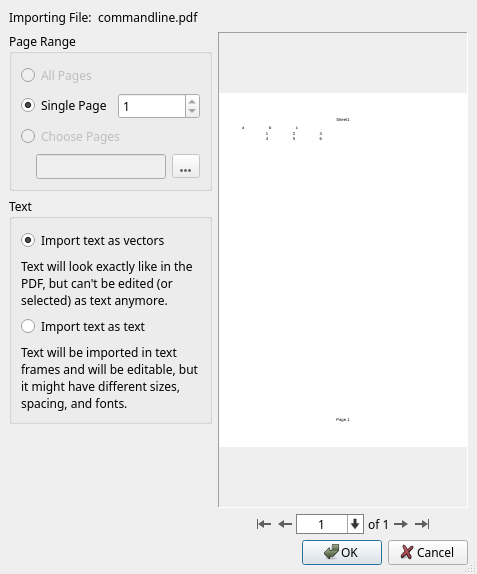

Here's how it looks in 1.7.0svn |
|
|
|
This ticket can be closed IMHO |
|
|
|
I would suggest that the Note should say (without saying it's a note):
(o) Import text as vectors
"Text will look exactly like in the PDF, but can't be edited (or selected) as text anymore.
(o) Import text as text
"Text will be imported in text frames and will be editable, but it might have different sizes, spacing, and fonts."
- The note could change according to the current selection, or
- The two notes could be placed each below the corresponding option, or
- No note is shown, and the hint goes to a tooltip; one for both or two different tooltips.
What do people prefer? |
|
|
|
> I would suggest that the Note should say (without saying it's a note)
+1
> The two notes could be placed each below the corresponding option
+1 |
|
|
|
here is a patch...
pdf-import-labels.diff (6,939 bytes)
diff --git a/scribus/plugins/import/pdf/pdfimportoptions.ui b/scribus/plugins/import/pdf/pdfimportoptions.ui
index f18744187..1d27fca38 100644
--- a/scribus/plugins/import/pdf/pdfimportoptions.ui
+++ b/scribus/plugins/import/pdf/pdfimportoptions.ui
@@ -7,31 +7,31 @@
<x>0</x>
<y>0</y>
<width>477</width>
- <height>468</height>
+ <height>563</height>
</rect>
</property>
<property name="windowTitle">
<string>PDF-Import</string>
</property>
<property name="sizeGripEnabled">
- <bool>true</bool>
- </property>
- <layout class="QVBoxLayout" name="verticalLayout_5">
- <property name="leftMargin">
- <number>9</number>
- </property>
- <property name="topMargin">
- <number>9</number>
- </property>
- <property name="rightMargin">
- <number>9</number>
- </property>
- <property name="bottomMargin">
- <number>9</number>
- </property>
- <item>
- <layout class="QHBoxLayout" name="horizontalLayout_5">
- <item>
+ <bool>true</bool>
+ </property>
+ <layout class="QVBoxLayout" name="verticalLayout_5">
+ <property name="leftMargin">
+ <number>9</number>
+ </property>
+ <property name="topMargin">
+ <number>9</number>
+ </property>
+ <property name="rightMargin">
+ <number>9</number>
+ </property>
+ <property name="bottomMargin">
+ <number>9</number>
+ </property>
+ <item>
+ <layout class="QHBoxLayout" name="horizontalLayout_5">
+ <item>
<widget class="QLabel" name="label">
<property name="sizePolicy">
<sizepolicy hsizetype="Maximum" vsizetype="Preferred">
@@ -109,12 +109,12 @@
<string>Choose Pages</string>
</property>
</widget>
- </item>
- <item>
- <layout class="QHBoxLayout" name="horizontalLayout">
- <property name="leftMargin">
- <number>15</number>
- </property>
+ </item>
+ <item>
+ <layout class="QHBoxLayout" name="horizontalLayout">
+ <property name="leftMargin">
+ <number>15</number>
+ </property>
<item>
<widget class="QLineEdit" name="pageRangeString">
<property name="enabled">
@@ -184,42 +184,58 @@
</layout>
</widget>
</item>
- <item alignment="Qt::AlignTop">
+ <item alignment="Qt::AlignmentFlag::AlignTop">
<widget class="QGroupBox" name="groupBox_2">
<property name="sizePolicy">
<sizepolicy hsizetype="Preferred" vsizetype="Maximum">
<horstretch>0</horstretch>
<verstretch>0</verstretch>
- </sizepolicy>
- </property>
- <property name="title">
- <string>Text</string>
- </property>
- <layout class="QVBoxLayout" name="verticalLayout_8">
- <item>
+ </sizepolicy>
+ </property>
+ <property name="title">
+ <string>Text</string>
+ </property>
+ <layout class="QVBoxLayout" name="verticalLayout_8">
+ <item>
<widget class="QRadioButton" name="textAsVectors">
<property name="enabled">
<bool>true</bool>
</property>
<property name="text">
- <string>Import Text As Vectors</string>
+ <string>Import text as vectors</string>
</property>
<property name="checked">
<bool>true</bool>
</property>
</widget>
</item>
+ <item>
+ <widget class="QLabel" name="label_2">
+ <property name="minimumSize">
+ <size>
+ <width>0</width>
+ <height>21</height>
+ </size>
+ </property>
+ <property name="text">
+ <string>Text will look exactly like in the PDF, but can't be edited (or selected) as text anymore.</string>
+ </property>
+ <property name="wordWrap">
+ <bool>true</bool>
+ </property>
+ </widget>
+ </item>
<item>
<widget class="QRadioButton" name="textAsText">
<property name="text">
- <string>Import Text As Text</string>
+ <string>Import text as text</string>
</property>
</widget>
</item>
<item>
- <widget class="QLabel" name="label_2">
+ <widget class="QLabel" name="label_3">
<property name="text">
- <string>Note: importing text as text may significantly alter PDF visual aspect</string>
+ <string>Text will be imported in text frames and will be editable, but it might have different sizes, spacing, and fonts.</string>
</property>
<property name="wordWrap">
<bool>true</bool>
@@ -232,7 +248,7 @@
<item>
<spacer name="verticalSpacer">
<property name="orientation">
- <enum>Qt::Vertical</enum>
+ <enum>Qt::Orientation::Vertical</enum>
</property>
<property name="sizeHint" stdset="0">
<size>
@@ -261,16 +277,16 @@
</size>
</property>
<property name="frameShape">
- <enum>QFrame::Panel</enum>
+ <enum>QFrame::Shape::Panel</enum>
</property>
<property name="frameShadow">
- <enum>QFrame::Sunken</enum>
+ <enum>QFrame::Shadow::Sunken</enum>
</property>
<property name="text">
<string/>
</property>
<property name="alignment">
- <set>Qt::AlignCenter</set>
+ <set>Qt::AlignmentFlag::AlignCenter</set>
</property>
</widget>
</item>
@@ -279,7 +295,7 @@
<item>
<spacer name="horizontalSpacer">
<property name="orientation">
- <enum>Qt::Horizontal</enum>
+ <enum>Qt::Orientation::Horizontal</enum>
</property>
<property name="sizeHint" stdset="0">
<size>
@@ -295,7 +311,7 @@
<item>
<spacer name="horizontalSpacer_2">
<property name="orientation">
- <enum>Qt::Horizontal</enum>
+ <enum>Qt::Orientation::Horizontal</enum>
</property>
<property name="sizeHint" stdset="0">
<size>
@@ -314,10 +330,10 @@
<item>
<widget class="QDialogButtonBox" name="buttonBox">
<property name="orientation">
- <enum>Qt::Horizontal</enum>
+ <enum>Qt::Orientation::Horizontal</enum>
</property>
<property name="standardButtons">
- <set>QDialogButtonBox::Cancel|QDialogButtonBox::Ok</set>
+ <set>QDialogButtonBox::StandardButton::Cancel|QDialogButtonBox::StandardButton::Ok</set>
</property>
</widget>
</item>
|
|
|
|
+1 |
|
