View Issue Details

IDProjectCategoryView StatusLast Update
0016482ScribusUser Interfacepublic2021-02-20 17:52
Reporterbubu Assigned Tojghali
PrioritynormalSeverityminorReproducibilityalways
Status resolvedResolutionfixed
Product Version1.5.7.svn
Target VersionFixed in Version1.5.7.svn
Summary0016482: Unify margins and spacing for dialogs, set 10
DescriptionI propose a new set of trivial margin/spacing adjustment for dialogs.

Comments:
- scgtplugin.cpp → I cannot attach a screenshot :-(.

Please review. Thanks.
TagsNo tags attached.
PatchNo

Relationships

child of 0013906 acknowledged Metabug: UI enhancement proposals (1.5.x.svn)

Activities

bubu

2021-02-18 22:16

reporter

0001-Unify-margins-and-spacing-for-dialogs-set-10.patch (11,661 bytes)
From 5b011f8e931e37d9ffc007604adb510c44786f5a Mon Sep 17 00:00:00 2001
Message-Id: <5b011f8e931e37d9ffc007604adb510c44786f5a.1613686541.git.bubu@ujevangelizacio.hu>
From: =?UTF-8?q?Gyuris=20Gell=C3=A9rt?= <bubu@ujevangelizacio.hu>
Date: Thu, 18 Feb 2021 23:15:27 +0100
Subject: [PATCH] Unify margins and spacing for dialogs, set 10

---
 scribus/plugins/gettext/csvim/csvdia.cpp      | 20 ++++++-------
 scribus/plugins/gettext/sxwim/sxwdia.cpp      | 24 ++++++++--------
 scribus/plugins/gettext/textfilter/tfdia.cpp  | 28 +++++++++----------
 .../plugins/gettext/textfilter/tffilter.cpp   | 16 +++++------
 .../plugins/saveastemplateplugin/satdialog.ui | 12 ++++++++
 scribus/scgtplugin.cpp                        |  2 +-
 scribus/ui/missing.cpp                        |  8 +++---
 7 files changed, 61 insertions(+), 49 deletions(-)

diff --git a/scribus/plugins/gettext/csvim/csvdia.cpp b/scribus/plugins/gettext/csvim/csvdia.cpp
index d715ff179..e425c614a 100644
--- a/scribus/plugins/gettext/csvim/csvdia.cpp
+++ b/scribus/plugins/gettext/csvim/csvdia.cpp
@@ -28,12 +28,12 @@ CsvDialog::CsvDialog() : QDialog(nullptr)
 	setWindowIcon(QIcon(IconManager::instance().loadIcon("AppIcon.png")));

 	QBoxLayout* layout = new QVBoxLayout(this);
-	layout->setMargin(0);
-	layout->setSpacing(0);
+	layout->setContentsMargins(9, 9, 9, 9);
+	layout->setSpacing(6);

 	QBoxLayout* flayout = new QHBoxLayout;
-	flayout->setMargin(5);
-	flayout->setSpacing(5);
+	flayout->setContentsMargins(0, 0, 0, 0);
+	flayout->setSpacing(6);
 	QLabel* fdlabel = new QLabel( tr("Field delimiter:"), this);
 	fdlabel->setMinimumWidth(120);
 	flayout->addWidget(fdlabel,1);
@@ -48,8 +48,8 @@ CsvDialog::CsvDialog() : QDialog(nullptr)
 	layout->addLayout(flayout);

 	QBoxLayout* vlayout = new QHBoxLayout;
-	vlayout->setMargin(5);
-	vlayout->setSpacing(5);
+	vlayout->setContentsMargins(0, 0, 0, 0);
+	vlayout->setSpacing(6);
 	QLabel* vdlabel = new QLabel( tr("Value delimiter:"), this);
 	vdlabel->setMinimumWidth(120);
 	vlayout->addWidget(vdlabel,1);
@@ -63,15 +63,15 @@ CsvDialog::CsvDialog() : QDialog(nullptr)
 	layout->addLayout(vlayout);

 	QBoxLayout* hlayout = new QHBoxLayout;
-	hlayout->setMargin(5);
-	hlayout->setSpacing(5);
+	hlayout->setContentsMargins(0, 0, 0, 0);
+	hlayout->setSpacing(6);
 	headerCheck = new QCheckBox( tr("First row is a header"), this);
 	hlayout->addWidget(headerCheck);
 	layout->addLayout(hlayout);

 	QBoxLayout* blayout = new QHBoxLayout;
-	blayout->setMargin(5);
-	blayout->setSpacing(5);
+	blayout->setContentsMargins(0, 0, 0, 0);
+	blayout->setSpacing(6);
 	blayout->addStretch(10);
 	okButton = new QPushButton( tr("OK"), this);
 	blayout->addWidget(okButton);
diff --git a/scribus/plugins/gettext/sxwim/sxwdia.cpp b/scribus/plugins/gettext/sxwim/sxwdia.cpp
index 23bfb645d..cc3d5d265 100644
--- a/scribus/plugins/gettext/sxwim/sxwdia.cpp
+++ b/scribus/plugins/gettext/sxwim/sxwdia.cpp
@@ -24,12 +24,12 @@ SxwDialog::SxwDialog(bool update, bool prefix, bool pack) : QDialog(nullptr)

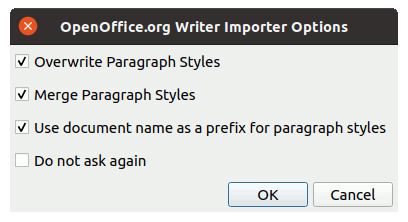

 	setWindowTitle( tr("OpenOffice.org Writer Importer Options"));

 	QBoxLayout* layout = new QVBoxLayout(this);
-	layout->setMargin(0);
-	layout->setSpacing(0);
+	layout->setContentsMargins(9, 9, 9, 9);
+	layout->setSpacing(6);

 	QBoxLayout* hlayout = new QHBoxLayout;
-	hlayout->setMargin(5);
-	hlayout->setSpacing(5);
+	hlayout->setContentsMargins(0, 0, 0, 0);
+	hlayout->setSpacing(6);
 	updateCheck = new QCheckBox( tr("Overwrite Paragraph Styles"), this);
 	updateCheck->setChecked(update);
 	updateCheck->setToolTip( "<qt>" + tr("Enabling this will overwrite existing styles in the current Scribus document") + "</qt>");
@@ -37,8 +37,8 @@ SxwDialog::SxwDialog(bool update, bool prefix, bool pack) : QDialog(nullptr)
 	layout->addLayout(hlayout);

 	QBoxLayout* palayout = new QHBoxLayout;
-	palayout->setMargin(5);
-	palayout->setSpacing(5);
+	palayout->setContentsMargins(0, 0, 0, 0);
+	palayout->setSpacing(6);
 	packCheck = new QCheckBox( tr("Merge Paragraph Styles"), this);
 	packCheck->setChecked(pack);
 	packCheck->setToolTip( "<qt>" + tr("Merge paragraph styles by attributes. This will result in fewer similar paragraph styles, will retain style attributes, even if the original document's styles are named differently.") +"</qt>");
@@ -46,8 +46,8 @@ SxwDialog::SxwDialog(bool update, bool prefix, bool pack) : QDialog(nullptr)
 	layout->addLayout(palayout);

 	QBoxLayout* playout = new QHBoxLayout;
-	playout->setMargin(5);
-	playout->setSpacing(5);
+	playout->setContentsMargins(0, 0, 0, 0);
+	playout->setSpacing(6);
 	prefixCheck = new QCheckBox( tr("Use document name as a prefix for paragraph styles"), this);
 	prefixCheck->setChecked(prefix);
 	prefixCheck->setToolTip( "<qt>" + tr("Prepend the document name to the paragraph style name in Scribus.") +"</qt>");
@@ -55,8 +55,8 @@ SxwDialog::SxwDialog(bool update, bool prefix, bool pack) : QDialog(nullptr)
 	layout->addLayout(playout);

 	QBoxLayout* dlayout = new QHBoxLayout;
-	dlayout->setMargin(5);
-	dlayout->setSpacing(5);
+	dlayout->setContentsMargins(0, 0, 0, 0);
+	dlayout->setSpacing(6);
 	doNotAskCheck = new QCheckBox( tr("Do not ask again"), this);
 	doNotAskCheck->setChecked(false);
 	doNotAskCheck->setToolTip( "<qt>" + tr("Make these settings the default and do not prompt again when importing an OpenOffice.org 1.x document") +"</qt>");
@@ -65,8 +65,8 @@ SxwDialog::SxwDialog(bool update, bool prefix, bool pack) : QDialog(nullptr)
 	layout->addLayout(dlayout);

 	QBoxLayout* blayout = new QHBoxLayout;
-	blayout->setMargin(5);
-	blayout->setSpacing(5);
+	blayout->setContentsMargins(0, 0, 0, 0);
+	blayout->setSpacing(6);
 	blayout->addStretch(10);
 	okButton = new QPushButton( tr("OK"), this);
 	blayout->addWidget(okButton);

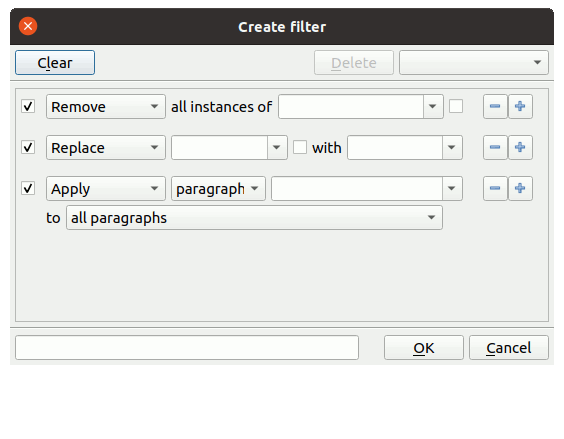

diff --git a/scribus/plugins/gettext/textfilter/tfdia.cpp b/scribus/plugins/gettext/textfilter/tfdia.cpp
index 64d86d90d..fd51bafcf 100644
--- a/scribus/plugins/gettext/textfilter/tfdia.cpp
+++ b/scribus/plugins/gettext/textfilter/tfdia.cpp
@@ -67,12 +67,12 @@ void tfDia::createLayout()
 	currentIndex = 0;

 	layout = new QVBoxLayout(this);
-	layout->setMargin(0);
-	layout->setSpacing(0);
+	layout->setContentsMargins(9, 9, 9, 9);
+	layout->setSpacing(6);

 	QBoxLayout* layout1 = new QHBoxLayout;
-	layout1->setMargin(5);
-	layout1->setSpacing(5);
+	layout1->setContentsMargins(0, 0, 0, 0);
+	layout1->setSpacing(6);
 	clearButton = new QPushButton( tr("C&lear"), this);
 	layout1->addWidget(clearButton);
 	layout1->addStretch(10);
@@ -96,8 +96,8 @@ void tfDia::createLayout()
 	layout->addLayout(layout1);

 	QBoxLayout* flayout = new QHBoxLayout;
-	flayout->setMargin(0);
-	flayout->setSpacing(0);
+	flayout->setContentsMargins(0, 0, 0, 0);
+	flayout->setSpacing(6);
 	QFrame* f = new QFrame(this);
 	f->setFrameStyle(QFrame::HLine | QFrame::Sunken);
 	flayout->addWidget(f);
@@ -106,8 +106,8 @@ void tfDia::createLayout()

 	qsv = new QScrollArea(this);
 	QVBoxLayout *a1layout = new QVBoxLayout;
-	a1layout->setMargin(5);
-	a1layout->setSpacing(12);
+	a1layout->setContentsMargins(0, 0, 0, 0);
+	a1layout->setSpacing(6);
 	vbox = new QFrame(this);
 	vbox->setFixedWidth(qsv->viewport()->width());
 	qsv->viewport()->resize(width() - 12, vbox->height());
@@ -116,23 +116,23 @@ void tfDia::createLayout()
 	layout->addLayout(a1layout);

 	alayout = new QVBoxLayout(vbox);
-	alayout->setMargin(5);
-	alayout->setSpacing(12);
+	alayout->setContentsMargins(9, 9, 9, 9);
+	alayout->setSpacing(6);

 	createFilter(prefs->getTable("tf_lastUsed"));
 	filters[0]->setRemovable((filters.size() >= 2));

 	QBoxLayout* flayout2 = new QHBoxLayout;
-	flayout2->setMargin(0);
-	flayout2->setSpacing(0);
+	flayout2->setContentsMargins(0, 0, 0, 0);
+	flayout2->setSpacing(6);
 	QFrame* f2 = new QFrame(this);
 	f2->setFrameStyle(QFrame::HLine | QFrame::Sunken);
 	flayout2->addWidget(f2);
 	layout->addLayout(flayout2);

 	QBoxLayout* layout2 = new QHBoxLayout;
-	layout2->setMargin(5);
-	layout2->setSpacing(5);
+	layout2->setContentsMargins(0, 0, 0, 0);
+	layout2->setSpacing(6);
 	saveEdit = new QLineEdit(this);
 	saveEdit->setToolTip( tr("Give a name to this filter for saving"));
 	layout2->addWidget(saveEdit, 10);
diff --git a/scribus/plugins/gettext/textfilter/tffilter.cpp b/scribus/plugins/gettext/textfilter/tffilter.cpp
index 1206d1ea1..c71da362d 100644
--- a/scribus/plugins/gettext/textfilter/tffilter.cpp
+++ b/scribus/plugins/gettext/textfilter/tffilter.cpp
@@ -103,8 +103,8 @@ void tfFilter::createWidget()
 	history = prefs->getTable("history");

 	QHBoxLayout *layout = new QHBoxLayout(this);
-	layout->setMargin(0);
-	layout->setSpacing(0);
+	layout->setContentsMargins(0, 0, 0, 0);
+	layout->setSpacing(6);

 	enableCheck = new QCheckBox(this);
 	enableCheck->setMinimumSize(QSize(25,25));
@@ -116,16 +116,16 @@ void tfFilter::createWidget()
 	layout->addWidget(actionFrame, 0, Qt::AlignTop);

 	QBoxLayout* layout2 = new QVBoxLayout(actionFrame);
-	layout2->setMargin(0);
-	layout2->setSpacing(0);
+	layout2->setContentsMargins(0, 0, 0, 0);
+	layout2->setSpacing(6);
 	alayout = new QHBoxLayout();
-	alayout->setMargin(0);
-	alayout->setSpacing(0);
+	alayout->setContentsMargins(0, 0, 0, 0);
+	alayout->setSpacing(6);
 	layout2->addLayout(alayout);
 	layout2->addSpacing(4);
 	blayout = new QHBoxLayout();
-	blayout->setSpacing(0);
-	blayout->setMargin(0);
+	blayout->setSpacing(6);
+	blayout->setContentsMargins(0, 0, 0, 0);
 	layout2->addLayout(blayout);

 	currentAction = REMOVE;

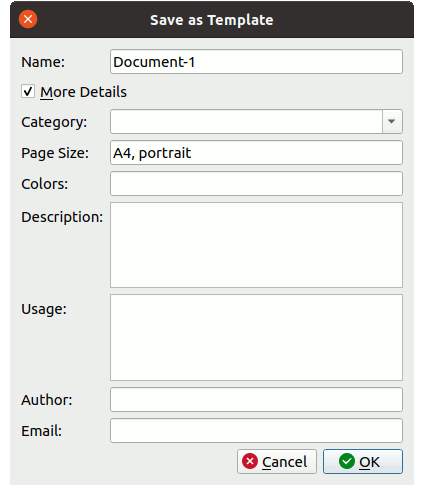

diff --git a/scribus/plugins/saveastemplateplugin/satdialog.ui b/scribus/plugins/saveastemplateplugin/satdialog.ui
index 731f754aa..011f59df9 100644
--- a/scribus/plugins/saveastemplateplugin/satdialog.ui
+++ b/scribus/plugins/saveastemplateplugin/satdialog.ui
@@ -14,6 +14,18 @@
    <string>Save as Template</string>
   </property>
   <layout class="QFormLayout" name="formLayout">
+   <property name="leftMargin">
+    <number>9</number>
+   </property>
+   <property name="topMargin">
+    <number>9</number>
+   </property>
+   <property name="rightMargin">
+    <number>9</number>
+   </property>
+   <property name="bottomMargin">
+    <number>9</number>
+   </property>
    <item row="0" column="0">
     <widget class="QLabel" name="label">
      <property name="text">
diff --git a/scribus/scgtplugin.cpp b/scribus/scgtplugin.cpp
index 104996679..a632aabda 100644
--- a/scribus/scgtplugin.cpp
+++ b/scribus/scgtplugin.cpp
@@ -126,7 +126,7 @@ void ScGTFileDialog::customize()
 	m_showOptionsBox->setObjectName("showOptionsBox_");

 	QHBoxLayout *layout = new QHBoxLayout;
-	layout->setSpacing(5);
+	layout->setSpacing(6);
 	layout->addWidget(m_appendBox);
 	layout->addWidget(m_showOptionsBox);

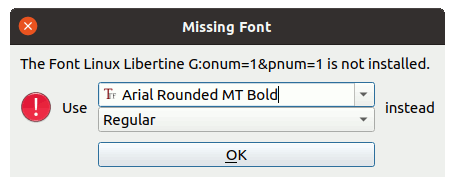

diff --git a/scribus/ui/missing.cpp b/scribus/ui/missing.cpp
index b4a3fb680..097b0e56b 100644
--- a/scribus/ui/missing.cpp
+++ b/scribus/ui/missing.cpp
@@ -27,11 +27,11 @@ MissingFont::MissingFont( QWidget* parent, const QString& fon, ScribusDoc* doc )
 	setWindowTitle( tr("Missing Font"));
 	setWindowIcon(IconManager::instance().loadIcon("AppIcon.png"));
 	missingFontLayout = new QHBoxLayout( this );
-	missingFontLayout->setMargin(10);
-	missingFontLayout->setSpacing(0);
+	missingFontLayout->setContentsMargins(9, 9, 9, 9);
+	missingFontLayout->setSpacing(6);
 	missingFontGridLayout = new QGridLayout;
-	missingFontGridLayout->setSpacing( 10 );
-	missingFontGridLayout->setMargin( 0 );
+	missingFontGridLayout->setSpacing(6);
+	missingFontGridLayout->setContentsMargins(0, 0, 0, 0);
 	notInstalledLabel = new QLabel( tr("The Font %1 is not installed.").arg(fon), this );
 	missingFontGridLayout->addWidget( notInstalledLabel, 0, 0, 1, 4 );
 	pixmapLabel = new QLabel( this );
--
2.27.0


jghali

2021-02-20 17:52

administrator   ~0048865

Applied, thanks!

Issue History

Date Modified Username Field Change
2021-02-18 22:16 bubu New Issue
2021-02-18 22:16 bubu File Added: 0001-Unify-margins-and-spacing-for-dialogs-set-10.patch
2021-02-18 22:16 bubu File Added: csv.gif
2021-02-18 22:16 bubu File Added: sxw.gif
2021-02-18 22:16 bubu File Added: textfilter.gif
2021-02-18 22:16 bubu File Added: satdialog.gif
2021-02-18 22:16 bubu File Added: missing.gif
2021-02-19 13:58 PeterBenedek Relationship added child of 0013906
2021-02-20 17:52 jghali Assigned To => jghali
2021-02-20 17:52 jghali Status new => resolved
2021-02-20 17:52 jghali Resolution open => fixed
2021-02-20 17:52 jghali Fixed in Version => 1.5.7.svn
2021-02-20 17:52 jghali Note Added: 0048865
