DescriptionIn 0016462 I experimented with a new layout for Node Editor... I want to try again for 1.5.8.

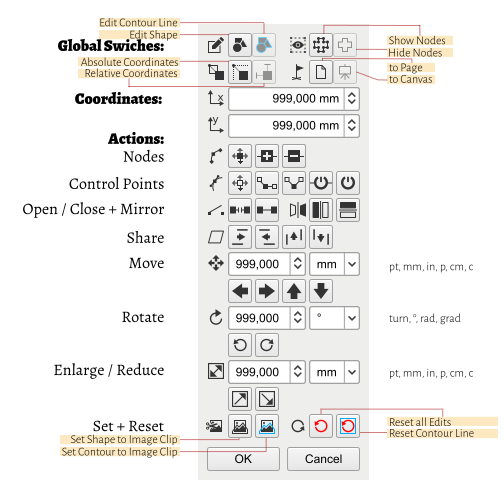

I propose a new layout for Node Editor designed on one grid without any text label – only with icons – to be as compact as possible. In this stage this is only a mockup. But I think it is feasible. Please see the attached mockup, it tells everything. The icons are not considered final at all, the layout is the point in the idea.

@jghali, @cbradney, please review the concept. You are free to modify, to think further, to shape the idea.

If you accept the proposal I can provide the icons (in consultation with Dezso Markon) and the .ui file but I have to find a developer for C++ tasks. Unfortunately, the C++ tasks associated with the idea exceed my skills :-).
TagsNo tags attached.
Attached Files
Node Editor 2.png (76,115 bytes)
Node Editor 2.png (76,115 bytes)
Node Editor 2.svg (438,050 bytes)
Node Editor 2.svg (438,050 bytes)
PatchNo

Relationships

related to 0017364 closednitramr Improved Node Editing
child of 0013906 acknowledged Metabug: UI enhancement proposals (1.5.x.svn)

Activities

cbradney

2021-04-15 21:25

administrator   ~0049100

Looks good to me so far....

For the C++ stuff, we would need to rewrite a lot of the nodepalette code. It needs it anyway as it is not based off a ui file.

jghali

2021-05-09 12:21

administrator   ~0049121

I have a few suggestions:
- group the coordinates, move, rotate and enlarge/reduce sections (i do not mean in a group box here)
- the unit comboboxes are imo not really useful as our spin boxes already support working with different units (ie you can type "12 pt" while current unit is mm"
- by doing so, at least for the move and rotate sections, you can move the 2 buttons which are placed below next to spinboxes

nitramr

2025-03-23 21:49

developer   ~0052313

We have a new layout in 1.7.1.
