View Issue Details

IDProjectCategoryView StatusLast Update
0016874ScribusImport / Exportpublic2023-05-29 18:56
Reportercmyk61 Assigned Tocbradney
Status closedResolutionfixed
Product Version1.5.8
Fixed in Version1.6.0.svn
Summary0016874: CVG-import faulty
DescriptionI tried to import Calamus vector graphics (*.CVG).

But the graphics is not visible on the document. But when I begin to move the graphic-frame the outline of the imported graphic is shown.

Any idea?




2022-12-17 23:15


BENZENE.CVG (228 bytes)


2022-12-17 23:22

reporter   ~0049838

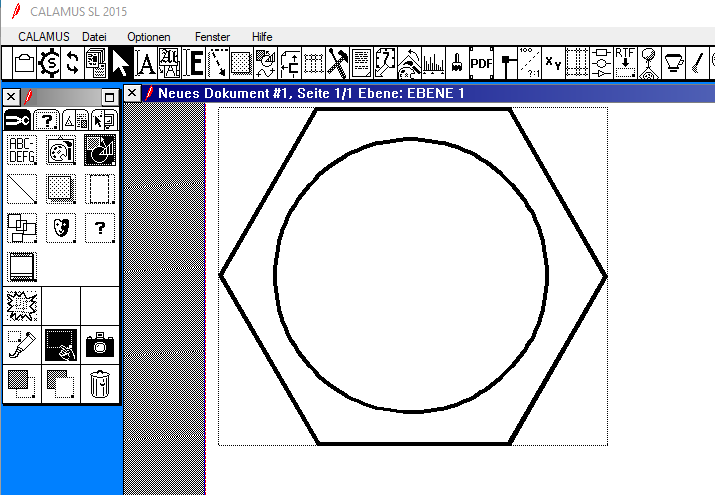

This is how BENZENE.CVG looks in Calamus
CALAMUS SL 2015.png (26,596 bytes)
CALAMUS SL 2015.png (26,596 bytes)


2022-12-18 07:57

updater   ~0049839

i imported the .cvg file and ungrouped the vectors. then i was able to change the stroke colors from 'none' to 'black' to see the object but even then the lines didn't show as in your screenshot. (the circle has one solid line, the hexagon is drawn with a thin double line...)
it looks as if the line stiles don't import correct.

Issue History

Date Modified Username Field Change
2022-12-17 23:15 cmyk61 New Issue
2022-12-17 23:15 cmyk61 Tag Attached: CVG
2022-12-17 23:15 cmyk61 File Added: BENZENE.CVG
2022-12-17 23:22 cmyk61 Note Added: 0049838
2022-12-17 23:22 cmyk61 File Added: CALAMUS SL 2015.png
2022-12-18 07:57 utnik Note Added: 0049839
2022-12-18 19:43 jghali Severity major => minor
2023-03-07 21:00 cbradney Assigned To => cbradney
2023-03-07 21:00 cbradney Status new => resolved
2023-03-07 21:00 cbradney Resolution open => fixed
2023-03-07 21:00 cbradney Fixed in Version => 1.6.0.svn
2023-05-29 18:56 cbradney Status resolved => closed
