View Issue Details
ID | Project | Category | View Status | Date Submitted | Last Update |
---|---|---|---|---|---|
0017056 | Scribus | Canvas | public | 2023-11-22 20:06 | 2023-12-24 10:00 |
Reporter | nitramr | Assigned To | jghali | ||
Priority | normal | Severity | minor | Reproducibility | always |
Status | closed | Resolution | fixed | ||
Platform | Desktop PC | OS | Ubuntu | OS Version | 23.10 64-bit |
Product Version | 1.5.8 | ||||
Target Version | 1.6 milestone | Fixed in Version | 1.6.0.svn | ||
Summary | 0017056: Page margin rect inherits drop shadow properties of line item | ||||

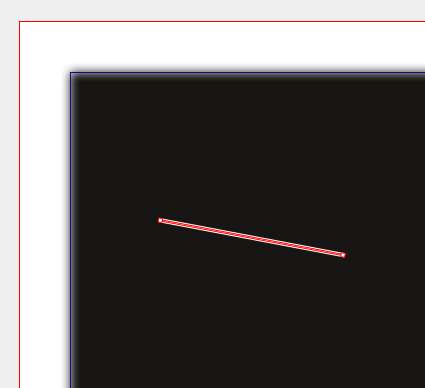

Description | A line item should not have a fill color. If you change the fill mode from solid to gradient or hatch, it seems like the line item has kind of a fill color and the drop shadow drawing uses the rect of page margin rect to draw the drop shadow. | ||||
Steps To Reproduce | 1. Create a new document and draw a line item 2. Select line item and enable drop shadow 3. Go to color panel and set fill mode to gradient or hatch 4. Page margin rect inherits drop shadow settings of line item | ||||
Tags | No tags attached. | ||||
Patch | Yes | ||||
|
|
|
I made a fix for this issue. A line page element always returns false for hasFill(). I also did a test of converting a line item to a Bezier curve. In this case there are no rendering problems on the canvas. fixDropShadow_2023-11-26_01.patch (1,203 bytes)
Index: scribus/pageitem.cpp =================================================================== --- scribus/pageitem.cpp (Revision 25835) +++ scribus/pageitem.cpp (Arbeitskopie) @@ -11193,6 +11193,14 @@ return QString(xml.c_str()); } +bool PageItem::hasFill() +{ + if(itemType() == ItemType::Line) + return false; + + return ((fillColor() != CommonStrings::None) || (GrType != 0)); +} + bool compareItemLevel(const PageItem* item1, const PageItem* item2) { int level1 = item1->level(); Index: scribus/pageitem.h =================================================================== --- scribus/pageitem.h (Revision 25835) +++ scribus/pageitem.h (Arbeitskopie) @@ -1286,7 +1286,7 @@ QString getItemTextSaxed(int selStart, int selLength); ///< used by notes frames to get content of notes from itemText bool groupClipping() { return m_groupClips; } void setGroupClipping(bool val) { m_groupClips = val; } - bool hasFill() { return ((fillColor() != CommonStrings::None) || (GrType != 0)); } + bool hasFill(); bool hasStroke() { return ((lineColor() != CommonStrings::None) || (GrTypeStroke != 0) || (!NamedLStyle.isEmpty()) || (!patternStrokeVal.isEmpty())); } // End public functions |
|
Thanks. I kept the basics, however I changed hasFill() to be virtual and made PageItem_Line hasFill() implementation directly return false. |
Date Modified | Username | Field | Change |
---|---|---|---|
2023-11-22 20:06 | nitramr | New Issue | |
2023-11-22 20:06 | nitramr | File Added: Bildschirmfoto vom 2023-11-22 21-05-49.png | |
2023-11-26 13:08 | nitramr | Note Added: 0050518 | |
2023-11-26 13:08 | nitramr | File Added: fixDropShadow_2023-11-26_01.patch | |
2023-11-26 13:09 | nitramr | Summary | Page margin rect inherit drop shadow properties of line item => [PATCH] Page margin rect inherit drop shadow properties of line item |
2023-11-26 13:10 | nitramr | Assigned To | => nitramr |
2023-11-26 13:10 | nitramr | Status | new => assigned |
2023-11-26 13:10 | nitramr | Patch | No => Yes |
2023-11-26 13:12 | nitramr | Note Edited: 0050518 | |
2023-11-26 13:12 | nitramr | Note Edited: 0050518 | |
2023-11-27 20:03 | cbradney | Assigned To | nitramr => jghali |
2023-11-27 22:40 | jghali | Summary | [PATCH] Page margin rect inherit drop shadow properties of line item => Page margin rect inherits drop shadow properties of line item |
2023-11-27 22:42 | jghali | Note Added: 0050530 | |
2023-11-27 22:43 | jghali | Status | assigned => resolved |
2023-11-27 22:43 | jghali | Resolution | open => fixed |
2023-11-27 22:43 | jghali | Fixed in Version | => 1.6.0.svn |
2023-12-24 10:00 | cbradney | Status | resolved => closed |
