View Issue Details

IDProjectCategoryView StatusLast Update
0017099ScribusStory Editor / Text Framespublic2024-01-07 16:24
ReporterMarkC Assigned Tojghali
PrioritynormalSeverityminorReproducibilityalways
Status closedResolutionfixed
PlatformLinuxOSLinuxOS VersionUbuntu
Product Version1.5.8
Fixed in Version1.6.1.svn
Summary0017099: Wrapped text appears outside text frame
DescriptionI'm assistant editor for a monthly club newsletter. I've been experimenting with QR codes (for printed version) and clickable links (for the softcopy - the PDF). The editor wants people to be able to see the link they will be directed to, so I have the link text in a text frame. The url font is "Liberation Mono Bold". The URL is a long line so is wrapped in the text frame at a slash (/). However, the first slash is shown OUTSIDE the text frame!!

I thought that maybe there was some style in my document that was interfering, so I copied the troublesome text to a new scribus document but the problem appears there also. I have attached this new document.

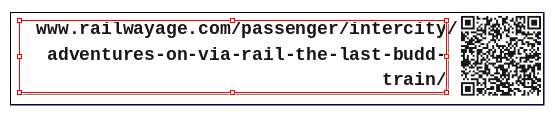

I have also attached a screenshot of what I see - the text frame is selected (red line) and you can see the slash character is outside the text frame.

Linux (uname -a):
Linux rocky2 6.2.0-39-generic 00000400000048:0000022.04.1-Ubuntu SMP PREEMPT_DYNAMIC Thu Nov 16 10:53:04 UTC 2 x86_64 x86_64 x86_64 GNU/Linux

Scribus 1.5.8 - 23 January 2022. Build id: C--T-F-C1.16.0-64bite Using Ghostscript version 9.55.0.

Steps To ReproduceSee attached document.
Additional InformationI have been using Scribus for almost 3 years, first bug I have come across. Great work, guys!
TagsNo tags attached.
PatchNo

Activities

MarkC

2023-12-31 17:43

reporter

scribus-bug-text-outside-frame-2023-12-31.sla (37,280 bytes)
<?xml version="1.0" encoding="UTF-8"?>
<SCRIBUSUTF8NEW Version="1.5.8">
    <DOCUMENT ANZPAGES="1" PAGEWIDTH="612" PAGEHEIGHT="792" BORDERLEFT="40" BORDERRIGHT="40" BORDERTOP="40" BORDERBOTTOM="40" PRESET="0" BleedTop="0" BleedLeft="0" BleedRight="0" BleedBottom="0" ORIENTATION="0" PAGESIZE="Letter" FIRSTNUM="1" BOOK="1" AUTOSPALTEN="1" ABSTSPALTEN="11" UNITS="2" DFONT="DejaVu Sans Book" DSIZE="12" DCOL="1" DGAP="0" TabFill="" TabWidth="36" TextDistLeft="0" TextDistRight="0" TextDistBottom="0" TextDistTop="0" FirstLineOffset="1" AUTHOR="" COMMENTS="" KEYWORDS="" PUBLISHER="" DOCDATE="" DOCTYPE="" DOCFORMAT="" DOCIDENT="" DOCSOURCE="" DOCLANGINFO="" DOCRELATION="" DOCCOVER="" DOCRIGHTS="" DOCCONTRIB="" TITLE="" SUBJECT="" VHOCH="33" VHOCHSC="66" VTIEF="33" VTIEFSC="66" VKAPIT="75" BASEGRID="14.4" BASEO="0" AUTOL="100" UnderlinePos="-1" UnderlineWidth="-1" StrikeThruPos="-1" StrikeThruWidth="-1" GROUPC="2" HCMS="0" DPSo="0" DPSFo="0" DPuse="0" DPgam="0" DPbla="1" DPPr="ISO Coated v2 300% (basICColor)" DPIn="sRGB display profile (ICC v2.2)" DPInCMYK="ISO Coated v2 300% (basICColor)" DPIn2="sRGB display profile (ICC v2.2)" DPIn3="ISO Coated v2 300% (basICColor)" DISc="1" DIIm="0" ALAYER="0" LANGUAGE="en_US" AUTOMATIC="1" AUTOCHECK="0" GUIDELOCK="0" SnapToGuides="0" SnapToGrid="0" SnapToElement="0" MINGRID="20.002" MAJGRID="100.001" SHOWGRID="0" SHOWGUIDES="1" showcolborders="0" SHOWFRAME="1" SHOWControl="0" SHOWLAYERM="0" SHOWMARGIN="1" SHOWBASE="0" SHOWPICT="1" SHOWLINK="0" rulerMode="1" showrulers="1" showBleed="1" rulerXoffset="0" rulerYoffset="0" GuideRad="10" GRAB="3" POLYC="4" POLYF="0.502" POLYR="0" POLYIR="0" POLYCUR="0" POLYOCUR="0" POLYS="0" arcStartAngle="30" arcSweepAngle="300" spiralStartAngle="0" spiralEndAngle="1080" spiralFactor="1.2" AutoSave="1" AutoSaveTime="600000" AutoSaveCount="1" AutoSaveKeep="0" AUtoSaveInDocDir="1" AutoSaveDir="" ScratchBottom="20.002" ScratchLeft="100.001" ScratchRight="100.001" ScratchTop="20.002" GapHorizontal="0" GapVertical="40.003" StartArrow="0" EndArrow="0" PEN="Black" BRUSH="None" PENLINE="Black" PENTEXT="Black" StrokeText="Black" TextBackGround="None" TextLineColor="None" TextBackGroundShade="100" TextLineShade="100" TextPenShade="100" TextStrokeShade="100" STIL="1" STILLINE="1" WIDTH="1" WIDTHLINE="1" PENSHADE="100" LINESHADE="100" BRUSHSHADE="100" CPICT="None" PICTSHADE="100" CSPICT="None" PICTSSHADE="100" PICTSCX="1" PICTSCY="1" PSCALE="1" PASPECT="1" EmbeddedPath="0" HalfRes="1" dispX="10.001" dispY="10.001" constrain="15" MINORC="#00ff00" MAJORC="#00ff00" GuideC="#000080" BaseC="#c0c0c0" renderStack="2 0 4 1 3" GridType="0" PAGEC="#ffffff" MARGC="#0000ff" RANDF="1" currentProfile="PDF 1.4" calligraphicPenFillColor="Black" calligraphicPenLineColor="Black" calligraphicPenFillColorShade="100" calligraphicPenLineColorShade="100" calligraphicPenLineWidth="1" calligraphicPenAngle="0" calligraphicPenWidth="10" calligraphicPenStyle="1">
        <CheckProfile Name="PDF 1.3" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="1" minResolution="144" maxResolution="2400" checkAnnotations="0" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="0" checkDeviceColorsAndOutputIntent="0" checkFontNotEmbedded="1" checkFontIsOpenType="1" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/>
        <CheckProfile Name="PDF 1.4" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="0" minResolution="144" maxResolution="2400" checkAnnotations="0" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="0" checkDeviceColorsAndOutputIntent="0" checkFontNotEmbedded="1" checkFontIsOpenType="1" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/>
        <CheckProfile Name="PDF 1.5" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="0" minResolution="144" maxResolution="2400" checkAnnotations="0" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="0" checkDeviceColorsAndOutputIntent="0" checkFontNotEmbedded="1" checkFontIsOpenType="1" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/>
        <CheckProfile Name="PDF 1.6" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="0" minResolution="144" maxResolution="2400" checkAnnotations="0" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="0" checkDeviceColorsAndOutputIntent="0" checkFontNotEmbedded="1" checkFontIsOpenType="0" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/>
        <CheckProfile Name="PDF/X-1a" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="1" minResolution="144" maxResolution="2400" checkAnnotations="1" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="1" checkDeviceColorsAndOutputIntent="0" checkFontNotEmbedded="1" checkFontIsOpenType="1" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/>
        <CheckProfile Name="PDF/X-3" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="1" minResolution="144" maxResolution="2400" checkAnnotations="1" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="0" checkDeviceColorsAndOutputIntent="1" checkFontNotEmbedded="1" checkFontIsOpenType="1" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/>
        <CheckProfile Name="PDF/X-4" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="0" minResolution="144" maxResolution="2400" checkAnnotations="1" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="0" checkDeviceColorsAndOutputIntent="1" checkFontNotEmbedded="1" checkFontIsOpenType="0" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/>
        <CheckProfile Name="PostScript" ignoreErrors="0" autoCheck="1" checkGlyphs="1" checkOrphans="1" checkOverflow="1" checkPictures="1" checkPartFilledImageFrames="0" checkResolution="1" checkTransparency="1" minResolution="144" maxResolution="2400" checkAnnotations="0" checkRasterPDF="1" checkForGIF="1" ignoreOffLayers="0" checkNotCMYKOrSpot="0" checkDeviceColorsAndOutputIntent="0" checkFontNotEmbedded="0" checkFontIsOpenType="0" checkAppliedMasterDifferentSide="1" checkEmptyTextFrames="1"/>
        <COLOR NAME="Base Color" SPACE="CMYK" C="61.5686274509804" M="1.17647058823529" Y="96.4705882352941" K="2.35294117647059"/>
        <COLOR NAME="Black" SPACE="CMYK" C="0" M="0" Y="0" K="100"/>
        <COLOR NAME="Blue" SPACE="RGB" R="0" G="0" B="255"/>
        <COLOR NAME="Cool Black" SPACE="CMYK" C="60" M="0" Y="0" K="100"/>
        <COLOR NAME="Cyan" SPACE="CMYK" C="100" M="0" Y="0" K="0"/>
        <COLOR NAME="FromGetText#222222" SPACE="RGB" R="34" G="34" B="34"/>
        <COLOR NAME="FromGetText#333333" SPACE="RGB" R="51" G="51" B="51"/>
        <COLOR NAME="FromGetText#ff8000" SPACE="RGB" R="255" G="128" B="0"/>
        <COLOR NAME="Green" SPACE="RGB" R="0" G="255" B="0"/>
        <COLOR NAME="Magenta" SPACE="CMYK" C="0" M="100" Y="0" K="0"/>
        <COLOR NAME="Monochromatic Dark" SPACE="CMYK" C="62.3529411764706" M="12.156862745098" Y="94.5098039215686" K="58.4313725490196"/>
        <COLOR NAME="Monochromatic Light" SPACE="CMYK" C="60.6" M="0" Y="40.7" K="11"/>
        <COLOR NAME="Red" SPACE="RGB" R="255" G="0" B="0"/>
        <COLOR NAME="Registration" SPACE="CMYK" C="100" M="100" Y="100" K="100" Register="1"/>
        <COLOR NAME="Rich Black" SPACE="CMYK" C="60" M="40" Y="40" K="100"/>
        <COLOR NAME="Warm Black" SPACE="CMYK" C="0" M="60" Y="29.8039215686275" K="100"/>
        <COLOR NAME="White" SPACE="CMYK" C="0" M="0" Y="0" K="0"/>
        <COLOR NAME="Yellow" SPACE="CMYK" C="0" M="0" Y="100" K="0"/>
        <HYPHEN/>
        <CHARSTYLE CNAME="Default Character Style" DefaultStyle="1" FONT="DejaVu Sans Book" FONTSIZE="12" FONTFEATURES="" FEATURES="inherit" FCOLOR="Black" FSHADE="100" HyphenWordMin="3" SCOLOR="Black" BGCOLOR="None" BGSHADE="100" SSHADE="100" TXTSHX="5" TXTSHY="-5" TXTOUT="1" TXTULP="-0.1" TXTULW="-0.1" TXTSTP="-0.1" TXTSTW="-0.1" SCALEH="100" SCALEV="100" BASEO="0" KERN="0" LANGUAGE="en_US"/>
        <CHARSTYLE CNAME="Default Character Style (2)" FONT="Georgia Regular" FONTSIZE="11" FEATURES="inherit" FCOLOR="Black" FSHADE="100" SCOLOR="Black" SSHADE="100" TXTSHX="5" TXTSHY="-5" TXTOUT="1" TXTULP="-0.1" TXTULW="-0.1" TXTSTP="-0.1" TXTSTW="-0.1" SCALEH="100" SCALEV="100" BASEO="0" KERN="0" LANGUAGE="en_US"/>
        <STYLE NAME="Default Paragraph Style" DefaultStyle="1" ALIGN="0" DIRECTION="0" LINESPMode="0" LINESP="15" INDENT="0" RMARGIN="0" FIRST="0" VOR="0" NACH="0" ParagraphEffectOffset="0" DROP="0" DROPLIN="2" Bullet="0" Numeration="0" HyphenConsecutiveLines="2" BCOLOR="None" BSHADE="100"/>
        <STYLE NAME="Default Paragraph Style (2)" ALIGN="0" LINESPMode="1" LINESP="15" INDENT="0" RMARGIN="0" FIRST="0" VOR="0" NACH="0" ParagraphEffectOffset="0" DROP="0" DROPLIN="2" FONT="Georgia Regular" FONTSIZE="11"/>
        <STYLE NAME="Article-Text" PARENT="Default Paragraph Style (2)" ALIGN="3" LINESPMode="1" LINESP="13" VOR="3" NACH="2" KeepTogether="0" CPARENT="Default Character Style" FONTSIZE="11"/>
        <TableStyle NAME="Default Table Style" DefaultStyle="1" FillColor="None" FillShade="100">
            <TableBorderLeft>
                <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/>
            </TableBorderLeft>
            <TableBorderRight>
                <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/>
            </TableBorderRight>
            <TableBorderTop>
                <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/>
            </TableBorderTop>
            <TableBorderBottom>
                <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/>
            </TableBorderBottom>
        </TableStyle>
        <CellStyle NAME="Default Cell Style" DefaultStyle="1" FillColor="None" FillShade="100" LeftPadding="1" RightPadding="1" TopPadding="1" BottomPadding="1">
            <TableBorderLeft>
                <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/>
            </TableBorderLeft>
            <TableBorderRight>
                <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/>
            </TableBorderRight>
            <TableBorderTop>
                <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/>
            </TableBorderTop>
            <TableBorderBottom>
                <TableBorderLine Width="1" PenStyle="1" Color="Black" Shade="100"/>
            </TableBorderBottom>
        </CellStyle>
        <LAYERS NUMMER="0" LEVEL="0" NAME="Background" SICHTBAR="1" DRUCKEN="1" EDIT="1" SELECT="0" FLOW="1" TRANS="1" BLEND="0" OUTL="0" LAYERC="#000000"/>
        <Printer firstUse="1" toFile="0" useAltPrintCommand="0" outputSeparations="0" useSpotColors="1" useColor="1" mirrorH="0" mirrorV="0" useICC="0" doGCR="0" doClip="0" setDevParam="0" useDocBleeds="1" cropMarks="0" bleedMarks="0" registrationMarks="0" colorMarks="0" includePDFMarks="1" PSLevel="3" PrintEngine="3" markLength="20.0016" markOffset="0" BleedTop="0" BleedLeft="0" BleedRight="0" BleedBottom="0" printer="hp-LaserJet-1012" filename="" separationName="All" printerCommand=""/>
        <PDF firstUse="1" Thumbnails="0" Articles="0" Bookmarks="0" Compress="1" CMethod="0" Quality="0" EmbedPDF="0" MirrorH="0" MirrorV="0" Clip="0" rangeSel="0" rangeTxt="" RotateDeg="0" PresentMode="0" RecalcPic="0" FontEmbedding="0" Grayscale="0" RGBMode="1" UseProfiles="0" UseProfiles2="0" Binding="0" PicRes="300" Resolution="300" Version="14" Intent="1" Intent2="0" SolidP="sRGB display profile (ICC v2.2)" ImageP="sRGB display profile (ICC v2.2)" PrintP="ISO Coated v2 300% (basICColor)" InfoString="" BTop="0" BLeft="0" BRight="0" BBottom="0" useDocBleeds="1" cropMarks="0" bleedMarks="0" registrationMarks="0" colorMarks="0" docInfoMarks="0" markLength="20.0016" markOffset="0" ImagePr="0" PassOwner="" PassUser="" Permissions="-4" Encrypt="0" UseLayers="0" UseLpi="0" UseSpotColors="1" doMultiFile="0" displayBookmarks="0" displayFullscreen="0" displayLayers="0" displayThumbs="0" hideMenuBar="0" hideToolBar="0" fitWindow="0" openAfterExport="0" PageLayout="0" openAction="">
            <LPI Color="Black" Frequency="133" Angle="45" SpotFunction="3"/>
            <LPI Color="Cyan" Frequency="133" Angle="105" SpotFunction="3"/>
            <LPI Color="Magenta" Frequency="133" Angle="75" SpotFunction="3"/>
            <LPI Color="Yellow" Frequency="133" Angle="90" SpotFunction="3"/>
        </PDF>
        <DocItemAttributes/>
        <TablesOfContents/>
        <NotesStyles>
            <notesStyle Name="Default" Start="1" Endnotes="0" Type="Type_1_2_3" Range="0" Prefix="" Suffix=")" AutoHeight="1" AutoWidth="1" AutoRemove="1" AutoWeld="1" SuperNote="1" SuperMaster="1" MarksStyle="" NotesStyle=""/>
        </NotesStyles>
        <PageSets>
            <Set Name="Single Page" FirstPage="0" Rows="1" Columns="1"/>
            <Set Name="Facing Pages" FirstPage="1" Rows="1" Columns="2">
                <PageNames Name="Left Page"/>
                <PageNames Name="Right Page"/>
            </Set>
            <Set Name="3-Fold" FirstPage="0" Rows="1" Columns="3">
                <PageNames Name="Left Page"/>
                <PageNames Name="Middle"/>
                <PageNames Name="Right Page"/>
            </Set>
            <Set Name="4-Fold" FirstPage="0" Rows="1" Columns="4">
                <PageNames Name="Left Page"/>
                <PageNames Name="Middle Left"/>
                <PageNames Name="Middle Right"/>
                <PageNames Name="Right Page"/>
            </Set>
        </PageSets>
        <Sections>
            <Section Number="0" Name="0" From="0" To="0" Type="Type_1_2_3" Start="1" Reversed="0" Active="1" FillChar="0" FieldWidth="0"/>
        </Sections>
        <MASTERPAGE PAGEXPOS="100.001" PAGEYPOS="20.002" PAGEWIDTH="612" PAGEHEIGHT="792" BORDERLEFT="40" BORDERRIGHT="40" BORDERTOP="40" BORDERBOTTOM="40" NUM="0" NAM="Normal Left" MNAM="" Size="Letter" Orientation="0" LEFT="1" PRESET="0" VerticalGuides="" HorizontalGuides="" AGhorizontalAutoGap="0" AGverticalAutoGap="0" AGhorizontalAutoCount="0" AGverticalAutoCount="0" AGhorizontalAutoRefer="0" AGverticalAutoRefer="0" AGSelection="0 0 0 0" pageEffectDuration="1" pageViewDuration="1" effectType="0" Dm="0" M="0" Di="0"/>
        <MASTERPAGE PAGEXPOS="100.001" PAGEYPOS="20.002" PAGEWIDTH="612" PAGEHEIGHT="792" BORDERLEFT="40" BORDERRIGHT="40" BORDERTOP="40" BORDERBOTTOM="40" NUM="1" NAM="Normal Right" MNAM="" Size="Letter" Orientation="0" LEFT="0" PRESET="0" VerticalGuides="" HorizontalGuides="" AGhorizontalAutoGap="0" AGverticalAutoGap="0" AGhorizontalAutoCount="0" AGverticalAutoCount="0" AGhorizontalAutoRefer="0" AGverticalAutoRefer="0" AGSelection="0 0 0 0" pageEffectDuration="1" pageViewDuration="1" effectType="0" Dm="0" M="0" Di="0"/>
        <PAGE PAGEXPOS="712.001" PAGEYPOS="20.002" PAGEWIDTH="612" PAGEHEIGHT="792" BORDERLEFT="40" BORDERRIGHT="40" BORDERTOP="40" BORDERBOTTOM="40" NUM="0" NAM="" MNAM="Normal Right" Size="Letter" Orientation="0" LEFT="0" PRESET="0" VerticalGuides="" HorizontalGuides="" AGhorizontalAutoGap="0" AGverticalAutoGap="0" AGhorizontalAutoCount="0" AGverticalAutoCount="0" AGhorizontalAutoRefer="0" AGverticalAutoRefer="0" AGSelection="0 0 0 0" pageEffectDuration="1" pageViewDuration="1" effectType="0" Dm="0" M="0" Di="0"/>
        <PAGEOBJECT XPOS="847.501000000001" YPOS="164.002" OwnPage="0" ItemID="1794107839" PTYPE="4" WIDTH="213.787878787878" HEIGHT="36" FRTYPE="0" CLIPEDIT="0" PWIDTH="1" PLINEART="1" LOCALSCX="1" LOCALSCY="1" LOCALX="0" LOCALY="0" LOCALROT="0" PICART="1" SCALETYPE="1" RATIO="1" COLUMNS="1" COLGAP="0" AUTOTEXT="0" EXTRA="0" TEXTRA="0" BEXTRA="0" REXTRA="0" VAlign="0" FLOP="0" PLTSHOW="0" BASEOF="0" textPathType="0" textPathFlipped="0" path="M0 0 L213.788 0 L213.788 36 L0 36 L0 0 Z" copath="M0 0 L213.788 0 L213.788 36 L0 36 L0 0 Z" gXpos="235.500000000001" gYpos="996" gWidth="0" gHeight="0" LAYER="0" NEXTITEM="-1" BACKITEM="-1">
            <StoryText>
                <DefaultStyle/>
                <ITEXT FONT="Liberation Mono Bold" FONTSIZE="9" CH="www.railwayage.com/passenger/intercity/adventures-on-via-rail-the-last-budd-train/"/>
                <trail PARENT="Article-Text" ALIGN="2"/>
            </StoryText>
        </PAGEOBJECT>
        <PAGEOBJECT XPOS="1068.001" YPOS="160.402" OwnPage="0" ItemID="159815344" PTYPE="12" WIDTH="40" HEIGHT="40" FRTYPE="3" CLIPEDIT="1" ANNAME="Group8" groupWidth="82" groupHeight="82" groupClips="1" path="M0 0 L40 0 L40 40 L0 40 L0 0 Z" copath="M0 0 L40 0 L40 40 L0 40 L0 0 Z" gXpos="47" gYpos="1119" gWidth="0" gHeight="0" LAYER="0">
            <PAGEOBJECT XPOS="1334.001" YPOS="1394.402" OwnPage="0" ItemID="146349664" PTYPE="6" WIDTH="82" HEIGHT="82" FRTYPE="3" CLIPEDIT="1" PWIDTH="0" PCOLOR="White" PLINEART="1" path="M0 82 L82 82 L82 0 L0 0 L0 82 Z" copath="M0 82 L82 82 L82 0 L0 0 L0 82 Z" fillRule="0" gXpos="0" gYpos="0" gWidth="82" gHeight="82" LAYER="0"/>
            <PAGEOBJECT XPOS="1334.001" YPOS="1394.402" OwnPage="0" ItemID="144681888" PTYPE="6" WIDTH="82" HEIGHT="82" FRTYPE="3" CLIPEDIT="1" PWIDTH="0" PCOLOR="Black" PLINEART="1" path="M0 0 L14 0 L14 14 L0 14 L0 0 Z M16 0 L18 0 L18 2 L20 2 L20 4 L16 4 L16 0 Z M26 0 L28 0 L28 4 L30 4 L30 2 L32 2 L32 6 L30 6 L30 10 L26 10 L26 20 L24 20 L24 18 L22 18 L22 16 L16 16 L16 12 L18 12 L18 14 L20 14 L20 12 L22 12 L22 14 L24 14 L24 8 L26 8 L26 4 L22 4 L22 2 L26 2 L26 0 Z M38 0 L42 0 L42 2 L38 2 L38 0 Z M46 0 L48 0 L48 4 L46 4 L46 6 L48 6 L48 8 L44 8 L44 10 L42 10 L42 2 L46 2 L46 0 Z M56 0 L66 0 L66 8 L64 8 L64 2 L62 2 L62 4 L60 4 L60 2 L58 2 L58 6 L56 6 L56 0 Z M68 0 L82 0 L82 14 L68 14 L68 0 Z M2 12 L12 12 L12 2 L2 2 L2 12 Z M34 2 L36 2 L36 4 L34 4 L34 2 Z M52 2 L54 2 L54 6 L50 6 L50 4 L52 4 L52 2 Z M70 12 L80 12 L80 2 L70 2 L70 12 Z M4 4 L10 4 L10 10 L4 10 L4 4 Z M36 4 L38 4 L38 8 L40 8 L40 12 L38 12 L38 10 L36 10 L36 12 L34 12 L34 14 L36 14 L36 12 L38 12 L38 14 L40 14 L40 18 L42 18 L42 24 L40 24 L40 20 L38 20 L38 24 L36 24 L36 22 L34 22 L34 24 L36 24 L36 28 L34 28 L34 26 L30 26 L30 24 L32 24 L32 20 L28 20 L28 16 L30 16 L30 18 L34 18 L34 20 L36 20 L36 18 L34 18 L34 16 L30 16 L30 14 L32 14 L32 12 L30 12 L30 10 L32 10 L32 8 L36 8 L36 4 Z M72 4 L78 4 L78 10 L72 10 L72 4 Z M16 6 L18 6 L18 8 L16 8 L16 6 Z M54 6 L56 6 L56 8 L58 8 L58 6 L62 6 L62 8 L60 8 L60 10 L62 10 L62 8 L64 8 L64 10 L66 10 L66 14 L64 14 L64 12 L62 12 L62 16 L66 16 L66 18 L68 18 L68 16 L70 16 L70 18 L74 18 L74 20 L68 20 L68 22 L66 22 L66 20 L62 20 L62 18 L58 18 L58 20 L56 20 L56 10 L54 10 L54 6 Z M20 8 L22 8 L22 10 L20 10 L20 8 Z M48 8 L50 8 L50 10 L48 10 L48 8 Z M18 10 L20 10 L20 12 L18 12 L18 10 Z M44 10 L46 10 L46 14 L48 14 L48 12 L50 12 L50 18 L48 18 L48 16 L44 16 L44 10 Z M50 10 L52 10 L52 12 L50 12 L50 10 Z M28 12 L30 12 L30 14 L28 14 L28 12 Z M40 12 L42 12 L42 14 L40 14 L40 12 Z M52 12 L54 12 L54 14 L52 14 L52 12 Z M58 14 L60 14 L60 12 L58 12 L58 14 Z M0 16 L2 16 L2 18 L4 18 L4 20 L6 20 L6 22 L4 22 L4 26 L0 26 L0 16 Z M4 16 L8 16 L8 20 L6 20 L6 18 L4 18 L4 16 Z M10 16 L16 16 L16 18 L10 18 L10 16 Z M42 16 L44 16 L44 18 L42 18 L42 16 Z M52 16 L54 16 L54 18 L52 18 L52 16 Z M74 16 L76 16 L76 18 L74 18 L74 16 Z M78 16 L82 16 L82 20 L80 20 L80 22 L82 22 L82 24 L78 24 L78 22 L76 22 L76 18 L78 18 L78 16 Z M16 18 L22 18 L22 22 L20 22 L20 20 L16 20 L16 18 Z M46 18 L48 18 L48 20 L50 20 L50 22 L46 22 L46 18 Z M12 20 L16 20 L16 22 L18 22 L18 24 L22 24 L22 26 L20 26 L20 28 L14 28 L14 26 L16 26 L16 24 L14 24 L14 22 L12 22 L12 20 Z M6 22 L8 22 L8 24 L6 24 L6 22 Z M10 22 L12 22 L12 24 L14 24 L14 26 L12 26 L12 28 L14 28 L14 30 L8 30 L8 32 L14 32 L14 30 L16 30 L16 34 L12 34 L12 36 L14 36 L14 38 L12 38 L12 40 L10 40 L10 38 L8 38 L8 34 L6 34 L6 38 L4 38 L4 44 L6 44 L6 40 L8 40 L8 46 L10 46 L10 50 L8 50 L8 52 L4 52 L4 54 L2 54 L2 52 L0 52 L0 46 L2 46 L2 42 L0 42 L0 40 L2 40 L2 38 L0 38 L0 34 L4 34 L4 32 L0 32 L0 30 L6 30 L6 28 L4 28 L4 26 L8 26 L8 24 L10 24 L10 22 Z M22 22 L26 22 L26 24 L22 24 L22 22 Z M50 22 L58 22 L58 24 L56 24 L56 26 L52 26 L52 30 L50 30 L50 32 L48 32 L48 28 L50 28 L50 22 Z M64 22 L66 22 L66 24 L64 24 L64 22 Z M68 22 L74 22 L74 24 L68 24 L68 22 Z M38 24 L40 24 L40 26 L38 26 L38 24 Z M58 24 L64 24 L64 28 L66 28 L66 30 L62 30 L62 26 L58 26 L58 24 Z M74 24 L78 24 L78 26 L82 26 L82 30 L78 30 L78 28 L76 28 L76 26 L74 26 L74 24 Z M28 26 L30 26 L30 28 L28 28 L28 26 Z M46 26 L48 26 L48 28 L46 28 L46 26 Z M56 26 L58 26 L58 32 L56 32 L56 30 L54 30 L54 28 L56 28 L56 26 Z M66 26 L70 26 L70 28 L76 28 L76 32 L74 32 L74 34 L72 34 L72 30 L70 30 L70 32 L68 32 L68 28 L66 28 L66 26 Z M20 28 L24 28 L24 30 L20 30 L20 28 Z M26 28 L28 28 L28 34 L22 34 L22 32 L26 32 L26 28 Z M36 28 L38 28 L38 30 L46 30 L46 32 L44 32 L44 34 L42 34 L42 32 L40 32 L40 34 L38 34 L38 32 L36 32 L36 28 Z M18 30 L20 30 L20 32 L18 32 L18 30 Z M32 30 L34 30 L34 34 L32 34 L32 30 Z M52 30 L54 30 L54 32 L52 32 L52 30 Z M46 32 L48 32 L48 34 L50 34 L50 36 L54 36 L54 32 L56 32 L56 40 L54 40 L54 42 L52 42 L52 44 L50 44 L50 42 L48 42 L48 40 L46 40 L46 42 L48 42 L48 44 L50 44 L50 46 L46 46 L46 44 L42 44 L42 48 L36 48 L36 44 L32 44 L32 42 L30 42 L30 40 L32 40 L32 36 L34 36 L34 34 L36 34 L36 38 L34 38 L34 42 L36 42 L36 40 L40 40 L40 34 L42 34 L42 36 L44 36 L44 38 L42 38 L42 42 L44 42 L44 38 L48 38 L48 36 L44 36 L44 34 L46 34 L46 32 Z M50 32 L52 32 L52 34 L50 34 L50 32 Z M60 32 L64 32 L64 34 L60 34 L60 32 Z M78 32 L80 32 L80 36 L78 36 L78 32 Z M16 34 L22 34 L22 38 L20 38 L20 40 L18 40 L18 48 L20 48 L20 44 L22 44 L22 42 L24 42 L24 44 L26 44 L26 46 L22 46 L22 50 L16 50 L16 52 L14 52 L14 50 L12 50 L12 48 L14 48 L14 46 L16 46 L16 34 Z M28 34 L32 34 L32 36 L30 36 L30 40 L28 40 L28 38 L26 38 L26 36 L28 36 L28 34 Z M58 34 L60 34 L60 38 L62 38 L62 40 L58 40 L58 34 Z M64 34 L68 34 L68 36 L66 36 L66 38 L64 38 L64 34 Z M70 34 L72 34 L72 36 L70 36 L70 34 Z M74 34 L76 34 L76 36 L74 36 L74 34 Z M72 36 L74 36 L74 38 L72 38 L72 36 Z M76 36 L78 36 L78 38 L82 38 L82 40 L80 40 L80 42 L82 42 L82 44 L80 44 L80 46 L76 46 L76 44 L78 44 L78 42 L76 42 L76 44 L70 44 L70 46 L68 46 L68 48 L64 48 L64 46 L66 46 L66 44 L62 44 L62 48 L60 48 L60 42 L66 42 L66 38 L68 38 L68 40 L70 40 L70 38 L72 38 L72 40 L74 40 L74 38 L76 38 L76 36 Z M22 38 L26 38 L26 40 L22 40 L22 38 Z M12 40 L14 40 L14 42 L12 42 L12 40 Z M20 40 L22 40 L22 42 L20 42 L20 40 Z M26 40 L28 40 L28 44 L26 44 L26 40 Z M56 42 L58 42 L58 44 L56 44 L56 42 Z M10 44 L14 44 L14 46 L10 46 L10 44 Z M28 44 L30 44 L30 46 L28 46 L28 44 Z M38 46 L40 46 L40 44 L38 44 L38 46 Z M52 44 L54 44 L54 46 L56 46 L56 48 L54 48 L54 50 L56 50 L56 48 L60 48 L60 50 L58 50 L58 52 L60 52 L60 50 L66 50 L66 54 L68 54 L68 50 L72 50 L72 52 L74 52 L74 50 L76 50 L76 48 L82 48 L82 56 L78 56 L78 52 L76 52 L76 62 L78 62 L78 64 L82 64 L82 68 L78 68 L78 66 L76 66 L76 64 L74 64 L74 58 L72 58 L72 54 L70 54 L70 56 L68 56 L68 58 L66 58 L66 60 L70 60 L70 58 L72 58 L72 64 L74 64 L74 66 L76 66 L76 68 L78 68 L78 70 L74 70 L74 72 L78 72 L78 74 L80 74 L80 76 L82 76 L82 78 L80 78 L80 82 L78 82 L78 76 L76 76 L76 78 L74 78 L74 76 L72 76 L72 74 L64 74 L64 72 L62 72 L62 70 L60 70 L60 68 L58 68 L58 70 L56 70 L56 66 L58 66 L58 62 L60 62 L60 60 L62 60 L62 64 L60 64 L60 66 L62 66 L62 68 L64 68 L64 66 L62 66 L62 64 L64 64 L64 58 L60 58 L60 56 L62 56 L62 54 L58 54 L58 62 L54 62 L54 64 L52 64 L52 60 L56 60 L56 58 L54 58 L54 56 L56 56 L56 52 L52 52 L52 50 L50 50 L50 54 L48 54 L48 50 L44 50 L44 48 L50 48 L50 46 L52 46 L52 44 Z M26 46 L28 46 L28 48 L26 48 L26 46 Z M70 46 L74 46 L74 48 L70 48 L70 46 Z M24 48 L26 48 L26 50 L28 50 L28 54 L30 54 L30 60 L28 60 L28 62 L26 62 L26 60 L22 60 L22 58 L18 58 L18 56 L24 56 L24 48 Z M28 48 L36 48 L36 50 L34 50 L34 52 L32 52 L32 50 L28 50 L28 48 Z M10 50 L12 50 L12 52 L14 52 L14 54 L8 54 L8 52 L10 52 L10 50 Z M38 50 L44 50 L44 54 L48 54 L48 58 L46 58 L46 60 L48 60 L48 58 L50 58 L50 66 L48 66 L48 68 L50 68 L50 70 L52 70 L52 68 L54 68 L54 72 L50 72 L50 74 L52 74 L52 76 L54 76 L54 78 L50 78 L50 80 L52 80 L52 82 L40 82 L40 80 L42 80 L42 78 L36 78 L36 70 L40 70 L40 68 L36 68 L36 66 L30 66 L30 68 L28 68 L28 64 L34 64 L34 62 L38 62 L38 64 L40 64 L40 66 L42 66 L42 68 L46 68 L46 64 L48 64 L48 62 L46 62 L46 64 L44 64 L44 62 L42 62 L42 64 L40 64 L40 60 L42 60 L42 56 L40 56 L40 54 L38 54 L38 58 L40 58 L40 60 L34 60 L34 58 L36 58 L36 54 L34 54 L34 52 L38 52 L38 50 Z M16 52 L22 52 L22 54 L18 54 L18 56 L16 56 L16 52 Z M4 54 L6 54 L6 56 L4 56 L4 54 Z M0 56 L4 56 L4 58 L8 58 L8 60 L6 60 L6 64 L4 64 L4 60 L2 60 L2 58 L0 58 L0 56 Z M8 56 L10 56 L10 58 L8 58 L8 56 Z M12 56 L14 56 L14 58 L12 58 L12 56 Z M26 58 L28 58 L28 56 L26 56 L26 58 Z M50 56 L52 56 L52 58 L50 58 L50 56 Z M14 58 L18 58 L18 60 L14 60 L14 58 Z M78 58 L80 58 L80 60 L78 60 L78 58 Z M0 60 L2 60 L2 62 L0 62 L0 60 Z M10 60 L14 60 L14 62 L10 62 L10 60 Z M18 60 L22 60 L22 64 L18 64 L18 60 Z M30 60 L34 60 L34 62 L30 62 L30 60 Z M66 64 L68 64 L68 62 L66 62 L66 64 Z M2 64 L4 64 L4 66 L2 66 L2 64 Z M6 64 L8 64 L8 66 L6 66 L6 64 Z M10 64 L18 64 L18 68 L20 68 L20 70 L18 70 L18 72 L16 72 L16 66 L10 66 L10 64 Z M22 64 L26 64 L26 74 L24 74 L24 70 L22 70 L22 68 L24 68 L24 66 L22 66 L22 64 Z M42 64 L44 64 L44 66 L42 66 L42 64 Z M66 72 L72 72 L72 66 L66 66 L66 72 Z M0 68 L14 68 L14 82 L0 82 L0 68 Z M30 68 L36 68 L36 70 L30 70 L30 68 Z M68 68 L70 68 L70 70 L68 70 L68 68 Z M2 80 L12 80 L12 70 L2 70 L2 80 Z M20 70 L22 70 L22 72 L20 72 L20 70 Z M46 72 L48 72 L48 70 L46 70 L46 72 Z M58 70 L60 70 L60 72 L58 72 L58 70 Z M78 70 L82 70 L82 74 L80 74 L80 72 L78 72 L78 70 Z M4 72 L10 72 L10 78 L4 78 L4 72 Z M30 72 L34 72 L34 76 L26 76 L26 74 L30 74 L30 72 Z M40 72 L40 76 L44 76 L44 78 L48 78 L48 74 L42 74 L42 72 L40 72 Z M16 74 L24 74 L24 76 L22 76 L22 80 L18 80 L18 78 L16 78 L16 74 Z M54 74 L60 74 L60 76 L62 76 L62 78 L58 78 L58 76 L54 76 L54 74 Z M24 76 L26 76 L26 80 L24 80 L24 76 Z M64 76 L66 76 L66 82 L62 82 L62 80 L64 80 L64 76 Z M70 76 L72 76 L72 78 L70 78 L70 76 Z M28 78 L32 78 L32 80 L30 80 L30 82 L28 82 L28 78 Z M34 78 L36 78 L36 80 L38 80 L38 82 L32 82 L32 80 L34 80 L34 78 Z M54 78 L56 78 L56 82 L54 82 L54 78 Z M68 78 L70 78 L70 82 L68 82 L68 78 Z M72 78 L74 78 L74 80 L72 80 L72 78 Z M16 80 L18 80 L18 82 L16 82 L16 80 Z M22 80 L24 80 L24 82 L22 82 L22 80 Z" copath="M0 0 L14 0 L14 14 L0 14 L0 0 Z M16 0 L18 0 L18 2 L20 2 L20 4 L16 4 L16 0 Z M26 0 L28 0 L28 4 L30 4 L30 2 L32 2 L32 6 L30 6 L30 10 L26 10 L26 20 L24 20 L24 18 L22 18 L22 16 L16 16 L16 12 L18 12 L18 14 L20 14 L20 12 L22 12 L22 14 L24 14 L24 8 L26 8 L26 4 L22 4 L22 2 L26 2 L26 0 Z M38 0 L42 0 L42 2 L38 2 L38 0 Z M46 0 L48 0 L48 4 L46 4 L46 6 L48 6 L48 8 L44 8 L44 10 L42 10 L42 2 L46 2 L46 0 Z M56 0 L66 0 L66 8 L64 8 L64 2 L62 2 L62 4 L60 4 L60 2 L58 2 L58 6 L56 6 L56 0 Z M68 0 L82 0 L82 14 L68 14 L68 0 Z M2 12 L12 12 L12 2 L2 2 L2 12 Z M34 2 L36 2 L36 4 L34 4 L34 2 Z M52 2 L54 2 L54 6 L50 6 L50 4 L52 4 L52 2 Z M70 12 L80 12 L80 2 L70 2 L70 12 Z M4 4 L10 4 L10 10 L4 10 L4 4 Z M36 4 L38 4 L38 8 L40 8 L40 12 L38 12 L38 10 L36 10 L36 12 L34 12 L34 14 L36 14 L36 12 L38 12 L38 14 L40 14 L40 18 L42 18 L42 24 L40 24 L40 20 L38 20 L38 24 L36 24 L36 22 L34 22 L34 24 L36 24 L36 28 L34 28 L34 26 L30 26 L30 24 L32 24 L32 20 L28 20 L28 16 L30 16 L30 18 L34 18 L34 20 L36 20 L36 18 L34 18 L34 16 L30 16 L30 14 L32 14 L32 12 L30 12 L30 10 L32 10 L32 8 L36 8 L36 4 Z M72 4 L78 4 L78 10 L72 10 L72 4 Z M16 6 L18 6 L18 8 L16 8 L16 6 Z M54 6 L56 6 L56 8 L58 8 L58 6 L62 6 L62 8 L60 8 L60 10 L62 10 L62 8 L64 8 L64 10 L66 10 L66 14 L64 14 L64 12 L62 12 L62 16 L66 16 L66 18 L68 18 L68 16 L70 16 L70 18 L74 18 L74 20 L68 20 L68 22 L66 22 L66 20 L62 20 L62 18 L58 18 L58 20 L56 20 L56 10 L54 10 L54 6 Z M20 8 L22 8 L22 10 L20 10 L20 8 Z M48 8 L50 8 L50 10 L48 10 L48 8 Z M18 10 L20 10 L20 12 L18 12 L18 10 Z M44 10 L46 10 L46 14 L48 14 L48 12 L50 12 L50 18 L48 18 L48 16 L44 16 L44 10 Z M50 10 L52 10 L52 12 L50 12 L50 10 Z M28 12 L30 12 L30 14 L28 14 L28 12 Z M40 12 L42 12 L42 14 L40 14 L40 12 Z M52 12 L54 12 L54 14 L52 14 L52 12 Z M58 14 L60 14 L60 12 L58 12 L58 14 Z M0 16 L2 16 L2 18 L4 18 L4 20 L6 20 L6 22 L4 22 L4 26 L0 26 L0 16 Z M4 16 L8 16 L8 20 L6 20 L6 18 L4 18 L4 16 Z M10 16 L16 16 L16 18 L10 18 L10 16 Z M42 16 L44 16 L44 18 L42 18 L42 16 Z M52 16 L54 16 L54 18 L52 18 L52 16 Z M74 16 L76 16 L76 18 L74 18 L74 16 Z M78 16 L82 16 L82 20 L80 20 L80 22 L82 22 L82 24 L78 24 L78 22 L76 22 L76 18 L78 18 L78 16 Z M16 18 L22 18 L22 22 L20 22 L20 20 L16 20 L16 18 Z M46 18 L48 18 L48 20 L50 20 L50 22 L46 22 L46 18 Z M12 20 L16 20 L16 22 L18 22 L18 24 L22 24 L22 26 L20 26 L20 28 L14 28 L14 26 L16 26 L16 24 L14 24 L14 22 L12 22 L12 20 Z M6 22 L8 22 L8 24 L6 24 L6 22 Z M10 22 L12 22 L12 24 L14 24 L14 26 L12 26 L12 28 L14 28 L14 30 L8 30 L8 32 L14 32 L14 30 L16 30 L16 34 L12 34 L12 36 L14 36 L14 38 L12 38 L12 40 L10 40 L10 38 L8 38 L8 34 L6 34 L6 38 L4 38 L4 44 L6 44 L6 40 L8 40 L8 46 L10 46 L10 50 L8 50 L8 52 L4 52 L4 54 L2 54 L2 52 L0 52 L0 46 L2 46 L2 42 L0 42 L0 40 L2 40 L2 38 L0 38 L0 34 L4 34 L4 32 L0 32 L0 30 L6 30 L6 28 L4 28 L4 26 L8 26 L8 24 L10 24 L10 22 Z M22 22 L26 22 L26 24 L22 24 L22 22 Z M50 22 L58 22 L58 24 L56 24 L56 26 L52 26 L52 30 L50 30 L50 32 L48 32 L48 28 L50 28 L50 22 Z M64 22 L66 22 L66 24 L64 24 L64 22 Z M68 22 L74 22 L74 24 L68 24 L68 22 Z M38 24 L40 24 L40 26 L38 26 L38 24 Z M58 24 L64 24 L64 28 L66 28 L66 30 L62 30 L62 26 L58 26 L58 24 Z M74 24 L78 24 L78 26 L82 26 L82 30 L78 30 L78 28 L76 28 L76 26 L74 26 L74 24 Z M28 26 L30 26 L30 28 L28 28 L28 26 Z M46 26 L48 26 L48 28 L46 28 L46 26 Z M56 26 L58 26 L58 32 L56 32 L56 30 L54 30 L54 28 L56 28 L56 26 Z M66 26 L70 26 L70 28 L76 28 L76 32 L74 32 L74 34 L72 34 L72 30 L70 30 L70 32 L68 32 L68 28 L66 28 L66 26 Z M20 28 L24 28 L24 30 L20 30 L20 28 Z M26 28 L28 28 L28 34 L22 34 L22 32 L26 32 L26 28 Z M36 28 L38 28 L38 30 L46 30 L46 32 L44 32 L44 34 L42 34 L42 32 L40 32 L40 34 L38 34 L38 32 L36 32 L36 28 Z M18 30 L20 30 L20 32 L18 32 L18 30 Z M32 30 L34 30 L34 34 L32 34 L32 30 Z M52 30 L54 30 L54 32 L52 32 L52 30 Z M46 32 L48 32 L48 34 L50 34 L50 36 L54 36 L54 32 L56 32 L56 40 L54 40 L54 42 L52 42 L52 44 L50 44 L50 42 L48 42 L48 40 L46 40 L46 42 L48 42 L48 44 L50 44 L50 46 L46 46 L46 44 L42 44 L42 48 L36 48 L36 44 L32 44 L32 42 L30 42 L30 40 L32 40 L32 36 L34 36 L34 34 L36 34 L36 38 L34 38 L34 42 L36 42 L36 40 L40 40 L40 34 L42 34 L42 36 L44 36 L44 38 L42 38 L42 42 L44 42 L44 38 L48 38 L48 36 L44 36 L44 34 L46 34 L46 32 Z M50 32 L52 32 L52 34 L50 34 L50 32 Z M60 32 L64 32 L64 34 L60 34 L60 32 Z M78 32 L80 32 L80 36 L78 36 L78 32 Z M16 34 L22 34 L22 38 L20 38 L20 40 L18 40 L18 48 L20 48 L20 44 L22 44 L22 42 L24 42 L24 44 L26 44 L26 46 L22 46 L22 50 L16 50 L16 52 L14 52 L14 50 L12 50 L12 48 L14 48 L14 46 L16 46 L16 34 Z M28 34 L32 34 L32 36 L30 36 L30 40 L28 40 L28 38 L26 38 L26 36 L28 36 L28 34 Z M58 34 L60 34 L60 38 L62 38 L62 40 L58 40 L58 34 Z M64 34 L68 34 L68 36 L66 36 L66 38 L64 38 L64 34 Z M70 34 L72 34 L72 36 L70 36 L70 34 Z M74 34 L76 34 L76 36 L74 36 L74 34 Z M72 36 L74 36 L74 38 L72 38 L72 36 Z M76 36 L78 36 L78 38 L82 38 L82 40 L80 40 L80 42 L82 42 L82 44 L80 44 L80 46 L76 46 L76 44 L78 44 L78 42 L76 42 L76 44 L70 44 L70 46 L68 46 L68 48 L64 48 L64 46 L66 46 L66 44 L62 44 L62 48 L60 48 L60 42 L66 42 L66 38 L68 38 L68 40 L70 40 L70 38 L72 38 L72 40 L74 40 L74 38 L76 38 L76 36 Z M22 38 L26 38 L26 40 L22 40 L22 38 Z M12 40 L14 40 L14 42 L12 42 L12 40 Z M20 40 L22 40 L22 42 L20 42 L20 40 Z M26 40 L28 40 L28 44 L26 44 L26 40 Z M56 42 L58 42 L58 44 L56 44 L56 42 Z M10 44 L14 44 L14 46 L10 46 L10 44 Z M28 44 L30 44 L30 46 L28 46 L28 44 Z M38 46 L40 46 L40 44 L38 44 L38 46 Z M52 44 L54 44 L54 46 L56 46 L56 48 L54 48 L54 50 L56 50 L56 48 L60 48 L60 50 L58 50 L58 52 L60 52 L60 50 L66 50 L66 54 L68 54 L68 50 L72 50 L72 52 L74 52 L74 50 L76 50 L76 48 L82 48 L82 56 L78 56 L78 52 L76 52 L76 62 L78 62 L78 64 L82 64 L82 68 L78 68 L78 66 L76 66 L76 64 L74 64 L74 58 L72 58 L72 54 L70 54 L70 56 L68 56 L68 58 L66 58 L66 60 L70 60 L70 58 L72 58 L72 64 L74 64 L74 66 L76 66 L76 68 L78 68 L78 70 L74 70 L74 72 L78 72 L78 74 L80 74 L80 76 L82 76 L82 78 L80 78 L80 82 L78 82 L78 76 L76 76 L76 78 L74 78 L74 76 L72 76 L72 74 L64 74 L64 72 L62 72 L62 70 L60 70 L60 68 L58 68 L58 70 L56 70 L56 66 L58 66 L58 62 L60 62 L60 60 L62 60 L62 64 L60 64 L60 66 L62 66 L62 68 L64 68 L64 66 L62 66 L62 64 L64 64 L64 58 L60 58 L60 56 L62 56 L62 54 L58 54 L58 62 L54 62 L54 64 L52 64 L52 60 L56 60 L56 58 L54 58 L54 56 L56 56 L56 52 L52 52 L52 50 L50 50 L50 54 L48 54 L48 50 L44 50 L44 48 L50 48 L50 46 L52 46 L52 44 Z M26 46 L28 46 L28 48 L26 48 L26 46 Z M70 46 L74 46 L74 48 L70 48 L70 46 Z M24 48 L26 48 L26 50 L28 50 L28 54 L30 54 L30 60 L28 60 L28 62 L26 62 L26 60 L22 60 L22 58 L18 58 L18 56 L24 56 L24 48 Z M28 48 L36 48 L36 50 L34 50 L34 52 L32 52 L32 50 L28 50 L28 48 Z M10 50 L12 50 L12 52 L14 52 L14 54 L8 54 L8 52 L10 52 L10 50 Z M38 50 L44 50 L44 54 L48 54 L48 58 L46 58 L46 60 L48 60 L48 58 L50 58 L50 66 L48 66 L48 68 L50 68 L50 70 L52 70 L52 68 L54 68 L54 72 L50 72 L50 74 L52 74 L52 76 L54 76 L54 78 L50 78 L50 80 L52 80 L52 82 L40 82 L40 80 L42 80 L42 78 L36 78 L36 70 L40 70 L40 68 L36 68 L36 66 L30 66 L30 68 L28 68 L28 64 L34 64 L34 62 L38 62 L38 64 L40 64 L40 66 L42 66 L42 68 L46 68 L46 64 L48 64 L48 62 L46 62 L46 64 L44 64 L44 62 L42 62 L42 64 L40 64 L40 60 L42 60 L42 56 L40 56 L40 54 L38 54 L38 58 L40 58 L40 60 L34 60 L34 58 L36 58 L36 54 L34 54 L34 52 L38 52 L38 50 Z M16 52 L22 52 L22 54 L18 54 L18 56 L16 56 L16 52 Z M4 54 L6 54 L6 56 L4 56 L4 54 Z M0 56 L4 56 L4 58 L8 58 L8 60 L6 60 L6 64 L4 64 L4 60 L2 60 L2 58 L0 58 L0 56 Z M8 56 L10 56 L10 58 L8 58 L8 56 Z M12 56 L14 56 L14 58 L12 58 L12 56 Z M26 58 L28 58 L28 56 L26 56 L26 58 Z M50 56 L52 56 L52 58 L50 58 L50 56 Z M14 58 L18 58 L18 60 L14 60 L14 58 Z M78 58 L80 58 L80 60 L78 60 L78 58 Z M0 60 L2 60 L2 62 L0 62 L0 60 Z M10 60 L14 60 L14 62 L10 62 L10 60 Z M18 60 L22 60 L22 64 L18 64 L18 60 Z M30 60 L34 60 L34 62 L30 62 L30 60 Z M66 64 L68 64 L68 62 L66 62 L66 64 Z M2 64 L4 64 L4 66 L2 66 L2 64 Z M6 64 L8 64 L8 66 L6 66 L6 64 Z M10 64 L18 64 L18 68 L20 68 L20 70 L18 70 L18 72 L16 72 L16 66 L10 66 L10 64 Z M22 64 L26 64 L26 74 L24 74 L24 70 L22 70 L22 68 L24 68 L24 66 L22 66 L22 64 Z M42 64 L44 64 L44 66 L42 66 L42 64 Z M66 72 L72 72 L72 66 L66 66 L66 72 Z M0 68 L14 68 L14 82 L0 82 L0 68 Z M30 68 L36 68 L36 70 L30 70 L30 68 Z M68 68 L70 68 L70 70 L68 70 L68 68 Z M2 80 L12 80 L12 70 L2 70 L2 80 Z M20 70 L22 70 L22 72 L20 72 L20 70 Z M46 72 L48 72 L48 70 L46 70 L46 72 Z M58 70 L60 70 L60 72 L58 72 L58 70 Z M78 70 L82 70 L82 74 L80 74 L80 72 L78 72 L78 70 Z M4 72 L10 72 L10 78 L4 78 L4 72 Z M30 72 L34 72 L34 76 L26 76 L26 74 L30 74 L30 72 Z M40 72 L40 76 L44 76 L44 78 L48 78 L48 74 L42 74 L42 72 L40 72 Z M16 74 L24 74 L24 76 L22 76 L22 80 L18 80 L18 78 L16 78 L16 74 Z M54 74 L60 74 L60 76 L62 76 L62 78 L58 78 L58 76 L54 76 L54 74 Z M24 76 L26 76 L26 80 L24 80 L24 76 Z M64 76 L66 76 L66 82 L62 82 L62 80 L64 80 L64 76 Z M70 76 L72 76 L72 78 L70 78 L70 76 Z M28 78 L32 78 L32 80 L30 80 L30 82 L28 82 L28 78 Z M34 78 L36 78 L36 80 L38 80 L38 82 L32 82 L32 80 L34 80 L34 78 Z M54 78 L56 78 L56 82 L54 82 L54 78 Z M68 78 L70 78 L70 82 L68 82 L68 78 Z M72 78 L74 78 L74 80 L72 80 L72 78 Z M16 80 L18 80 L18 82 L16 82 L16 80 Z M22 80 L24 80 L24 82 L22 82 L22 80 Z" fillRule="0" gXpos="0" gYpos="0" gWidth="82" gHeight="82" LAYER="0"/>
        </PAGEOBJECT>
        <PAGEOBJECT XPOS="855.001000000001" YPOS="158.502" OwnPage="0" ItemID="168866912" PTYPE="4" WIDTH="253" HEIGHT="41" FRTYPE="0" CLIPEDIT="0" PWIDTH="1" PLINEART="1" ANNOTATION="1" ANTYPE="11" ANACTION="" ANEACT="" ANXACT="" ANDACT="" ANFOACT="" ANBLACT="" ANKACT="" ANFACT="" ANVACT="" ANCACT="" ANEXTERN="https://www.railwayage.com/passenger/intercity/adventures-on-via-rail-the-last-budd-train/" ANZIEL="1" ANACTYP="8" ANTOOLTIP="" ANBWID="1" ANBSTY="0" ANFEED="1" ANFLAG="0" ANFONT="4" ANFORMAT="0" ANROLL="" ANDOWN="" ANVIS="0" ANMC="-1" ANCHK="0" ANAA="0" ANCHKS="0" ANBCOL="Black" ANHTML="0" ANICON="0" ANPLACE="1" ANSCALE="0" ANITYP="0" ANOPEN="0" ANNAME="Link547" LOCALSCX="1" LOCALSCY="1" LOCALX="0" LOCALY="0" LOCALROT="0" PICART="1" SCALETYPE="1" RATIO="1" COLUMNS="1" COLGAP="0" AUTOTEXT="0" EXTRA="0" TEXTRA="0" BEXTRA="0" REXTRA="0" VAlign="0" FLOP="0" PLTSHOW="0" BASEOF="0" textPathType="0" textPathFlipped="0" path="M0 0 L253 0 L253 41 L0 41 L0 0 Z" copath="M0 0 L253 0 L253 41 L0 41 L0 0 Z" gXpos="243.000000000001" gYpos="990.5" gWidth="0" gHeight="0" LAYER="0" NEXTITEM="-1" BACKITEM="-1">
            <StoryText>
                <DefaultStyle/>
                <trail/>
            </StoryText>
        </PAGEOBJECT>
    </DOCUMENT>
</SCRIBUSUTF8NEW>

ale

2023-12-31 17:54

manager   ~0050726

i see it also in 1.7.0.
with a different font it is less strong, but it's still an issue.

as a workaround, you can add a "zero width non joiner" after the / at the end of the first line (you get it from the "insert > characters" menu.

MarkC

2023-12-31 20:02

reporter   ~0050728

Thanks for the tip @ale.... I had tried many workarounds but didn't find the "zero width non joiner"... which sure sounds like it is named for something to cover up the effects of a bug... :)

ale

2024-01-01 09:28

manager   ~0050733

Last edited: 2024-01-01 09:30

no, the "zero width non joiner" is a feature, not a workaround:

you need it when you have a long url and want to specify where it should break to a new line (normally after a slash).... and, of course, you don't want to add a space or an hyphen.

it's also needed in some languages where the word breaking happens (or can happen) without an hyphen.

i knew that something like this exists in scribus and when i've read your ticket i "just" had to find how it is called (the name is not really nice...)

cbradney

2024-01-01 14:56

administrator   ~0050737

Does it change if you turn on/off Optical Margins in Text Properties?

ale

2024-01-01 15:39

manager   ~0050740

Last edited: 2024-01-01 15:39

there are no optical margins.

the problem seems to be with the /

it is recognized as a breaking character but does not get the right spacing.
if i replace it with a $ it does not break.
if i replace it with a ? i get the same error as with /
the same with !.
no break with:, ;, , as long as they are not followed by a space.

jghali

2024-01-04 23:09

administrator   ~0050807

Fixed in r25967.
