View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0017295 | Scribus | User Interface | public | 2024-10-18 18:29 | 2024-11-10 18:52 |
| Reporter | jghali | Assigned To | nitramr | ||
| Priority | normal | Severity | minor | Reproducibility | have not tried |
| Status | closed | Resolution | fixed | ||
| Product Version | 1.7.0.svn | ||||
| Fixed in Version | 1.7.0.svn | ||||
| Summary | 0017295: New Doc Dialog height is excessive on a 15" screen on Windows | ||||

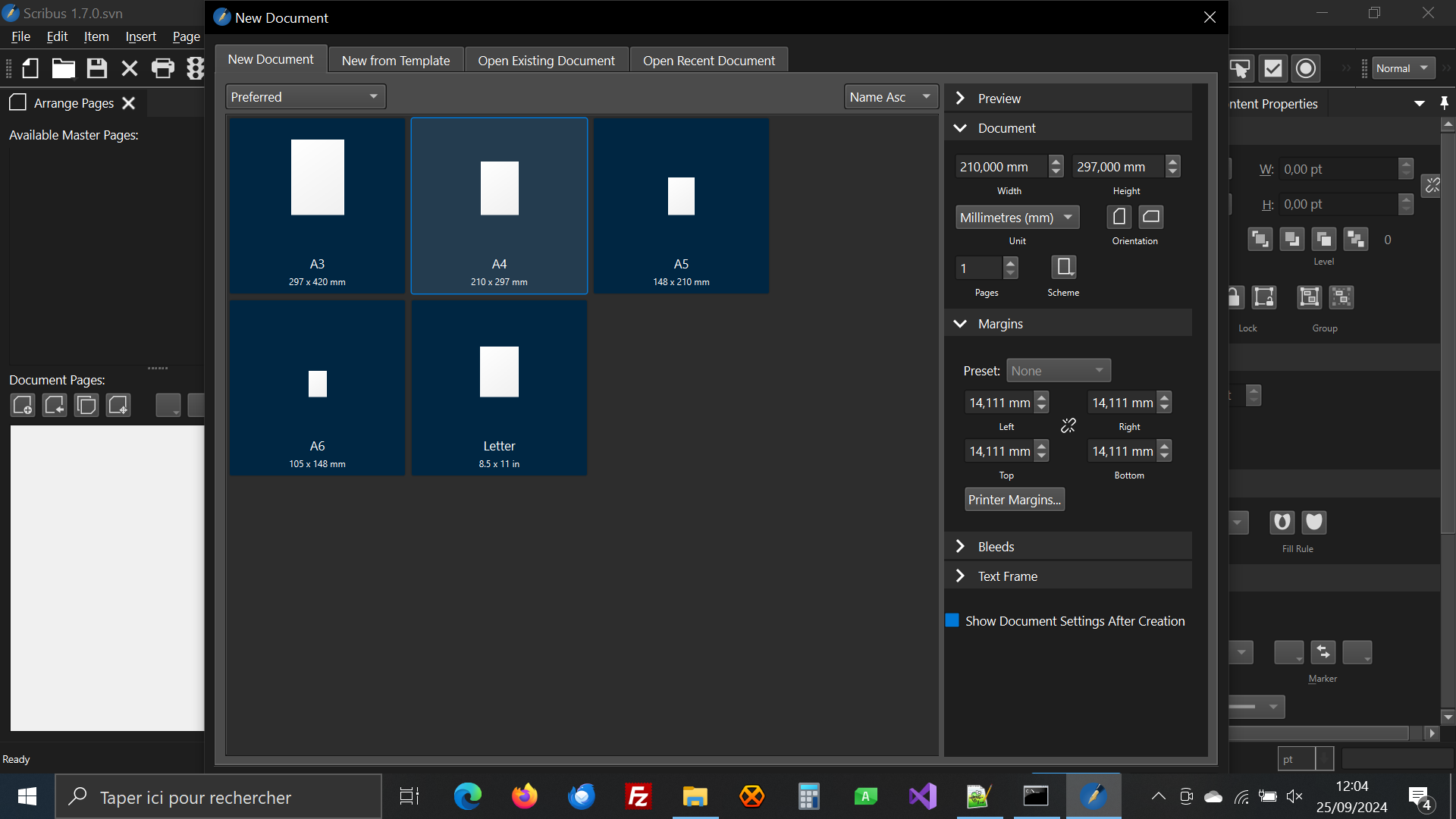

| Description | As title mentions, the new doc dialog now appears to be too high on a 15" screen on Windows. The OK / Cancel buttons are hidden by the task bar. See attached screenshot. | ||||
| Tags | No tags attached. | ||||
| Attached Files | |||||
| Patch | No | ||||
|
|
Hi Jean, please can you check if the patch works for you? I add a calculation that checks the available screen size and resizes the dialog if necessary. In general, I thought Qt resizes the dialog automatically if no fixed size is set. In addition, I add a missing "columns" icon and made a few more changes to reduce the dialog height. Reference: https://doc.qt.io/qt-6/qscreen.html#availableSize-prop newdocdialog_2024-10-19_01.patch (8,821 bytes)
Index: scribus/ui/newdocdialog.cpp
===================================================================
--- scribus/ui/newdocdialog.cpp (Revision 26349)
+++ scribus/ui/newdocdialog.cpp (Arbeitskopie)
@@ -31,6 +31,7 @@
#include <QTabWidget>
#include <QToolTip>
#include <QVBoxLayout>
+#include <QWindow>
#include "commonstrings.h"
#include "filedialogeventcatcher.h"
@@ -52,6 +53,8 @@
{
setupUi(this);
+ windowFitInScreen();
+
setObjectName(QString::fromLocal8Bit("NewDocumentWindow"));
setModal(true);
@@ -67,6 +70,7 @@
buttonVertical->setIcon(iconManager.loadIcon("page-orientation-vertical"));
buttonHorizontal->setIcon(iconManager.loadIcon("page-orientation-horizontal"));
+ labelColumns->setPixmap(iconManager.loadPixmap("paragraph-columns"));
createNewDocPage();
if (startUp)
@@ -153,11 +157,13 @@
widthSpinBox->setMaximum(16777215);
widthSpinBox->setNewUnit(m_unitIndex);
widthSpinBox->setSuffix(m_unitSuffix);
+ widthSpinBox->setValue(pageWidth * m_unitRatio);
heightSpinBox->setMinimum(pts2value(1.0, m_unitIndex));
heightSpinBox->setMaximum(16777215);
heightSpinBox->setNewUnit(m_unitIndex);
heightSpinBox->setSuffix(m_unitSuffix);
+ heightSpinBox->setValue(pageHeight * m_unitRatio);
unitOfMeasureComboBox->addItems(unitGetTextUnitList());
unitOfMeasureComboBox->setCurrentIndex(m_unitIndex);
@@ -165,22 +171,20 @@
MarginStruct marg(prefsManager.appPrefs.docSetupPrefs.margins);
marginGroup->setup(marg, !(pagePositioning == singlePage), m_unitIndex, NewMarginWidget::MarginWidgetFlags);
+ marginGroup->toggleLabelVisibility(false);
marginGroup->setPageHeight(pageHeight);
marginGroup->setPageWidth(pageWidth);
marginGroup->setFacingPages(!(pagePositioning == singlePage));
+ marginGroup->setPageSize(pageSize);
+ marginGroup->setMarginPreset(prefsManager.appPrefs.docSetupPrefs.marginPreset);
MarginStruct bleed;
bleed.resetToZero();
-
bleedGroup->setup(bleed, !(pagePositioning == singlePage), m_unitIndex, NewMarginWidget::BleedWidgetFlags);
+ bleedGroup->toggleLabelVisibility(false);
bleedGroup->setPageHeight(pageHeight);
bleedGroup->setPageWidth(pageWidth);
bleedGroup->setFacingPages(!(pagePositioning == singlePage));
- widthSpinBox->setValue(pageWidth * m_unitRatio);
- heightSpinBox->setValue(pageHeight * m_unitRatio);
-
- marginGroup->setPageSize(pageSize);
- marginGroup->setMarginPreset(prefsManager.appPrefs.docSetupPrefs.marginPreset);
bleedGroup->setPageSize(pageSize);
bleedGroup->setMarginPreset(prefsManager.appPrefs.docSetupPrefs.marginPreset);
@@ -233,7 +237,7 @@
// We have to calculate the width of the properties panel manually,
// because QSizePolicy::Minimum doesn't work as expected
scrollAreaWidgetContents->adjustSize();
- scrollAreaWidgetContents->setFixedWidth(scrollAreaWidgetContents->width());
+ //scrollAreaWidgetContents->setFixedWidth(scrollAreaWidgetContents->width());
scrollArea->setWidgetResizable(true);
scrollArea->setFixedWidth(scrollAreaWidgetContents->width() + qApp->style()->pixelMetric(QStyle::PM_ScrollBarExtent));
@@ -380,6 +384,31 @@
listPageFormats->setSortMode(static_cast<PageSizeList::SortMode>(comboSortSizes->currentData().toInt()));
}
+void NewDocDialog::windowFitInScreen()
+{
+ QScreen* activeScreen = nullptr;
+ QWidget* widget = this;
+
+ while (widget)
+ {
+ auto w = widget->windowHandle();
+ if (w != nullptr)
+ {
+ activeScreen = w->screen();
+ break;
+ }
+ else
+ widget = widget->parentWidget();
+ }
+
+ if (activeScreen)
+ {
+ int w = qMin(width(), activeScreen->availableSize().width());
+ int h = qMin(height(), activeScreen->availableSize().height());
+ resize(w, h);
+ }
+}
+
void NewDocDialog::handleAutoFrame()
{
if (autoTextFrame->isChecked())
Index: scribus/ui/newdocdialog.h
===================================================================
--- scribus/ui/newdocdialog.h (Revision 26349)
+++ scribus/ui/newdocdialog.h (Arbeitskopie)
@@ -137,6 +137,8 @@
double m_bleedTop { 0.0 };
double m_bleedLeft { 0.0 };
double m_bleedRight { 0.0 };
+
+ void windowFitInScreen();
};
#endif // NEWDOC_H
Index: scribus/ui/newdocdialog.ui
===================================================================
--- scribus/ui/newdocdialog.ui (Revision 26349)
+++ scribus/ui/newdocdialog.ui (Arbeitskopie)
@@ -7,7 +7,7 @@
<x>0</x>
<y>0</y>
<width>900</width>
- <height>680</height>
+ <height>650</height>
</rect>
</property>
<property name="windowTitle">
@@ -41,7 +41,7 @@
<attribute name="title">
<string>New Document</string>
</attribute>
- <layout class="QHBoxLayout" name="horizontalLayout_7">
+ <layout class="QHBoxLayout" name="horizontalLayout_7" stretch="1,0">
<property name="spacing">
<number>4</number>
</property>
@@ -95,12 +95,6 @@
</item>
<item>
<widget class="QScrollArea" name="scrollArea">
- <property name="sizePolicy">
- <sizepolicy hsizetype="Minimum" vsizetype="Expanding">
- <horstretch>0</horstretch>
- <verstretch>0</verstretch>
- </sizepolicy>
- </property>
<property name="frameShape">
<enum>QFrame::Shape::NoFrame</enum>
</property>
@@ -118,8 +112,8 @@
<rect>
<x>0</x>
<y>0</y>
- <width>304</width>
- <height>624</height>
+ <width>320</width>
+ <height>626</height>
</rect>
</property>
<layout class="QVBoxLayout" name="verticalLayout_7">
@@ -679,11 +673,21 @@
</spacer>
</item>
<item>
- <widget class="QCheckBox" name="startDocSetup">
- <property name="text">
- <string>Show Document Settings After Creation</string>
+ <layout class="QHBoxLayout" name="horizontalLayout_15">
+ <property name="leftMargin">
+ <number>8</number>
</property>
- </widget>
+ <property name="rightMargin">
+ <number>8</number>
+ </property>
+ <item>
+ <widget class="QCheckBox" name="startDocSetup">
+ <property name="text">
+ <string>Show Document Settings After Creation</string>
+ </property>
+ </widget>
+ </item>
+ </layout>
</item>
<item>
<spacer name="spacerBottom">
Index: scribus/ui/newmarginwidget.cpp
===================================================================
--- scribus/ui/newmarginwidget.cpp (Revision 26349)
+++ scribus/ui/newmarginwidget.cpp (Arbeitskopie)
@@ -74,11 +74,11 @@
{
topMarginSpinBox->setToolTip( "<qt>" + tr( "Distance between the top margin guide and the edge of the page" ) + "</qt>");
bottomMarginSpinBox->setToolTip( "<qt>" + tr( "Distance between the bottom margin guide and the edge of the page" ) + "</qt>");
- leftMarginSpinBox->setToolTip( "<qt>" + tr( "Distance between the left margin guide and the edge of the page. If a double-sided, 3 or 4-fold layout is selected, this margin space can be used to achieve the correct margins for binding.") + "</qt>");
- rightMarginSpinBox->setToolTip( "<qt>" + tr( "Distance between the right margin guide and the edge of the page. If a double-sided, 3 or 4-fold layout is selected, this margin space can be used to achieve the correct margins for binding.") + "</qt>");
+ leftMarginSpinBox->setToolTip( "<qt>" + tr( "Distance between the left margin guide and the edge of the page. If a double-sided layout is selected, this margin space can be used to achieve the correct margins for binding.") + "</qt>");
+ rightMarginSpinBox->setToolTip( "<qt>" + tr( "Distance between the right margin guide and the edge of the page. If a double-sided layout is selected, this margin space can be used to achieve the correct margins for binding.") + "</qt>");
marginLinkButton->setToolTip( "<qt>" + tr( "Ensure all margins have the same value" ) + "</qt>");
}
- else if (m_flags & BleedWidgetFlags)
+ else if (m_flags & BleedWidgetFlags)
{
topMarginSpinBox->setToolTip( "<qt>" + tr( "Distance for bleed from the top of the physical page" ) + "</qt>" );
bottomMarginSpinBox->setToolTip( "<qt>" + tr( "Distance for bleed from the bottom of the physical page" ) + "</qt>" );
@@ -390,10 +390,11 @@
{
m_facingPages = facing;
m_pageType = pageType;
-
- leftMarginLabel->setText( m_facingPages ? tr("Inside") : tr("Left"));
- rightMarginLabel->setText( m_facingPages ? tr("Outside") : tr("Right"));
-
+
+ leftMarginLabel->setText( m_facingPages ? tr("Inside") : tr("Left"));
+ rightMarginLabel->setText( m_facingPages ? tr("Outside") : tr("Right"));
+
+ iconSetChange();
setPreset();
}
|
|
|
Works :-) |
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2024-10-18 18:29 | jghali | New Issue | |
| 2024-10-18 18:29 | jghali | Status | new => assigned |
| 2024-10-18 18:29 | jghali | Assigned To | => nitramr |
| 2024-10-18 18:29 | jghali | File Added: new_doc_dialog_too_high.png | |
| 2024-10-19 19:12 | nitramr | Note Added: 0051461 | |
| 2024-10-19 19:12 | nitramr | File Added: newdocdialog_2024-10-19_01.patch | |
| 2024-10-24 22:37 | jghali | Status | assigned => resolved |
| 2024-10-24 22:37 | jghali | Resolution | open => fixed |
| 2024-10-24 22:37 | jghali | Fixed in Version | => 1.7.0.svn |
| 2024-10-24 22:37 | jghali | Note Added: 0051485 | |
| 2024-11-10 18:52 | cbradney | Status | resolved => closed |
