View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0017304 | Scribus | General | public | 2024-11-07 15:21 | 2024-12-27 22:44 |
| Reporter | ale | Assigned To | nitramr | ||
| Priority | normal | Severity | feature | Reproducibility | N/A |
| Status | closed | Resolution | fixed | ||
| Product Version | 1.7.0.svn | ||||
| Target Version | 1.7.0 | Fixed in Version | 1.7.0.svn | ||
| Summary | 0017304: spacing in the new document dialog | ||||
| Description | i finally got some time to update my scribus and i generally liked the changes to the UI. and i like the feeling of the new document page. there are a two small bugs that might depend on my setup: - in my setup the right panel has an horizontal scrollbar that does not really make a difference (the margins and bleeds are slightly to wide to fit the current width) - while its default size is fine, the dialog should resizable and the new size be stored in the settings. i think that many people would like to keep the first four sections open. i attach a screenshot of my dialog as it is now. i wonder if it would be easy to make the dialog / the right pane slightly wider and make it resizable. i also have some wishes on some details that could be discussed: - for the width and height, i would prefer a W and H in front of the input field, in the same way as we have the in the properties palette - generally speaking, in the document section, the labels below the input fields seems to airy compared to the layout of the other sections. - i would at least remove them if the user has "Hide Informationals Labels" checked in the preferences. they might be replaced by short labels in front of the fields (if any: the only fields that is not obvious to me without icons is the "number of the pages" which is not optimally labeled anyway). - i'd prefer the single / double pages as two mutually exclusive push buttons: the current icon is not "perfect" but together with the tooltip it should be easy enough to understand their meaning - i would remove the sorting options at the top right of the left panel: the ISO-sizes are well named and will be sorted correctly anyway. i'm not sure that the other sizes can be sorted in a meaningful way: the choice will probably always be among a few options of the same "family". if the sorting needs to be kept: the dropdown seems out of balance in my eyes... i would rather use three buttons: [name] [size] [up/down] (where the first two are icons and mutually exclusive and the third changes icon when it's pushed) as said these are small details, not fundamental flaws. | ||||
| Tags | No tags attached. | ||||
| Attached Files | |||||
| Patch | Yes | ||||
|
|

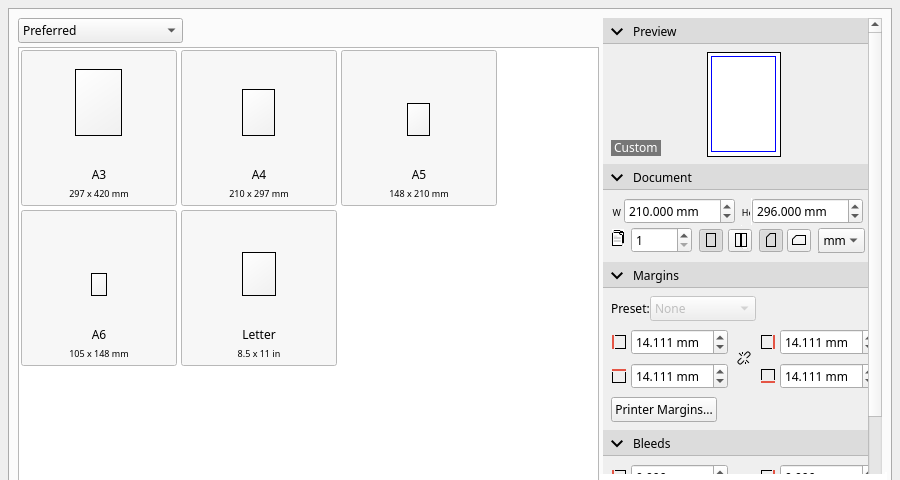

and here is an (extreme) proposal for compacting the "Document" section... feel free to get inspiration from some of the changes proposed... |
|
|
... somehow, the image does not want to attach itself... the second line is a bit busy in this proposal... but it would be much faster to use for me... (and without an icon for the number of pages it would fit more nicely...) |
|
|

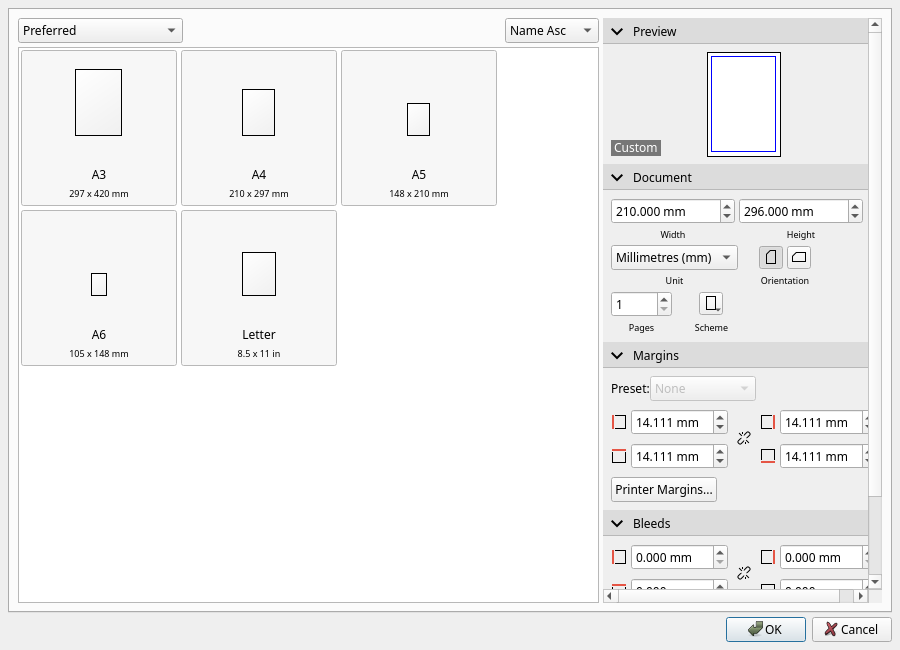

Ok, this scrollbar thing was really a nasty bug. Problem: On dialog startup, the scroll area width based on the content width. But when a user change in example the unit, the input field width changes and you get a horizontal scrollbar. Fix: I installed an event filter to adjust the scroll container size in case the content size changes. In addition, I optimized the UI a little based on ale's proposals. And the small labels are hidden if user changed it in app preferences. newdocdialog_2024-11-20_01.patch (3,480 bytes)
Index: scribus/ui/newdocdialog.cpp
===================================================================
--- scribus/ui/newdocdialog.cpp (Revision 26436)
+++ scribus/ui/newdocdialog.cpp (Arbeitskopie)
@@ -60,6 +60,7 @@
IconManager &iconManager = IconManager::instance();
+ m_labelVisibity = !prefsManager.appPrefs.uiPrefs.hideLabels;
m_unitIndex = prefsManager.appPrefs.docSetupPrefs.docUnitIndex;
m_unitRatio = unitGetRatioFromIndex(m_unitIndex);
m_unitSuffix = unitGetSuffixFromIndex(m_unitIndex);
@@ -191,6 +192,9 @@
pageCountSpinBox->setMaximum( 10000 );
pageCountSpinBox->setMinimum( 1 );
+ IconManager &iconManager = IconManager::instance();
+ pageCountLabel->setPixmap(iconManager.loadPixmap("panel-page"));
+
pageLayouts->updateSchemeSelector(prefsManager.appPrefs.pageSets, prefsManager.appPrefs.pageSets[pagePositioning].FirstPage);
setDocLayout(pagePositioning);
@@ -234,12 +238,16 @@
sectionTextFrame->setCanSaveState(true);
sectionTextFrame->restorePreferences();
- // We have to calculate the width of the properties panel manually,
- // because QSizePolicy::Minimum doesn't work as expected
+ labelColumns->setLabelVisibility(m_labelVisibity);
+ labelGap->setLabelVisibility(m_labelVisibity);
+ pageCountLabel->setLabelVisibility(m_labelVisibity);
+ orientationLabel->setLabelVisibility(m_labelVisibity);
+ pageLayouts->toggleLabelVisibility(m_labelVisibity);
+
+ // We have to install an event filter to resize the scroll container width based on the content width.
+ // The content width can change after we calculated the initial ui layout.
+ scrollAreaWidgetContents->installEventFilter(this);
scrollAreaWidgetContents->adjustSize();
- //scrollAreaWidgetContents->setFixedWidth(scrollAreaWidgetContents->width());
- scrollArea->setWidgetResizable(true);
- scrollArea->setFixedWidth(scrollAreaWidgetContents->width() + qApp->style()->pixelMetric(QStyle::PM_ScrollBarExtent));
}
@@ -330,6 +338,7 @@
QSignalBlocker sigFormats(listPageFormats);
listPageFormats->setOrientation(m_orientation);
}
+
}
void NewDocDialog::setHeight(double)
@@ -405,6 +414,17 @@
}
}
+bool NewDocDialog::eventFilter(QObject *object, QEvent *event)
+{
+ if (object->objectName() == "scrollAreaWidgetContents" && event->type() == QEvent::Resize)
+ {
+ int currentWidth = scrollArea->minimumWidth();
+ scrollArea->setMinimumWidth(qMax(scrollAreaWidgetContents->sizeHint().width() + qApp->style()->pixelMetric(QStyle::PM_ScrollBarExtent), currentWidth));
+ return true;
+ }
+ return false;
+}
+
void NewDocDialog::handleAutoFrame()
{
bool setter = autoTextFrame->isChecked();
@@ -439,6 +459,8 @@
bleedGroup->setPageWidth(m_pageWidth);
connect(widthSpinBox, SIGNAL(valueChanged(double)), this, SLOT(setWidth(double)));
connect(heightSpinBox, SIGNAL(valueChanged(double)), this, SLOT(setHeight(double)));
+
+
}
void NewDocDialog::ExitOK()
@@ -523,6 +545,7 @@
marginGroup->setPageSize(size);
bleedGroup->setPageSize(size);
+
}
void NewDocDialog::setSize(const QString& gr)
Index: scribus/ui/newdocdialog.h
===================================================================
--- scribus/ui/newdocdialog.h (Revision 26436)
+++ scribus/ui/newdocdialog.h (Arbeitskopie)
@@ -137,8 +137,10 @@
double m_bleedTop { 0.0 };
double m_bleedLeft { 0.0 };
double m_bleedRight { 0.0 };
+ bool m_labelVisibity {true};
void windowFitInScreen();
+ bool eventFilter(QObject *object, QEvent *event);
};
#endif // NEWDOC_H
newdocdialog.ui (29,700 bytes)
<?xml version="1.0" encoding="UTF-8"?>
<ui version="4.0">
<class>newDocDialog</class>
<widget class="QDialog" name="newDocDialog">
<property name="geometry">
<rect>
<x>0</x>
<y>0</y>
<width>900</width>
<height>650</height>
</rect>
</property>
<property name="windowTitle">
<string>Dialog</string>
</property>
<layout class="QVBoxLayout" name="verticalLayout">
<property name="spacing">
<number>4</number>
</property>
<property name="leftMargin">
<number>8</number>
</property>
<property name="topMargin">
<number>8</number>
</property>
<property name="rightMargin">
<number>8</number>
</property>
<property name="bottomMargin">
<number>8</number>
</property>
<item>
<widget class="QTabWidget" name="tabWidget">
<property name="currentIndex">
<number>0</number>
</property>
<property name="tabBarAutoHide">
<bool>true</bool>
</property>
<widget class="QWidget" name="tab">
<attribute name="title">
<string>New Document</string>
</attribute>
<layout class="QHBoxLayout" name="horizontalLayout_7">
<property name="spacing">
<number>4</number>
</property>
<property name="leftMargin">
<number>8</number>
</property>
<property name="topMargin">
<number>8</number>
</property>
<property name="rightMargin">
<number>8</number>
</property>
<property name="bottomMargin">
<number>8</number>
</property>
<item>
<layout class="QVBoxLayout" name="verticalLayout_5">
<property name="spacing">
<number>4</number>
</property>
<item>
<layout class="QHBoxLayout" name="horizontalLayout_8">
<property name="spacing">
<number>4</number>
</property>
<item>
<widget class="PageSizeSelector" name="pageSizeSelector" native="true"/>
</item>
<item>
<spacer name="horizontalSpacer_4">
<property name="orientation">
<enum>Qt::Orientation::Horizontal</enum>
</property>
<property name="sizeHint" stdset="0">
<size>
<width>16</width>
<height>0</height>
</size>
</property>
</spacer>
</item>
<item>
<widget class="QComboBox" name="comboSortSizes"/>
</item>
</layout>
</item>
<item>
<widget class="PageSizeList" name="listPageFormats"/>
</item>
</layout>
</item>
<item>
<widget class="QScrollArea" name="scrollArea">
<property name="sizePolicy">
<sizepolicy hsizetype="Preferred" vsizetype="Expanding">
<horstretch>0</horstretch>
<verstretch>0</verstretch>
</sizepolicy>
</property>
<property name="frameShape">
<enum>QFrame::Shape::NoFrame</enum>
</property>
<property name="sizeAdjustPolicy">
<enum>QAbstractScrollArea::SizeAdjustPolicy::AdjustToContents</enum>
</property>
<property name="widgetResizable">
<bool>true</bool>
</property>
<widget class="QWidget" name="scrollAreaWidgetContents">
<layout class="QVBoxLayout" name="verticalLayout_7">
<property name="spacing">
<number>0</number>
</property>
<property name="leftMargin">
<number>0</number>
</property>
<property name="topMargin">
<number>0</number>
</property>
<property name="rightMargin">
<number>0</number>
</property>
<property name="bottomMargin">
<number>8</number>
</property>
<item>
<widget class="SectionContainer" name="sectionPreview">
<property name="title" stdset="0">
<string>Preview</string>
</property>
<widget class="QWidget" name="page_5">
<layout class="QVBoxLayout" name="verticalLayout_4">
<property name="spacing">
<number>0</number>
</property>
<property name="leftMargin">
<number>0</number>
</property>
<property name="topMargin">
<number>0</number>
</property>
<property name="rightMargin">
<number>0</number>
</property>
<property name="bottomMargin">
<number>0</number>
</property>
<item>
<widget class="PageSizePreview" name="pagePreview" native="true">
<property name="minimumSize">
<size>
<width>120</width>
<height>120</height>
</size>
</property>
</widget>
</item>
</layout>
</widget>
</widget>
</item>
<item>
<widget class="SectionContainer" name="sectionDocument">
<property name="title" stdset="0">
<string>Document</string>
</property>
<widget class="QWidget" name="page">
<layout class="QVBoxLayout" name="verticalLayout_6">
<property name="spacing">
<number>4</number>
</property>
<property name="leftMargin">
<number>8</number>
</property>
<property name="topMargin">
<number>8</number>
</property>
<property name="rightMargin">
<number>8</number>
</property>
<property name="bottomMargin">
<number>8</number>
</property>
<item>
<layout class="QGridLayout" name="gridLayout">
<item row="0" column="3">
<widget class="QComboBox" name="unitOfMeasureComboBox"/>
</item>
<item row="0" column="4">
<spacer name="horizontalSpacer_8">
<property name="orientation">
<enum>Qt::Orientation::Horizontal</enum>
</property>
<property name="sizeHint" stdset="0">
<size>
<width>0</width>
<height>0</height>
</size>
</property>
</spacer>
</item>
<item row="0" column="2">
<spacer name="horizontalSpacer_5">
<property name="orientation">
<enum>Qt::Orientation::Horizontal</enum>
</property>
<property name="sizeType">
<enum>QSizePolicy::Policy::Fixed</enum>
</property>
<property name="sizeHint" stdset="0">
<size>
<width>16</width>
<height>0</height>
</size>
</property>
</spacer>
</item>
<item row="1" column="1">
<widget class="ScrSpinBox" name="heightSpinBox"/>
</item>
<item row="0" column="1">
<widget class="ScrSpinBox" name="widthSpinBox"/>
</item>
<item row="1" column="0">
<widget class="QLabel" name="label_2">
<property name="text">
<string>&H:</string>
</property>
<property name="alignment">
<set>Qt::AlignmentFlag::AlignRight|Qt::AlignmentFlag::AlignTrailing|Qt::AlignmentFlag::AlignVCenter</set>
</property>
<property name="buddy">
<cstring>heightSpinBox</cstring>
</property>
</widget>
</item>
<item row="0" column="0">
<widget class="QLabel" name="label">
<property name="text">
<string>&W:</string>
</property>
<property name="alignment">
<set>Qt::AlignmentFlag::AlignRight|Qt::AlignmentFlag::AlignTrailing|Qt::AlignmentFlag::AlignVCenter</set>
</property>
<property name="buddy">
<cstring>widthSpinBox</cstring>
</property>
</widget>
</item>
</layout>
</item>
<item>
<layout class="QHBoxLayout" name="horizontalLayout_12" stretch="0,0,0,0,0,1">
<item>
<widget class="FormWidget" name="pageCountLabel">
<property name="sizePolicy">
<sizepolicy hsizetype="Preferred" vsizetype="Minimum">
<horstretch>0</horstretch>
<verstretch>0</verstretch>
</sizepolicy>
</property>
<property name="label" stdset="0">
<string>Pages</string>
</property>
<layout class="QHBoxLayout" name="horizontalLayout_2">
<property name="leftMargin">
<number>0</number>
</property>
<property name="topMargin">
<number>0</number>
</property>
<property name="rightMargin">
<number>0</number>
</property>
<property name="bottomMargin">
<number>0</number>
</property>
<item>
<widget class="QSpinBox" name="pageCountSpinBox"/>
</item>
</layout>
</widget>
</item>
<item>
<spacer name="horizontalSpacer_10">
<property name="orientation">
<enum>Qt::Orientation::Horizontal</enum>
</property>
<property name="sizeType">
<enum>QSizePolicy::Policy::Fixed</enum>
</property>
<property name="sizeHint" stdset="0">
<size>
<width>16</width>
<height>0</height>
</size>
</property>
</spacer>
</item>
<item>
<widget class="FormWidget" name="orientationLabel">
<property name="sizePolicy">
<sizepolicy hsizetype="Preferred" vsizetype="Minimum">
<horstretch>0</horstretch>
<verstretch>0</verstretch>
</sizepolicy>
</property>
<property name="label" stdset="0">
<string>Orientation</string>
</property>
<layout class="QHBoxLayout" name="horizontalLayout_4">
<property name="spacing">
<number>4</number>
</property>
<property name="leftMargin">
<number>0</number>
</property>
<property name="topMargin">
<number>0</number>
</property>
<property name="rightMargin">
<number>0</number>
</property>
<property name="bottomMargin">
<number>0</number>
</property>
<item>
<spacer name="horizontalSpacer_3">
<property name="orientation">
<enum>Qt::Orientation::Horizontal</enum>
</property>
<property name="sizeHint" stdset="0">
<size>
<width>0</width>
<height>0</height>
</size>
</property>
</spacer>
</item>
<item>
<widget class="QToolButton" name="buttonVertical">
<property name="text">
<string/>
</property>
<property name="checkable">
<bool>true</bool>
</property>
<property name="checked">
<bool>true</bool>
</property>
<property name="autoExclusive">
<bool>true</bool>
</property>
</widget>
</item>
<item>
<widget class="QToolButton" name="buttonHorizontal">
<property name="text">
<string/>
</property>
<property name="checkable">
<bool>true</bool>
</property>
<property name="autoExclusive">
<bool>true</bool>
</property>
</widget>
</item>
<item>
<spacer name="horizontalSpacer_9">
<property name="orientation">
<enum>Qt::Orientation::Horizontal</enum>
</property>
<property name="sizeHint" stdset="0">
<size>
<width>0</width>
<height>0</height>
</size>
</property>
</spacer>
</item>
</layout>
</widget>
</item>
<item>
<spacer name="horizontalSpacer_7">
<property name="orientation">
<enum>Qt::Orientation::Horizontal</enum>
</property>
<property name="sizeType">
<enum>QSizePolicy::Policy::Fixed</enum>
</property>
<property name="sizeHint" stdset="0">
<size>
<width>16</width>
<height>0</height>
</size>
</property>
</spacer>
</item>
<item>
<widget class="PageLayouts" name="pageLayouts" native="true">
<property name="minimumSize">
<size>
<width>24</width>
<height>0</height>
</size>
</property>
</widget>
</item>
<item>
<spacer name="horizontalSpacer_6">
<property name="orientation">
<enum>Qt::Orientation::Horizontal</enum>
</property>
<property name="sizeHint" stdset="0">
<size>
<width>0</width>
<height>0</height>
</size>
</property>
</spacer>
</item>
</layout>
</item>
</layout>
</widget>
</widget>
</item>
<item>
<widget class="SectionContainer" name="sectionMargins">
<property name="title" stdset="0">
<string>Margins</string>
</property>
<widget class="QWidget" name="page_2">
<layout class="QVBoxLayout" name="verticalLayout_8">
<property name="spacing">
<number>4</number>
</property>
<property name="leftMargin">
<number>8</number>
</property>
<property name="topMargin">
<number>8</number>
</property>
<property name="rightMargin">
<number>8</number>
</property>
<property name="bottomMargin">
<number>8</number>
</property>
<item>
<widget class="NewMarginWidget" name="marginGroup" native="true"/>
</item>
</layout>
</widget>
</widget>
</item>
<item>
<widget class="SectionContainer" name="sectionBleeds">
<property name="title" stdset="0">
<string>Bleeds</string>
</property>
<widget class="QWidget" name="page_3">
<layout class="QVBoxLayout" name="verticalLayout_9">
<property name="spacing">
<number>4</number>
</property>
<property name="leftMargin">
<number>8</number>
</property>
<property name="topMargin">
<number>8</number>
</property>
<property name="rightMargin">
<number>8</number>
</property>
<property name="bottomMargin">
<number>8</number>
</property>
<item>
<widget class="NewMarginWidget" name="bleedGroup" native="true"/>
</item>
</layout>
</widget>
</widget>
</item>
<item>
<widget class="SectionContainer" name="sectionTextFrame">
<property name="title" stdset="0">
<string>Text Frame</string>
</property>
<property name="isCollapsed">
<bool>false</bool>
</property>
<widget class="QWidget" name="page_4">
<layout class="QVBoxLayout" name="verticalLayout_10">
<property name="spacing">
<number>4</number>
</property>
<property name="leftMargin">
<number>8</number>
</property>
<property name="topMargin">
<number>8</number>
</property>
<property name="rightMargin">
<number>8</number>
</property>
<property name="bottomMargin">
<number>8</number>
</property>
<item>
<widget class="QCheckBox" name="autoTextFrame">
<property name="text">
<string>&Automatic Text Frame</string>
</property>
</widget>
</item>
<item>
<layout class="QHBoxLayout" name="horizontalLayout_3">
<item>
<widget class="FormWidget" name="labelColumns">
<property name="sizePolicy">
<sizepolicy hsizetype="Preferred" vsizetype="Minimum">
<horstretch>0</horstretch>
<verstretch>0</verstretch>
</sizepolicy>
</property>
<property name="label" stdset="0">
<string>Columns</string>
</property>
<layout class="QHBoxLayout" name="horizontalLayout_5">
<property name="leftMargin">
<number>0</number>
</property>
<property name="topMargin">
<number>0</number>
</property>
<property name="rightMargin">
<number>0</number>
</property>
<property name="bottomMargin">
<number>0</number>
</property>
<item>
<widget class="QSpinBox" name="numberOfCols"/>
</item>
</layout>
</widget>
</item>
<item>
<widget class="FormWidget" name="labelGap">
<property name="sizePolicy">
<sizepolicy hsizetype="Preferred" vsizetype="Minimum">
<horstretch>0</horstretch>
<verstretch>0</verstretch>
</sizepolicy>
</property>
<property name="label" stdset="0">
<string>Gap</string>
</property>
<layout class="QHBoxLayout" name="horizontalLayout_6">
<property name="leftMargin">
<number>0</number>
</property>
<property name="topMargin">
<number>0</number>
</property>
<property name="rightMargin">
<number>0</number>
</property>
<property name="bottomMargin">
<number>0</number>
</property>
<item>
<widget class="ScrSpinBox" name="Distance"/>
</item>
</layout>
</widget>
</item>
<item>
<spacer name="horizontalSpacer">
<property name="orientation">
<enum>Qt::Orientation::Horizontal</enum>
</property>
<property name="sizeHint" stdset="0">
<size>
<width>0</width>
<height>0</height>
</size>
</property>
</spacer>
</item>
</layout>
</item>
</layout>
</widget>
</widget>
</item>
<item>
<spacer name="verticalSpacer_2">
<property name="orientation">
<enum>Qt::Orientation::Vertical</enum>
</property>
<property name="sizeType">
<enum>QSizePolicy::Policy::Fixed</enum>
</property>
<property name="sizeHint" stdset="0">
<size>
<width>0</width>
<height>16</height>
</size>
</property>
</spacer>
</item>
<item>
<layout class="QHBoxLayout" name="horizontalLayout_15">
<property name="leftMargin">
<number>8</number>
</property>
<property name="rightMargin">
<number>8</number>
</property>
<item>
<widget class="QCheckBox" name="startDocSetup">
<property name="text">
<string>Show Document Settings After Creation</string>
</property>
</widget>
</item>
</layout>
</item>
<item>
<spacer name="spacerBottom">
<property name="orientation">
<enum>Qt::Orientation::Vertical</enum>
</property>
<property name="sizeHint" stdset="0">
<size>
<width>0</width>
<height>0</height>
</size>
</property>
</spacer>
</item>
</layout>
</widget>
</widget>
</item>
</layout>
</widget>
<widget class="QWidget" name="tab_2">
<attribute name="title">
<string>New from Template</string>
</attribute>
<layout class="QVBoxLayout" name="verticalLayout_2">
<property name="spacing">
<number>4</number>
</property>
<property name="leftMargin">
<number>8</number>
</property>
<property name="topMargin">
<number>8</number>
</property>
<property name="rightMargin">
<number>8</number>
</property>
<property name="bottomMargin">
<number>8</number>
</property>
<item>
<widget class="nftwidget" name="nftGui" native="true"/>
</item>
</layout>
</widget>
<widget class="QWidget" name="tab_3">
<attribute name="title">
<string>Open Existing Document</string>
</attribute>
</widget>
<widget class="QWidget" name="tab_4">
<attribute name="title">
<string>Open Recent Document</string>
</attribute>
<layout class="QVBoxLayout" name="verticalLayout_3">
<property name="spacing">
<number>4</number>
</property>
<property name="leftMargin">
<number>8</number>
</property>
<property name="topMargin">
<number>8</number>
</property>
<property name="rightMargin">
<number>8</number>
</property>
<property name="bottomMargin">
<number>8</number>
</property>
<item>
<widget class="QListWidget" name="recentDocListBox"/>
</item>
</layout>
</widget>
</widget>
</item>
<item>
<layout class="QHBoxLayout" name="horizontalLayout">
<property name="spacing">
<number>4</number>
</property>
<property name="leftMargin">
<number>8</number>
</property>
<item>
<widget class="QCheckBox" name="startUpDialog">
<property name="text">
<string>Do not show this dialog again</string>
</property>
</widget>
</item>
<item>
<widget class="QDialogButtonBox" name="buttonBox">
<property name="orientation">
<enum>Qt::Orientation::Horizontal</enum>
</property>
<property name="standardButtons">
<set>QDialogButtonBox::StandardButton::Cancel|QDialogButtonBox::StandardButton::Ok</set>
</property>
</widget>
</item>
</layout>
</item>
</layout>
</widget>
<customwidgets>
<customwidget>
<class>FormWidget</class>
<extends>QWidget</extends>
<header>ui/widgets/form_widget.h</header>
<container>1</container>
</customwidget>
<customwidget>
<class>SectionContainer</class>
<extends>QWidget</extends>
<header>ui/widgets/section_container.h</header>
<addpagemethod>setWidget</addpagemethod>
<container>1</container>
</customwidget>
<customwidget>
<class>ScrSpinBox</class>
<extends>QDoubleSpinBox</extends>
<header location="global">ui/scrspinbox.h</header>
</customwidget>
<customwidget>
<class>NewMarginWidget</class>
<extends>QWidget</extends>
<header>ui/newmarginwidget.h</header>
<container>1</container>
</customwidget>
<customwidget>
<class>PageLayouts</class>
<extends>QWidget</extends>
<header location="global">ui/widgets/pagelayout.h</header>
<container>1</container>
</customwidget>
<customwidget>
<class>PageSizeList</class>
<extends>QListWidget</extends>
<header>ui/widgets/pagesizelist.h</header>
</customwidget>
<customwidget>
<class>nftwidget</class>
<extends>QWidget</extends>
<header>ui/nftwidget.h</header>
<container>1</container>
</customwidget>
<customwidget>
<class>PageSizePreview</class>
<extends>QWidget</extends>
<header>ui/widgets/pagesizepreview.h</header>
<container>1</container>
</customwidget>
<customwidget>
<class>PageSizeSelector</class>
<extends>QWidget</extends>
<header>ui/widgets/pagesizeselector.h</header>
<container>1</container>
</customwidget>
</customwidgets>
<tabstops>
<tabstop>tabWidget</tabstop>
<tabstop>comboSortSizes</tabstop>
<tabstop>listPageFormats</tabstop>
<tabstop>scrollArea</tabstop>
<tabstop>widthSpinBox</tabstop>
<tabstop>unitOfMeasureComboBox</tabstop>
<tabstop>heightSpinBox</tabstop>
<tabstop>pageCountSpinBox</tabstop>
<tabstop>buttonVertical</tabstop>
<tabstop>buttonHorizontal</tabstop>
<tabstop>autoTextFrame</tabstop>
<tabstop>numberOfCols</tabstop>
<tabstop>Distance</tabstop>
<tabstop>startDocSetup</tabstop>
<tabstop>startUpDialog</tabstop>
<tabstop>recentDocListBox</tabstop>
</tabstops>
<resources/>
<connections>
<connection>
<sender>buttonBox</sender>
<signal>accepted()</signal>
<receiver>newDocDialog</receiver>
<slot>accept()</slot>
<hints>
<hint type="sourcelabel">
<x>248</x>
<y>254</y>
</hint>
<hint type="destinationlabel">
<x>157</x>
<y>274</y>
</hint>
</hints>
</connection>
<connection>
<sender>buttonBox</sender>
<signal>rejected()</signal>
<receiver>newDocDialog</receiver>
<slot>reject()</slot>
<hints>
<hint type="sourcelabel">
<x>316</x>
<y>260</y>
</hint>
<hint type="destinationlabel">
<x>286</x>
<y>274</y>
</hint>
</hints>
</connection>
</connections>
</ui>
|
|
|
>> while its default size is fine, the dialog should resizable and the new size be stored in the settings. I missed that. Now, the new document dialog based on ScDialog class, that handle the geometry saving and restoring and checks if the dialog fit in the screen. Because of that, I removed my custom implementation for resizing. Please use this patch + the ui file from previous post. newdocdialog_2024-11-20_02.patch (5,358 bytes)
Index: scribus/ui/newdocdialog.cpp
===================================================================
--- scribus/ui/newdocdialog.cpp (Revision 26436)
+++ scribus/ui/newdocdialog.cpp (Arbeitskopie)
@@ -47,27 +47,23 @@
#include "ui/widgets/pagesizelist.h"
-NewDocDialog::NewDocDialog(QWidget* parent, const QStringList& recentDocs, bool startUp, const QString& lang) : QDialog(parent),
+NewDocDialog::NewDocDialog(QWidget* parent, const QStringList& recentDocs, bool startUp, const QString& lang) : ScDialog(parent, "NewDocumentWindow"),
prefsManager(PrefsManager::instance()),
m_onStartup(startUp)
{
setupUi(this);
- windowFitInScreen();
+ IconManager &iconManager = IconManager::instance();
- setObjectName(QString::fromLocal8Bit("NewDocumentWindow"));
setModal(true);
+ setWindowTitle( tr( "New Document" ) );
- IconManager &iconManager = IconManager::instance();
-
+ m_labelVisibity = !prefsManager.appPrefs.uiPrefs.hideLabels;
m_unitIndex = prefsManager.appPrefs.docSetupPrefs.docUnitIndex;
m_unitRatio = unitGetRatioFromIndex(m_unitIndex);
m_unitSuffix = unitGetSuffixFromIndex(m_unitIndex);
m_orientation = prefsManager.appPrefs.docSetupPrefs.pageOrientation;
- setWindowTitle( tr( "New Document" ) );
- setWindowIcon(iconManager.loadIcon("AppIcon.png"));
-
buttonVertical->setIcon(iconManager.loadIcon("page-orientation-vertical"));
buttonHorizontal->setIcon(iconManager.loadIcon("page-orientation-horizontal"));
labelColumns->setPixmap(iconManager.loadPixmap("paragraph-columns"));
@@ -191,6 +187,9 @@
pageCountSpinBox->setMaximum( 10000 );
pageCountSpinBox->setMinimum( 1 );
+ IconManager &iconManager = IconManager::instance();
+ pageCountLabel->setPixmap(iconManager.loadPixmap("panel-page"));
+
pageLayouts->updateSchemeSelector(prefsManager.appPrefs.pageSets, prefsManager.appPrefs.pageSets[pagePositioning].FirstPage);
setDocLayout(pagePositioning);
@@ -234,12 +233,16 @@
sectionTextFrame->setCanSaveState(true);
sectionTextFrame->restorePreferences();
- // We have to calculate the width of the properties panel manually,
- // because QSizePolicy::Minimum doesn't work as expected
+ labelColumns->setLabelVisibility(m_labelVisibity);
+ labelGap->setLabelVisibility(m_labelVisibity);
+ pageCountLabel->setLabelVisibility(m_labelVisibity);
+ orientationLabel->setLabelVisibility(m_labelVisibity);
+ pageLayouts->toggleLabelVisibility(m_labelVisibity);
+
+ // We have to install an event filter to resize the scroll container width based on the content width.
+ // The content width can change after we calculated the initial ui layout.
+ scrollAreaWidgetContents->installEventFilter(this);
scrollAreaWidgetContents->adjustSize();
- //scrollAreaWidgetContents->setFixedWidth(scrollAreaWidgetContents->width());
- scrollArea->setWidgetResizable(true);
- scrollArea->setFixedWidth(scrollAreaWidgetContents->width() + qApp->style()->pixelMetric(QStyle::PM_ScrollBarExtent));
}
@@ -330,6 +333,7 @@
QSignalBlocker sigFormats(listPageFormats);
listPageFormats->setOrientation(m_orientation);
}
+
}
void NewDocDialog::setHeight(double)
@@ -384,25 +388,15 @@
listPageFormats->setSortMode(static_cast<PageSizeList::SortMode>(comboSortSizes->currentData().toInt()));
}
-void NewDocDialog::windowFitInScreen()
+bool NewDocDialog::eventFilter(QObject *object, QEvent *event)
{
- QScreen* activeScreen = nullptr;
- QWidget* widget = this;
-
- while (widget)
+ if (object->objectName() == "scrollAreaWidgetContents" && event->type() == QEvent::Resize)
{
- activeScreen = widget->screen();
- if (activeScreen != nullptr)
- break;
- widget = widget->parentWidget();
+ int currentWidth = scrollArea->minimumWidth();
+ scrollArea->setMinimumWidth(qMax(scrollAreaWidgetContents->sizeHint().width() + qApp->style()->pixelMetric(QStyle::PM_ScrollBarExtent), currentWidth));
+ return true;
}
-
- if (activeScreen)
- {
- int w = qMin(width(), activeScreen->availableSize().width());
- int h = qMin(height(), activeScreen->availableSize().height());
- resize(w, h);
- }
+ return false;
}
void NewDocDialog::handleAutoFrame()
@@ -439,6 +433,8 @@
bleedGroup->setPageWidth(m_pageWidth);
connect(widthSpinBox, SIGNAL(valueChanged(double)), this, SLOT(setWidth(double)));
connect(heightSpinBox, SIGNAL(valueChanged(double)), this, SLOT(setHeight(double)));
+
+
}
void NewDocDialog::ExitOK()
@@ -523,6 +519,7 @@
marginGroup->setPageSize(size);
bleedGroup->setPageSize(size);
+
}
void NewDocDialog::setSize(const QString& gr)
Index: scribus/ui/newdocdialog.h
===================================================================
--- scribus/ui/newdocdialog.h (Revision 26436)
+++ scribus/ui/newdocdialog.h (Arbeitskopie)
@@ -29,6 +29,7 @@
class QPushButton;
class QSpinBox;
+#include "scdialog.h"
#include "scribusapi.h"
#include "scribusstructs.h"
#include "ui/customfdialog.h"
@@ -40,7 +41,7 @@
class PrefsManager;
class ScrSpinBox;
-class SCRIBUS_API NewDocDialog : public QDialog, public Ui::newDocDialog
+class SCRIBUS_API NewDocDialog : public ScDialog, public Ui::newDocDialog
{
Q_OBJECT
@@ -137,8 +138,9 @@
double m_bleedTop { 0.0 };
double m_bleedLeft { 0.0 };
double m_bleedRight { 0.0 };
+ bool m_labelVisibity {true};
- void windowFitInScreen();
+ bool eventFilter(QObject *object, QEvent *event);
};
#endif // NEWDOC_H
|
|
|
Committed these changes. Does this resolve the bug now? |
|
|
You mean the horizontal scrollbar? Yes. |
|
|
When the dialog opens, I get a resize action occurring within it between the two sides that's visible. Can that be avoided? |
|
|
I can't see any resize action when opening the dialog, neither on Linux nor on Mac. See screencast. |
|
|
I see it only when opening Scribus for the first time. Subsequent opening of the new doc dialog does not do it. |
|
|
I tried the following things but I can't reproduce it on Mac* (Qt 6.7.0) and Linux (Qt 6.8.0). - Build clean up - Fresh start without prefs file - Fresh start with prefs file *) 16" screen, MacOS 15.1 |
|
|
@cbradney I guess we close this one too, or is the problem you encountered still reproducible? |
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2024-11-07 15:21 | ale | New Issue | |
| 2024-11-07 15:21 | ale | File Added: new-document.png | |
| 2024-11-07 15:52 | ale | Note Added: 0051537 | |
| 2024-11-07 15:53 | ale | Note Added: 0051538 | |
| 2024-11-07 15:53 | ale | File Added: new-document-compact.png | |
| 2024-11-07 15:54 | ale | Note Edited: 0051538 | |
| 2024-11-07 15:55 | ale | Note Edited: 0051538 | |
| 2024-11-20 19:09 | nitramr | Note Added: 0051609 | |
| 2024-11-20 19:09 | nitramr | File Added: newdocdialog_2024-11-20_01.patch | |
| 2024-11-20 19:09 | nitramr | File Added: newdocdialog.ui | |
| 2024-11-20 19:09 | nitramr | File Added: new_doc_dialog.png | |
| 2024-11-20 19:09 | nitramr | Patch | No => Yes |
| 2024-11-20 19:10 | nitramr | Note Edited: 0051609 | |
| 2024-11-20 19:12 | nitramr | Assigned To | => nitramr |
| 2024-11-20 19:12 | nitramr | Status | new => assigned |
| 2024-11-20 19:12 | nitramr | Target Version | => 1.7.0 |
| 2024-11-20 19:43 | nitramr | Note Added: 0051612 | |
| 2024-11-20 19:43 | nitramr | File Added: newdocdialog_2024-11-20_02.patch | |
| 2024-11-20 20:40 | cbradney | Note Added: 0051614 | |
| 2024-11-20 21:11 | nitramr | Note Added: 0051616 | |
| 2024-11-20 21:39 | cbradney | Note Added: 0051617 | |
| 2024-11-20 21:40 | cbradney | Note Edited: 0051617 | |
| 2024-11-20 22:13 | nitramr | Note Added: 0051618 | |
| 2024-11-20 22:13 | nitramr | File Added: 2024-11-20 23-06-53.mov | |
| 2024-11-21 06:06 | cbradney | Note Added: 0051620 | |
| 2024-11-21 11:47 | nitramr | Note Added: 0051622 | |
| 2024-11-21 11:49 | nitramr | Note Edited: 0051622 | |
| 2024-12-27 11:35 | nitramr | Note Added: 0051796 | |
| 2024-12-27 12:15 | cbradney | Status | assigned => resolved |
| 2024-12-27 12:15 | cbradney | Resolution | open => fixed |
| 2024-12-27 12:15 | cbradney | Fixed in Version | => 1.7.0.svn |
| 2024-12-27 22:44 | cbradney | Status | resolved => closed |
